Ferrari Portofino M Europe - TIMING SYSTEM DRIVE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
881734 COMPL. VALVE TIMING SYSTEM $1,236.80 To Order
881734 COMPL. VALVE TIMING SYSTEM $1,236.80 To Order
Photo Part No Description Price (each) Stock
317852 CHAIN $214.54 To Order
317852 CHAIN $214.54 To Order
Photo Part No Description Price (each) Stock
271880 CHAIN $131.07 To Order
271880 CHAIN $131.07 To Order
Photo Part No Description Price (each) Stock
271871 CHAIN $252.39 To Order
271871 CHAIN $252.39 To Order
Photo Part No Description Price (each) Stock
163759 WASHER $13.41 To Order
163759 WASHER $13.41 To Order
Photo Part No Description Price (each) Stock
14302821 SCREW $0.18 To Order
14302821 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
318677 SHOE $95.90 To Order
318677 SHOE $95.90 To Order
Photo Part No Description Price (each) Stock
288341 WASHER $2.60 To Order
288341 WASHER $2.60 To Order
Photo Part No Description Price (each) Stock
175303 BUSH $32.80 To Order
175303 BUSH $32.80 To Order
Photo Part No Description Price (each) Stock
284900 WASHER $0.15 To Order
284900 WASHER $0.15 To Order
Photo Part No Description Price (each) Stock
14306421 SCREW $0.29 To Order
14306421 SCREW $0.29 To Order
Photo Part No Description Price (each) Stock
807535 HYDRAULIC CHAIN TENSIONER $149.15 To Order
807535 HYDRAULIC CHAIN TENSIONER $149.15 To Order
Photo Part No Description Price (each) Stock
282398 SCREW $0.46 To Order
282398 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
306440 GASKET $1.93 To Order
306440 GASKET $1.93 To Order
Photo Part No Description Price (each) Stock
322518 GASKET $7.06 To Order
322518 GASKET $7.06 To Order
Photo Part No Description Price (each) Stock
284898 SCREW $2.86 To Order
284898 SCREW $2.86 To Order
Photo Part No Description Price (each) Stock
304699 SHOULDER $34.06 To Order
304699 SHOULDER $34.06 To Order
Photo Part No Description Price (each) Stock
267808 ROLLER BEARING CAGE $13.10 To Order
267808 ROLLER BEARING CAGE $13.10 To Order
Photo Part No Description Price (each) Stock
322199 TIMING SYSTEM IDLER GEAR MOUNT $201.91 To Order
322199 TIMING SYSTEM IDLER GEAR MOUNT $201.91 To Order
Photo Part No Description Price (each) Stock
154191 GASKET $1.31 IN STOCK
154191 GASKET $1.31 IN STOCK
Photo Part No Description Price (each) Stock
306094 FIXED SHOE $65.19 IN STOCK
306094 FIXED SHOE $65.19 IN STOCK
Photo Part No Description Price (each) Stock
282396 SCREW $0.53 To Order
282396 SCREW $0.53 To Order
Photo Part No Description Price (each) Stock
276463 COMPL. MOUNT $36.59 To Order
276463 COMPL. MOUNT $36.59 To Order
Photo Part No Description Price (each) Stock
272014 SHOE $63.09 IN STOCK
272014 SHOE $63.09 IN STOCK
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
282393 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
276462 SHOE $95.90 To Order
276462 SHOE $95.90 To Order
Photo Part No Description Price (each) Stock
282397 SCREW $0.46 To Order
282397 SCREW $0.46 To Order
Photo Part No Description Price (each) Stock
257626 SHOE $88.32 To Order
257626 SHOE $88.32 To Order
Photo Part No Description Price (each) Stock
271856 MOBILE SHOE MOUNT $63.09 To Order
271856 MOBILE SHOE MOUNT $63.09 To Order
Photo Part No Description Price (each) Stock
287000 DRIVE GEAR $479.56 To Order
287000 DRIVE GEAR $479.56 To Order
Photo Part No Description Price (each) Stock
286222 CRANKSHAFT GEAR $365.98 To Order
286222 CRANKSHAFT GEAR $365.98 To Order
Photo Part No Description Price (each) Stock
245914 SCREW $0.35 To Order
245914 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
286225 PUMP DRIVE GEAR $201.91 To Order
286225 PUMP DRIVE GEAR $201.91 To Order
Photo Part No Description Price (each) Stock
284899 SCREW $3.53 To Order
284899 SCREW $3.53 To Order
Photo Part No Description Price (each) Stock
307544 SHOE $69.40 To Order
307544 SHOE $69.40 To Order
View All

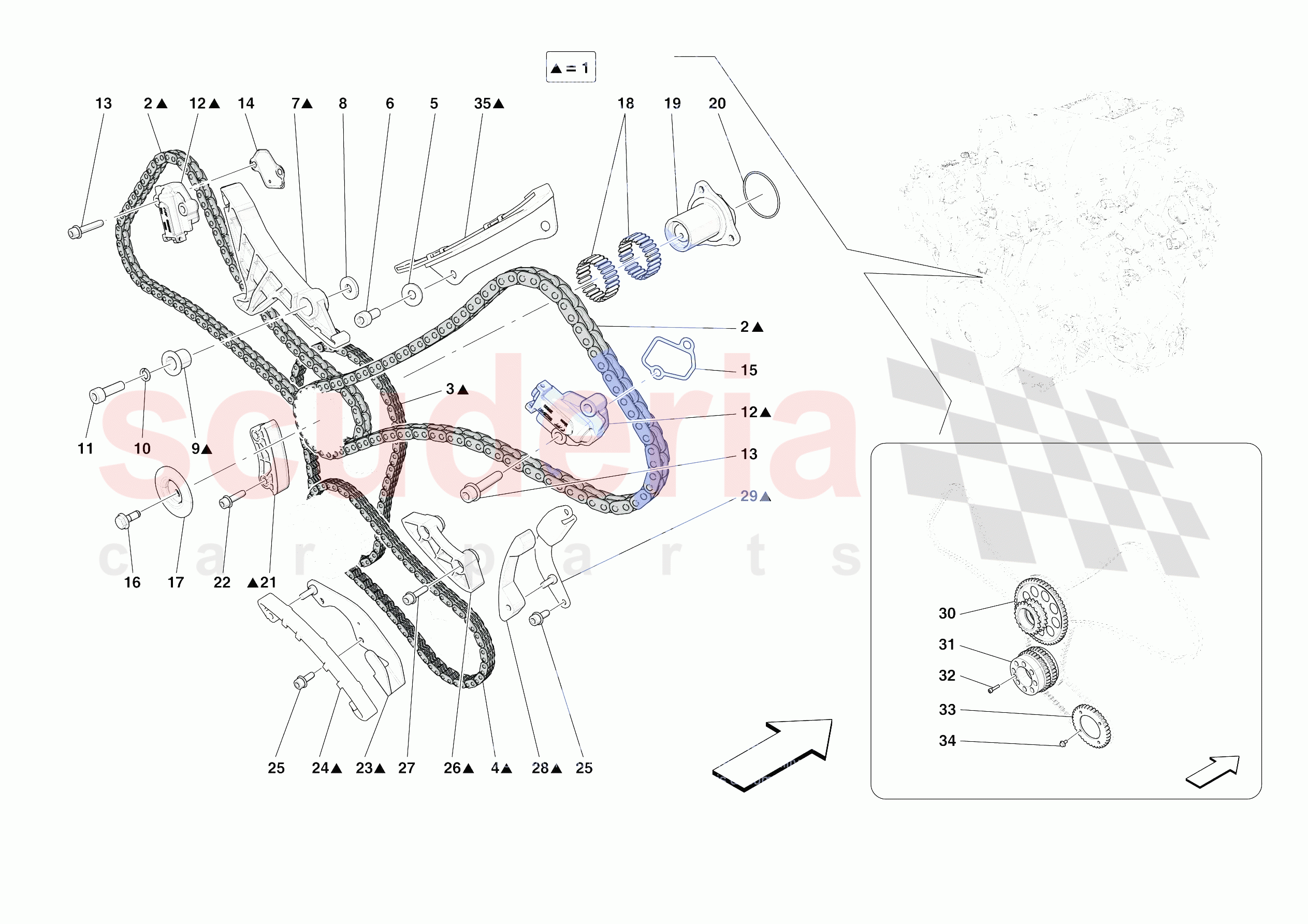

TIMING SYSTEM DRIVE of Ferrari Ferrari Portofino M Europe Diagram Tap to enlarge
