Name: FRONT DOOR SUBSTRUCTURE
Rating: 4.1 (1 reviews)

View All

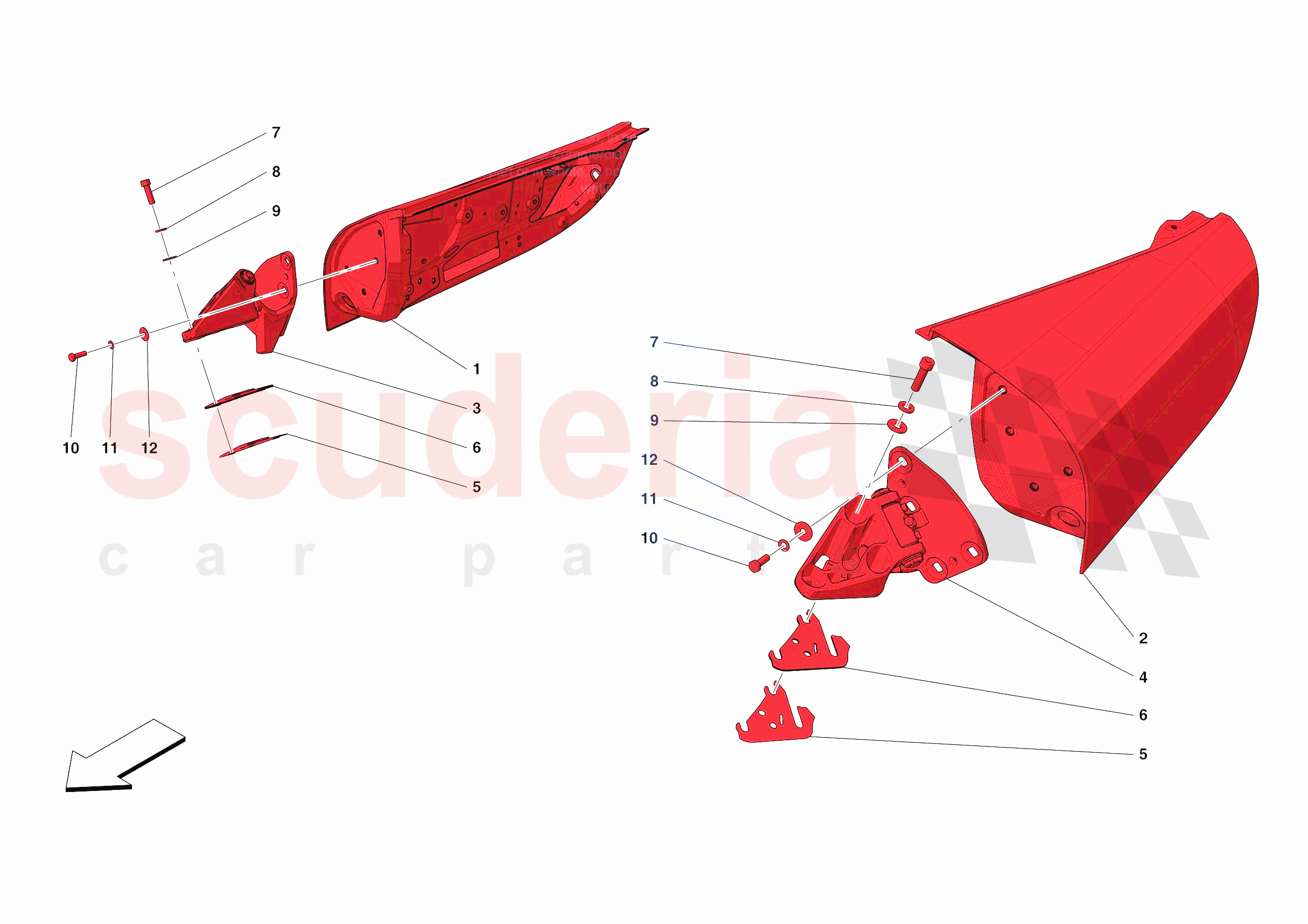

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985881730	RH FRONT DOOR	$54,821.63	To Order

Photo	Part No	Description	Price (each)	Stock
	985881688	LH FRONT DOOR	$54,821.63	To Order

Photo	Part No	Description	Price (each)	Stock
	867575	COMPL. RH DOOR HINGE	$3,935.71	To Order

Photo	Part No	Description	Price (each)	Stock
	867574	COMPL. LH DOOR HINGE	$3,935.71	To Order

Photo	Part No	Description	Price (each)	Stock
	85849200	PLATE	$13.76	To Order

Photo	Part No	Description	Price (each)	Stock
	85429700	PLATE	$25.34	To Order

Photo	Part No	Description	Price (each)	Stock
	296945	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	308667	WASHER	$11.90	To Order

Photo	Part No	Description	Price (each)	Stock
	296763	WASHER	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	893581	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	894634	WASHER	$0.38	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985881730	RH FRONT DOOR	985881730 RH FRONT DOOR	$54,821.63	1
0002	985881688	LH FRONT DOOR	985881688 LH FRONT DOOR	$54,821.63	1
0003	867575	COMPL. RH DOOR HINGE	867575 COMPL. RH DOOR HINGE	$3,935.71	1
0004	867574	COMPL. LH DOOR HINGE	867574 COMPL. LH DOOR HINGE	$3,935.71	1
0005	85849200	PLATE	85849200 PLATE Th. 0.50 mm	$13.76	4
0006	85429700	PLATE	85429700 PLATE Th. 1 mm	$25.34	4
0007	296945	SCREW	296945 SCREW	$1.94	6
0008	308667	WASHER	308667 WASHER	$11.90	6
0009	296763	WASHER	296763 WASHER	$1.01	6
0010	893581	SCREW	893581 SCREW M8 X 25	$0.67	8
0011	894634	WASHER	894634 WASHER	$0.38	8
0012	952842	WASHER	952842 WASHER	$0.41	8
0012	952842	WASHER	952842 WASHER	$0.41	8

Front Door Substructure

Ferrari Monza SPA2 Europe
