Intake Manifold

Ferrari LaFerrari Aperta

Find Your Part

Ferrari LaFerrari Aperta - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
307033 INTAKE MANIFOLD $11,827.66 To Order
Photo Part No Description Price (each) Stock
275578 GASKET $79.50 To Order
Photo Part No Description Price (each) Stock
300585 COMPL. INTAKE PLENUM IN CARBON $40,023.43 To Order
317066 COMPL. INTAKE PLENUM IN CARBON $37,914.66 To Order
Photo Part No Description Price (each) Stock
303147 3-WAY CONNECTOR $165.23 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
216292 GASKET $3.80 IN STOCK
Photo Part No Description Price (each) Stock
305712 SCREW $36.85 To Order
Photo Part No Description Price (each) Stock
316503 GASKET $19.68 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14305474 SCREW $0.17 To Order
Photo Part No Description Price (each) Stock
285191 COMPL. BRACKET $12.69 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.53 To Order
Photo Part No Description Price (each) Stock
300414 LH SLEEVE $228.79 To Order
Photo Part No Description Price (each) Stock
312172 ADHESIVE FOAM $24.13 To Order
Photo Part No Description Price (each) Stock
299274 COMPL. BRACKET $80.06 To Order
Photo Part No Description Price (each) Stock
248674 CLIP $1.70 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.22 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
299276 COMPL. BRACKET $80.06 To Order
Photo Part No Description Price (each) Stock
248674 CLIP $1.70 To Order
Photo Part No Description Price (each) Stock
198273 CLIP $1.53 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
305730 COMPL. BRACKET $25.40 To Order
Photo Part No Description Price (each) Stock
259653 GROMMET $2.12 To Order
Photo Part No Description Price (each) Stock
264681 SHIM $3.48 To Order
Photo Part No Description Price (each) Stock
300413 RH SLEEVE $228.79 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14058421 NUT $1.23 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
219786 THREADED PLUG $14.41 To Order
128016 CONNECTOR $10.58 To Order
Photo Part No Description Price (each) Stock
174818 CONNECTOR $16.51 To Order
Photo Part No Description Price (each) Stock
303381 AIR FLOW METER BODY $47.01 To Order
Photo Part No Description Price (each) Stock
297280 AIR FLOW SENSOR $143.42 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
317212 MOTORISED THROTTLE BODY $1,220.25 To Order
Photo Part No Description Price (each) Stock
316680 SPACER $152.51 To Order
Photo Part No Description Price (each) Stock
268661 SCREW COLLAR $3.56 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
268661 SCREW COLLAR $3.56 IN STOCK
Photo Part No Description Price (each) Stock
285191 COMPL. BRACKET $12.69 To Order
Photo Part No Description Price (each) Stock
299274 COMPL. BRACKET $80.06 To Order
Photo Part No Description Price (each) Stock
299276 COMPL. BRACKET $80.06 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
272580 INTAKE DUCT BRANCH $1,293.97 To Order
Photo Part No Description Price (each) Stock
318711 INTAKE TRUMPET BODY $11,394.21 To Order
Photo Part No Description Price (each) Stock
272584 INTAKE TRUMPET GUIDE ROD $256.24 To Order
Photo Part No Description Price (each) Stock
273084 ENDSTOP BUSH $117.44 To Order
Photo Part No Description Price (each) Stock
277190 ALIGNMENT DOWEL $4.49 To Order
Photo Part No Description Price (each) Stock
243207 CONNECTOR $20.33 To Order
Photo Part No Description Price (each) Stock
243208 CONNECTOR $24.13 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
123475 GASKET $3.85 IN STOCK
Photo Part No Description Price (each) Stock
307270 INTAKE TRUMPET ACTUATOR ROD $1,751.45 To Order
Photo Part No Description Price (each) Stock
274418 BEARING $25.40 To Order
Photo Part No Description Price (each) Stock
273129 WASHER $53.38 To Order
Photo Part No Description Price (each) Stock
274419 SPRING $16.51 To Order
Photo Part No Description Price (each) Stock
273089 SPRING COVER CUP $55.51 To Order
Photo Part No Description Price (each) Stock
11065874 SEEGER RING $1.27 To Order
Photo Part No Description Price (each) Stock
309282 INTAKE TRUMPET LIFT ACTUATOR $3,005.90 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
298430 GROMMET $12.57 To Order
Photo Part No Description Price (each) Stock
298429 SPACER $3.22 To Order
Photo Part No Description Price (each) Stock
303988 REAR CONNECTOR BRACKET $25.40 To Order
Photo Part No Description Price (each) Stock
286172 SCREW $17.78 To Order
Photo Part No Description Price (each) Stock
13550221 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
306312 BRAKE SERVO PIPE MOUNTING BRACKET $21.60 To Order
Photo Part No Description Price (each) Stock
298678 FLEXIBLE JOINT $1,131.27 To Order
Photo Part No Description Price (each) Stock
299302 THREADED CONNECTOR $28.82 To Order
Photo Part No Description Price (each) Stock
284824 GASKET $21.03 To Order
Photo Part No Description Price (each) Stock
249878 BRACKET $6.59 To Order
Photo Part No Description Price (each) Stock
275650 PLENUM CHROME BADGE $228.79 To Order
View All

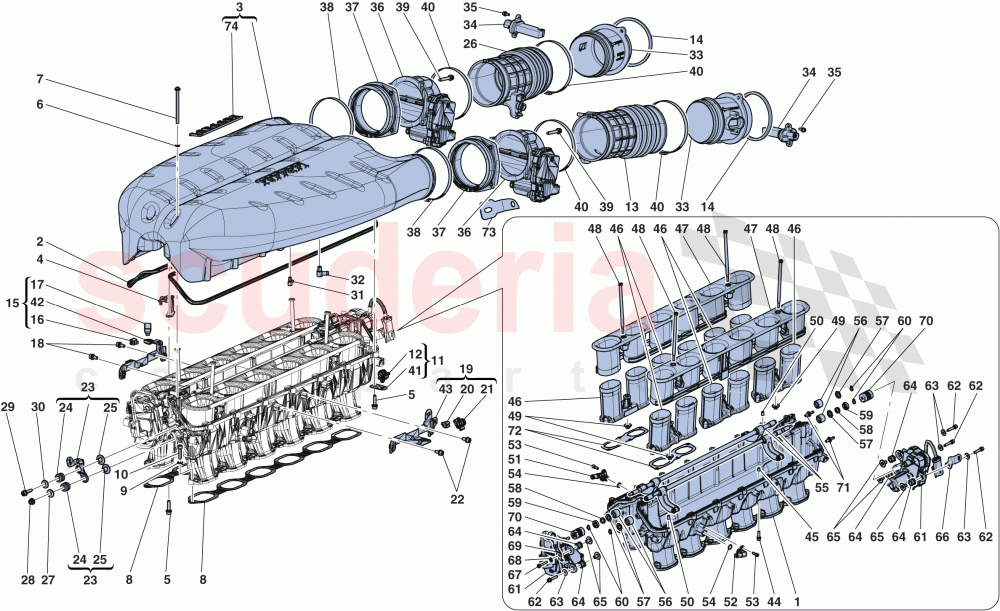

INTAKE MANIFOLD of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 307033
INTAKE MANIFOLD 		$11,827.66 1
2 275578
GASKET 		$79.50 1
3 300585
COMPL. INTAKE PLENUM IN CARBON
Gloss carbon 		$40,023.43 1
3 317066
COMPL. INTAKE PLENUM IN CARBON
Matte Carbon 		$37,914.66 1
4 303147
3-WAY CONNECTOR
Not for USA, CDN, USA LIGHT 		$165.23 1
5 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 14
6 216292
GASKET
IN STOCK 		$3.80 7
7 305712
SCREW 		$36.85 7
8 316503
GASKET 		$19.68 2
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 24
10 14305474
SCREW 		$0.17 24
11 285191
COMPL. BRACKET 		$12.69 1
12 198273
CLIP 		$1.53 1
13 300414
LH SLEEVE 		$228.79 1
14 312172
ADHESIVE FOAM 		$24.13 2
15 299274
COMPL. BRACKET 		$80.06 1
16 248674
CLIP 		$1.70 1
17 198253
CLIP 		$3.22 (16.4% off) 1
18 248334
SCREW
IN STOCK 		$0.58 2
19 299276
COMPL. BRACKET 		$80.06 1
20 248674
CLIP 		$1.70 1
21 198273
CLIP 		$1.53 1
22 248334
SCREW
IN STOCK 		$0.58 2
23 305730
COMPL. BRACKET 		$25.40 1
24 259653
GROMMET 		$2.12 2
25 264681
SHIM 		$3.48 2
26 300413
RH SLEEVE 		$228.79 1
27 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
28 14058421
NUT
IN STOCK 		$1.23 1
29 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 1
30 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
31 219786
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$14.41 2
31 128016
CONNECTOR
Not for USA, CDN, USA LIGHT 		$10.58 2
32 174818
CONNECTOR 		$16.51 2
33 303381
AIR FLOW METER BODY 		$47.01 2
34 297280
AIR FLOW SENSOR
IN STOCK 		$143.42 2
35 11566224
SCREW
M5 X 14
IN STOCK 		$0.34 4
36 317212
MOTORISED THROTTLE BODY 		$1,220.25 2
37 316680
SPACER 		$152.51 2
38 268661
SCREW COLLAR
IN STOCK 		$3.56 2
39 231625
SCREW
M6 X 40
IN STOCK 		$0.57 8
40 268661
SCREW COLLAR
IN STOCK 		$3.56 4
41 285191
COMPL. BRACKET
After depletion, order compl.; Applicable until depletion 		$12.69 1
42 299274
COMPL. BRACKET
After depletion, order compl.; Applicable until depletion 		$80.06 1
43 299276
COMPL. BRACKET
After depletion, order compl.; Applicable until depletion 		$80.06 1
44 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 24
45 102725
CENTERING DOWEL 		$1.01 (55.1% off) 12
46 272580
INTAKE DUCT BRANCH 		$1,293.97 6
47 318711
INTAKE TRUMPET BODY 		$11,394.21 2
48 272584
INTAKE TRUMPET GUIDE ROD 		$256.24 4
49 273084
ENDSTOP BUSH 		$117.44 4
50 277190
ALIGNMENT DOWEL 		$4.49 2
51 243207
CONNECTOR 		$20.33 1
52 243208
CONNECTOR 		$24.13 1
53 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
54 123475
GASKET
IN STOCK 		$3.85 (7.9% off) 2
55 307270
INTAKE TRUMPET ACTUATOR ROD 		$1,751.45 2
56 274418
BEARING 		$25.40 4
57 273129
WASHER 		$53.38 4
58 274419
SPRING 		$16.51 2
59 273089
SPRING COVER CUP 		$55.51 2
60 11065874
SEEGER RING 		$1.27 4
61 309282
INTAKE TRUMPET LIFT ACTUATOR 		$3,005.90 2
62 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 5
63 12643724
WASHER
IN STOCK 		$0.06 (88% off) 5
64 298430
GROMMET 		$12.57 6
65 298429
SPACER 		$3.22 6
66 303988
REAR CONNECTOR BRACKET 		$25.40 1
67 286172
SCREW 		$17.78 1
68 13550221
WASHER 		$0.06 1
69 306312
BRAKE SERVO PIPE MOUNTING BRACKET 		$21.60 1
70 298678
FLEXIBLE JOINT 		$1,131.27 2
71 299302
THREADED CONNECTOR 		$28.82 2
72 284824
GASKET 		$21.03 6
73 249878
BRACKET 		$6.59 2
74 275650
PLENUM CHROME BADGE 		$228.79 2
