Ferrari LaFerrari Aperta - GEARBOX OIL COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
298095 GEARBOX OIL RADIATOR $3,968.68 To Order
Photo Part No Description Price (each) Stock
294318 CLUTCH OIL RADIATOR $1,396.07 To Order
Photo Part No Description Price (each) Stock
305209 GL OIL DELIVERY PIPE $723.41 To Order
Photo Part No Description Price (each) Stock
305208 GL OIL RETURN PIPE $723.41 To Order
Photo Part No Description Price (each) Stock
305206 ATF FLUID RETURN PIPE $456.89 To Order
Photo Part No Description Price (each) Stock
305207 ATF FLUID DELIVERY PIPE $571.11 To Order
Photo Part No Description Price (each) Stock
303322 ADHESIVE FOAM $3.72 To Order
Photo Part No Description Price (each) Stock
299800 BRACKET $39.32 To Order
Photo Part No Description Price (each) Stock
287095 FORK $90.09 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.23 IN STOCK
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
254644 O-RING $0.35 IN STOCK
Photo Part No Description Price (each) Stock
243396 RETAINER BLOCK $24.09 To Order
Photo Part No Description Price (each) Stock
243399 BUSH $0.75 IN STOCK
Photo Part No Description Price (each) Stock
243398 PLATE $13.32 To Order
Photo Part No Description Price (each) Stock
13027824 SCREW $3.38 To Order
Photo Part No Description Price (each) Stock
13550224 WASHER $1.35 To Order
Photo Part No Description Price (each) Stock
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
287096 FORK $85.02 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
292132 SPACER $4.22 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
12646624 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
85744500 GASKET $35.02 To Order
Photo Part No Description Price (each) Stock
86065100 GASKET $44.36 To Order
Photo Part No Description Price (each) Stock
85933600 GASKET $36.18 To Order
View All

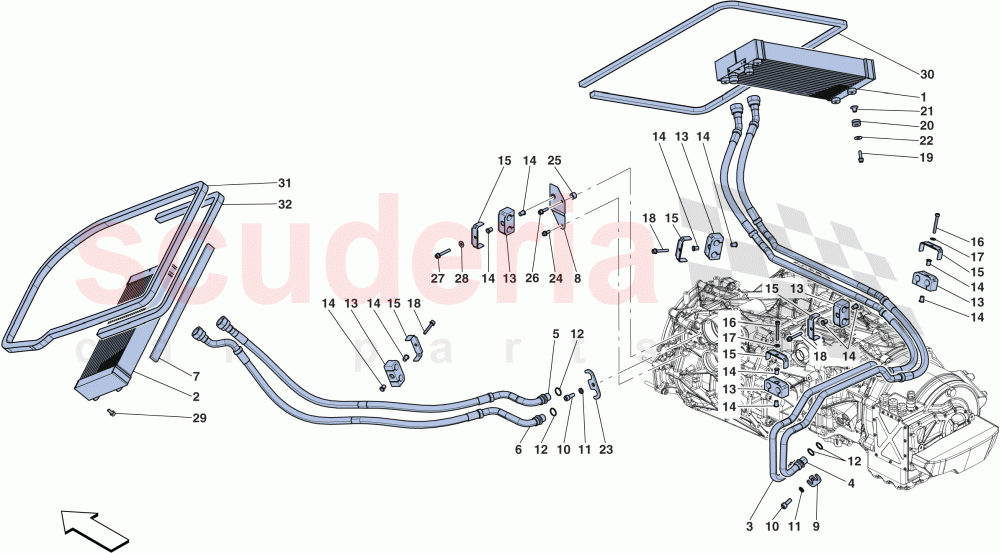

GEARBOX OIL COOLING SYSTEM of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 298095
GEARBOX OIL RADIATOR 		$3,968.68 1
2 294318
CLUTCH OIL RADIATOR 		$1,396.07 1
3 305209
GL OIL DELIVERY PIPE 		$723.41 1
4 305208
GL OIL RETURN PIPE 		$723.41 1
5 305206
ATF FLUID RETURN PIPE 		$456.89 1
6 305207
ATF FLUID DELIVERY PIPE 		$571.11 1
7 303322
ADHESIVE FOAM 		$3.72 1
8 299800
BRACKET 		$39.32 1
9 287095
FORK 		$90.09 1
10 14306424
SCREW
M8 X 20
IN STOCK 		$0.23 (43.9% off) 2
11 14499421
WASHER
IN STOCK 		$0.20 2
12 254644
O-RING
IN STOCK 		$0.35 (30% off) 4
13 243396
RETAINER BLOCK 		$24.09 6
14 243399
BUSH
IN STOCK 		$0.75 12
15 243398
PLATE 		$13.32 6
16 13027824
SCREW 		$3.38 2
17 13550224
WASHER 		$1.35 2
18 231624
SCREW
M6 X 45
IN STOCK 		$0.41 3
19 231619
SCREW
M6 X 22
IN STOCK 		$0.29 4
20 812273
CABLE GROMMET 		$1.53 4
21 149707
SPACER 		$1.10 (37.1% off) 4
22 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
23 287096
FORK 		$85.02 1
24 248334
SCREW
IN STOCK 		$0.58 1
25 292132
SPACER 		$4.22 1
26 231619
SCREW
M6 X 22
IN STOCK 		$0.29 1
27 231625
SCREW
M6 X 40
IN STOCK 		$0.57 1
28 12646624
WASHER
IN STOCK 		$0.21 (27.6% off) 1
29 248334
SCREW
M6 X 14
IN STOCK 		$0.58 4
30 85744500
GASKET 		$35.02 1
31 86065100
GASKET 		$44.36 1
32 85933600
GASKET 		$36.18 1
