Rear Suspension - Arms

Ferrari LaFerrari Aperta

Find Your Part

Ferrari LaFerrari Aperta - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
293858 RH REAR HUB CARRIER $6,254.91 To Order
293857 LH REAR HUB CARRIER $6,254.91 To Order
Photo Part No Description Price (each) Stock
306408 LOWER RH REAR ARM $2,301.90 To Order
306407 LOWER LH REAR ARM $2,301.90 To Order
Photo Part No Description Price (each) Stock
330726 UPPER REAR ARM $643.26 To Order
Photo Part No Description Price (each) Stock
283954 ADJUSTER SHIM $37.83 To Order
283961 ADJUSTER SHIM $37.83 To Order
283960 ADJUSTER SHIM $37.83 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
287739 ADJUSTER SHIM $21.02 To Order
287738 ADJUSTER SHIM $21.02 To Order
287737 ADJUSTER SHIM $37.83 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13552634 STUD BOLT $47.91 To Order
Photo Part No Description Price (each) Stock
13546634 STUD BOLT $35.30 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.82 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
10520024 WASHER $1.93 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $364.93 IN STOCK
Photo Part No Description Price (each) Stock
299535 RH REAR JOINT BRACKET $491.89 To Order
299534 LH REAR JOINT BRACKET $365.76 To Order
Photo Part No Description Price (each) Stock
293384 COMPL. TIE/ROD FOR ADJUSTING REAR TOE ANGLE $895.52 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.83 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.24 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $182.46 IN STOCK
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $16.38 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $28.67 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW TCEI M14 X 1.5 X 21 $24.26 IN STOCK
Photo Part No Description Price (each) Stock
238063 NUT $3.91 IN STOCK
Photo Part No Description Price (each) Stock
303385 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
317747 STUD BOLT $227.04 To Order
Photo Part No Description Price (each) Stock
12626024 WASHER $0.21 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
302111 SPACER $4.79 To Order
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.17 IN STOCK
View All

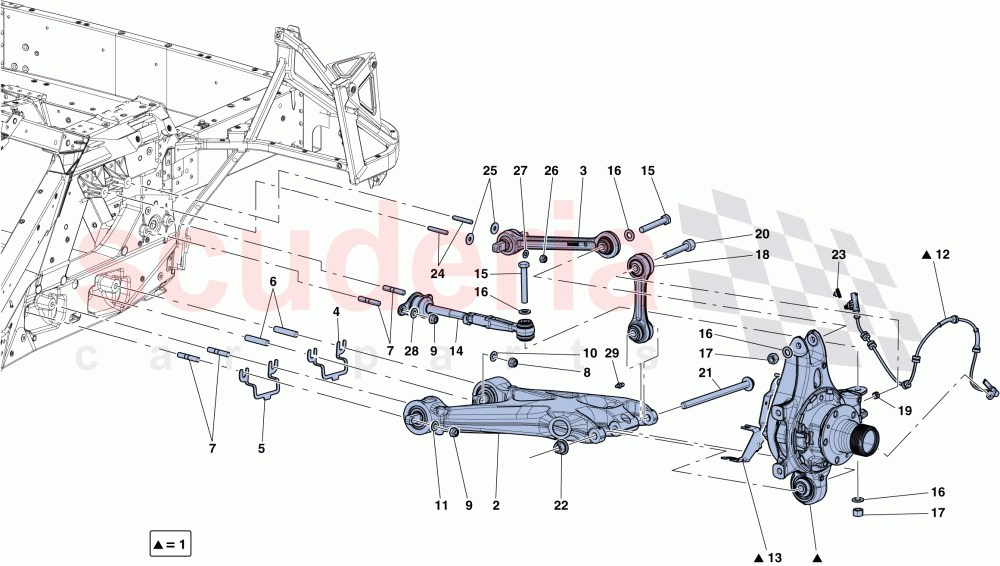

REAR SUSPENSION - ARMS of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 293858
RH REAR HUB CARRIER 		$6,254.91 1
1 293857
LH REAR HUB CARRIER 		$6,254.91 1
2 306408
LOWER RH REAR ARM 		$2,301.90 1
2 306407
LOWER LH REAR ARM 		$2,301.90 1
3 330726
UPPER REAR ARM 		$643.26 2
4 283954
ADJUSTER SHIM
2 mm 		$37.83 2
4 283961
ADJUSTER SHIM
1,5 mm 		$37.83 2
4 283960
ADJUSTER SHIM
1 mm 		$37.83 2
4 283958
ADJUSTER SHIM
4 mm 		$37.83 2
4 283957
ADJUSTER SHIM
3.5 mm 		$37.83 2
4 283956
ADJUSTER SHIM
3 mm 		$37.83 2
4 283955
ADJUSTER SHIM
2.5 mm 		$37.83 2
5 287739
ADJUSTER SHIM
4 mm 		$21.02 2
5 287738
ADJUSTER SHIM
3.5 mm 		$21.02 2
5 287737
ADJUSTER SHIM
3 mm 		$37.83 2
5 287736
ADJUSTER SHIM
2.5 mm 		$37.83 2
5 287735
ADJUSTER SHIM
2 mm 		$37.83 2
5 287742
ADJUSTER SHIM
1,5 mm 		$21.02 2
5 287741
ADJUSTER SHIM
1 mm 		$37.83 2
6 13552634
STUD BOLT 		$47.91 4
7 13546634
STUD BOLT 		$35.30 8
8 148020
NUT M12 X 1.25
IN STOCK 		$3.82 4
9 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 8
10 10520024
WASHER
IN STOCK 		$1.93 4
11 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 4
12 269415
ABS SENSOR
IN STOCK 		$364.93 2
13 299535
RH REAR JOINT BRACKET 		$491.89 1
13 299534
LH REAR JOINT BRACKET 		$365.76 1
14 293384
COMPL. TIE/ROD FOR ADJUSTING REAR TOE ANGLE 		$895.52 2
15 15541434
SCREW 12.1 X 25 X 80
IN STOCK 		$1.83 (38.6% off) 4
16 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.24 (52% off) 8
17 203666
NUT
IN STOCK 		$0.81 (59.5% off) 4
18 259688
ANTI-ROTATION LINKAGE
IN STOCK 		$182.46 2
19 222956
COMPENSATOR RING 		$16.38 2
20 238258
SCREW
IN STOCK 		$28.67 2
21 238656
SPECIAL SCREW TCEI M14 X 1.5 X 21
IN STOCK 		$24.26 (11.4% off) 2
22 238063
NUT
IN STOCK 		$3.91 (28.9% off) 2
23 303385
CLIP
IN STOCK 		$0.26 2
24 317747
STUD BOLT 		$227.04 4
25 12626024
WASHER 		$0.21 4
26 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 4
27 12646821
WASHER D.10 20-25 X 2
IN STOCK 		$0.11 (78% off) 4
28 302111
SPACER 		$4.79 4
29 343376
BALL JOINT
IN STOCK 		$20.17 2
