Heat Shields And Insulation

Ferrari LaFerrari Aperta

Find Your Part

Ferrari LaFerrari Aperta - HEAT SHIELDS AND INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
306704 FRONT SOUNDPROOFING FOR FUEL TANK COMPARTMENT $768.59 To Order
Photo Part No Description Price (each) Stock
302881 RH TUNNEL HEAT SHIELD $86.92 To Order
Photo Part No Description Price (each) Stock
302882 LH TUNNEL HEAT SHIELD $86.92 To Order
Photo Part No Description Price (each) Stock
306705 REAR SOUNDPROOFING FOR FUEL TANK COMPARTMENT $768.59 To Order
Photo Part No Description Price (each) Stock
300577 CENTRAL ENGINE HEAT SHIELD $3,219.32 To Order
Photo Part No Description Price (each) Stock
299420 MOBILE WING ACTUATOR HEAT SHIELD $239.39 To Order
Photo Part No Description Price (each) Stock
301273 EMBOSSED ENGINE HEAT SHIELD, RH SIDE $831.59 To Order
Photo Part No Description Price (each) Stock
306427 EMBOSSED ENGINE HEAT SHIELD, LH SIDE $818.99 To Order
Photo Part No Description Price (each) Stock
299287 EXTERNAL RH SILENCER HEAT SHIELD $894.59 To Order
Photo Part No Description Price (each) Stock
299288 INTERNAL RH SILENCER HEAT SHIELD $793.80 To Order
Photo Part No Description Price (each) Stock
299289 EXTERNAL LH SILENCER HEAT SHIELD $894.59 To Order
Photo Part No Description Price (each) Stock
299290 INTERNAL LH SILENCER HEAT SHIELD $793.80 To Order
Photo Part No Description Price (each) Stock
85610700 REAR SOUNDPROOFING FOR REAR SCREEN $327.59 To Order
Photo Part No Description Price (each) Stock
67315400 WASHER $0.38 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
12578011 NUT $0.15 IN STOCK
Photo Part No Description Price (each) Stock
85897300 LH PUMP COVER $1,577.52 To Order
85897200 RH PUMP COVER $1,577.52 To Order
View All

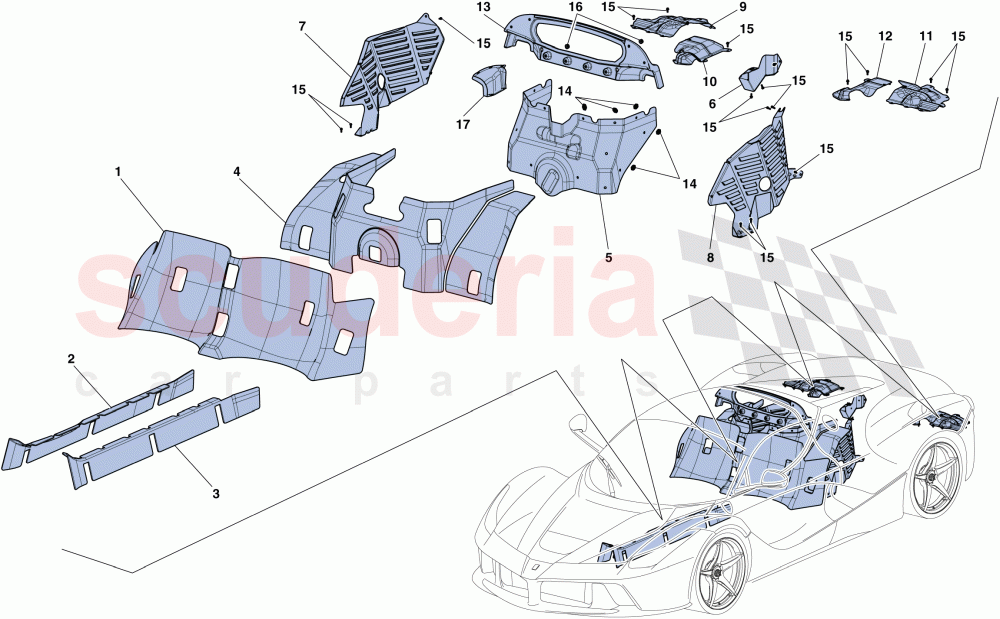

HEAT SHIELDS AND INSULATION of Ferrari Ferrari LaFerrari Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 306704
FRONT SOUNDPROOFING FOR FUEL TANK COMPARTMENT 		$768.59 1
2 302881
RH TUNNEL HEAT SHIELD 		$86.92 1
3 302882
LH TUNNEL HEAT SHIELD 		$86.92 1
4 306705
REAR SOUNDPROOFING FOR FUEL TANK COMPARTMENT 		$768.59 1
5 300577
CENTRAL ENGINE HEAT SHIELD 		$3,219.32 1
6 299420
MOBILE WING ACTUATOR HEAT SHIELD 		$239.39 1
7 301273
EMBOSSED ENGINE HEAT SHIELD, RH SIDE 		$831.59 1
8 306427
EMBOSSED ENGINE HEAT SHIELD, LH SIDE 		$818.99 1
9 299287
EXTERNAL RH SILENCER HEAT SHIELD 		$894.59 1
10 299288
INTERNAL RH SILENCER HEAT SHIELD 		$793.80 1
11 299289
EXTERNAL LH SILENCER HEAT SHIELD 		$894.59 1
12 299290
INTERNAL LH SILENCER HEAT SHIELD 		$793.80 1
13 85610700
REAR SOUNDPROOFING FOR REAR SCREEN 		$327.59 1
14 67315400
WASHER
IN STOCK 		$0.38 16
15 11566224
SCREW
M5 X 15
IN STOCK 		$0.33 34
16 12578011
NUT
IN STOCK 		$0.15 8
17 85897300
LH PUMP COVER 		$1,577.52 1
17 85897200
RH PUMP COVER 		$1,577.52 1
