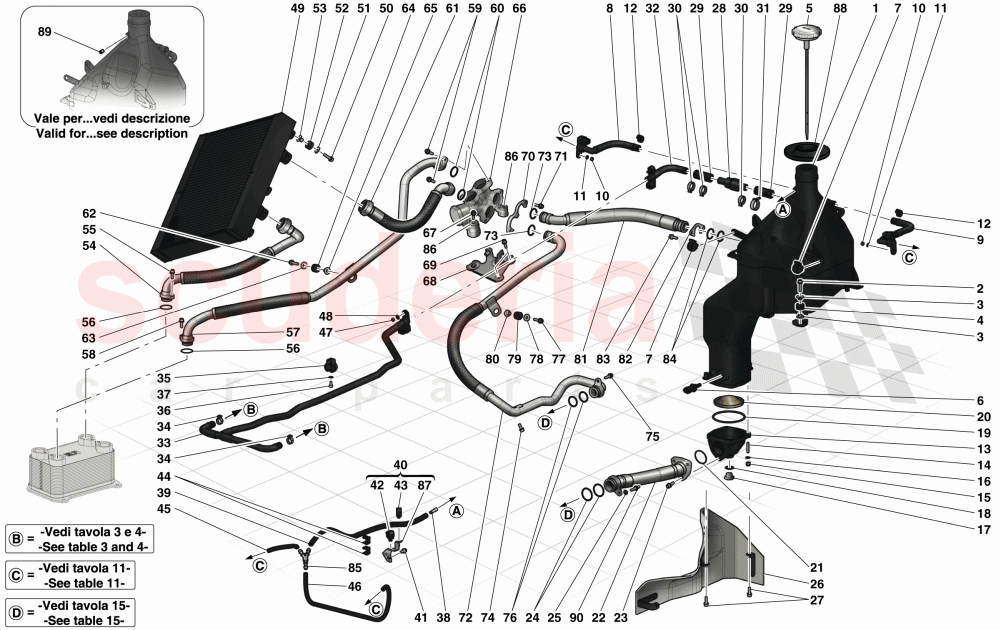

Ferrari LaFerrari - LUBRICATION SYSTEM AND OIL VAPOUR RECOVERY SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	298381	COMPL. TANK	$3,672.54	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	819489	FLANGED BUSHING	$13.90	To Order

Photo	Part No	Description	Price (each)	Stock
	177576	CABLE GROMMET	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	301598	CAP COMPLETE WITH DIPSTICK	$354.21	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$28.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	198273	CLIP	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	297612	RH BLOW-BY PIPE	$92.33	To Order

Photo	Part No	Description	Price (each)	Stock
	297614	LH BLOW-BY PIPE	$92.33	To Order

Photo	Part No	Description	Price (each)	Stock
	15896477	NUT	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	290848	OIL TANK PICKUP	$328.91	To Order

Photo	Part No	Description	Price (each)	Stock
	11500524	STUD BOLT	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	293107	THREADED PLUG	$77.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	125521	O-RING	$10.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100332	OIL PICKUP FILTER	$17.87	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$4.91	To Order

Photo	Part No	Description	Price (each)	Stock
	290509	OIL PIPE FROM TANK PICKUP TO PUMP	$721.08	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	302113	HEAT SHIELD FOR TANK AND OIL PIPE	$253.00	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294255	CHECK VALVE	$291.46	To Order

Photo	Part No	Description	Price (each)	Stock
	257673	RUBBER PIPE	$108.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13432870	COLLAR FOR HOSE UNION	$11.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290579	REAR HEAD VAPOUR PIPE	$657.83	To Order

Photo	Part No	Description	Price (each)	Stock
	304129	FRONT HEAD VAPOUR PIPE	$215.05	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	285268	BRACKET WITH SHEATH	$63.24	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	291502	CONNECTOR	$64.50	To Order

Photo	Part No	Description	Price (each)	Stock
	303408	RUBBER PIPE	$189.74	To Order

Photo	Part No	Description	Price (each)	Stock
	303343	COMPLETE HEADER TANK BREATHER PIPE BRACKET	$41.73	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	$3.20	To Order

Photo	Part No	Description	Price (each)	Stock
	14574287	CLIP	$7.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	145543	CLIP	$0.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	303406	RUBBER PIPE	$45.53	To Order

Photo	Part No	Description	Price (each)	Stock
	303407	RUBBER PIPE	$126.49	To Order

Photo	Part No	Description	Price (each)	Stock
	15896477	NUT	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	297420	ENGINE OIL RADIATOR	$2,530.15	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	296423	ENGINE OIL DELIVERY PIPE FROM RADIATOR TO HEAT EXCHANGER	$683.14	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	300471	OIL RETURN PIPE FROM HEAT EXCHANGER TO THERMOSTAT	$834.94	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296421	ENGINE OIL DELIVERY PIPE FROM THERMOSTAT TO RADIATOR	$480.71	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	304797	COMPL. OIL THERMOSTAT	$695.78	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304399	THERMOSTAT FASTENER BRACKET	$93.60	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121903	O-RING	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	290508	OIL RETURN PIPE FROM THERMOSTAT TO TANK	$468.07	To Order

Photo	Part No	Description	Price (each)	Stock
	283147	RETAINER FORK	$53.12	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121903	O-RING	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	295432	3-WAY CONNECTOR	$227.70	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	$11.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	303343	COMPLETE HEADER TANK BREATHER PIPE BRACKET	$41.73	To Order

Photo	Part No	Description	Price (each)	Stock
	294022	RING FOR ENGINE OIL TANK	$50.59	To Order

Photo	Part No	Description	Price (each)	Stock
	14326101	THREADED PLUG	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	204102	STUD BOLT	$15.16	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	298381	COMPL. TANK	298381 COMPL. TANK	$3,672.54	1
2	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
3	819489	FLANGED BUSHING	819489 FLANGED BUSHING	$13.90	8
4	177576	CABLE GROMMET IN STOCK	177576 CABLE GROMMET IN STOCK	$2.20	4
5	301598	CAP COMPLETE WITH DIPSTICK	301598 CAP COMPLETE WITH DIPSTICK	$354.21	1
6	180137	TEMPERATURE SENSOR IN STOCK	180137 TEMPERATURE SENSOR IN STOCK	$28.45 MSRP: ~~32.99~~ (13.8% off)	1
7	198273	CLIP	198273 CLIP	$1.53	2
8	297612	RH BLOW-BY PIPE	297612 RH BLOW-BY PIPE	$92.33	1
9	297614	LH BLOW-BY PIPE	297614 LH BLOW-BY PIPE	$92.33	1
10	15896477	NUT	15896477 NUT	$1.10	2
11	12601174	WASHER	12601174 WASHER	$0.06 MSRP: ~~0.35~~ (82.9% off)	2
12	13432270	HOSE COLLAR	13432270 HOSE COLLAR	$0.84	2
13	290848	OIL TANK PICKUP	290848 OIL TANK PICKUP	$328.91	1
14	11500524	STUD BOLT	11500524 STUD BOLT	$0.34 MSRP: ~~1.00~~ (66% off)	4
15	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	4
16	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
17	293107	THREADED PLUG IN STOCK	293107 THREADED PLUG IN STOCK	$77.56	1
18	10261460	COPPER WASHER 16 X 24 X 1.5 IN STOCK	10261460 COPPER WASHER 16 X 24 X 1.5 IN STOCK	$0.32 MSRP: ~~1.00~~ (68% off)	1
19	125521	O-RING IN STOCK	125521 O-RING IN STOCK	$10.54	1
20	100332	OIL PICKUP FILTER	100332 OIL PICKUP FILTER	$17.87	1
21	862084	GASKET	862084 GASKET	$4.91	1
22	290509	OIL PIPE FROM TANK PICKUP TO PUMP	290509 OIL PIPE FROM TANK PICKUP TO PUMP	$721.08	1
23	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	3
24	104212	O-RING IN STOCK	104212 O-RING IN STOCK	$0.66 MSRP: ~~1.00~~ (34% off)	2
25	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
26	302113	HEAT SHIELD FOR TANK AND OIL PIPE	302113 HEAT SHIELD FOR TANK AND OIL PIPE	$253.00	1
27	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	2
28	294255	CHECK VALVE	294255 CHECK VALVE	$291.46	1
29	257673	RUBBER PIPE	257673 RUBBER PIPE	$108.78	2
30	13432870	COLLAR FOR HOSE UNION IN STOCK	13432870 COLLAR FOR HOSE UNION IN STOCK	$11.58	3
31	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.39	1
32	290579	REAR HEAD VAPOUR PIPE	290579 REAR HEAD VAPOUR PIPE	$657.83	1
33	304129	FRONT HEAD VAPOUR PIPE	304129 FRONT HEAD VAPOUR PIPE	$215.05	1
34	13432270	HOSE COLLAR	13432270 HOSE COLLAR	$0.84	2
35	285268	BRACKET WITH SHEATH	285268 BRACKET WITH SHEATH	$63.24	1
36	11566227	SCREW IN STOCK	11566227 SCREW M5 X 10 IN STOCK	$1.13	1
37	12601174	WASHER	12601174 WASHER	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
38	291502	CONNECTOR	291502 CONNECTOR Not for USA, CDN, GOLFO, J, USA LIGHT	$64.50	1
39	303408	RUBBER PIPE	303408 RUBBER PIPE Not for USA, CDN, GOLFO, J, USA LIGHT	$189.74	1
40	303343	COMPLETE HEADER TANK BREATHER PIPE BRACKET	303343 COMPLETE HEADER TANK BREATHER PIPE BRACKET Not for USA, CDN, GOLFO, J, USA LIGHT	$41.73	1
41	248334	SCREW IN STOCK	248334 SCREW Not for USA, CDN, GOLFO, J, USA LIGHT IN STOCK	$0.58	1
42	198253	CLIP	198253 CLIP Not for USA, CDN, GOLFO, J, USA LIGHT	$3.20 MSRP: ~~3.85~~ (16.9% off)	1
43	14574287	CLIP IN STOCK	14574287 CLIP Not for USA, CDN, GOLFO, J, USA LIGHT IN STOCK	$7.25 MSRP: ~~9.50~~ (23.7% off)	1
44	145543	CLIP IN STOCK	145543 CLIP Not for USA, CDN, GOLFO, J, USA LIGHT IN STOCK	$0.18 MSRP: ~~0.75~~ (76% off)	2
45	303406	RUBBER PIPE	303406 RUBBER PIPE Not for USA, CDN, GOLFO, J, USA LIGHT	$45.53	1
46	303407	RUBBER PIPE	303407 RUBBER PIPE Not for USA, CDN, GOLFO, J, USA LIGHT	$126.49	1
47	15896477	NUT	15896477 NUT	$1.10	1
48	12601174	WASHER	12601174 WASHER	$0.06 MSRP: ~~0.35~~ (82.9% off)	1
49	297420	ENGINE OIL RADIATOR	297420 ENGINE OIL RADIATOR	$2,530.15	1
50	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	6
51	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	6
52	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	6
53	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	6
54	296423	ENGINE OIL DELIVERY PIPE FROM RADIATOR TO HEAT EXCHANGER	296423 ENGINE OIL DELIVERY PIPE FROM RADIATOR TO HEAT EXCHANGER	$683.14	1
55	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	1
56	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.12 MSRP: ~~2.17~~ (2.3% off)	2
57	300471	OIL RETURN PIPE FROM HEAT EXCHANGER TO THERMOSTAT	300471 OIL RETURN PIPE FROM HEAT EXCHANGER TO THERMOSTAT	$834.94	1
58	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	1
59	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	2
60	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.12 MSRP: ~~2.17~~ (2.3% off)	2
61	296421	ENGINE OIL DELIVERY PIPE FROM THERMOSTAT TO RADIATOR	296421 ENGINE OIL DELIVERY PIPE FROM THERMOSTAT TO RADIATOR	$480.71	1
62	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	1
63	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
64	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	1
65	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	1
66	304797	COMPL. OIL THERMOSTAT	304797 COMPL. OIL THERMOSTAT	$695.78 MSRP: ~~991.20~~ (29.8% off)	1
67	231625	SCREW IN STOCK	231625 SCREW M6 X 40 IN STOCK	$0.56	3
68	304399	THERMOSTAT FASTENER BRACKET	304399 THERMOSTAT FASTENER BRACKET	$93.60	1
69	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	2
70	258945	PIPE RETAINER FORK	258945 PIPE RETAINER FORK	$24.01	1
71	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	2
73	122791	O-RING IN STOCK	122791 O-RING IN STOCK	$2.12 MSRP: ~~2.17~~ (2.3% off)	2
74	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	1
75	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	1
76	121903	O-RING IN STOCK	121903 O-RING IN STOCK	$0.70 MSRP: ~~1.95~~ (64.1% off)	2
77	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	1
78	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	1
79	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	1
80	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	1
81	290508	OIL RETURN PIPE FROM THERMOSTAT TO TANK	290508 OIL RETURN PIPE FROM THERMOSTAT TO TANK	$468.07	1
82	283147	RETAINER FORK	283147 RETAINER FORK	$53.12	1
83	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	2
84	121903	O-RING IN STOCK	121903 O-RING IN STOCK	$0.70 MSRP: ~~1.95~~ (64.1% off)	2
85	295432	3-WAY CONNECTOR	295432 3-WAY CONNECTOR Not for GOLFO	$227.70	1
86	267300	DAMPED MOUNT IN STOCK	267300 DAMPED MOUNT IN STOCK	$11.12	3
87	303343	COMPLETE HEADER TANK BREATHER PIPE BRACKET	303343 COMPLETE HEADER TANK BREATHER PIPE BRACKET After depletion, order compl.; Not for USA, CDN, GOLFO, J, USA LIGHT; Applicable until depletion	$41.73	1
88	294022	RING FOR ENGINE OIL TANK	294022 RING FOR ENGINE OIL TANK	$50.59	1
89	14326101	THREADED PLUG	14326101 THREADED PLUG Applicable for USA, CDN, GOLFO, J, USA LIGHT	$1.10 MSRP: ~~1.65~~ (33.3% off)	1
90	204102	STUD BOLT	204102 STUD BOLT	$15.16	1
