Name: FUELLING AND CHARGING
Rating: 4.5 (1 reviews)

View All

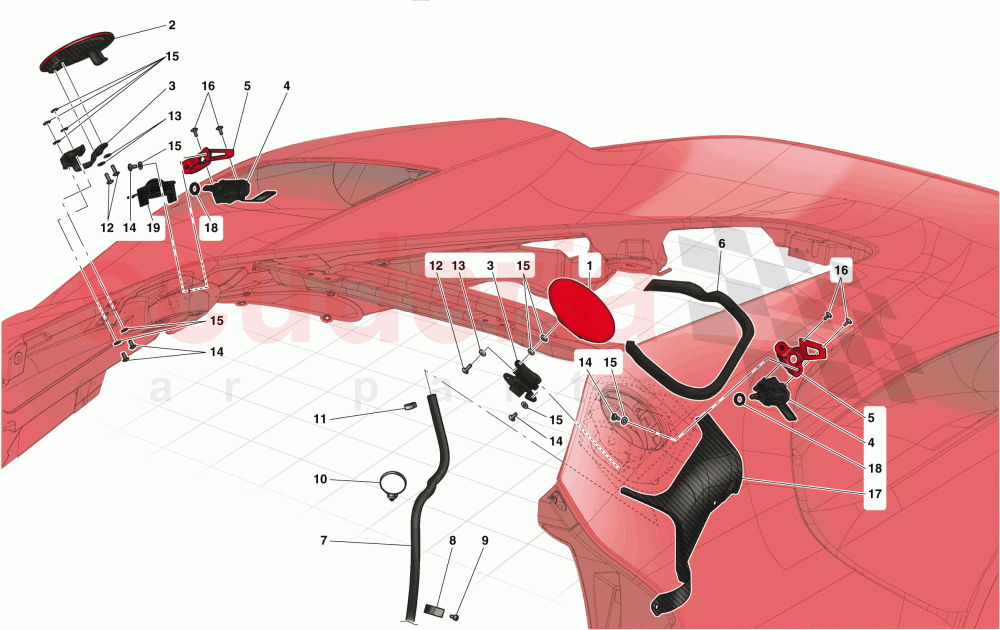

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86014110	COMPL. FUEL FILLER FLAP	$2,773.15	To Order

Photo	Part No	Description	Price (each)	Stock
	86015210	COMPL. CHARGING SOCKET COVER	$2,773.15	To Order

Photo	Part No	Description	Price (each)	Stock
	86015500	COMPL. HINGE	$163.78	To Order

Photo	Part No	Description	Price (each)	Stock
	86091200	ACTUATOR	$70.55	To Order

Photo	Part No	Description	Price (each)	Stock
	85451000	ACTUATOR FASTENER BRACKET	$57.94	To Order

Photo	Part No	Description	Price (each)	Stock
	86134500	FUEL FILLER RECESS SEAL	$40.55	To Order

Photo	Part No	Description	Price (each)	Stock
	86190600	FUEL DRAIN PIPE	$35.27	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14301421	SCREW	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.49	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	85077900	SCREW	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	13550221	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	85494300	SCREW	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	13550221	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	86297800	CHARGING SOCKET COVER	$84.41	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	86014110	COMPL. FUEL FILLER FLAP	86014110 COMPL. FUEL FILLER FLAP	$2,773.15	1
2	86015210	COMPL. CHARGING SOCKET COVER	86015210 COMPL. CHARGING SOCKET COVER	$2,773.15	1
3	86015500	COMPL. HINGE	86015500 COMPL. HINGE	$163.78	2
4	86091200	ACTUATOR	86091200 ACTUATOR	$70.55	2
5	85451000	ACTUATOR FASTENER BRACKET	85451000 ACTUATOR FASTENER BRACKET	$57.94	2
6	86134500	FUEL FILLER RECESS SEAL	86134500 FUEL FILLER RECESS SEAL	$40.55	1
7	86190600	FUEL DRAIN PIPE	86190600 FUEL DRAIN PIPE	$35.27	1
8	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	$0.52	1
9	14301421	SCREW	14301421 SCREW	$0.12	1
10	303385	CLIP IN STOCK	303385 CLIP IN STOCK	$0.26	1
11	13432070	HOSE COLLAR ARRIVING SOON	13432070 HOSE COLLAR D. 15.7 ARRIVING SOON	$0.49 MSRP: ~~1.07~~ (54.2% off)	1
12	85077900	SCREW	85077900 SCREW	$0.17	4
13	13550221	WASHER	13550221 WASHER	$0.06	4
14	85494300	SCREW	85494300 SCREW M5 X 12	$1.09	8
15	13550221	WASHER	13550221 WASHER	$0.06	16
16	15689601	SCREW IN STOCK	15689601 SCREW IN STOCK	$0.21	4
18	67067600	GASKET	67067600 GASKET	$3.71	2
19	86297800	CHARGING SOCKET COVER	86297800 CHARGING SOCKET COVER	$84.41	1

Fuelling And Charging

Ferrari LaFerrari
