Ferrari GTC4Lusso T - MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
317017 RH TURBOCHARGER $9,969.03 To Order
317018 LH TURBOCHARGER $9,969.03 To Order
Photo Part No Description Price (each) Stock
307168 STUD BOLT $1.94 To Order
308198 STUD BOLT $2.70 To Order
Photo Part No Description Price (each) Stock
307168 STUD BOLT $1.94 To Order
Photo Part No Description Price (each) Stock
306320 STUD BOLT $2.61 To Order
Photo Part No Description Price (each) Stock
306700 TURBO HEAT SHIELD - RH MANIFOLD $227.76 To Order
306701 TURBO HEAT SHIELD - LH MANIFOLD $227.76 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
292736 EXHAUST MANIFOLD GASKET $92.83 IN STOCK
Photo Part No Description Price (each) Stock
942004 ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 1-2 $125.26 To Order
942008 ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 7-8 $125.26 To Order
Photo Part No Description Price (each) Stock
942005 ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 3-4 $123.99 To Order
942006 ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 5-6 $137.47 To Order
Photo Part No Description Price (each) Stock
307964 COPPER NUT $3.31 IN STOCK
Photo Part No Description Price (each) Stock
313263 RH TURBO MOUNTING BRACKET $30.35 To Order
313264 LH TURBO MOUNTING BRACKET $30.35 To Order
Photo Part No Description Price (each) Stock
248471 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
304100 STUD BOLT $13.49 To Order
Photo Part No Description Price (each) Stock
304378 NUT $5.98 To Order
Photo Part No Description Price (each) Stock
312354 SPACER $3.13 To Order
Photo Part No Description Price (each) Stock
809184 ANTI-LOOSENING PLATE, CYLINDER 1, RH. $21.50 To Order
342841 ANTI-LOOSENING PLATE, CYLINDER 4, RH. $21.50 To Order
342842 ANTI-LOOSENING PLATE, CYLINDER 5, LH. $21.50 To Order
...and 1 more part variants. See table on right for more details.
View All

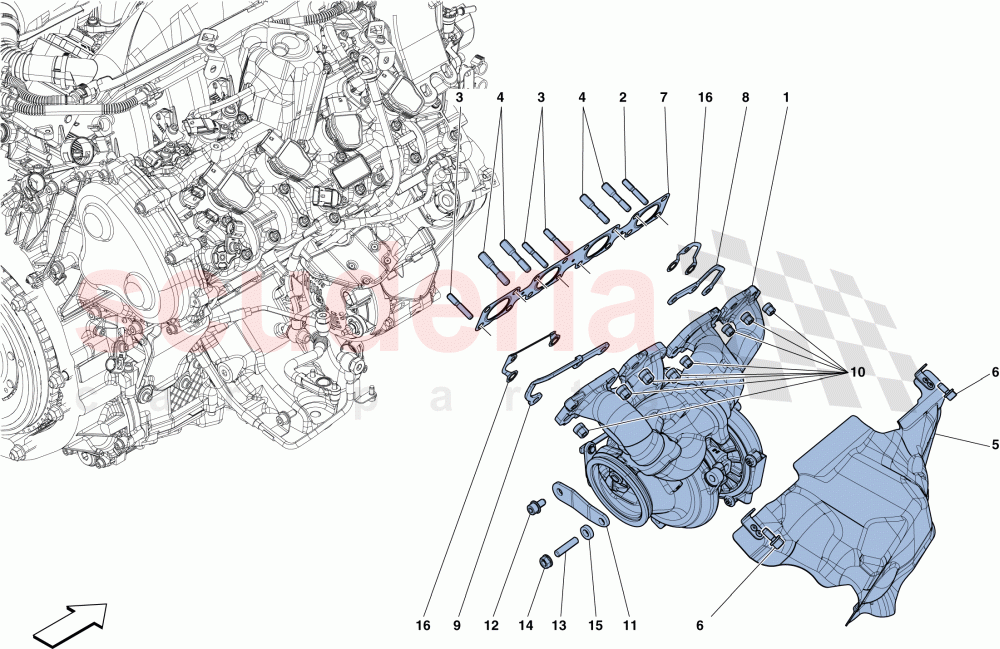

MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 317017
RH TURBOCHARGER 		$9,969.03 1
1 317018
LH TURBOCHARGER 		$9,969.03 1
2 307168
STUD BOLT
M8 X 14; Shaft length 41 mm; On LH head. 		$1.94 (19.2% off) 7
2 308198
STUD BOLT
M8 X 14; Shaft length 31 mm; On RH head. 		$2.70 (12.1% off) 1
3 307168
STUD BOLT
M8 X 14; Shaft length 41 mm 		$1.94 (19.2% off) 6
4 306320
STUD BOLT
M10 X 17; Shank length M8 X 32 mm 		$2.61 (20.2% off) 8
5 306700
TURBO HEAT SHIELD - RH MANIFOLD
RH MANIFOLD 		$227.76 1
5 306701
TURBO HEAT SHIELD - LH MANIFOLD
LH MANIFOLD 		$227.76 1
6 248334
SCREW
M6 X 14
IN STOCK 		$0.58 6
7 292736
EXHAUST MANIFOLD GASKET
Also comes with engine gasket set
IN STOCK 		$92.83 (31.1% off) 2
8 942004
ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 1-2 		$125.26 1
8 942008
ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 7-8 		$125.26 1
9 942005
ANTI-LOOSENING BRACKET, RH MANIFOLD FOR CYL 3-4 		$123.99 1
9 942006
ANTI-LOOSENING BRACKET, LH MANIFOLD FOR CYL 5-6 		$137.47 1
10 307964
COPPER NUT
IN STOCK 		$3.31 16
11 313263
RH TURBO MOUNTING BRACKET 		$30.35 1
11 313264
LH TURBO MOUNTING BRACKET 		$30.35 1
12 248471
SCREW 		$0.93 2
13 304100
STUD BOLT 		$13.49 (1.5% off) 2
14 304378
NUT 		$5.98 (18.6% off) 2
15 312354
SPACER 		$3.13 2
16 809184
ANTI-LOOSENING PLATE, CYLINDER 1, RH. 		$21.50 1
16 342841
ANTI-LOOSENING PLATE, CYLINDER 4, RH. 		$21.50 1
16 342842
ANTI-LOOSENING PLATE, CYLINDER 5, LH. 		$21.50 1
16 342843
ANTI-LOOSENING PLATE, CYLINDER 8, LH. 		$18.97 1
