Structures And Elements, Rear Of Vehicle

Ferrari GTC4Lusso T

Find Your Part

Ferrari GTC4Lusso T - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
321996 REAR SUBFRAME $13,577.35 To Order
Photo Part No Description Price (each) Stock
276482 RH LOWER REAR FLOOR CROSS-PIECE $365.54 To Order
Photo Part No Description Price (each) Stock
276481 LH LOWER REAR FLOOR CROSS-PIECE $407.31 To Order
Photo Part No Description Price (each) Stock
322027 LOWER RH REAR DIAGONAL BRACE $637.10 To Order
Photo Part No Description Price (each) Stock
322026 LOWER LH REAR DIAGONAL BRACE $637.10 To Order
Photo Part No Description Price (each) Stock
322022 RH REAR SEAT BASE UPRIGHT $135.79 To Order
Photo Part No Description Price (each) Stock
322023 LH REAR SEAT BASE UPRIGHT $135.79 To Order
Photo Part No Description Price (each) Stock
326962 REAR CROSS-PIECE OF FRONT STEP $417.77 To Order
Photo Part No Description Price (each) Stock
265225 TANK COVER $271.56 To Order
Photo Part No Description Price (each) Stock
320735 REAR CROSSPIECE OF REAR STEP $553.54 To Order
Photo Part No Description Price (each) Stock
280366 RH UPPER REAR SUSPENSION MOUNT CASTING $8,041.99 To Order
Photo Part No Description Price (each) Stock
280367 LH UPPER REAR SUSPENSION MOUNT CASTING $8,041.99 To Order
Photo Part No Description Price (each) Stock
322442 RH UPPER REAR DIAGONAL BRACE $1,909.98 To Order
Photo Part No Description Price (each) Stock
322432 LH UPPER REAR DIAGONAL BRACE $1,909.98 To Order
Photo Part No Description Price (each) Stock
312658 REAR RH STRUT $757.92 To Order
Photo Part No Description Price (each) Stock
312657 REAR LH STRUT $757.92 To Order
Photo Part No Description Price (each) Stock
281819 RH REAR STRUT FLANGE $126.30 To Order
Photo Part No Description Price (each) Stock
281818 LH REAR SPAR FLANGE $95.61 To Order
Photo Part No Description Price (each) Stock
322018 LOWER RH REAR JOINT REINFORCEMENT $167.10 To Order
Photo Part No Description Price (each) Stock
322087 LOWER LH REAR JOINT REINFORCEMENT $167.10 To Order
Photo Part No Description Price (each) Stock
268922 REAR SERVICES TRAY $1,148.86 To Order
Photo Part No Description Price (each) Stock
265936 REAR TORSION BAR MOUNTING BRACKET $25.24 To Order
Photo Part No Description Price (each) Stock
315047 RH REAR BRAKE HOSE FASTENER BRACKET $64.41 To Order
Photo Part No Description Price (each) Stock
315042 LH REAR BRAKE HOSE FASTENER BRACKET $64.41 To Order
Photo Part No Description Price (each) Stock
323842 RH REAR WHEELHOUSE $908.64 To Order
Photo Part No Description Price (each) Stock
323838 LH REAR WHEELHOUSE $908.64 To Order
Photo Part No Description Price (each) Stock
271517 RH SEAT LATCH FASTENER BRACKET $480.00 To Order
Photo Part No Description Price (each) Stock
271511 LH SEAT LATCH FASTENER BRACKET $480.00 To Order
Photo Part No Description Price (each) Stock
269847 RH LATERAL SEAT BELT MOUNTING BRACKET $64.41 To Order
Photo Part No Description Price (each) Stock
269846 LH LATERAL SEAT BELT MOUNTING BRACKET $21.46 To Order
Photo Part No Description Price (each) Stock
277287 SCREW $14.32 To Order
239867 SCREW $1.93 To Order
268291 SCREW $3.96 To Order
...and 2 more part variants. See table on right for more details.
View All

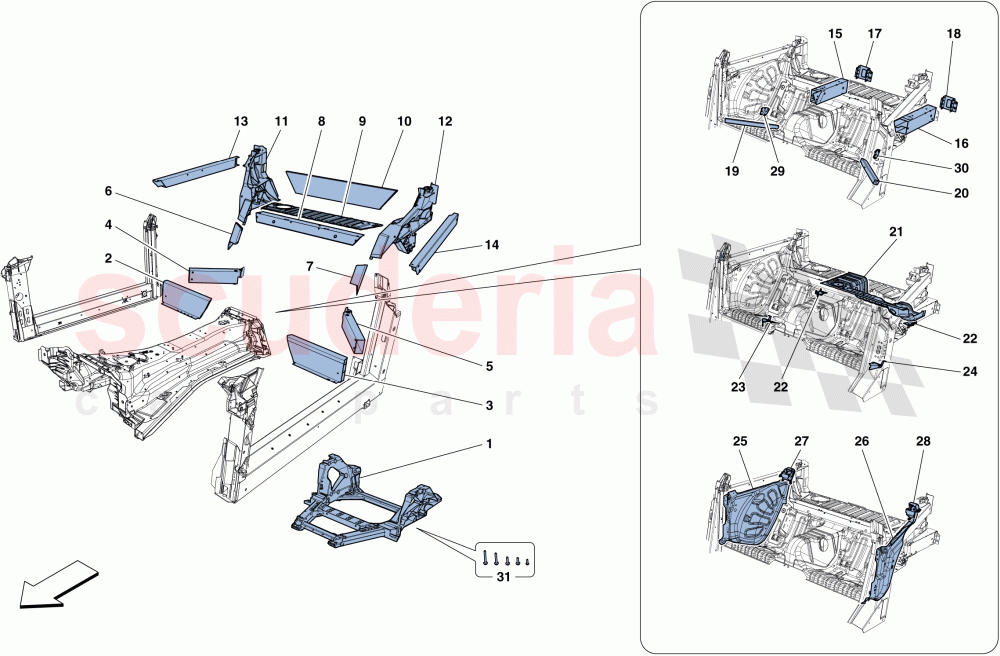

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari GTC4Lusso T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 321996
REAR SUBFRAME 		$13,577.35 1
2 276482
RH LOWER REAR FLOOR CROSS-PIECE 		$365.54 1
3 276481
LH LOWER REAR FLOOR CROSS-PIECE 		$407.31 1
4 322027
LOWER RH REAR DIAGONAL BRACE 		$637.10 1
5 322026
LOWER LH REAR DIAGONAL BRACE 		$637.10 1
6 322022
RH REAR SEAT BASE UPRIGHT 		$135.79 1
7 322023
LH REAR SEAT BASE UPRIGHT 		$135.79 1
8 326962
REAR CROSS-PIECE OF FRONT STEP 		$417.77 1
9 265225
TANK COVER 		$271.56 1
10 320735
REAR CROSSPIECE OF REAR STEP 		$553.54 1
11 280366
RH UPPER REAR SUSPENSION MOUNT CASTING 		$8,041.99 1
12 280367
LH UPPER REAR SUSPENSION MOUNT CASTING 		$8,041.99 1
13 322442
RH UPPER REAR DIAGONAL BRACE 		$1,909.98 1
14 322432
LH UPPER REAR DIAGONAL BRACE 		$1,909.98 1
15 312658
REAR RH STRUT 		$757.92 1
16 312657
REAR LH STRUT 		$757.92 1
17 281819
RH REAR STRUT FLANGE 		$126.30 1
18 281818
LH REAR SPAR FLANGE 		$95.61 1
19 322018
LOWER RH REAR JOINT REINFORCEMENT 		$167.10 1
20 322087
LOWER LH REAR JOINT REINFORCEMENT 		$167.10 1
21 268922
REAR SERVICES TRAY 		$1,148.86 (46.5% off) 1
22 265936
REAR TORSION BAR MOUNTING BRACKET 		$25.24 2
23 315047
RH REAR BRAKE HOSE FASTENER BRACKET 		$64.41 1
24 315042
LH REAR BRAKE HOSE FASTENER BRACKET 		$64.41 1
25 323842
RH REAR WHEELHOUSE 		$908.64 1
26 323838
LH REAR WHEELHOUSE 		$908.64 1
27 271517
RH SEAT LATCH FASTENER BRACKET 		$480.00 1
28 271511
LH SEAT LATCH FASTENER BRACKET 		$480.00 1
29 269847
RH LATERAL SEAT BELT MOUNTING BRACKET 		$64.41 1
30 269846
LH LATERAL SEAT BELT MOUNTING BRACKET 		$21.46 1
31 277287
SCREW
M10 X 1.25 X 40 		$14.32 8
31 239867
SCREW
M12 X 1.75 X 45 		$1.93 2
31 268291
SCREW
M10 X 1.25 X 50 		$3.96 4
31 268294
SCREW
M10 X 1.25 X 85 		$4.46 4
31 268371
SCREW
M12 X 1.75 X 100 		$17.69 2
