DASHBOARD - SUBSTRUCTURE of Ferrari Ferrari GTC4Lusso

View All

Ferrari GTC4Lusso - DASHBOARD - SUBSTRUCTURE

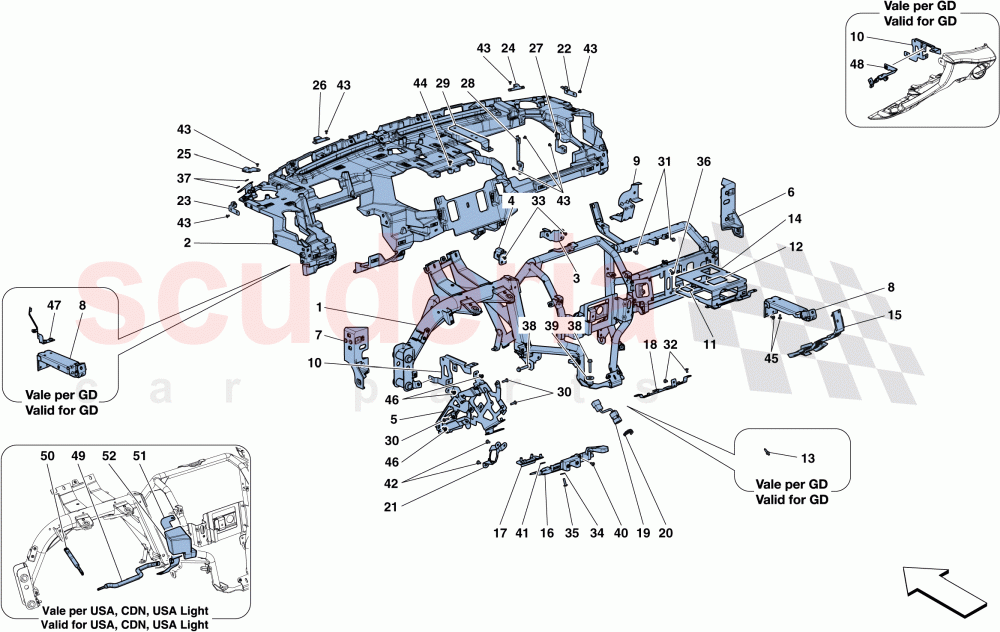

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88198100	DASHBOARD CROSS MEMBER	$2,285.85	To Order
	89336600	DASHBOARD CROSS MEMBER	$2,134.31	To Order

Photo	Part No	Description	Price (each)	Stock
	89376300	COMPL. DASHBOARD STRUCTURE	$1,962.55	To Order
	89107400	COMPL. DASHBOARD STRUCTURE	$2,116.63	To Order

Photo	Part No	Description	Price (each)	Stock
	83853800	RH AC UNIT BRACKET	$26.50	To Order

Photo	Part No	Description	Price (each)	Stock
	83854000	LH AC UNIT BRACKET	$26.50	To Order

Photo	Part No	Description	Price (each)	Stock
	88475300	BODY COMPUTER BRACKET	$303.08	To Order
	88199500	BODY COMPUTER BRACKET	$353.60	To Order
	88526400	BODY COMPUTER BRACKET	$467.26	To Order

Photo	Part No	Description	Price (each)	Stock
	80637100	RH LATERAL BODYSHELL BRACKET	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	80519100	LH LATERAL BODYSHELL BRACKET	$77.02	To Order

Photo	Part No	Description	Price (each)	Stock
	87761500	COMPL. RH LATERAL GLOVE COMPARTMENT BRACKET	$109.86	To Order
	88198400	COMPL. LATERAL GLOVE COMPARTMENT BRACKET	$164.17	To Order

Photo	Part No	Description	Price (each)	Stock
	753412	HVAC FIREWALL BRACKET	$39.13	To Order
	82718500	HVAC FIREWALL BRACKET	$40.39	To Order

Photo	Part No	Description	Price (each)	Stock
	89345000	RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	$70.71	To Order
	89270600	LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	$39.13	To Order

Photo	Part No	Description	Price (each)	Stock
	84706800	ADHESIVE FOAM	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	$2.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	88257000	CENTRING PIN	$2.13	To Order

Photo	Part No	Description	Price (each)	Stock
	87734900	HEAD UNIT MOUNT, COMPL. BRACKET	$164.17	To Order
	88318700	HEAD UNIT MOUNT, COMPL. BRACKET	$239.94	To Order

Photo	Part No	Description	Price (each)	Stock
	89044200	RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	$39.13	To Order
	89051500	LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	$108.59	To Order

Photo	Part No	Description	Price (each)	Stock
	89051600	CENTRAL RH DASHBOARD REINFORCEMENT	$108.59	To Order

Photo	Part No	Description	Price (each)	Stock
	761842	COMPL. OBD BRACKET	$39.13	To Order
	87629700	COMPL. OBD BRACKET	$47.98	To Order

Photo	Part No	Description	Price (each)	Stock
	88433400	COMPL. UPPER AC CONTROLS BRACKET	$50.50	To Order
	88833300	COMPL. UPPER AC CONTROLS BRACKET	$74.49	To Order

Photo	Part No	Description	Price (each)	Stock
	236847	TEMPERATURE SENSOR	$80.00	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	80964300	TEMPERATURE SENSOR BRACKET	$5.30	To Order

Photo	Part No	Description	Price (each)	Stock
	87011900	LIGHTS CONTROL BRACKET	$404.12	To Order
	88321900	LIGHTS CONTROL BRACKET	$593.55	To Order

Photo	Part No	Description	Price (each)	Stock
	88414500	RH PILLAR MOUNTING BRACKET	$25.24	To Order

Photo	Part No	Description	Price (each)	Stock
	88414400	LH PILLAR MOUNTING BRACKET	$25.24	To Order

Photo	Part No	Description	Price (each)	Stock
	82526400	RH DASHBOARD MOUNTING BRACKET	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	82526500	LH DASHBOARD MOUNTING BRACKET	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	82526200	CENTRE DASHBOARD MOUNTING BRACKET	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	88700500	RH BRACKET RETAINING UPPER PART OF DASHBOARD.	$42.92	To Order
	88883900	LH BRACKET RETAINING UPPER PART OF DASHBOARD.	$75.76	To Order

Photo	Part No	Description	Price (each)	Stock
	88700400	LH BRACKET RETAINING UPPER PART OF DASHBOARD.	$39.13	To Order
	88883800	RH BRACKET RETAINING UPPER PART OF DASHBOARD.	$75.76	To Order

Photo	Part No	Description	Price (each)	Stock
	87735000	RH UPPER COVER MOUNT BRACKET	$39.13	To Order
	88494700	LH UPPER COVER MOUNT BRACKET	$71.96	To Order

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.52	To Order
	897538	SCREW	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	849234	SCREW	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	12642078	WASHER	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	88198200	AIR DUCT BRACKET	$78.28	To Order

Photo	Part No	Description	Price (each)	Stock
	89345100	AUTOPARK BRACKET	$64.39	To Order

Photo	Part No	Description	Price (each)	Stock
	88526500	KNEE PIPE UNDER DRIVER	$36.61	To Order

Photo	Part No	Description	Price (each)	Stock
	88920000	BODY BRACKET REINFORCEMENT TUBE	$94.70	To Order

Photo	Part No	Description	Price (each)	Stock
	88920200	REINFORCEMENT BRACKET UNDER DRIVER SEAT	$92.17	To Order

Photo	Part No	Description	Price (each)	Stock
	88920100	DRIVER SIDE KNEE IMPACT ABSORBER	$75.76	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	88198100	DASHBOARD CROSS MEMBER	88198100 DASHBOARD CROSS MEMBER Applicable for GD	$2,285.85	1
1	89336600	DASHBOARD CROSS MEMBER	89336600 DASHBOARD CROSS MEMBER Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	$2,134.31	1
2	89376300	COMPL. DASHBOARD STRUCTURE	89376300 COMPL. DASHBOARD STRUCTURE Applicable for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for ERA GLONASS system	$1,962.55	1
2	89107400	COMPL. DASHBOARD STRUCTURE	89107400 COMPL. DASHBOARD STRUCTURE Not for Russia, Armenia, Belarus, Kazakhstan and Kyrgyzstan markets; Applicable for GD	$2,116.63	1
3	83853800	RH AC UNIT BRACKET	83853800 RH AC UNIT BRACKET	$26.50	1
4	83854000	LH AC UNIT BRACKET	83854000 LH AC UNIT BRACKET	$26.50	1
5	88475300	BODY COMPUTER BRACKET	88475300 BODY COMPUTER BRACKET Not for USA, CDN, GD, USA LIGHT	$303.08	1
5	88199500	BODY COMPUTER BRACKET	88199500 BODY COMPUTER BRACKET Applicable for GD	$353.60	1
5	88526400	BODY COMPUTER BRACKET	88526400 BODY COMPUTER BRACKET Applicable for USA, CDN, USA LIGHT	$467.26	1
6	80637100	RH LATERAL BODYSHELL BRACKET	80637100 RH LATERAL BODYSHELL BRACKET	$77.02	1
7	80519100	LH LATERAL BODYSHELL BRACKET	80519100 LH LATERAL BODYSHELL BRACKET	$77.02	1
8	87761500	COMPL. RH LATERAL GLOVE COMPARTMENT BRACKET	87761500 COMPL. RH LATERAL GLOVE COMPARTMENT BRACKET Not for GD	$109.86	1
8	88198400	COMPL. LATERAL GLOVE COMPARTMENT BRACKET	88198400 COMPL. LATERAL GLOVE COMPARTMENT BRACKET Applicable for GD	$164.17	1
9	753412	HVAC FIREWALL BRACKET	753412 HVAC FIREWALL BRACKET Applicable for GD	$39.13	1
9	82718500	HVAC FIREWALL BRACKET	82718500 HVAC FIREWALL BRACKET Not for GD	$40.39	1
10	89345000	RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	89345000 RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT Applicable for GD	$70.71	1
10	89270600	LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	89270600 LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT Applicable for Russia	$39.13	1
11	84706800	ADHESIVE FOAM	84706800 ADHESIVE FOAM 50 X 25 X 5 mm	$0.65	4
12	255515	BUSH IN STOCK	255515 BUSH 100 x 50 mm; 100 x 50 mm IN STOCK	$2.07	3
13	88257000	CENTRING PIN	88257000 CENTRING PIN Applicable for GD	$2.13	4
14	87734900	HEAD UNIT MOUNT, COMPL. BRACKET	87734900 HEAD UNIT MOUNT, COMPL. BRACKET Not for GD	$164.17	1
14	88318700	HEAD UNIT MOUNT, COMPL. BRACKET	88318700 HEAD UNIT MOUNT, COMPL. BRACKET Applicable for GD	$239.94	1
15	89044200	RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	89044200 RH LATERAL DASHBOARD STRUCTURE REINFORCEMENT Not for GD	$39.13	1
15	89051500	LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT	89051500 LH LATERAL DASHBOARD STRUCTURE REINFORCEMENT Applicable for GD	$108.59	1
16	89051600	CENTRAL RH DASHBOARD REINFORCEMENT	89051600 CENTRAL RH DASHBOARD REINFORCEMENT Applicable for GD	$108.59	1
17	761842	COMPL. OBD BRACKET	761842 COMPL. OBD BRACKET Applicable for GD	$39.13	1
17	87629700	COMPL. OBD BRACKET	87629700 COMPL. OBD BRACKET Not for GD	$47.98	1
18	88433400	COMPL. UPPER AC CONTROLS BRACKET	88433400 COMPL. UPPER AC CONTROLS BRACKET Not for GD	$50.50	1
18	88833300	COMPL. UPPER AC CONTROLS BRACKET	88833300 COMPL. UPPER AC CONTROLS BRACKET Applicable for GD	$74.49	1
19	236847	TEMPERATURE SENSOR IN STOCK	236847 TEMPERATURE SENSOR IN STOCK	$80.00 MSRP: ~~99.57~~ (19.7% off)	1
20	80964300	TEMPERATURE SENSOR BRACKET	80964300 TEMPERATURE SENSOR BRACKET	$5.30	1
21	87011900	LIGHTS CONTROL BRACKET	87011900 LIGHTS CONTROL BRACKET Not for GD	$404.12	1
21	88321900	LIGHTS CONTROL BRACKET	88321900 LIGHTS CONTROL BRACKET Applicable for GD	$593.55	1
22	88414500	RH PILLAR MOUNTING BRACKET	88414500 RH PILLAR MOUNTING BRACKET	$25.24	1
23	88414400	LH PILLAR MOUNTING BRACKET	88414400 LH PILLAR MOUNTING BRACKET	$25.24	1
24	82526400	RH DASHBOARD MOUNTING BRACKET	82526400 RH DASHBOARD MOUNTING BRACKET	$11.99	1
25	82526500	LH DASHBOARD MOUNTING BRACKET	82526500 LH DASHBOARD MOUNTING BRACKET	$11.99	1
26	82526200	CENTRE DASHBOARD MOUNTING BRACKET	82526200 CENTRE DASHBOARD MOUNTING BRACKET	$11.99	1
27	88700500	RH BRACKET RETAINING UPPER PART OF DASHBOARD.	88700500 RH BRACKET RETAINING UPPER PART OF DASHBOARD. Not for GD	$42.92	1
27	88883900	LH BRACKET RETAINING UPPER PART OF DASHBOARD.	88883900 LH BRACKET RETAINING UPPER PART OF DASHBOARD. Applicable for GD	$75.76	1
28	88700400	LH BRACKET RETAINING UPPER PART OF DASHBOARD.	88700400 LH BRACKET RETAINING UPPER PART OF DASHBOARD. Not for GD	$39.13	1
28	88883800	RH BRACKET RETAINING UPPER PART OF DASHBOARD.	88883800 RH BRACKET RETAINING UPPER PART OF DASHBOARD. Applicable for GD	$75.76	1
29	87735000	RH UPPER COVER MOUNT BRACKET	87735000 RH UPPER COVER MOUNT BRACKET Not for GD	$39.13	1
29	88494700	LH UPPER COVER MOUNT BRACKET	88494700 LH UPPER COVER MOUNT BRACKET Applicable for GD	$71.96	1
30	897538	SCREW	897538 SCREW M5 X 20	$1.52	4
30	897538	SCREW	897538 SCREW M5 X 20	$1.52	2
31	86574700	SCREW	86574700 SCREW M5 X 12	$0.61	2
32	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.34	4
33	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	4
34	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	2
35	897538	SCREW	897538 SCREW M5 X 20	$1.52	2
36	11566224	SCREW IN STOCK	11566224 SCREW M5 X 14 IN STOCK	$0.34	5
37	12642821	WASHER IN STOCK	12642821 WASHER IN STOCK	$0.43	2
38	849234	SCREW	849234 SCREW M8 X 45	$2.53	5
39	12642078	WASHER	12642078 WASHER	$0.84	2
40	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	1
41	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	2
42	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.34	3
43	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.34	3
43	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.34	12
44	11566224	SCREW IN STOCK	11566224 SCREW M5 X 10 IN STOCK	$0.34	4
45	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	4
46	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	4
47	88198200	AIR DUCT BRACKET	88198200 AIR DUCT BRACKET Applicable for GD	$78.28	1
48	89345100	AUTOPARK BRACKET	89345100 AUTOPARK BRACKET Applicable for GD	$64.39	1
49	88526500	KNEE PIPE UNDER DRIVER	88526500 KNEE PIPE UNDER DRIVER Applicable for USA, CDN, USA LIGHT	$36.61	1
50	88920000	BODY BRACKET REINFORCEMENT TUBE	88920000 BODY BRACKET REINFORCEMENT TUBE Applicable for USA, CDN, USA LIGHT	$94.70	1
51	88920200	REINFORCEMENT BRACKET UNDER DRIVER SEAT	88920200 REINFORCEMENT BRACKET UNDER DRIVER SEAT Applicable for USA, CDN, USA LIGHT	$92.17	1
52	88920100	DRIVER SIDE KNEE IMPACT ABSORBER	88920100 DRIVER SIDE KNEE IMPACT ABSORBER Applicable for USA, CDN, USA LIGHT	$75.76	1
