Ferrari FF - MAIN WIRING HARNESSES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
310086 DASHBOARD CABLE $1,962.64 To Order
309534 DASHBOARD CABLE $2,038.27 To Order
310084 DASHBOARD CABLE $1,445.82 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
292807 PASSENGER COMPARTMENT CABLE $3,789.16 To Order
310089 PASSENGER COMPARTMENT CABLE $6,244.68 To Order
309535 PASSENGER COMPARTMENT CABLE $6,073.25 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
335082 ENGINE GROUND $151.24 To Order
Photo Part No Description Price (each) Stock
276056 TAILGATE CABLE $365.54 To Order
276055 TAILGATE CABLE $252.09 To Order
Photo Part No Description Price (each) Stock
268214 DOOR SIDEBAG CABLE $30.24 To Order
Photo Part No Description Price (each) Stock
266542 FRONT CABLE $6,274.93 To Order
283692 FRONT CABLE $4,709.34 To Order
266544 FRONT CABLE $5,207.25 To Order
...and 12 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
266545 PASSENGER AIRBAG CABLE $44.10 To Order
Photo Part No Description Price (each) Stock
266551 REAR BUMPER CABLE $226.88 To Order
308478 REAR BUMPER CABLE $478.98 To Order
266546 REAR BUMPER CABLE $327.73 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
266771 VEHICLE LIFT CABLE $390.76 To Order
273583 VEHICLE LIFT CABLE $403.36 To Order
Photo Part No Description Price (each) Stock
261704 CAP CONNECTOR FOR ECU $46.62 To Order
Photo Part No Description Price (each) Stock
312228 TV1 / TV2 TAILGATE CABLE $327.73 To Order
311536 TAILGATE AM/FM CABLE $252.09 To Order
276437 TAILGATE AM/FM-TV1/TV2 CABLE $415.96 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
279055 PASSENGER COMPARTMENT AM/FM CABLE $315.11 To Order
266775 PASSENGER COMPARTMENT TV1/TV2 CABLE $478.98 To Order
281589 PASSENGER COMPARTMENT AM/FM CABLE $403.36 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
281590 DASHBOARD AM/FM CABLE $302.51 To Order
311538 DASHBOARD AM/FM CABLE $302.51 To Order
266556 DASHBOARD AM/FM CABLE $302.51 To Order
Photo Part No Description Price (each) Stock
302142 GROUND BRAID $44.10 To Order
302141 GROUND BRAID $352.93 To Order
Photo Part No Description Price (each) Stock
309752 REAR DIGITAL CAMERA VIDEO CABLE $453.78 To Order
309759 REAR DIGITAL CAMERA VIDEO CABLE $327.73 To Order
266792 PASSENGER COMPARTMENT CAMERA CABLE $176.46 To Order
Photo Part No Description Price (each) Stock
281024 DASHBOARD VIDEO CABLE $114.63 To Order
266797 DASHBOARD VIDEO CABLE $77.85 To Order
Photo Part No Description Price (each) Stock
309757 FRONT CAMERA CABLE $390.76 To Order
268303 FRONT CAMERA CABLE $189.06 To Order
Photo Part No Description Price (each) Stock
278326 RH INJECTION WIRING HARNESS $1,617.24 To Order
278327 RH INJECTION WIRING HARNESS $1,618.51 To Order
284881 RH INJECTION WIRING HARNESS $1,544.14 To Order
Photo Part No Description Price (each) Stock
276420 LH INJECTION WIRING HARNESS $1,554.22 To Order
285802 LH INJECTION WIRING HARNESS $1,202.99 To Order
276419 LH INJECTION WIRING HARNESS $1,448.34 To Order
Photo Part No Description Price (each) Stock
284878 GROUND CABLE FOR AIRBAG ECU $10.05 To Order
Photo Part No Description Price (each) Stock
302141 GROUND BRAID $352.93 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10448890 BRACKET WITH SHEATH $2.39 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
274521 RH CONNECTOR MOUNTING BRACKET $32.76 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
251997 RELAY $182.72 IN STOCK
Photo Part No Description Price (each) Stock
14304220 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
312774 CHARGING WIRING HARNESS $571.87 ARRIVING SOON
View All

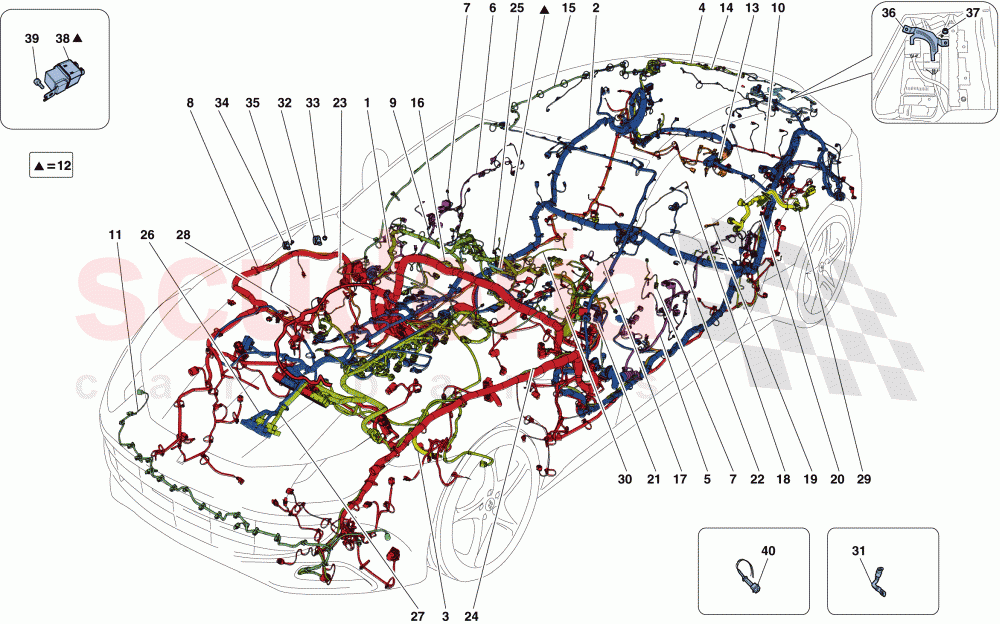

MAIN WIRING HARNESSES of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 310086
DASHBOARD CABLE
Premium Hi-Fi version and RSE; Applicable for Geneva version; Applicable for GD 		$1,962.64 1
1 309534
DASHBOARD CABLE
Premium Hi-Fi version and RSE; Applicable for Geneva version; Not for GD 		$2,038.27 1
1 310084
DASHBOARD CABLE
Premium Hi-Fi version; Applicable for Geneva version; Applicable for GD 		$1,445.82 1
1 308469
DASHBOARD CABLE
Premium Hi-Fi version; Applicable for Geneva version; Not for J, GD 		$1,561.79 1
1 315692
DASHBOARD CABLE
RSE version; Applicable for Geneva version; Applicable for GD 		$1,697.92 1
1 315689
DASHBOARD CABLE
RSE version; Applicable for Geneva version; Not for GD 		$1,847.93 1
1 315690
DASHBOARD CABLE
Standard; Applicable for Geneva version; Applicable for GD 		$894.96 1
1 315687
DASHBOARD CABLE
Standard; Applicable for Geneva version; Not for GD 		$1,021.01 1
2 292807
PASSENGER COMPARTMENT CABLE
Standard; Not for Geneva version; Not for USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 108016 		$3,789.16 1
2 310089
PASSENGER COMPARTMENT CABLE
Premium Hi-Fi version; Applicable for Geneva version; Applicable for GD 		$6,244.68 1
2 309535
PASSENGER COMPARTMENT CABLE
Premium Hi-Fi version; Applicable for Geneva version; Not for GD 		$6,073.25 1
2 272569
PASSENGER COMPARTMENT CABLE
Premium Hi-Fi version; Applicable for J; Applicable up to Ass. No. 100285 		$5,925.77 1
2 272568
PASSENGER COMPARTMENT CABLE
Standard; Applicable for J; Applicable up to Ass. No. 100285 		$3,770.25 1
3 335082
ENGINE GROUND
CHASSIS GROUND CONNECTOR BRAID 		$151.24 1
4 276056
TAILGATE CABLE
Version with rear windscreen wiper; Applicable for J; Applicable up to Ass. No. 100285 		$365.54 1
4 276055
TAILGATE CABLE
Standard; Applicable for J; Applicable up to Ass. No. 100285 		$252.09 1
7 268214
DOOR SIDEBAG CABLE 		$30.24 2
8 266542
FRONT CABLE
Version with TPMS, front parking sensors and adaptive headlights; Applicable for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$6,274.93 1
8 283692
FRONT CABLE
Version with TPMS and front parking sensors; Not for Stop&Start; Applicable for Geneva version; Applicable for USA, CDN, J, USA LIGHT 		$4,709.34 1
8 266544
FRONT CABLE
Version with TPMS, front parking sensors and adaptive headlights; Not for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$5,207.25 1
8 275023
FRONT CABLE
Version with TPMS and front parking sensors; Applicable for Stop&Start; Applicable for GD; Applicable up to Ass. No. 103168 		$6,341.74 1
8 266543
FRONT CABLE
Version with TPMS and front parking sensors; Applicable for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$6,215.69 1
8 283693
FRONT CABLE
Version with TPMS and front parking sensors; Not for Stop&Start; Applicable for Geneva version; Version with adaptive headlights; Not for GD; Applicable from Ass. No. 103169 		$6,133.76 1
8 275021
FRONT CABLE
Version with TPMS and front parking sensors; Not for Stop&Start; Applicable for GD; Applicable up to Ass. No. 103168 		$6,242.16 1
8 268215
FRONT CABLE
Version with TPMS and front parking sensors; Not for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$5,744.25 1
8 275022
FRONT CABLE
Standard; Applicable for Stop&Start; Applicable for GD; Applicable up to Ass. No. 103168 		$6,297.63 1
8 292763
FRONT CABLE
Standard; Applicable for Stop&Start; Not for GD; Applicable from Ass. No. 108016 		$6,034.17 1
8 276316
FRONT CABLE
Standard; Applicable for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$6,089.64 1
8 275020
FRONT CABLE
Standard; Not for Stop&Start; Applicable for GD; Applicable up to Ass. No. 103168 		$4,936.24 1
8 292762
FRONT CABLE
Standard; Not for Stop&Start; Not for Geneva version; Not for GD; Applicable from Ass. No. 108016 		$4,298.41 1
8 292762
FRONT CABLE
Standard; Not for Stop&Start; Applicable for Geneva version; Not for USA, CDN, GD, USA LIGHT 		$4,298.41 1
8 276360
FRONT CABLE
Standard; Not for Stop&Start; Not for GD; Applicable up to Ass. No. 103168 		$4,358.92 1
9 266545
PASSENGER AIRBAG CABLE 		$44.10 1
10 266551
REAR BUMPER CABLE
Not for Geneva version; Applicable for USA, CDN, USA LIGHT 		$226.88 1
10 308478
REAR BUMPER CABLE
Applicable for Geneva version; Applicable for USA, CDN, USA LIGHT 		$478.98 1
10 266546
REAR BUMPER CABLE
Not for Geneva version; Not for USA, CDN, USA LIGHT 		$327.73 1
10 308477
REAR BUMPER CABLE
Applicable for Geneva version; Not for USA, CDN, USA LIGHT 		$352.93 1
12 266771
VEHICLE LIFT CABLE
Version with shock absorber with lifter; Not for GD 		$390.76 1
12 273583
VEHICLE LIFT CABLE
Version with shock absorber with lifter; Applicable for GD 		$403.36 1
13 261704
CAP CONNECTOR FOR ECU
Version with shock absorber with lifter 		$46.62 1
14 312228
TV1 / TV2 TAILGATE CABLE
Version with TV Tuner; Applicable for Geneva version 		$327.73 1
14 311536
TAILGATE AM/FM CABLE
Standard; Applicable for Geneva version; Applicable for USA, CDN, USA LIGHT 		$252.09 1
14 276437
TAILGATE AM/FM-TV1/TV2 CABLE
Version with TV Tuner; Not for Geneva version 		$415.96 1
14 281587
TAILGATE AM/FM CABLE
Standard; Not for Geneva version; Applicable for USA, CDN, USA LIGHT 		$315.11 1
14 276438
TAILGATE AM/FM CABLE
Standard; Not for Geneva version; Not for USA, CDN, USA LIGHT 		$214.28 1
15 279055
PASSENGER COMPARTMENT AM/FM CABLE
Standard; Applicable for J 		$315.11 1
15 266775
PASSENGER COMPARTMENT TV1/TV2 CABLE
Version with TV Tuner 		$478.98 1
15 281589
PASSENGER COMPARTMENT AM/FM CABLE
Standard; Applicable for USA, CDN, USA LIGHT 		$403.36 1
15 311537
PASSENGER COMPARTMENT AM/FM CABLE
Standard; Applicable for Geneva version; Applicable for USA, CDN, USA LIGHT 		$124.77 1
15 266554
PASSENGER COMPARTMENT AM/FM CABLE
Standard; Not for USA, CDN, J, USA LIGHT 		$285.93 1
16 281590
DASHBOARD AM/FM CABLE
Not for Geneva version; Applicable for USA, CDN, USA LIGHT 		$302.51 1
16 311538
DASHBOARD AM/FM CABLE
Applicable for Geneva version; Applicable for USA, CDN, USA LIGHT 		$302.51 1
16 266556
DASHBOARD AM/FM CABLE
Not for Geneva version; Not for USA, CDN, USA LIGHT 		$302.51 1
19 302142
GROUND BRAID 		$44.10 (31.3% off) 1
19 302141
GROUND BRAID
No longer supplied; Replaced by 263190 		$352.93 1
20 309752
REAR DIGITAL CAMERA VIDEO CABLE
Version with parking camera; Applicable for Geneva version 		$453.78 1
20 309759
REAR DIGITAL CAMERA VIDEO CABLE
Applicable for Geneva version; Version with front camera or Apple Car Play 		$327.73 1
20 266792
PASSENGER COMPARTMENT CAMERA CABLE
Version with parking camera; Not for Geneva version 		$176.46 1
21 281024
DASHBOARD VIDEO CABLE
Version with parking camera; Applicable for GD 		$114.63 1
21 266797
DASHBOARD VIDEO CABLE
Version with parking camera; Not for Geneva version; Not for GD 		$77.85 1
24 309757
FRONT CAMERA CABLE
Version with parking camera; Applicable for Geneva version 		$390.76 1
24 268303
FRONT CAMERA CABLE
Version with parking camera; Not for Geneva version 		$189.06 1
26 278326
RH INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT 		$1,617.24 1
26 278327
RH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 110465 		$1,618.51 1
26 284881
RH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 110466 		$1,544.14 1
27 276420
LH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 110465 		$1,554.22 1
27 285802
LH INJECTION WIRING HARNESS
Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 110466 		$1,202.99 1
27 276419
LH INJECTION WIRING HARNESS
Not for USA, CDN, USA LIGHT 		$1,448.34 1
30 284878
GROUND CABLE FOR AIRBAG ECU
After depletion, order zinc plated bracket 285180 table 133 pos. 45; Applicable until depletion 		$10.05 1
31 302141
GROUND BRAID 		$352.93 1
32 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 2
33 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
34 10448890
BRACKET WITH SHEATH 		$2.39 1
35 11568124
SCREW
M5 X 16; No longer supplied; Replaced by 85692300
IN STOCK 		$0.81 1
35 897538
SCREW
M5 X 20 		$1.52 1
36 274521
RH CONNECTOR MOUNTING BRACKET 		$32.76 1
37 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
38 251997
RELAY
IN STOCK 		$182.72 1
39 14304220
SCREW
M5 X 16 		$0.09 1
40 312774
CHARGING WIRING HARNESS
Not for Geneva version
ARRIVING SOON 		$571.87 1

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
