Ferrari FF - FUEL SYSTEM PUMPS AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
254314 COMPL. INCLINATION SENSOR $1,135.34 To Order
273540 COMPL. INCLINATION SENSOR $1,814.70 To Order
Photo Part No Description Price (each) Stock
275998 FASTENER RING $71.00 To Order
239497 FASTENER RING $31.68 To Order
Photo Part No Description Price (each) Stock
239413 O-RING $4.71 IN STOCK
Photo Part No Description Price (each) Stock
275314 O-RING FUEL PUMP $6.02 IN STOCK
275314 O-RING FUEL PUMP $6.02 IN STOCK
Photo Part No Description Price (each) Stock
239456 SECONDARY LOCK $32.95 To Order
Photo Part No Description Price (each) Stock
272086 FUEL PUMP $1,616.27 IN STOCK
Photo Part No Description Price (each) Stock
272087 LH FUEL PUMP $1,469.52 IN STOCK
Photo Part No Description Price (each) Stock
272859 LOWER CONNECTOR PIPE $367.69 To Order
Photo Part No Description Price (each) Stock
290293 FUEL DELIVERY PIPE, FRONT SECTION $83.67 To Order
Photo Part No Description Price (each) Stock
204777 CLIP $0.69 To Order
Photo Part No Description Price (each) Stock
270767 LOWER PIPE SHIELD $34.22 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $2.71 IN STOCK
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.49 IN STOCK
168133 Screw M5 x 20 $0.87 IN STOCK
Photo Part No Description Price (each) Stock
270768 LOWER PIPE HEAT SHIELD $24.07 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
Photo Part No Description Price (each) Stock
88831000 GRUB SCREW M5 X 40 $0.49 IN STOCK
168133 Screw M5 x 20 $0.87 IN STOCK
Photo Part No Description Price (each) Stock
257886 CLIP $0.64 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
16286121 SCREW M6 X 20 $0.66 IN STOCK
Photo Part No Description Price (each) Stock
235682 PIPE CLIP $0.61 To Order
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
252073 FUEL LEVEL SENSOR MOUNT $164.82 To Order
276001 FASTENER RING $236.69 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
11001124 STUD BOLT $60.86 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
View All

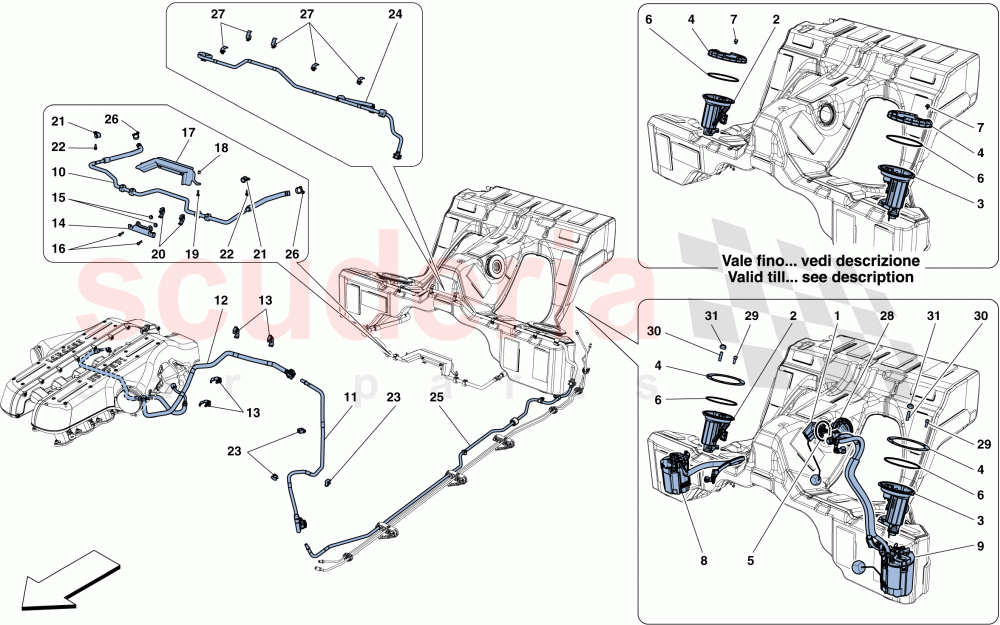

FUEL SYSTEM PUMPS AND PIPES of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 254314
COMPL. INCLINATION SENSOR
Applicable up to Ass. No. 102155 		$1,135.34 1
1 273540
COMPL. INCLINATION SENSOR
Applicable from Ass. No. 102156 		$1,814.70 (47.4% off) 1
4 275998
FASTENER RING
Applicable from Ass. No. 102156 		$71.00 2
4 239497
FASTENER RING
Applicable up to Ass. No. 102155 		$31.68 (38.1% off) 2
5 239413
O-RING
IN STOCK 		$4.71 (66.9% off) 1
6 275314
O-RING FUEL PUMP
Applicable from Ass. No. 103020
IN STOCK 		$6.02 (21.3% off) 2
6 275314
O-RING FUEL PUMP
Applicable up to Ass. No. 103019
IN STOCK 		$6.02 (21.3% off) 2
7 239456
SECONDARY LOCK
Applicable up to Ass. No. 102155 		$32.95 3
8 272086
FUEL PUMP
IN STOCK 		$1,616.27 1
9 272087
LH FUEL PUMP
IN STOCK 		$1,469.52 1
10 272859
LOWER CONNECTOR PIPE 		$367.69 1
11 290293
FUEL DELIVERY PIPE, FRONT SECTION 		$83.67 1
13 204777
CLIP 		$0.69 4
14 270767
LOWER PIPE SHIELD 		$34.22 1
15 14622387
CAP
IN STOCK 		$2.71 2
16 88831000
GRUB SCREW M5 X 40
M5 X 20
IN STOCK 		$0.49 2
16 168133
Screw M5 x 20
M5 X 20; No longer supplied; Replaced by 85692400
IN STOCK 		$0.87 (30.4% off) 2
17 270768
LOWER PIPE HEAT SHIELD 		$24.07 1
18 13046011
NUT 		$0.32 2
19 88831000
GRUB SCREW M5 X 40
M5 X 20
IN STOCK 		$0.49 2
19 168133
Screw M5 x 20
M5 X 20; No longer supplied; Replaced by 85692400
IN STOCK 		$0.87 (30.4% off) 2
20 257886
CLIP 		$0.64 2
21 10441290
BRACKET WITH SHEATH
D. 14
IN STOCK 		$0.54 (67.9% off) 2
22 16286121
SCREW M6 X 20
M6 X 18
IN STOCK 		$0.66 (51.1% off) 2
23 235682
PIPE CLIP 		$0.61 4
25 271937
FUEL DELIVERY PIPE, CENTRE SECTION 		$59.57 1
27 177553
CLAMP 		$0.43 (65.6% off) 5
28 252073
FUEL LEVEL SENSOR MOUNT
Applicable up to Ass. No. 102155 		$164.82 1
28 276001
FASTENER RING
Applicable from Ass. No. 102156 		$236.69 1
29 11566224
SCREW
M5 X 16; Applicable from Ass. No. 102156
IN STOCK 		$0.34 20
30 11001124
STUD BOLT
Applicable from Ass. No. 102156 		$60.86 2
31 13046011
NUT
Applicable from Ass. No. 102156 		$0.32 2
