Doors - Substructure And Trim

Ferrari FF

Find Your Part

Ferrari FF - DOORS - SUBSTRUCTURE AND TRIM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
83207711 COMPL. RH LATERAL DOOR $3,802.54 To Order
83992211 COMPL. RH LATERAL DOOR $3,825.76 To Order
83207811 COMPL. LH LATERAL DOOR $3,809.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83461800 LOWER DOOR PERIMETER SEAL $197.43 To Order
Photo Part No Description Price (each) Stock
84311900 RH INT. WINDOW SCRAPER SEAL $313.58 To Order
84312000 LH INT. WINDOW SCRAPER SEAL $313.58 To Order
Photo Part No Description Price (each) Stock
82208000 RH EXT. WINDOW SCRAPER SEAL $254.49 To Order
82208100 LH EXT. WINDOW SCRAPER SEAL $254.49 To Order
Photo Part No Description Price (each) Stock
82539400 ADAPTOR FOR TWEETER $5.56 To Order
Photo Part No Description Price (each) Stock
83698700 RH INNER DOOR TRIM $2,402.40 To Order
83698800 LH INNER DOOR TRIM $2,536.22 To Order
Photo Part No Description Price (each) Stock
83752700 UPPER PART OF RH DOOR PANEL $5,222.67 To Order
83752800 UPPER PART OF LH DOOR PANEL $5,222.67 To Order
Photo Part No Description Price (each) Stock
82015012 L.H.DEMISTER $1,249.79 To Order
82014912 R.H.DEMISTER $1,249.79 To Order
Photo Part No Description Price (each) Stock
83996600 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
83545000 LH DOOR TWEETER GRILLE $47.77 To Order
83048200 RH DOOR TWEETER GRILLE $47.77 To Order
Photo Part No Description Price (each) Stock
68176200 SCREW $1.00 To Order
Photo Part No Description Price (each) Stock
83624400 RH CHROME BEZEL $10.47 To Order
83624500 LH CHROME BEZEL $10.47 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
88822200 SCREW $0.59 ARRIVING SOON
Photo Part No Description Price (each) Stock
83701212 EXTERIOR PANEL OF LH DOOR POCKET $2,786.17 To Order
83701112 EXTERIOR PANEL OF RH DOOR POCKET $2,786.17 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.33 IN STOCK
Photo Part No Description Price (each) Stock
83415000 BRACKET $51.75 To Order
Photo Part No Description Price (each) Stock
82014700 RH DOOR AIR DUCT $100.98 To Order
82014800 LH DOOR AIR DUCT $100.98 To Order
Photo Part No Description Price (each) Stock
84353912 INTERNAL RH DOOR TRIM INSERT $1,237.17 To Order
83701812 INTERNAL LH DOOT TRIM INSERT $1,237.17 To Order
84354000 INTERNAL LH DOOR TRIM INSERT $1,237.17 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
83087100 RH DOOR WOOFER GRILLE $105.11 To Order
83087200 LH DOOR WOOFER GRILLE $105.11 To Order
Photo Part No Description Price (each) Stock
83702512 RH ARMREST $997.31 To Order
84354100 RH ARMREST $674.44 To Order
83702612 LH ARMREST $997.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
82830500 ARMREST BRACKET $265.09 To Order
Photo Part No Description Price (each) Stock
83613000 LH DOOR PULL HANDLE BODY $328.22 To Order
83612800 RH DOOR PULL HANDLE BODY $328.22 To Order
Photo Part No Description Price (each) Stock
80731600 SCREW $4.20 To Order
84340000 SCREW $1.69 To Order
Photo Part No Description Price (each) Stock
83982012 COMPLETE LH DOOR PULL HANDLE TRIM $238.87 To Order
83981912 COMPLETE RH DOOR PULL HANDLE TRIM $643.83 To Order
Photo Part No Description Price (each) Stock
82018600 RH DOOR INNER CORNER TRIANGLE TRIM $63.11 To Order
82018700 LH DOOR INNER CORNER TRIANGLE TRIM $63.11 To Order
Photo Part No Description Price (each) Stock
85235400 LATERAL AIR VENT SURROUND $17.66 To Order
Photo Part No Description Price (each) Stock
84877100 PLUG $10.34 To Order
Photo Part No Description Price (each) Stock
14441234 SCREW $0.15 IN STOCK
View All

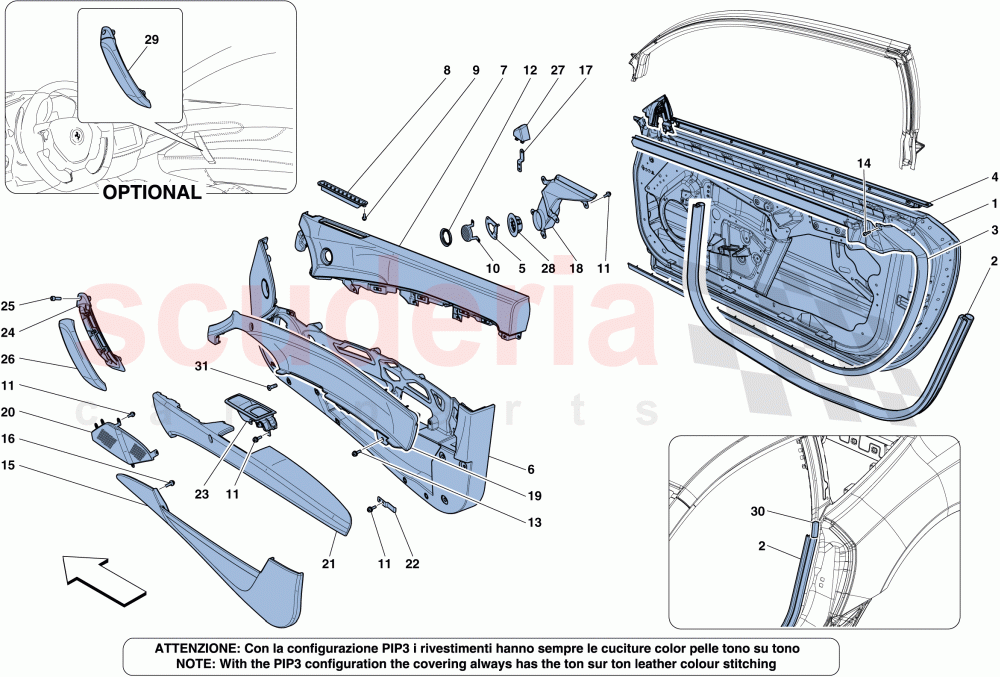

DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari FF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 83207711
COMPL. RH LATERAL DOOR
Not for GD 		$3,802.54 1
1 83992211
COMPL. RH LATERAL DOOR
Applicable for GD 		$3,825.76 1
1 83207811
COMPL. LH LATERAL DOOR
Not for GD 		$3,809.50 1
1 83992311
COMPL. LH LATERAL DOOR
Applicable for GD 		$3,843.19 1
2 83461800
LOWER DOOR PERIMETER SEAL 		$197.43 2
3 84311900
RH INT. WINDOW SCRAPER SEAL 		$313.58 1
3 84312000
LH INT. WINDOW SCRAPER SEAL 		$313.58 1
4 82208000
RH EXT. WINDOW SCRAPER SEAL 		$254.49 1
4 82208100
LH EXT. WINDOW SCRAPER SEAL 		$254.49 1
5 82539400
ADAPTOR FOR TWEETER 		$5.56 2
6 83698700
RH INNER DOOR TRIM
Leather Leather; INTP; INTS; DSH5 		$2,402.40 1
6 83698800
LH INNER DOOR TRIM
Leather Leather; INTP; INTS; DSH5 		$2,536.22 1
7 83752700
UPPER PART OF RH DOOR PANEL
Leather Leather; INTP; INTS; DSH5; PIP3; STC1; STC2 		$5,222.67 1
7 83752800
UPPER PART OF LH DOOR PANEL
Leather Leather; INTP; INTS; DSH5; PIP3; STC1; STC2 		$5,222.67 1
8 82015012
L.H.DEMISTER
See colour grid for associating leather colour with paintwork colour 		$1,249.79 1
8 82014912
R.H.DEMISTER
See colour grid for associating leather colour with paintwork colour 		$1,249.79 1
9 83996600
SCREW
IN STOCK 		$0.52 (48% off) 2
10 83545000
LH DOOR TWEETER GRILLE
See colour grid for associating leather colour with paintwork colour 		$47.77 1
10 83048200
RH DOOR TWEETER GRILLE
See colour grid for associating leather colour with paintwork colour 		$47.77 1
11 68176200
SCREW
M5 X 10 		$1.00 34
12 83624400
RH CHROME BEZEL 		$10.47 1
12 83624500
LH CHROME BEZEL 		$10.47 1
13 11566224
SCREW
M5 X 8
IN STOCK 		$0.33 10
14 88822200
SCREW
ARRIVING SOON 		$0.59 2
15 83701212
EXTERIOR PANEL OF LH DOOR POCKET
Leather; STC1; STC2 		$2,786.17 1
15 83701112
EXTERIOR PANEL OF RH DOOR POCKET
Leather; STC1; STC2 		$2,786.17 1
16 11566224
SCREW
M5 X 12
IN STOCK 		$0.33 16
17 83415000
BRACKET 		$51.75 2
18 82014700
RH DOOR AIR DUCT 		$100.98 1
18 82014800
LH DOOR AIR DUCT 		$100.98 1
19 84353912
INTERNAL RH DOOR TRIM INSERT
Alcantara; STC1; STC2 		$1,237.17 1
19 83701812
INTERNAL LH DOOT TRIM INSERT
Leather; STC1; STC2 		$1,237.17 1
19 84354000
INTERNAL LH DOOR TRIM INSERT
Alcantara; STC1; STC2 		$1,237.17 1
19 83701712
INTERNAL RH DOOR TRIM INSERT
Leather; STC1; STC2 		$1,237.17 1
20 83087100
RH DOOR WOOFER GRILLE
See colour grid for associating leather colour with paintwork colour 		$105.11 1
20 83087200
LH DOOR WOOFER GRILLE
See colour grid for associating leather colour with paintwork colour 		$105.11 1
21 83702512
RH ARMREST
Leather; STC1; STC2 		$997.31 1
21 84354100
RH ARMREST
Alcantara; STC1; STC2 		$674.44 1
21 83702612
LH ARMREST
Leather; STC1; STC2 		$997.31 1
21 84354300
LH ARMREST
Alcantara; STC1; STC2 		- 1 Enquire
22 82830500
ARMREST BRACKET 		$265.09 2
24 83613000
LH DOOR PULL HANDLE BODY
Leather; PIP3; Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert; STC1; STC2 		$328.22 1
24 83612800
RH DOOR PULL HANDLE BODY
Leather; PIP3; Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert; STC1; STC2 		$328.22 1
25 80731600
SCREW
M6 X 40 		$4.20 4
25 84340000
SCREW
M6 X 45; For carbon version 		$1.69 4
26 83982012
COMPLETE LH DOOR PULL HANDLE TRIM
Leather; PIP3; Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert; STC1; STC2 		$238.87 1
26 83981912
COMPLETE RH DOOR PULL HANDLE TRIM
Leather; PIP3; Specify leather colour from colour grid (..) and specify opt PIP3 for Alcantara insert; STC1; STC2 		$643.83 1
27 82018600
RH DOOR INNER CORNER TRIANGLE TRIM
Black 		$63.11 1
27 82018700
LH DOOR INNER CORNER TRIANGLE TRIM
Black 		$63.11 1
28 85235400
LATERAL AIR VENT SURROUND 		$17.66 2
30 84877100
PLUG
L. 40 mm; Supplied with door seal 		$10.34 2
31 14441234
SCREW
IN STOCK 		$0.15 (50% off) 8
