Name: PEDAL BOARD
Rating: 4.6 (1 reviews)

PEDAL BOARD of Ferrari Ferrari F8 Tributo USA

View All

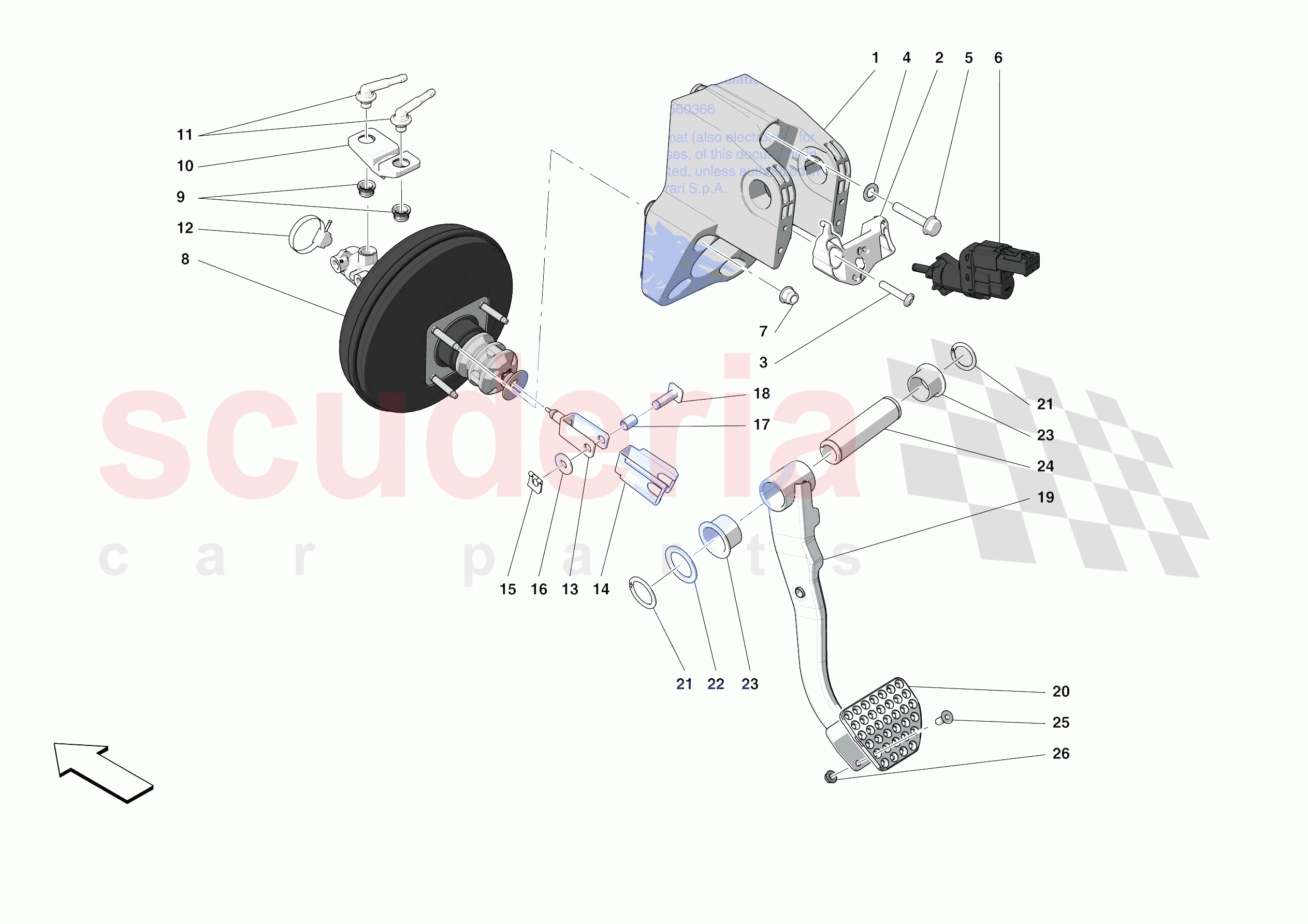

Ferrari F8 Tributo USA - PEDAL BOARD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	256436	PEDAL BOARD MOUNT	$478.83	To Order

Photo	Part No	Description	Price (each)	Stock
	317720	F1 SWITCH BRACKET	$64.25	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	$4.12	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.17	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	$31.58	IN STOCK
	958694	PUSH-BUTTON SWITCH	$31.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	272613	BRAKE SERVO	$617.45	To Order

Photo	Part No	Description	Price (each)	Stock
	241550	GASKET	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272626	ELBOW UNION RETAINER PLATE	$4.45	To Order

Photo	Part No	Description	Price (each)	Stock
	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	$6.14	To Order

Photo	Part No	Description	Price (each)	Stock
	11083570	COLLAR CLAMP	$3.62	To Order

Photo	Part No	Description	Price (each)	Stock
	245178	BRAKE SERVO LINKAGE YOKE	$70.56	To Order

Photo	Part No	Description	Price (each)	Stock
	245179	CAGE	$16.81	To Order

Photo	Part No	Description	Price (each)	Stock
	11064176	SAFETY CLIP	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	245181	RUBBER WASHER	$6.72	To Order

Photo	Part No	Description	Price (each)	Stock
	260639	BUSH	$12.60	To Order

Photo	Part No	Description	Price (each)	Stock
	245180	PIN	$74.33	To Order

Photo	Part No	Description	Price (each)	Stock
	256426	BRAKE PEDAL	$945.07	To Order
	228972	BRAKE PEDAL	$718.25	To Order

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	$167.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	$8.31	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	$9.24	To Order

Photo	Part No	Description	Price (each)	Stock
	147640	GASKET	$5.93	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	$75.59	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	256436	PEDAL BOARD MOUNT	256436 PEDAL BOARD MOUNT	$478.83	1
0002	317720	F1 SWITCH BRACKET	317720 F1 SWITCH BRACKET	$64.25	1
0003	240931	SCREW	240931 SCREW	$4.12	2
0004	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
0005	16287524	SCREW IN STOCK	16287524 SCREW M8 X 40 IN STOCK	$1.17	1
0006	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH Applicable after depletion of 318205 IN STOCK	$31.58	1
0006	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH IN STOCK	$31.58	1
0007	12578211	NUT	12578211 NUT	$0.29 MSRP: ~~1.25~~ (76.8% off)	4
0008	272613	BRAKE SERVO	272613 BRAKE SERVO	$617.45	1
0009	241550	GASKET IN STOCK	241550 GASKET IN STOCK	$0.70	2
0010	272626	ELBOW UNION RETAINER PLATE	272626 ELBOW UNION RETAINER PLATE	$4.45	1
0011	237586	ELBOW UNION FOR BRAKE MASTER CYLINDER	237586 ELBOW UNION FOR BRAKE MASTER CYLINDER	$6.14	2
0012	11083570	COLLAR CLAMP	11083570 COLLAR CLAMP	$3.62	1
0013	245178	BRAKE SERVO LINKAGE YOKE	245178 BRAKE SERVO LINKAGE YOKE	$70.56	1
0014	245179	CAGE	245179 CAGE	$16.81	1
0015	11064176	SAFETY CLIP	11064176 SAFETY CLIP	$2.43	1
0016	245181	RUBBER WASHER	245181 RUBBER WASHER	$6.72	1
0017	260639	BUSH	260639 BUSH	$12.60	1
0018	245180	PIN	245180 PIN	$74.33	1
0019	256426	BRAKE PEDAL	256426 BRAKE PEDAL	$945.07	1
0019	228972	BRAKE PEDAL	228972 BRAKE PEDAL	$718.25	1
0020	240987	DRILLED PLATE IN STOCK	240987 DRILLED PLATE IN STOCK	$167.01	1
0021	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT	$8.31	2
0022	240929	RUBBER WASHER	240929 RUBBER WASHER	$9.24	1
0023	147640	GASKET	147640 GASKET	$5.93 MSRP: ~~6.93~~ (14.4% off)	2
0024	240930	PIN	240930 PIN	$75.59	1
0025	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 M6 X 16 IN STOCK	$0.96 MSRP: ~~1.45~~ (33.8% off)	2
0026	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2

Pedal Board

Ferrari F8 Tributo USA
