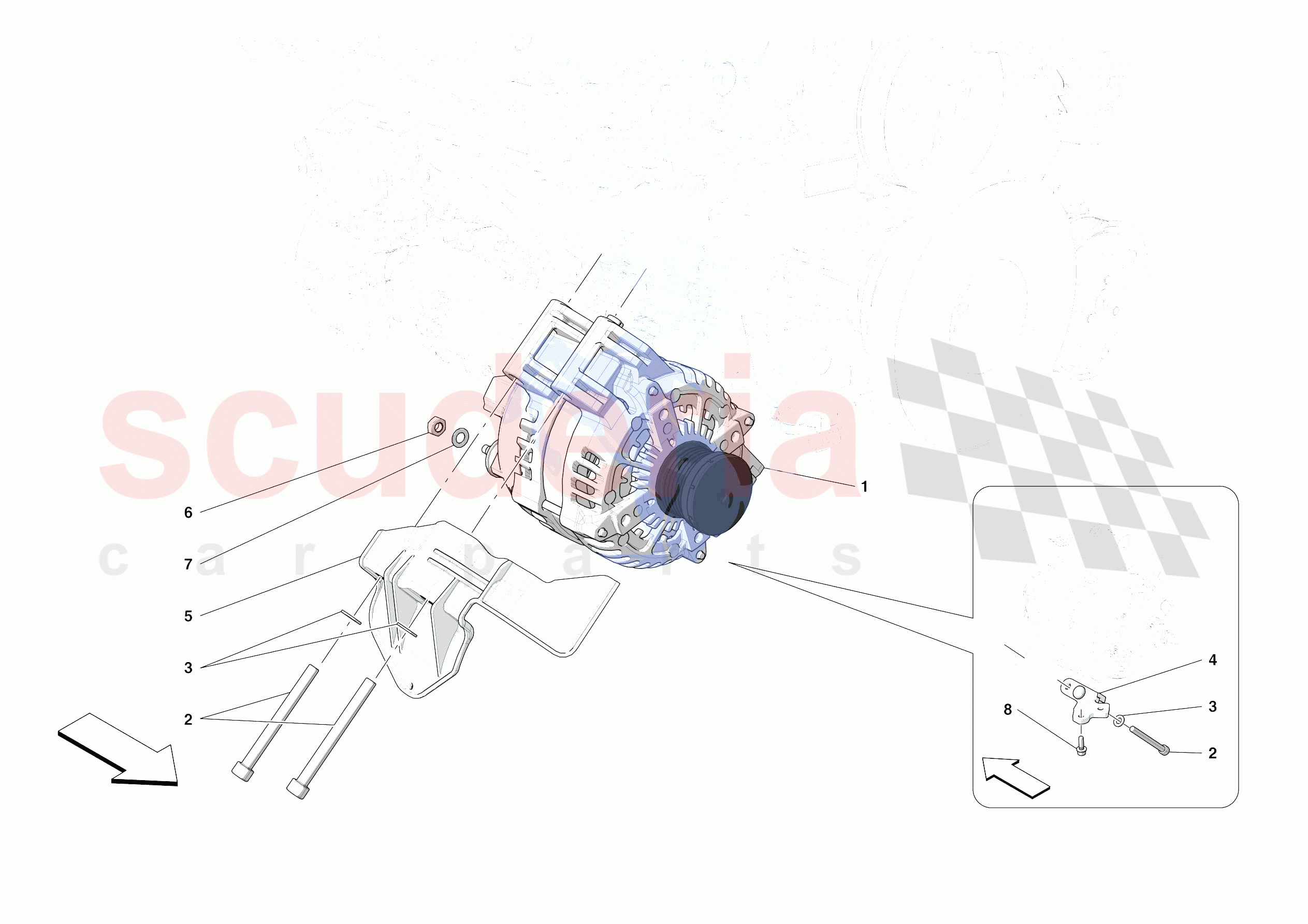

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	309645	ALTERNATOR SC5	$1,005.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14359534	SCREW	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	826428	COMPL. ALTERNATOR BRACE BRACKET	$35.25	To Order

Photo	Part No	Description	Price (each)	Stock
	849746	ALTERNATOR SHIELD	$26.43	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	309645	ALTERNATOR SC5 IN STOCK	309645 ALTERNATOR SC5 IN STOCK	$1,005.68	1
0002	14359534	SCREW	14359534 SCREW M8 X 80	$1.34	3
0003	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	3
0004	826428	COMPL. ALTERNATOR BRACE BRACKET	826428 COMPL. ALTERNATOR BRACE BRACKET	$35.25	1
0005	849746	ALTERNATOR SHIELD	849746 ALTERNATOR SHIELD	$26.43	1
0006	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
0007	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
0008	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	1
