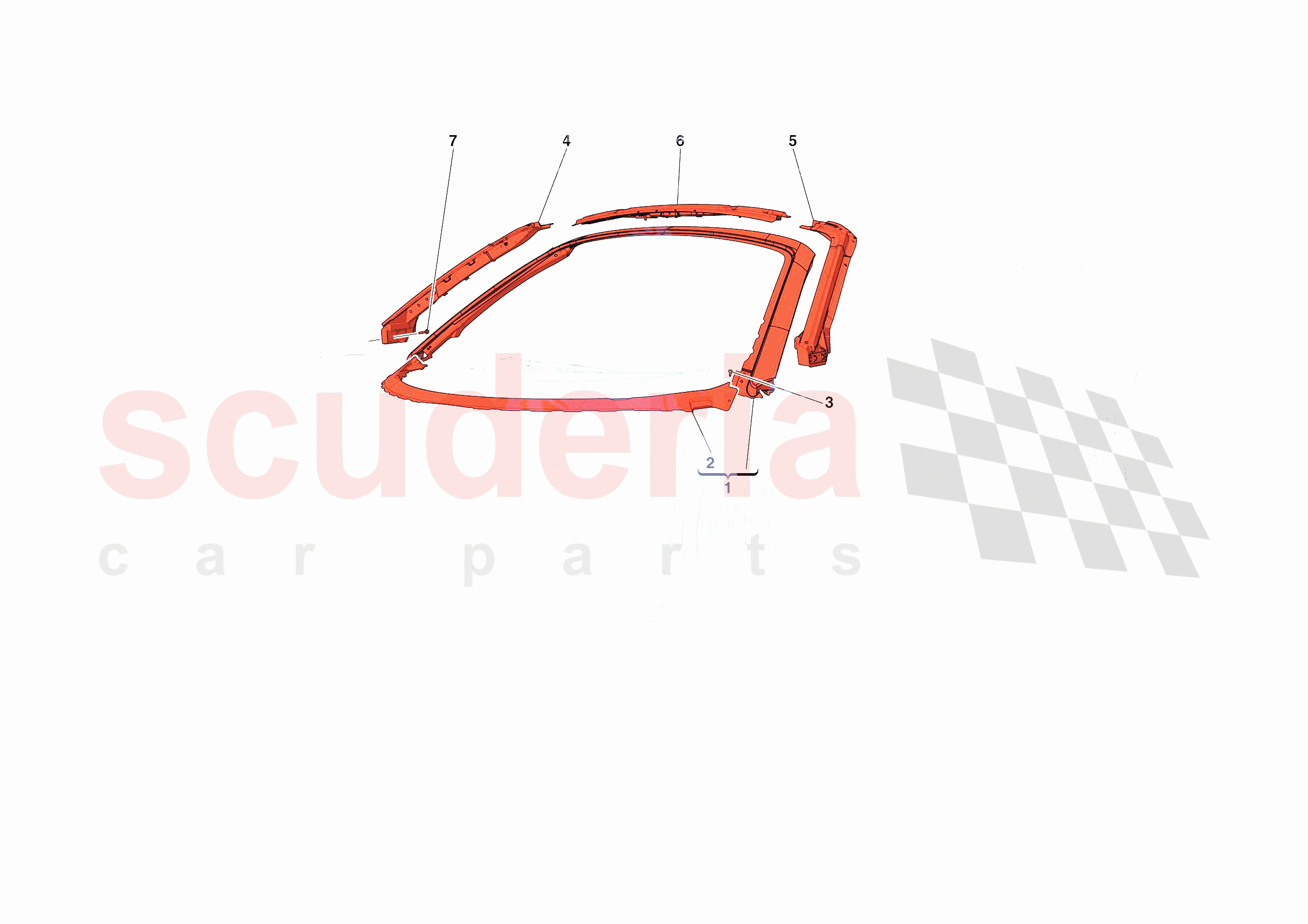

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	87640911	WINDSCREEN SURROUND	$2,932.30	To Order

Photo	Part No	Description	Price (each)	Stock
	87286711	WINDSCREEN CROSS-MEMBER UPPER COVER	$2,553.85	To Order

Photo	Part No	Description	Price (each)	Stock
	14639791	RIVET	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	985264618	RH UPPER PILLAR	$1,669.97	To Order

Photo	Part No	Description	Price (each)	Stock
	985264617	LH UPPER PILLAR	$1,669.97	To Order

Photo	Part No	Description	Price (each)	Stock
	985907236	COMPL. UPPER WINDSCREEN CROSS MEMBER	$584.16	To Order

Photo	Part No	Description	Price (each)	Stock
	18753234	SCREW	$1.78	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	87640911	WINDSCREEN SURROUND	87640911 WINDSCREEN SURROUND	$2,932.30	1
0002	87286711	WINDSCREEN CROSS-MEMBER UPPER COVER	87286711 WINDSCREEN CROSS-MEMBER UPPER COVER Request ASM authorisation	$2,553.85	1
0003	14639791	RIVET	14639791 RIVET	$1.18	2
0004	985264618	RH UPPER PILLAR	985264618 RH UPPER PILLAR	$1,669.97	1
0005	985264617	LH UPPER PILLAR	985264617 LH UPPER PILLAR	$1,669.97	1
0006	985907236	COMPL. UPPER WINDSCREEN CROSS MEMBER	985907236 COMPL. UPPER WINDSCREEN CROSS MEMBER	$584.16	1
0007	18753234	SCREW	18753234 SCREW M8 X 55	$1.78	4
