Name: TANK MOUNTS
Rating: 5.0 (1 reviews)

View All

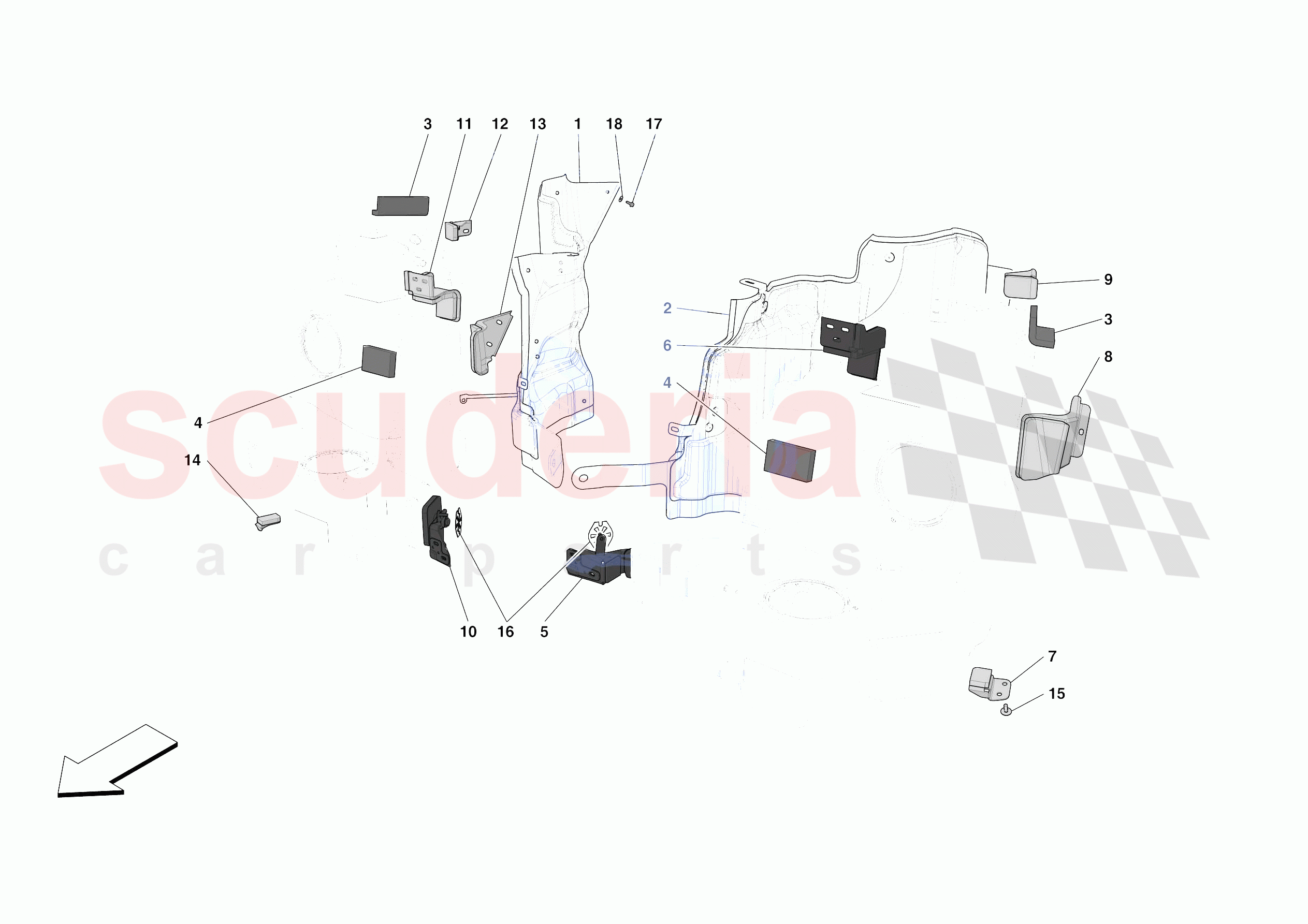

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	320229	RH TANK HEAT INSULATION	$567.23	To Order

Photo	Part No	Description	Price (each)	Stock
	320230	LH TANK HEAT INSULATION	$567.23	To Order

Photo	Part No	Description	Price (each)	Stock
	308339	VIBRATION DAMPER PAD FOR TANKS	$5.54	To Order

Photo	Part No	Description	Price (each)	Stock
	313310	VIBRATION DAMPER PAD FOR TANKS	$3.33	To Order

Photo	Part No	Description	Price (each)	Stock
	313508	LH CENTRE TANK RETAINER	$206.26	To Order

Photo	Part No	Description	Price (each)	Stock
	317184	INNER LH UPPER TANK RETAINER	$77.34	To Order

Photo	Part No	Description	Price (each)	Stock
	311186	LH TANK RETAINER	$46.39	To Order

Photo	Part No	Description	Price (each)	Stock
	313513	LH REAR TANK RETAINER	$90.23	To Order

Photo	Part No	Description	Price (each)	Stock
	312973	LH UPPER TANK RETAINER	$42.53	To Order

Photo	Part No	Description	Price (each)	Stock
	313507	RH CENTRE TANK RETAINER	$206.26	To Order

Photo	Part No	Description	Price (each)	Stock
	317185	INNER RH UPPER TANK RETAINER	$77.34	To Order

Photo	Part No	Description	Price (each)	Stock
	312974	RH UPPER TANK RETAINER	$42.53	To Order

Photo	Part No	Description	Price (each)	Stock
	313514	RH REAR TANK RETAINER	$90.23	To Order

Photo	Part No	Description	Price (each)	Stock
	311187	RH TANK RETAINER	$46.39	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	$0.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67315400	WASHER	$0.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16281824	SCREW	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	12644424	WASHER	$0.06	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	320229	RH TANK HEAT INSULATION	320229 RH TANK HEAT INSULATION	$567.23	1
0002	320230	LH TANK HEAT INSULATION	320230 LH TANK HEAT INSULATION	$567.23	1
0003	308339	VIBRATION DAMPER PAD FOR TANKS	308339 VIBRATION DAMPER PAD FOR TANKS 120 X 70 X 10	$5.54	2
0004	313310	VIBRATION DAMPER PAD FOR TANKS	313310 VIBRATION DAMPER PAD FOR TANKS 80 X 50 X 15	$3.33	2
0005	313508	LH CENTRE TANK RETAINER	313508 LH CENTRE TANK RETAINER	$206.26	1
0006	317184	INNER LH UPPER TANK RETAINER	317184 INNER LH UPPER TANK RETAINER	$77.34	1
0007	311186	LH TANK RETAINER	311186 LH TANK RETAINER	$46.39	1
0008	313513	LH REAR TANK RETAINER	313513 LH REAR TANK RETAINER	$90.23	1
0009	312973	LH UPPER TANK RETAINER	312973 LH UPPER TANK RETAINER	$42.53	1
0010	313507	RH CENTRE TANK RETAINER	313507 RH CENTRE TANK RETAINER	$206.26	1
0011	317185	INNER RH UPPER TANK RETAINER	317185 INNER RH UPPER TANK RETAINER	$77.34	1
0012	312974	RH UPPER TANK RETAINER	312974 RH UPPER TANK RETAINER	$42.53	1
0013	313514	RH REAR TANK RETAINER	313514 RH REAR TANK RETAINER	$90.23	1
0014	311187	RH TANK RETAINER	311187 RH TANK RETAINER	$46.39	1
0015	16286121	SCREW IN STOCK	16286121 SCREW M6 X 18 IN STOCK	$0.66 MSRP: ~~1.35~~ (51.1% off)	24
0016	67315400	WASHER IN STOCK	67315400 WASHER IN STOCK	$0.40	2
0017	16281824	SCREW	16281824 SCREW M5 X 14	$0.35 MSRP: ~~1.00~~ (65% off)	12
0018	12644424	WASHER IN STOCK	12644424 WASHER IN STOCK	$0.06 MSRP: ~~0.40~~ (85% off)	6

Tank Mounts

Ferrari F8 Spider USA
