Ferrari F8 Tributo - A/C SYSTEM - AIR CONDITIONER SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All
A/C SYSTEM - AIR CONDITIONER SYSTEM of Ferrari Ferrari F8 Tributo Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86240500
PIPE FROM COMPRESSOR TO UNDERBODY 		$177.67 1
2 86854500
FREON RETURN PIPE TO COMPRESSOR 		$203.04 1
3 14306724
SCREW 		$0.81 1
4 88898300
UNDERBODY FREON DELIVERY-RETURN PIPE 		$380.73 1
5 231619
SCREW
IN STOCK 		$0.29 1
6 88898700
PIPE FROM HVAC TO UNDERBODY 		$444.19 1
7 308399
SPACER 		$5.75 1
8 14040614
NUT
IN STOCK 		$0.14 2
9 239829
VIBRATION DAMPER 		- 2 Enquire
10 262380
CLIP 		$1.53 1
11 11625824
SCREW
IN STOCK 		$0.34 (66% off) 4
12 263230
CLIP 		$1.27 1
13 14040711
NUT
IN STOCK 		$0.35 1
14 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 2
15 248334
SCREW
IN STOCK 		$0.58 3
16 13837017
SCREW
IN STOCK 		$3.21 2
17 88898500
PIPE FROM DISCONNECTOR TO RECEIVER DRIER 		$164.98 1
18 255515
BUSH
IN STOCK 		$2.08 2
19 250318
SNAP CLIP
IN STOCK 		$0.21 2
20 11612826
SCREW 		$2.95 2
21 67085100
DEHYDRATING FILTER
ARRIVING SOON 		$50.34 (30% off) 1
22 82155900
DEHYDRATOR FILTER BRACKET 		$41.86 1
23 86403000
PIPE FROM FILTER TO HVAC 		$418.81 1
24 102741
NUT
IN STOCK 		$0.20 (80% off) 2
25 86228900
HOSE 		$145.45 1
26 262111
SCREW CLAMP 		$1.39 10
27 86253700
UNDERBODY WATER PIPE
IN STOCK 		$190.36 1
28 86280800
HOSE 		$58.36 1
29 316986
SPACER 		$7.19 1
30 262111
SCREW CLAMP 		$1.39 2
31 320600
CLIP 		$2.11 1
32 178772
SPACER STUD 		$10.03 1
33 880041
Allen Head Bolt M6 X 26
IN STOCK 		$5.33 2
34 291645
CLIP 		$3.55 2
35 291349
WATER RECIRCULATION PUMP 		$3,227.07 1
36 86051000
RECIRCULATION PUMP MOUNTING BRACKET 		$6.72 1
37 86280900
HOSE 		$148.48 1
38 231214
CLIP
IN STOCK 		$1.27 1
39 82761900
RH TGK VALVE CONNECTOR PIPE 		$104.05 1
40 82302700
LH TGK VALVE CONNECTOR PIPE 		$63.44 1
41 83444200
DRIP BAFFLE RING
IN STOCK 		$3.93 2
42 82329900
CLIP
IN STOCK 		$0.84 1
43 82328500
TGK VALVE BLOCK MOUNTING BRACKET 		$26.63 1
44 83560800
GUARD 		$9.00 1

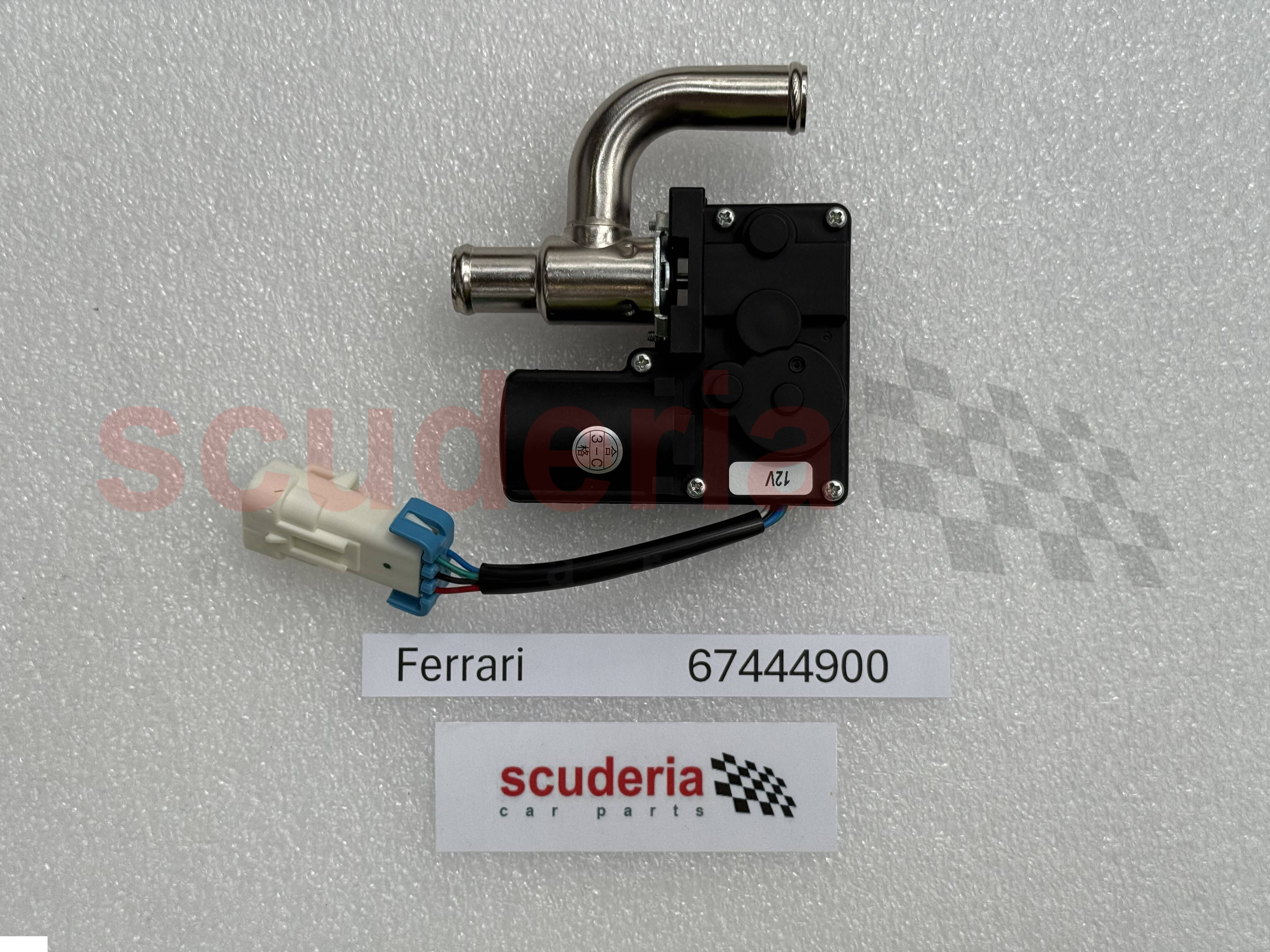

45 67444900
LH TGK VALVE
IN STOCK 		$227.27 (21.1% off) 1
46 67635900
RH TGK VALVE
IN STOCK 		$212.12 (26.1% off) 1
47 290953
RIGID TGK VALVE OUTLET PIPE 		$4.99 1
48 291115
HOSE 		$41.86 1
49 291116
HOSE 		$35.52 2
50 162606
CLIP
IN STOCK 		$1.18 (19.7% off) 1
51 82331800
RUBBER SPACER BUTTON 		$3.28 2
52 174623
BUSH 		$11.95 2
53 14059211
NUT
IN STOCK 		$0.06 2
54 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 2
55 303385
CLIP
IN STOCK 		$0.26 1
56 13000390
Screw Collar
IN STOCK 		$0.69 (65.5% off) 3
57 266156
CLIP 		$0.55 1
58 177553
CLAMP 		$0.43 (65.6% off) 1
59 270085
CLIP
IN STOCK 		$1.61 1
60 82923400
AC MOBILE DUCT INSULATION KIT 		$101.52 1
61 82923500
HVAC UNIT INSULATION KIT 		$106.59 1
62 255515
BUSH
IN STOCK 		$2.08 1
