Ferrari F50 - FRAME AND STRUCTURES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
155715 MONOCOQUE BODY FRAME $54,910.14 To Order
Photo Part No Description Price (each) Stock
167307 CABLE GROMMET FOR PIPES $29.33 To Order
Photo Part No Description Price (each) Stock
167310 CABLE GROMMET FOR PIPES $41.82 To Order
Photo Part No Description Price (each) Stock
167309 CABLE GROMMET FOR PIPES $133.86 To Order
Photo Part No Description Price (each) Stock
13543724 STUD BOLT $1.51 IN STOCK
Photo Part No Description Price (each) Stock
150961 CENTERING DOWEL $40.42 To Order
Photo Part No Description Price (each) Stock
162686 ENGINE FIXING BRACKET $102.40 To Order
Photo Part No Description Price (each) Stock
151229 BRACKET FOR LOWER LEVER $88.35 To Order
Photo Part No Description Price (each) Stock
150786 SPACER $91.56 To Order
Photo Part No Description Price (each) Stock
64924700 SILENCER SHIELD $436.38 To Order
Photo Part No Description Price (each) Stock
64135500 R.H. PLATE $913.60 To Order
Photo Part No Description Price (each) Stock
64135600 L.H. PLATE $913.60 To Order
Photo Part No Description Price (each) Stock
64529700 GASKET $12.01 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.93 IN STOCK
Photo Part No Description Price (each) Stock
64632200 INNER LOWER WINDBRACING $139.27 To Order
Photo Part No Description Price (each) Stock
64632400 R.H. OUTER LOWER WINDBRACING $139.27 To Order
Photo Part No Description Price (each) Stock
64632500 L.H. OUTER LOWER WINDBRACING $139.27 To Order
Photo Part No Description Price (each) Stock
164949 STUD $30.03 To Order
Photo Part No Description Price (each) Stock
152451 BUSHING $38.93 To Order
Photo Part No Description Price (each) Stock
165048 TAPERED SPRAG $464.28 To Order
Photo Part No Description Price (each) Stock
151879 FORK $103.33 To Order
Photo Part No Description Price (each) Stock
151883 SCREW $4.78 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.80 To Order
Photo Part No Description Price (each) Stock
12429524 STUD $1.75 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
156705 STUD $16.73 To Order
Photo Part No Description Price (each) Stock
12429724 STUD $7.35 To Order
Photo Part No Description Price (each) Stock
151642 BUSHING $85.29 To Order
Photo Part No Description Price (each) Stock
13543734 STUD BOLT $1.51 To Order
Photo Part No Description Price (each) Stock
150961 CENTERING DOWEL $40.42 To Order
Photo Part No Description Price (each) Stock
13544334 STUD $2.44 To Order
Photo Part No Description Price (each) Stock
12642877 WASHER $0.09 To Order
Photo Part No Description Price (each) Stock
15688875 SCREW $0.11 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12354524 Stud Securing Exhaust $27.59 IN STOCK
Photo Part No Description Price (each) Stock
14592587 FIXING BUTTON $0.11 IN STOCK
Photo Part No Description Price (each) Stock
143862 PLUG $0.14 To Order
Photo Part No Description Price (each) Stock
61568600 BUTTON $0.83 IN STOCK
Photo Part No Description Price (each) Stock
63393900 Sealant $3.68 To Order
Photo Part No Description Price (each) Stock
13543224 STUD $3.90 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $20.08 IN STOCK
Photo Part No Description Price (each) Stock
14507787 PLUG $0.80 IN STOCK
Photo Part No Description Price (each) Stock
60731300 Plug $4.18 To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.93 IN STOCK
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox $5.10 IN STOCK
Photo Part No Description Price (each) Stock
151799 BALL JOINT $149.76 To Order
Photo Part No Description Price (each) Stock
149124 L.H. THREADED NUT $4.22 To Order
Photo Part No Description Price (each) Stock
10717477 NUT $3.01 To Order
Photo Part No Description Price (each) Stock
151798 BALL JOINT $109.53 To Order
Photo Part No Description Price (each) Stock
151794 BUSHING $7.94 To Order
Photo Part No Description Price (each) Stock
14359274 SCREW $43.84 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.30 IN STOCK
Photo Part No Description Price (each) Stock
13541324 STUD BOLT $1.59 To Order
Photo Part No Description Price (each) Stock
11501024 STUD BOLT $0.92 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $20.08 IN STOCK
Photo Part No Description Price (each) Stock
12429524 STUD $1.75 To Order
Photo Part No Description Price (each) Stock
11001224 Stud bolt $0.77 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.68 To Order
Photo Part No Description Price (each) Stock
13543324 Stud -Valid for gearbox $5.10 IN STOCK
Photo Part No Description Price (each) Stock
63566000 SEAL RING $0.67 To Order
Photo Part No Description Price (each) Stock
152537 WASHER $13.33 To Order
Photo Part No Description Price (each) Stock
101040 Nut $2.68 To Order
Photo Part No Description Price (each) Stock
164963 WASHER $13.33 To Order
Photo Part No Description Price (each) Stock
132876 NUT -As an alternative- $32.25 To Order
Photo Part No Description Price (each) Stock
121983 STUD $13.33 To Order
View All

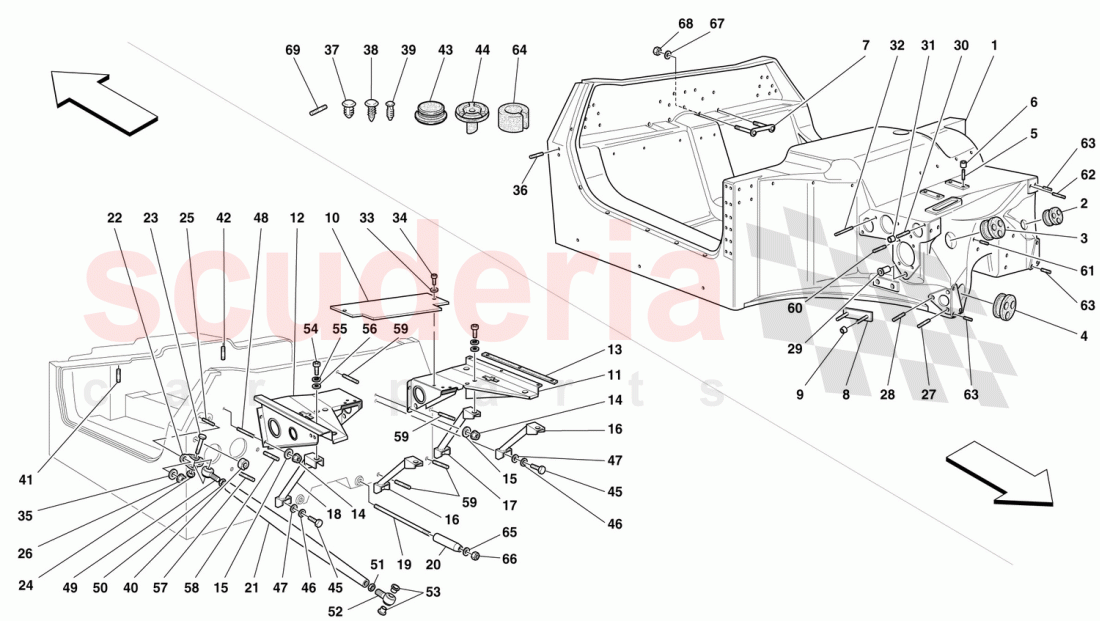

FRAME AND STRUCTURES of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 155715
MONOCOQUE BODY FRAME 		$54,910.14 1
2 167307
CABLE GROMMET FOR PIPES 		$29.33 1
3 167310
CABLE GROMMET FOR PIPES 		$41.82 1
4 167309
CABLE GROMMET FOR PIPES 		$133.86 1
5 13543724
STUD BOLT
IN STOCK 		$1.51 4
6 150961
CENTERING DOWEL 		$40.42 2
7 162686
ENGINE FIXING BRACKET 		$102.40 2
8 151229
BRACKET FOR LOWER LEVER 		$88.35 2
9 150786
SPACER 		$91.56 4
10 64924700
SILENCER SHIELD 		$436.38 1
11 64135500
R.H. PLATE 		$913.60 1
12 64135600
L.H. PLATE 		$913.60 1
13 64529700
GASKET 		$12.01 2
14 14040711
NUT
IN STOCK 		$0.35 20
15 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.93 20
16 64632200
INNER LOWER WINDBRACING
WINDBRACING 		$139.27 2
17 64632400
R.H. OUTER LOWER WINDBRACING
WINDBRACING 		$139.27 1
18 64632500
L.H. OUTER LOWER WINDBRACING
WINDBRACING 		$139.27 1
19 164949
STUD 		$30.03 2
20 152451
BUSHING 		$38.93 2
21 165048
TAPERED SPRAG 		$464.28 2
22 151879
FORK 		$103.33 2
23 151883
SCREW 		$4.78 4
24 148020
NUT M12 X 1.25 		$3.80 4
25 12429524
STUD 		$1.75 4
26 14040711
NUT
IN STOCK 		$0.35 4
27 156705
STUD 		$16.73 4
28 12429724
STUD 		$7.35 2
29 151642
BUSHING 		$85.29 (30.1% off) 2
30 13543734
STUD BOLT 		$1.51 6
31 150961
CENTERING DOWEL 		$40.42 4
32 13544334
STUD 		$2.44 4
33 12642877
WASHER 		$0.09 2
34 15688875
SCREW
IN STOCK 		$0.11 (68.6% off) 2
35 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 4
36 12354524
Stud Securing Exhaust
IN STOCK 		$27.59 (12.4% off) 4
37 14592587
FIXING BUTTON
IN STOCK 		$0.11 (85.3% off) 2
38 143862
PLUG 		$0.14 (44% off) 2
39 61568600
BUTTON
IN STOCK 		$0.83 (33.6% off) 4
40 63393900
Sealant 		$3.68 3
41 13543224
STUD 		$3.90 4
42 13541124
STUD BOLT
IN STOCK 		$20.08 4
43 14507787
PLUG
IN STOCK 		$0.80 4
44 60731300
Plug 		$4.18 (32% off) 1
45 16043434
HEX HEAD SCREW M8 X 20
IN STOCK 		$0.23 (54% off) 4
46 127496
WASHER 		$0.06 (80% off) 4
47 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.93 4
48 13543324
Stud -Valid for gearbox
IN STOCK 		$5.10 20
49 151799
BALL JOINT 		$149.76 2
50 149124
L.H. THREADED NUT 		$4.22 2
51 10717477
NUT 		$3.01 2
52 151798
BALL JOINT 		$109.53 2
53 151794
BUSHING 		$7.94 8
54 14359274
SCREW 		$43.84 2
55 127496
WASHER 		$0.06 (80% off) 2
56 12647021
WASHER
IN STOCK 		$0.30 2
57 13541324
STUD BOLT 		$1.59 (14.1% off) 1
58 11501024
STUD BOLT 		$0.92 (83.8% off) 1
59 13541124
STUD BOLT
IN STOCK 		$20.08 6
60 12429524
STUD 		$1.75 8
61 11001224
Stud bolt 		$0.77 2
62 13543424
STUD BOLT 		$1.68 1
63 13543324
Stud -Valid for gearbox
IN STOCK 		$5.10 9
64 63566000
SEAL RING 		$0.67 3
65 152537
WASHER 		$13.33 2
66 101040
Nut 		$2.68 2
67 164963
WASHER 		$13.33 4
68 132876
NUT -As an alternative- 		$32.25 4
69 121983
STUD 		$13.33 1
