Ferrari F50 - BRAKE AND CLUTCH SYSTEM

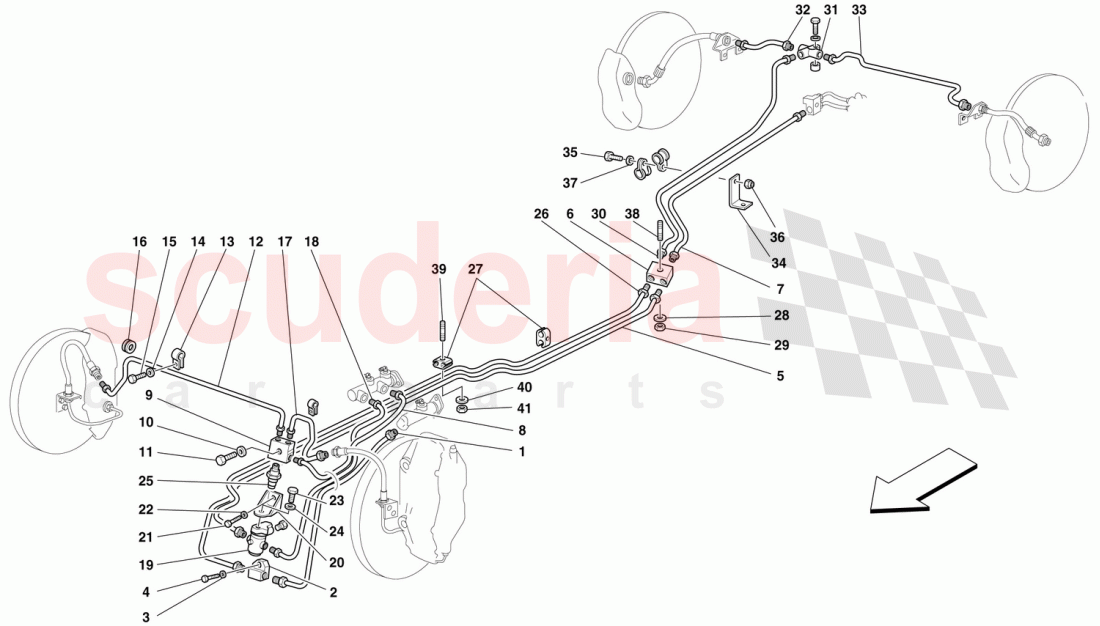

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	166671	PIPE FROM CLUTCH PUMP TO UNION	$60.07	To Order

Photo	Part No	Description	Price (each)	Stock
	240774	CONNECTOR	$52.83	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.56	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	166672	PIPE FROM REAR UNION TO CLUTCH UNION	$90.11	To Order

Photo	Part No	Description	Price (each)	Stock
	167528	UNION	$88.61	To Order

Photo	Part No	Description	Price (each)	Stock
	166673	PIPE FROM REAR UNION TO CLUTCH UNION	$69.08	To Order

Photo	Part No	Description	Price (each)	Stock
	163004	PIPE FROM BRAKE PUMP TO FRONT UNION	$8.77	To Order

Photo	Part No	Description	Price (each)	Stock
	166590	FRONT UNION	$225.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10903024	SCREW	$0.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163000	PIPE FROM UNION TO R.H. FRONT FLEX	$98.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10440890	BRACKET WITH SHEATH	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	10459087	CABLE GROMMET	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	163002	PIPE FROM UNION TO L.H. FRONT FLEX	$98.37	To Order

Photo	Part No	Description	Price (each)	Stock
	163005	PIPE FROM BRAKE PUMP TO BRAKING REGULATOR	$11.30	To Order

Photo	Part No	Description	Price (each)	Stock
	167276	BRAKING REGULATOR	$109.49	To Order

Photo	Part No	Description	Price (each)	Stock
	154818	SUPPORT	$52.56	To Order

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16042921	SCREW	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154309	PRESSURE REGULATOR	$37.54	To Order

Photo	Part No	Description	Price (each)	Stock
	163007	PIPE FROM BRAKING REGULATOR TO REAR UNION	$22.52	To Order

Photo	Part No	Description	Price (each)	Stock
	141522	CLIP	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	163009	PIPE FROM UNION TO 3 WAY UNION	$16.08	To Order

Photo	Part No	Description	Price (each)	Stock
	101394	3 WAY UNION	$81.36	To Order

Photo	Part No	Description	Price (each)	Stock
	163008	PIPE FROM UNION TO R.H. REAR FLEX	$11.11	To Order

Photo	Part No	Description	Price (each)	Stock
	163006	PIPE FROM UNION TO L.H. REAR FLEX	$4.87	To Order

Photo	Part No	Description	Price (each)	Stock
	168699	BRACKET	$10.12	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181874	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11501024	STUD BOLT	$0.93	To Order

Photo	Part No	Description	Price (each)	Stock
	11001524	STUD	$2.00	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$702.05	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	166671	PIPE FROM CLUTCH PUMP TO UNION	166671 PIPE FROM CLUTCH PUMP TO UNION	$60.07	1
2	240774	CONNECTOR	240774 CONNECTOR	$52.83	1
3	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	1
4	231625	SCREW IN STOCK	231625 SCREW IN STOCK	$0.56	1
5	166672	PIPE FROM REAR UNION TO CLUTCH UNION	166672 PIPE FROM REAR UNION TO CLUTCH UNION CLUTCH UNION	$90.11	1
6	167528	UNION	167528 UNION	$88.61	1
7	166673	PIPE FROM REAR UNION TO CLUTCH UNION	166673 PIPE FROM REAR UNION TO CLUTCH UNION CLUTCH UNION	$69.08	1
8	163004	PIPE FROM BRAKE PUMP TO FRONT UNION	163004 PIPE FROM BRAKE PUMP TO FRONT UNION FRONT UNION	$8.77	1
9	166590	FRONT UNION	166590 FRONT UNION	$225.31	1
10	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	1
11	10903024	SCREW IN STOCK	10903024 SCREW IN STOCK	$0.18	1
12	163000	PIPE FROM UNION TO R.H. FRONT FLEX	163000 PIPE FROM UNION TO R.H. FRONT FLEX R.H. FRONT FLEX	$98.37	1
13	10440890	BRACKET WITH SHEATH	10440890 BRACKET WITH SHEATH	$0.47	1
14	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	1
15	897538	SCREW	897538 SCREW	$1.52	1
16	10459087	CABLE GROMMET	10459087 CABLE GROMMET	$0.61	2
17	163002	PIPE FROM UNION TO L.H. FRONT FLEX	163002 PIPE FROM UNION TO L.H. FRONT FLEX L.H. FRONT FLEX	$98.37	1
18	163005	PIPE FROM BRAKE PUMP TO BRAKING REGULATOR	163005 PIPE FROM BRAKE PUMP TO BRAKING REGULATOR BRAKING REGULATOR	$11.30	1
19	167276	BRAKING REGULATOR	167276 BRAKING REGULATOR	$109.49	1
20	154818	SUPPORT	154818 SUPPORT	$52.56	1
21	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	1
22	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	1
23	16042921	SCREW	16042921 SCREW	$0.27	1
24	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	1
25	154309	PRESSURE REGULATOR	154309 PRESSURE REGULATOR	$37.54 MSRP: ~~50.00~~ (24.9% off)	1
26	163007	PIPE FROM BRAKING REGULATOR TO REAR UNION	163007 PIPE FROM BRAKING REGULATOR TO REAR UNION TO REAR UNION	$22.52	1
27	141522	CLIP	141522 CLIP	$1.32	5
28	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
29	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.30	1
30	163009	PIPE FROM UNION TO 3 WAY UNION	163009 PIPE FROM UNION TO 3 WAY UNION UNION	$16.08	1
31	101394	3 WAY UNION	101394 3 WAY UNION	$81.36	1
32	163008	PIPE FROM UNION TO R.H. REAR FLEX	163008 PIPE FROM UNION TO R.H. REAR FLEX R.H. REAR FLEX	$11.11	1
33	163006	PIPE FROM UNION TO L.H. REAR FLEX	163006 PIPE FROM UNION TO L.H. REAR FLEX L.H. REAR FLEX	$4.87	1
34	168699	BRACKET	168699 BRACKET	$10.12	1
35	10902424	SCREW IN STOCK	10902424 SCREW IN STOCK	$0.14 MSRP: ~~0.70~~ (80% off)	1
36	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.30	1
37	11181874	WASHER IN STOCK	11181874 WASHER IN STOCK	$0.02	1
38	11501024	STUD BOLT	11501024 STUD BOLT	$0.93 MSRP: ~~5.67~~ (83.6% off)	1
39	11001524	STUD	11001524 STUD	$2.00	3
40	12637824	WASHER IN STOCK	12637824 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	3
41	319201	FUEL FILLER PIPE ASSEMBLY IN STOCK	319201 FUEL FILLER PIPE ASSEMBLY IN STOCK	$702.05	3
