Pedal Assy

Ferrari F50

Find Your Part

Ferrari F50 - PEDAL ASSY

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
163236 CLUTCH PEDAL $619.08 To Order
Photo Part No Description Price (each) Stock
152847 CLUTCH PEDAL DRILLED PLATE $73.26 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.96 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
130926 SCREW $7.05 To Order
Photo Part No Description Price (each) Stock
145482 BALL JOINT $63.34 To Order
Photo Part No Description Price (each) Stock
312592 NUT $2.27 To Order
Photo Part No Description Price (each) Stock
152620 PEDAL ADJUSTEMENT PIN $60.32 To Order
Photo Part No Description Price (each) Stock
152562 PIN FOR PEDALS $573.19 To Order
Photo Part No Description Price (each) Stock
128612 Bush pedal (As option Nr. 128613) $36.70 To Order
Photo Part No Description Price (each) Stock
152808 CLUTCH PEDAL BACK RETURNING SPRING $24.12 To Order
Photo Part No Description Price (each) Stock
170083 PEDAL SUPPORT $2,288.08 To Order
Photo Part No Description Price (each) Stock
112166 FLEXIBLE PIN $0.41 To Order
Photo Part No Description Price (each) Stock
12429524 STUD $1.77 To Order
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
163235 BRAKE PEDAL $581.17 To Order
Photo Part No Description Price (each) Stock
152848 BRAKE PEDAL DRILLED PLATE $141.78 To Order
Photo Part No Description Price (each) Stock
312592 NUT $2.27 To Order
Photo Part No Description Price (each) Stock
152620 PEDAL ADJUSTEMENT PIN $60.32 To Order
Photo Part No Description Price (each) Stock
152565 SPACER $48.25 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
12429324 STUD $13.47 To Order
Photo Part No Description Price (each) Stock
145482 BALL JOINT $63.34 To Order
Photo Part No Description Price (each) Stock
163560 SPACER $12.31 To Order
Photo Part No Description Price (each) Stock
152632 PIN $6.96 To Order
Photo Part No Description Price (each) Stock
152561 CONTROL LEVER FOR SWITCH $110.10 To Order
Photo Part No Description Price (each) Stock
68313900 PLATE $0.20 To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH $34.10 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder $296.08 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
154888 PIPE FROM TANK TO CLUTCH PUMP $6.28 To Order
Photo Part No Description Price (each) Stock
13423379 ELASTIC COLLAR $0.09 To Order
Photo Part No Description Price (each) Stock
152564 BRAKE PUMP KNUCKLE $45.24 To Order
Photo Part No Description Price (each) Stock
154995 BRAKES CONTROL PUMP $227.95 To Order
Photo Part No Description Price (each) Stock
154886 PIPE FROM TANK TO FRONT BRAKES PUMP $6.48 To Order
Photo Part No Description Price (each) Stock
154887 PIPE FROM TANK TO REAR BRAKES PUMP $5.53 To Order
Photo Part No Description Price (each) Stock
154884 OIL TANK $33.63 To Order
Photo Part No Description Price (each) Stock
154885 PUMP SUPPORT BRACKET $19.37 To Order
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
Photo Part No Description Price (each) Stock
12639724 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
163557 ACCELERATOR PEDAL ASSEMBLY $301.67 To Order
Photo Part No Description Price (each) Stock
141399 SCREW $101.08 To Order
Photo Part No Description Price (each) Stock
152566 SELF LUBRICATING BUSHING $15.66 To Order
Photo Part No Description Price (each) Stock
10730321 WASHER $0.49 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
157575 RING $1.55 To Order
Photo Part No Description Price (each) Stock
164966 ACCELERATOR CONTROL LEVER $196.08 To Order
Photo Part No Description Price (each) Stock
10123811 BALL JOINT HEAD $35.36 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.32 To Order
Photo Part No Description Price (each) Stock
154379 ACCELERATOR CABLE $70.88 To Order
Photo Part No Description Price (each) Stock
174001 SPRING CLIP $0.64 To Order
Photo Part No Description Price (each) Stock
312592 NUT $2.27 To Order
Photo Part No Description Price (each) Stock
152620 PEDAL ADJUSTEMENT PIN $60.32 To Order
Photo Part No Description Price (each) Stock
164600 SUPPORT FOR ACCELERATOR CABLE $67.86 To Order
Photo Part No Description Price (each) Stock
168981 COUNTER NUT $8.61 To Order
Photo Part No Description Price (each) Stock
12544574 WASHER $1.97 To Order
Photo Part No Description Price (each) Stock
12429524 STUD $1.77 To Order
Photo Part No Description Price (each) Stock
112128 DITTO THICKNESS mm. 1.0 $0.11 To Order
Photo Part No Description Price (each) Stock
184497 CONNECTOR $41.05 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.12 IN STOCK
View All

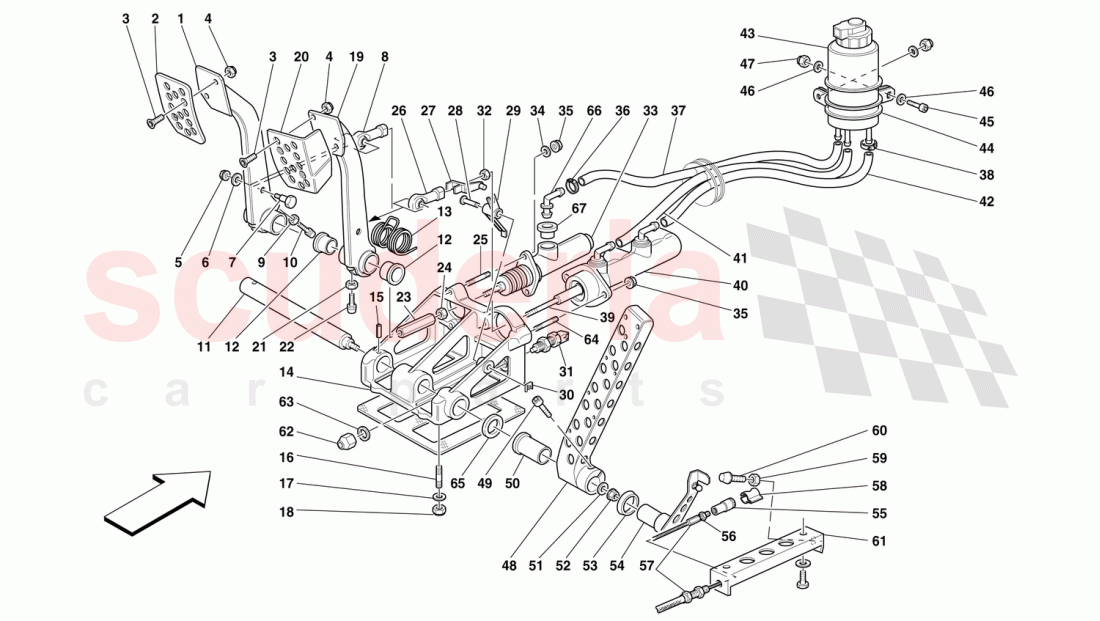

PEDAL ASSY of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 112127
DITTO THICKNESS mm. 0.9
mm. 0,9
IN STOCK 		$0.27 1
- 112129
DITTO THICKNESS mm. 1.1
mm. 1,1 		$0.27 1
- 112130
DITTO THICKNESS mm. 1.2
mm. 1,2 		$0.75 1
- 112131
DITTO THICKNESS mm. 1.3
mm. 1,3 		$0.27 1
- 171351
WASHER THINCKNESS mm. 0,8
mm. 0,8 		$14.55 1
- 170030
PEDAL ADJUSTEMENT PIN 		$14.55 1
- 141399
SCREW 		$101.08 1
- 169362
SCREW COLLAR 		$2.45 3
- 169430
CLUTCH CONTROL PUMP 		$199.37 1
- 68313900
PLATE 		$0.20 1
- 13543524
STUD BOLT 		$4.13 (5.1% off) 4
- 170083
PEDAL SUPPORT 		$2,288.08 1
1 163236
CLUTCH PEDAL 		$619.08 1
2 152847
CLUTCH PEDAL DRILLED PLATE 		$73.26 1
3 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.96 (33.8% off) 4
4 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
5 14040711
NUT
IN STOCK 		$0.35 2
6 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
7 130926
SCREW 		$7.05 2
8 145482
BALL JOINT 		$63.34 1
9 312592
NUT 		$2.27 1
10 152620
PEDAL ADJUSTEMENT PIN 		$60.32 1
11 152562
PIN FOR PEDALS 		$573.19 1
12 128612
Bush pedal (As option Nr. 128613) 		$36.70 4
13 152808
CLUTCH PEDAL BACK RETURNING SPRING
SPRING 		$24.12 (25.3% off) 1
14 170083
PEDAL SUPPORT
Not as spare part now / Replaced by 170083 		$2,288.08 1
15 112166
FLEXIBLE PIN 		$0.41 1
16 12429524
STUD
Not as spare part now / Replaced by 13543524 		$1.77 4
17 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 4
18 14040711
NUT
IN STOCK 		$0.35 4
19 163235
BRAKE PEDAL 		$581.17 1
20 152848
BRAKE PEDAL DRILLED PLATE 		$141.78 1
21 312592
NUT 		$2.27 2
22 152620
PEDAL ADJUSTEMENT PIN 		$60.32 2
23 152565
SPACER 		$48.25 1
24 16102314
NUT 		$0.06 (95.3% off) 1
25 12429324
STUD 		$13.47 2
26 145482
BALL JOINT 		$63.34 1
27 163560
SPACER 		$12.31 1
28 152632
PIN 		$6.96 1
29 152561
CONTROL LEVER FOR SWITCH 		$110.10 1
30 68313900
PLATE
Not as spare part now / Replaced by 14228076 		$0.20 1
31 133555
PUSHBUTTON SWITCH 		$34.10 (21.3% off) 1
32 16102314
NUT 		$0.06 (95.3% off) 1
33 175211
Clutch master cylinder
Not as spare part for "F50" now / Replace by 169430
IN STOCK 		$296.08 (18.1% off) 1
34 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 2
35 14040711
NUT
IN STOCK 		$0.35 4
36 13432070
HOSE COLLAR
Not as spare part for "F50" now / Replace by 169362
ARRIVING SOON 		$0.49 (54.2% off) 3
37 154888
PIPE FROM TANK TO CLUTCH PUMP 		$6.28 1
38 13423379
ELASTIC COLLAR 		$0.09 3
39 152564
BRAKE PUMP KNUCKLE 		$45.24 1
40 154995
BRAKES CONTROL PUMP 		$227.95 1
41 154886
PIPE FROM TANK TO FRONT BRAKES PUMP
BRAKES PUMP 		$6.48 1
42 154887
PIPE FROM TANK TO REAR BRAKES PUMP
BRAKES PUMP 		$5.53 1
43 154884
OIL TANK 		$33.63 1
44 154885
PUMP SUPPORT BRACKET 		$19.37 1
45 14305324
ALLEN SCREW M6 X 20
IN STOCK 		$0.08 1
46 12639724
WASHER
IN STOCK 		$0.05 (90% off) 2
47 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
48 163557
ACCELERATOR PEDAL ASSEMBLY 		$301.67 1
49 141399
SCREW
Not as spare part now / Replace by 141399 		$101.08 1
50 152566
SELF LUBRICATING BUSHING 		$15.66 1
51 10730321
WASHER 		$0.49 (51% off) 1
52 14040711
NUT
IN STOCK 		$0.35 1
53 157575
RING 		$1.55 1
54 164966
ACCELERATOR CONTROL LEVER 		$196.08 1
55 10123811
BALL JOINT HEAD 		$35.36 1
56 15896470
NUT 		$6.32 1
57 154379
ACCELERATOR CABLE 		$70.88 1
58 174001
SPRING CLIP 		$0.64 (36% off) 1
59 312592
NUT 		$2.27 2
60 152620
PEDAL ADJUSTEMENT PIN
Not as spare part for "F50" now / Replaced by 170030 		$60.32 1
61 164600
SUPPORT FOR ACCELERATOR CABLE
CABLE 		$67.86 1
62 168981
COUNTER NUT 		$8.61 1
63 12544574
WASHER 		$1.97 1
64 12429524
STUD 		$1.77 2
65 112128
DITTO THICKNESS mm. 1.0
mm. 1,0 		$0.11 1
66 184497
CONNECTOR 		$41.05 (54.6% off) 1
67 175189
SEAT RING
IN STOCK 		$24.12 (17.5% off) 1
