Ferrari F50 - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63665600 A.C. CONDENSER $1,079.37 To Order
Photo Part No Description Price (each) Stock
64161100 SHIELD $60.66 To Order
Photo Part No Description Price (each) Stock
64161700 BRACKET $36.39 To Order
Photo Part No Description Price (each) Stock
64644500 AIR CONVEYOR $104.26 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
153431 COMPLETE ELECTROFAN $182.00 To Order
Photo Part No Description Price (each) Stock
154223 Fan -Valid for CH- $257.84 To Order
Photo Part No Description Price (each) Stock
154224 AIR CONVEYOR $197.17 To Order
Photo Part No Description Price (each) Stock
154225 Motor -Valid for CH- $211.91 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
64761900 PIPE FROM COMPRESSOR TO CONDENSER $212.34 To Order
Photo Part No Description Price (each) Stock
63665800 PIPE FROM CONDENSER TO TUNNEL PIPE $101.61 To Order
Photo Part No Description Price (each) Stock
63665900 PIPE FROM CONDENSER TO FILTER $658.06 To Order
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
63666400 PIPE FROM TUNNEL TO COMPRESSOR $166.83 To Order
Photo Part No Description Price (each) Stock
63666300 PIPE FROM EVAPORATOR TO COMPRESSOR $1,001.07 To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.78 To Order
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
10977624 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
64774400 UNDERTUNNEL HEATING PIPE $166.83 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
64290100 CLIP $3.81 To Order
Photo Part No Description Price (each) Stock
10903024 SCREW $0.18 IN STOCK
Photo Part No Description Price (each) Stock
11181874 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
63666200 PIPE FROM EVAPORATOR TO TUNNEL PIPE $182.00 To Order
Photo Part No Description Price (each) Stock
63666500 HEATING PIPE FROM UNDER TUNNEL TO HEATER $259.88 To Order
Photo Part No Description Price (each) Stock
64628400 PIPE FOR CONDENSATE VENT $25.95 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
63666000 PIPE FROM TUNNEL PIPE TO DEHYDRATOR $78.86 To Order
Photo Part No Description Price (each) Stock
63934300 DEHYDRATOR FILTER WITH PRESSURE SWITCH $365.87 To Order
Photo Part No Description Price (each) Stock
64278900 PRESSOSTAT $86.21 To Order
Photo Part No Description Price (each) Stock
63666100 PIPE FROM DEHYDRATOR TO EVAPORATOR $116.78 To Order
Photo Part No Description Price (each) Stock
63666600 PIPE FROM HEATER TO TAP $539.01 To Order
Photo Part No Description Price (each) Stock
61079000 ELECTRO-MAGNETIC VALVE $432.94 To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for $1.73 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
64892900 PIPE FROM VALVE TO RETURN $126.03 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
62165800 BRACKET $4.72 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
64690200 PROTECTION NET A.C. CONDENSER $240.37 To Order
Photo Part No Description Price (each) Stock
64990400 TUNNEL R.H. LATERAL INSULATION $127.41 To Order
Photo Part No Description Price (each) Stock
63665500 PIPE FROM COMPRESSOR TO A.C. CONDENSER PIPE $74.31 To Order
Photo Part No Description Price (each) Stock
172702 O.R. GASKET $2.88 To Order
View All

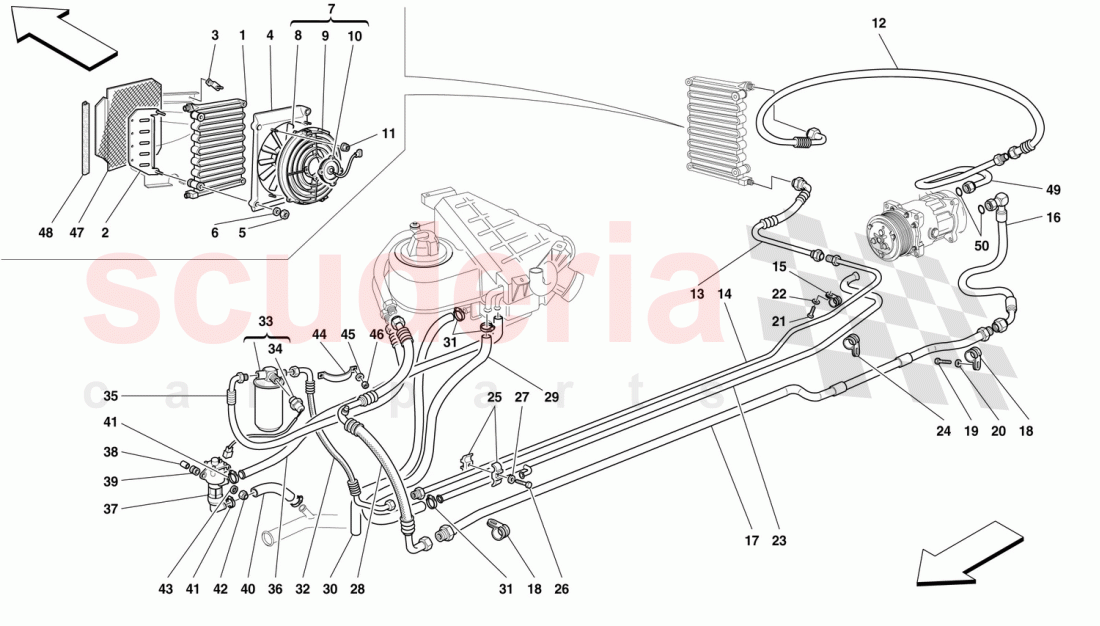

AIR CONDITIONING SYSTEM of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 64892900
PIPE FROM VALVE TO RETURN 		$126.03 1
1 63665600
A.C. CONDENSER 		$1,079.37 1
2 64161100
SHIELD 		$60.66 1
3 64161700
BRACKET 		$36.39 2
4 64644500
AIR CONVEYOR 		$104.26 1
5 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
6 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
7 153431
COMPLETE ELECTROFAN 		$182.00 1
8 154223
Fan -Valid for CH- 		$257.84 1
9 154224
AIR CONVEYOR 		$197.17 1
10 154225
Motor -Valid for CH- 		$211.91 1
11 14059290
FLANGED NUT M6
IN STOCK 		$1.32 4
12 64761900
PIPE FROM COMPRESSOR TO CONDENSER
CONDENSER 		$212.34 1
13 63665800
PIPE FROM CONDENSER TO TUNNEL PIPE
TUNNEL PIPE 		$101.61 1
14 63665900
PIPE FROM CONDENSER TO FILTER
FILTER 		$658.06 1
15 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.54 1
16 63666400
PIPE FROM TUNNEL TO COMPRESSOR 		$166.83 1
17 63666300
PIPE FROM EVAPORATOR TO COMPRESSOR
TO COMPRESSOR 		$1,001.07 1
18 10441690
BRACKET WITH SHEATH 		$1.78 3
19 10977624
SCREW
IN STOCK 		$0.06 1
20 11181574
WASHER
IN STOCK 		$0.02 1
21 10977624
SCREW
IN STOCK 		$0.06 1
22 11181574
WASHER
IN STOCK 		$0.02 1
23 64774400
UNDERTUNNEL HEATING PIPE 		$166.83 1
24 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 3
25 64290100
CLIP 		$3.81 4
26 10903024
SCREW
IN STOCK 		$0.18 2
27 11181874
WASHER
IN STOCK 		$0.02 2
28 63666200
PIPE FROM EVAPORATOR TO TUNNEL PIPE
TUNNEL PIPE 		$182.00 1
29 63666500
HEATING PIPE FROM UNDER TUNNEL TO HEATER
TO HEATER 		$259.88 1
30 64628400
PIPE FOR CONDENSATE VENT 		$25.95 1
31 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 4
32 63666000
PIPE FROM TUNNEL PIPE TO DEHYDRATOR
TO DEHYDRATOR 		$78.86 1
33 63934300
DEHYDRATOR FILTER WITH PRESSURE SWITCH
PRESSURE SWITCH 		$365.87 1
34 64278900
PRESSOSTAT 		$86.21 (34.5% off) 1
35 63666100
PIPE FROM DEHYDRATOR TO EVAPORATOR
TO EVAPORATOR 		$116.78 1
36 63666600
PIPE FROM HEATER TO TAP 		$539.01 1
37 61079000
ELECTRO-MAGNETIC VALVE 		$432.94 1
38 103550
Spacer bush -Only for
IN STOCK 		$1.73 (46.8% off) 2
39 812273
CABLE GROMMET 		$1.53 2
40 64892900
PIPE FROM VALVE TO RETURN
Not as spare part now / Replaced by 64892900 		$126.03 1
41 13000490
Screw Collar
IN STOCK 		$0.72 (62.1% off) 6
42 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
43 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
44 62165800
BRACKET 		$4.72 1
45 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
46 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
47 64690200
PROTECTION NET A.C. CONDENSER
CONDENSER 		$240.37 1
48 64990400
TUNNEL R.H. LATERAL INSULATION 		$127.41 4
49 63665500
PIPE FROM COMPRESSOR TO A.C. CONDENSER PIPE
A.C. CONDENSER PIPE 		$74.31 1
50 172702
O.R. GASKET 		$2.88 2
