Ferrari F40 - Pump and fuel piping -Valid for USA-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
146359 Tube $457.48 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
144328 Pipe from flute to pressure adjuster $273.08 To Order
Photo Part No Description Price (each) Stock
144334 Pipe from filter to L.H. flute $395.41 To Order
Photo Part No Description Price (each) Stock
136099 Union $30.33 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
134470 Fuel filter $91.66 To Order
Photo Part No Description Price (each) Stock
137243 Bracket $2.85 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
144330 Fuel pipe from L.H. pump to filter $274.94 To Order
Photo Part No Description Price (each) Stock
144333 Pipe from filter to R.H. flute $549.89 To Order
Photo Part No Description Price (each) Stock
144329 Fuel pipe from T.H. pump to filter $333.77 To Order
Photo Part No Description Price (each) Stock
136077 Union $49.26 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
143997 Fuel pump assy $1,804.61 To Order
Photo Part No Description Price (each) Stock
897696 Gasket $83.86 To Order
Photo Part No Description Price (each) Stock
126838 RING NUT $208.78 To Order
Photo Part No Description Price (each) Stock
127816 O-RING $3.33 IN STOCK
Photo Part No Description Price (each) Stock
129316 R.H. SAFETY PLATE $3.36 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
128775 Ring $0.29 To Order
Photo Part No Description Price (each) Stock
142848 Pump cover $80.90 To Order
Photo Part No Description Price (each) Stock
1264660112647624 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14054577 CAP NUT $0.31 IN STOCK
Photo Part No Description Price (each) Stock
142822 Spring $12.15 To Order
Photo Part No Description Price (each) Stock
10183217 PLUG FOR UNION $77.85 To Order
Photo Part No Description Price (each) Stock
11270160 COPPER WASHER $1.49 IN STOCK
Photo Part No Description Price (each) Stock
142749 Feeding pipe $230.97 To Order
Photo Part No Description Price (each) Stock
144199 Union $5.98 To Order
Photo Part No Description Price (each) Stock
10298360 Gasket $0.51 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $6.36 To Order
Photo Part No Description Price (each) Stock
142795 Fuel pump cables assy $79.14 To Order
Photo Part No Description Price (each) Stock
126827 Pump exhaust pipe $82.59 To Order
Photo Part No Description Price (each) Stock
142748 Recover pipe $98.99 To Order
Photo Part No Description Price (each) Stock
193536 Fuel pump $1,644.82 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.70 IN STOCK
Photo Part No Description Price (each) Stock
142796 Fuel filter cover $16.51 To Order
Photo Part No Description Price (each) Stock
144232 FUEL PUMP MOUNT GASKET $60.67 IN STOCK
Photo Part No Description Price (each) Stock
142741 Fuel filter chamber $20.35 To Order
Photo Part No Description Price (each) Stock
15671101 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
126806 Chamber $46.50 To Order
Photo Part No Description Price (each) Stock
126807 Anti Vibration Pad $35.59 To Order
Photo Part No Description Price (each) Stock
899480 NUT $0.37 To Order
Photo Part No Description Price (each) Stock
144316 Union $87.98 To Order
View All

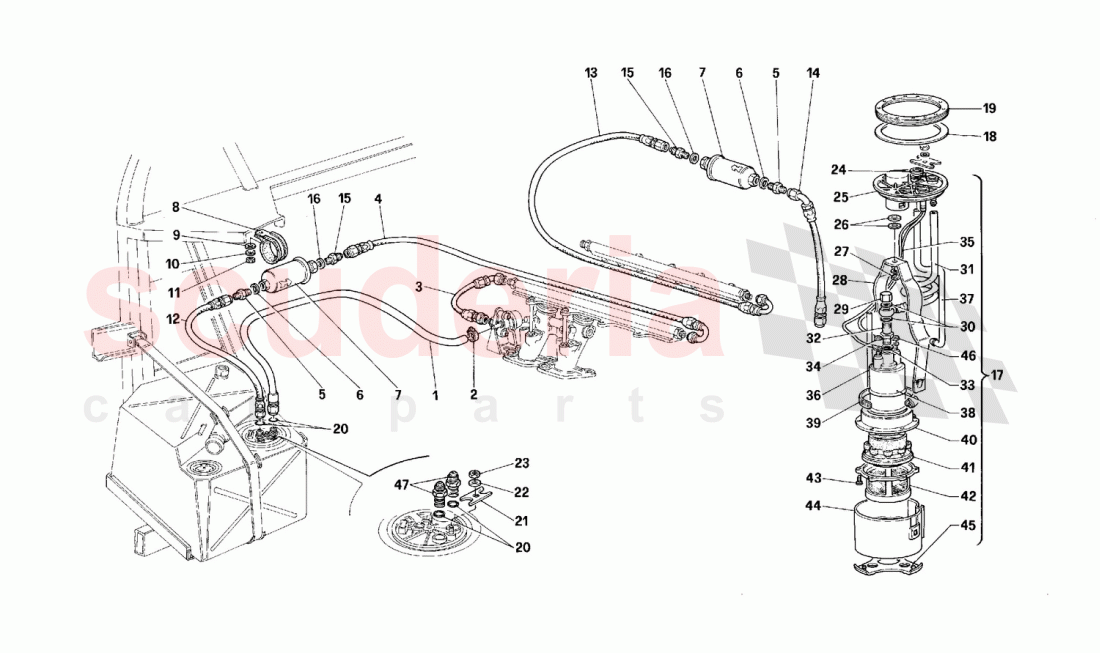

Pump and fuel piping -Valid for USA- of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 146359
Tube 		$457.48 2
2 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 2
3 144328
Pipe from flute to pressure adjuster
pressure adjuster 		$273.08 2
4 144334
Pipe from filter to L.H. flute
to L.H. flute 		$395.41 1
5 136099
Union 		$30.33 2
6 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 2
7 134470
Fuel filter 		$91.66 (31% off) 2
8 137243
Bracket 		$2.85 2
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
10 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
11 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
12 144330
Fuel pipe from L.H. pump to filter
to filter 		$274.94 1
13 144333
Pipe from filter to R.H. flute 		$549.89 1
14 144329
Fuel pipe from T.H. pump to filter
to filter 		$333.77 (21.5% off) 1
15 136077
Union 		$49.26 2
16 10298460
GASKET
IN STOCK 		$0.14 (88.8% off) 2
17 143997
Fuel pump assy 		$1,804.61 2
18 897696
Gasket 		$83.86 2
19 126838
RING NUT 		$208.78 2
20 127816
O-RING
IN STOCK 		$3.33 (32.7% off) 4
21 129316
R.H. SAFETY PLATE 		$3.36 2
22 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
23 14059290
FLANGED NUT M6
IN STOCK 		$1.32 2
24 128775
Ring 		$0.29 (68.5% off) 2
25 142848
Pump cover 		$80.90 2
26 1264660112647624
WASHER 		- 4 Enquire
27 14054577
CAP NUT
IN STOCK 		$0.31 2
28 142822
Spring 		$12.15 2
29 10183217
PLUG FOR UNION 		$77.85 2
30 11270160
COPPER WASHER
IN STOCK 		$1.49 4
31 142749
Feeding pipe 		$230.97 2
32 144199
Union 		$5.98 2
33 10298360
Gasket 		$0.51 2
34 15896470
NUT 		$6.36 2
35 142795
Fuel pump cables assy 		$79.14 (50.3% off) 2
36 126827
Pump exhaust pipe 		$82.59 2
37 142748
Recover pipe 		$98.99 2
38 193536
Fuel pump 		$1,644.82 2
39 13000790
SCREW COLLAR
IN STOCK 		$0.70 (68.9% off) 2
40 142796
Fuel filter cover 		$16.51 2
41 144232
FUEL PUMP MOUNT GASKET
IN STOCK 		$60.67 2
42 142741
Fuel filter chamber 		$20.35 2
43 15671101
SCREW 		$1.53 12
44 126806
Chamber 		$46.50 (48.3% off) 2
45 126807
Anti Vibration Pad 		$35.59 2
46 899480
NUT 		$0.37 2
47 144316
Union 		$87.98 4
