Ferrari F40 - Water pump and pipings

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
134084 Water pump body complete $879.84 To Order
Photo Part No Description Price (each) Stock
135121 Gasket $5.20 To Order
Photo Part No Description Price (each) Stock
116157 Spacer $56.53 To Order
Photo Part No Description Price (each) Stock
116159 Bearing $12.53 To Order
Photo Part No Description Price (each) Stock
106227 Fitting $6.38 To Order
Photo Part No Description Price (each) Stock
105196 Sealing ring $1.69 To Order
Photo Part No Description Price (each) Stock
11060076 Seeger Ring $0.41 IN STOCK
Photo Part No Description Price (each) Stock
116158 Washer $4.26 To Order
Photo Part No Description Price (each) Stock
100436 BLIND NUT $10.45 IN STOCK
Photo Part No Description Price (each) Stock
10730321 WASHER $0.49 To Order
Photo Part No Description Price (each) Stock
16101521 NUT $1.11 To Order
Photo Part No Description Price (each) Stock
11198679 Washer $0.75 To Order
Photo Part No Description Price (each) Stock
10205820 Feather key $1.34 To Order
Photo Part No Description Price (each) Stock
11500820 Stud Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.70 IN STOCK
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.34 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
16044424 SCREW $1.69 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
136304 THERMOMETRIC SWITCH $18.75 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.14 IN STOCK
Photo Part No Description Price (each) Stock
136322 Bracket $37.74 To Order
Photo Part No Description Price (each) Stock
134086 Water pump complete (Front) $729.36 To Order
Photo Part No Description Price (each) Stock
121253 Splindle for pulley $155.30 To Order
Photo Part No Description Price (each) Stock
125964 Impeller $263.07 To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring $52.04 To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring $52.04 To Order
Photo Part No Description Price (each) Stock
136741 Manifold for water outlet $84.57 To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
986847 CONICAL WASHER $0.60 To Order
Photo Part No Description Price (each) Stock
103039 Sealing ring $0.88 IN STOCK
Photo Part No Description Price (each) Stock
132980 GASKET $0.67 To Order
Photo Part No Description Price (each) Stock
134080 Junction pipe to water outlet manifolds $422.89 To Order
Photo Part No Description Price (each) Stock
132981 GASKET $1.14 To Order
Photo Part No Description Price (each) Stock
106241 Fitting $87.86 To Order
Photo Part No Description Price (each) Stock
136291 Water outlet union $36.11 To Order
Photo Part No Description Price (each) Stock
105189 Gasket $0.47 To Order
Photo Part No Description Price (each) Stock
134225 Sleeve $72.76 To Order
Photo Part No Description Price (each) Stock
12180090 Clamp $0.53 To Order
Photo Part No Description Price (each) Stock
104628 GEARBOX THERMISTOR $101.20 To Order
Photo Part No Description Price (each) Stock
199821 Generator control pulley $31.32 IN STOCK
Photo Part No Description Price (each) Stock
16042940 Screw $0.96 To Order
Photo Part No Description Price (each) Stock
10260060 Gasket $0.50 To Order
Photo Part No Description Price (each) Stock
122844 Fitting $34.91 To Order
Photo Part No Description Price (each) Stock
133309 Pulley $271.85 To Order
Photo Part No Description Price (each) Stock

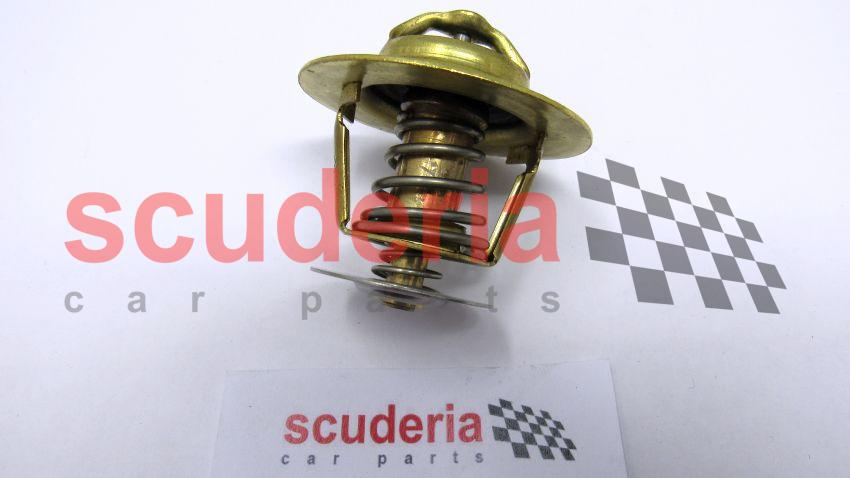

128991 Thermostat $98.71 To Order
Photo Part No Description Price (each) Stock
105192 O-Ring for Thermostat $19.62 IN STOCK
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.77 To Order
Photo Part No Description Price (each) Stock
152051 Complete sealing ring $52.04 To Order
View All

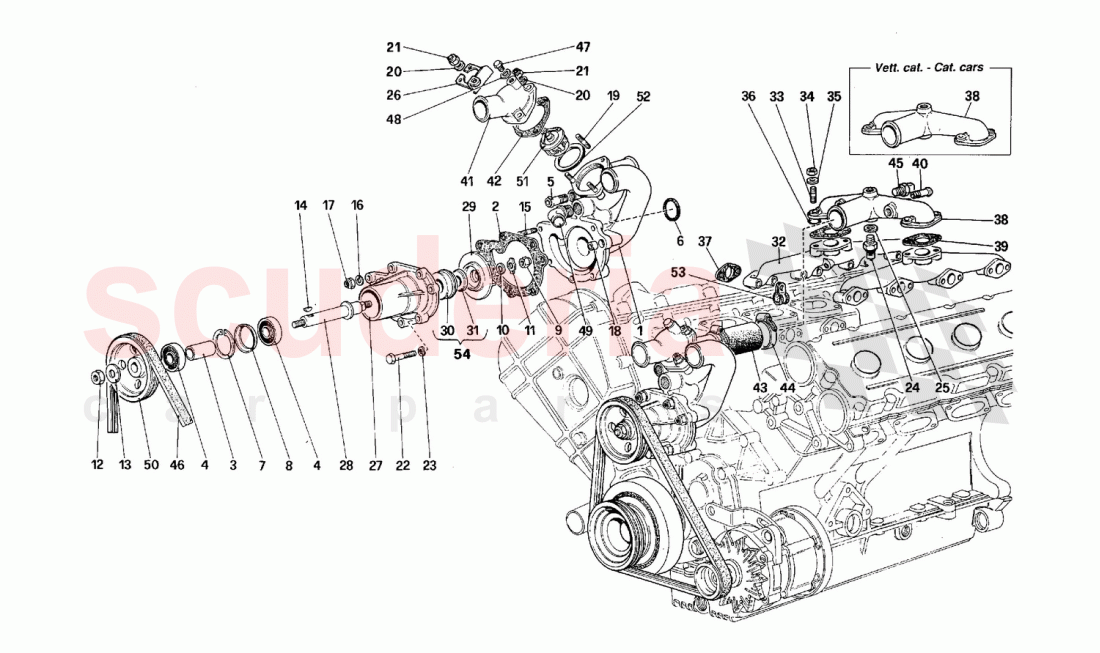

Water pump and pipings of Ferrari Ferrari F40 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 142849
Pulley
Valid for cars with catalyst 		$123.44 1
- 144010
Junction pipe to water outlet manifolds
outlet manifolds / Valid for cars with catalyst 		$328.20 1
- 144938
Manifold for water outlet
outlet / Valid for cars with catalyst 		$2,361.91 2
- 134086
Water pump complete (Front)
(Front) 		$729.36 1
- 134084
Water pump body complete
complete 		$879.84 1
- 134085
Water pump complete
Not for cars with catalyst 		$2,448.38 1
- 144247
Water pump complete
Valid for cars with catalyst 		$1,251.54 1
1 134084
Water pump body complete
Not as spare parts / With assembly 134084 		$879.84 1
2 135121
Gasket 		$5.20 (49.3% off) 1
3 116157
Spacer 		$56.53 1
4 116159
Bearing 		$12.53 (62.1% off) 2
5 106227
Fitting 		$6.38 (66.9% off) 1
6 105196
Sealing ring 		$1.69 (73% off) 1
7 11060076
Seeger Ring
IN STOCK 		$0.41 (77.8% off) 1
8 116158
Washer 		$4.26 (83.4% off) 1
9 100436
BLIND NUT
IN STOCK 		$10.45 (4.6% off) 1
10 10730321
WASHER 		$0.49 (51% off) 1
11 100434
Safety plate 		$13.79 1
12 16101521
NUT 		$1.11 1
13 11198679
Washer 		$0.75 1
14 10205820
Feather key 		$1.34 (70.9% off) 1
15 11500820
Stud 		- 3 Enquire
16 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
17 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
18 102704
ALIGNMENT DOWEL
IN STOCK 		$2.70 2
19 11500524
STUD BOLT 		$0.34 (66% off) 3
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
21 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
22 16044424
SCREW 		$1.69 (44.6% off) 4
23 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
24 136304
THERMOMETRIC SWITCH 		$18.75 (70.7% off) 1
25 10298460
GASKET
IN STOCK 		$0.14 (88.8% off) 1
26 136322
Bracket 		$37.74 1
27 134086
Water pump complete (Front)
Not as spare parts / With assembly 134086 		$729.36 1
28 121253
Splindle for pulley 		$155.30 (35.7% off) 1
29 125964
Impeller 		$263.07 1
30 152051
Complete sealing ring
Not as spare part now / Replaced by part 54 		$52.04 1
31 152051
Complete sealing ring
Not as spare part now / Replaced by part 54 		$52.04 1
32 136741
Manifold for water outlet
outlet / Not for cars with catalyst 		$84.57 2
33 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 4
34 14040711
NUT
IN STOCK 		$0.35 4
35 986847
CONICAL WASHER 		$0.60 4
36 103039
Sealing ring
IN STOCK 		$0.88 (26.7% off) 4
37 132980
GASKET 		$0.67 (79.3% off) 8
38 134080
Junction pipe to water outlet manifolds
outlet manifolds / Not for cars with catalyst 		$422.89 1
39 132981
GASKET 		$1.14 (84.3% off) 2
40 106241
Fitting 		$87.86 1
41 136291
Water outlet union 		$36.11 1
42 105189
Gasket 		$0.47 (93.5% off) 1
43 134225
Sleeve 		$72.76 (30% off) 1
44 12180090
Clamp 		$0.53 (85.9% off) 2
45 104628
GEARBOX THERMISTOR 		$101.20 (27.5% off) 1
46 199821
Generator control pulley
IN STOCK 		$31.32 1
47 16042940
Screw 		$0.96 (50.8% off) 1
48 10260060
Gasket 		$0.50 (75% off) 1
49 122844
Fitting 		$34.91 1
50 133309
Pulley
Not for cars with catalyst 		$271.85 1
51 128991
Thermostat 		$98.71 (70.3% off) 1
52 105192
O-Ring for Thermostat
IN STOCK 		$19.62 1
53 10441690
BRACKET WITH SHEATH 		$1.77 1
54 152051
Complete sealing ring 		$52.04 1
