Fuel Filler Flap And Controls

Ferrari F12 Berlinetta

Find Your Part

Ferrari F12 Berlinetta - FUEL FILLER FLAP AND CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
86009000 COMPL. FUEL FILLER FLAP ACTUATOR $119.18 To Order
Photo Part No Description Price (each) Stock
67067600 GASKET $3.73 To Order
Photo Part No Description Price (each) Stock
84506200 ACTUATOR BOWDEN CABLE $253.57 To Order
85618500 ACTUATOR CHORD $9.60 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
84046900 SHIM PLATE $8.75 To Order
Photo Part No Description Price (each) Stock
83993500 STRIKER FOR ACTUATOR $59.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.32 IN STOCK
14059114 NUT $0.12 IN STOCK
Photo Part No Description Price (each) Stock
81802300 RUBBER PAD $1.06 IN STOCK
Photo Part No Description Price (each) Stock
84307600 INTERNAL COVER $13.61 To Order
Photo Part No Description Price (each) Stock
83993700 COMPL. HINGE $93.81 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
84716500 DRAIN PIPE $164.82 To Order
Photo Part No Description Price (each) Stock
13433570 HOSE COLLAR $0.64 To Order
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84307211 COMPL. FUEL FILLER FLAP $202.85 To Order
Photo Part No Description Price (each) Stock
14059114 NUT $0.12 IN STOCK
14059290 FLANGED NUT M6 $1.32 IN STOCK
Photo Part No Description Price (each) Stock
177553 CLAMP $0.43 To Order
Photo Part No Description Price (each) Stock
81535200 GROMMET WITH MEMBRANE $24.51 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
10396180 CABLE GROMMET $2.45 IN STOCK
View All

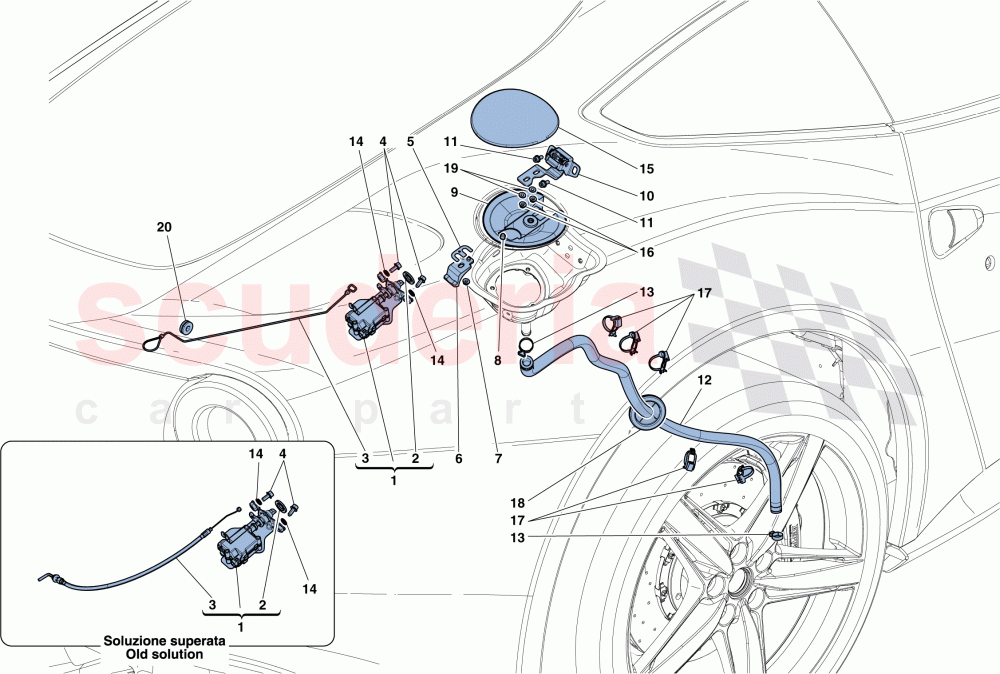

FUEL FILLER FLAP AND CONTROLS of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 86009000
COMPL. FUEL FILLER FLAP ACTUATOR
Applicable from Ass. No. 117354; Applicable after depletion of 85803900 		$119.18 (29.9% off) 1
2 67067600
GASKET 		$3.73 1
3 84506200
ACTUATOR BOWDEN CABLE
Applicable up to Ass. No. 114557 		$253.57 1
3 85618500
ACTUATOR CHORD
Applicable from Ass. No. 114558 		$9.60 1
4 11566227
SCREW
M5 X 14
IN STOCK 		$1.13 2
5 84046900
SHIM PLATE 		$8.75 1
6 83993500
STRIKER FOR ACTUATOR 		$59.02 1
7 14059290
FLANGED NUT M6
M5; No longer supplied; Replaced by 14059114
IN STOCK 		$1.32 1
7 14059114
NUT
IN STOCK 		$0.12 1
8 81802300
RUBBER PAD
IN STOCK 		$1.06 1
9 84307600
INTERNAL COVER 		$13.61 1
10 83993700
COMPL. HINGE 		$93.81 1
11 11566227
SCREW
M5 X 14
IN STOCK 		$1.13 2
12 84716500
DRAIN PIPE 		$164.82 1
13 13433570
HOSE COLLAR 		$0.64 (14.7% off) 2
14 12601174
WASHER 		$0.06 (82.9% off) 2
15 84307211
COMPL. FUEL FILLER FLAP 		$202.85 1
16 14059114
NUT
IN STOCK 		$0.12 2
16 14059290
FLANGED NUT M6
M5; No longer supplied; Replaced by 14059114
IN STOCK 		$1.32 2
17 177553
CLAMP 		$0.43 (65.6% off) 5
18 81535200
GROMMET WITH MEMBRANE 		$24.51 1
19 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 2
20 10396180
CABLE GROMMET
IN STOCK 		$2.45 1
