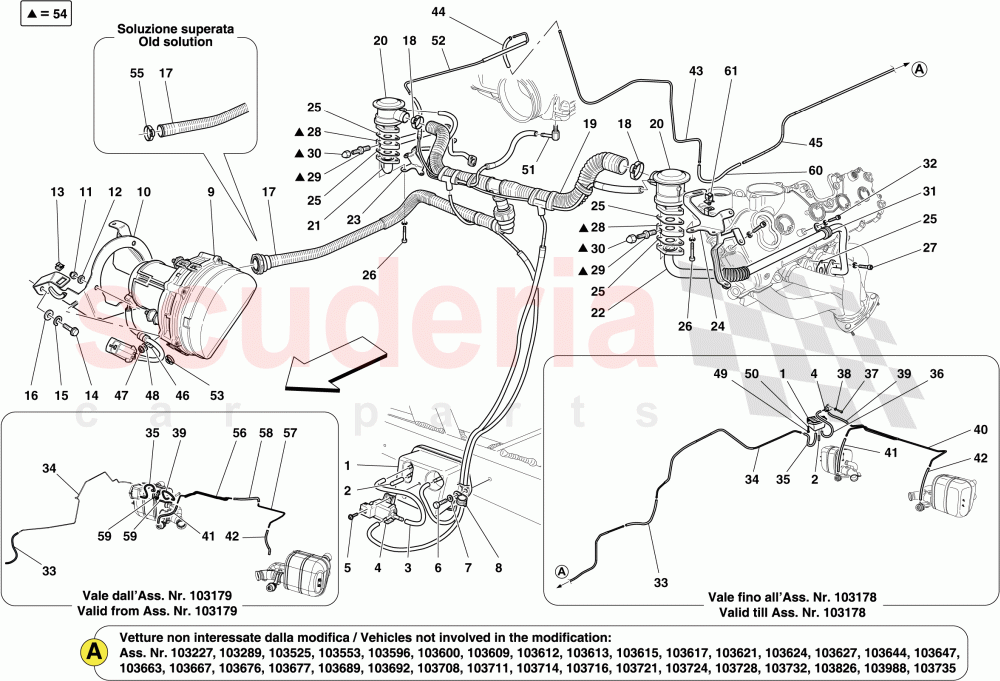

Ferrari California (2012-2014) - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	198339	VACUUM ACCUMULATOR TANK	$48.25	To Order

Photo	Part No	Description	Price (each)	Stock
	225098	PLUG	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314698	OIL BREATHER PIPE	$4.66	To Order

Photo	Part No	Description	Price (each)	Stock
	15689501	SCREW	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12620477	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	160888	CLIP	$3.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247795	SECONDARY AIR SYSTEM PUMP	$744.02	To Order
	181197	Secondary Air Pump	$512.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282724	SECONDARY AIR PUMP FASTENER BRACKET	$378.94	To Order
	253156	SECONDARY AIR PUMP MOUNTING BRACKET	$404.22	To Order
	256917	SECONDARY AIR PUMP MOUNTING BRACKET	$126.30	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	162606	CLIP	$1.17	IN STOCK
	291283	CLIP	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902224	SCREW M6 X 16	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272519	PIPE FROM AIR PUMP TO AIR VALVE PIPE	$252.62	To Order

Photo	Part No	Description	Price (each)	Stock
	226356	CLAMP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	239161	COMPLETE SECONDARY AIR PIPE	$226.21	To Order

Photo	Part No	Description	Price (each)	Stock
	171175	SECONDARY AIR VALVE	$316.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282430	PIPE FOR LH SECONDARY AIR VALVE	$669.48	To Order

Photo	Part No	Description	Price (each)	Stock
	251578	R.H. AIR VALVE FIXING BRACKET	$41.66	To Order

Photo	Part No	Description	Price (each)	Stock
	251073	L.H. AIR VALVE FIXING BRACKET	$55.56	To Order

Photo	Part No	Description	Price (each)	Stock
	186781	GASKET	$4.94	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264020	SPACER ASSEMBLY	$64.41	To Order

Photo	Part No	Description	Price (each)	Stock
	257977	THREADED UNION	$70.73	To Order

Photo	Part No	Description	Price (each)	Stock
	150595	CAP NUT	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	249300	BRACKET	$9.08	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	165608	RUBBER PIPE	$2.54	To Order
	289103	RUBBER PIPE	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	270708	RIGID PIPE	$176.83	To Order
	283324	RIGID PIPE	$94.72	To Order
	250435	RIGID PIPE	$82.10	To Order

Photo	Part No	Description	Price (each)	Stock
	243631	RUBBER PIPE	$79.57	To Order
	168248	RUBBER PIPE	$34.09	To Order

Photo	Part No	Description	Price (each)	Stock
	115147	RUBBER PIPE	$4.97	To Order
	163092	RUBBER PIPE	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	12601174	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	289103	RUBBER PIPE	$11.99	To Order
	243633	RUBBER PIPE	$101.05	To Order

Photo	Part No	Description	Price (each)	Stock
	259262	RIGID PIPE FOR BY-PASS VALVE ACTUATION	$164.21	To Order

Photo	Part No	Description	Price (each)	Stock
	148203	RUBBER PIPE	$28.64	To Order
	147123	RUBBER PIPE	$23.98	To Order
	148204	RUBBER PIPE	$22.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	148204	RUBBER PIPE	$22.61	IN STOCK
	148204	RUBBER PIPE	$22.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	260831	PIPE FROM UNDERFLOOR PIPE TO SHIELD	$47.99	To Order
	260089	PIPE FROM UNDERFLOOR PIPE TO SHIELD	$63.14	To Order
	279518	PIPE FROM UNDERBODY PIPE TO FIREWALL	$55.56	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	169455	L.H. PIPE VALVE TUBE	$2.06	To Order

Photo	Part No	Description	Price (each)	Stock
	247701	UNDERFLOOR PIPE	$44.19	To Order
	272511	UNDERBODY PIPE	$64.41	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12646624	WASHER	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12620477	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	128016	CONNECTOR	$10.51	To Order

Photo	Part No	Description	Price (each)	Stock
	244411	R.H. AIR VALVE PIPE	$34.67	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264020	SPACER ASSEMBLY	$64.41	To Order

Photo	Part No	Description	Price (each)	Stock
	226356	CLAMP	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	281963	RH RIGID BYPASS VALVE ACTUATION PIPE	$176.83	To Order

Photo	Part No	Description	Price (each)	Stock
	281964	LH RIGID BYPASS VALVE ACTUATION PIPE	$39.14	To Order

Photo	Part No	Description	Price (each)	Stock
	289103	RUBBER PIPE	$11.99	To Order

Photo	Part No	Description	Price (each)	Stock
	279177	BRACKET	$18.94	To Order

Photo	Part No	Description	Price (each)	Stock
	272512	RUBBER PIPE	$8.45	To Order

Photo	Part No	Description	Price (each)	Stock
	198271	CLIP	$0.82	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	198339	VACUUM ACCUMULATOR TANK	198339 VACUUM ACCUMULATOR TANK	$48.25	2
2	225098	PLUG IN STOCK	225098 PLUG IN STOCK	$1.45	2
3	314698	OIL BREATHER PIPE	314698 OIL BREATHER PIPE	$4.66	1
5	15689501	SCREW IN STOCK	15689501 SCREW IN STOCK	$0.26	2
6	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	2
7	12620477	WASHER IN STOCK	12620477 WASHER IN STOCK	$0.06	2
8	160888	CLIP IN STOCK	160888 CLIP IN STOCK	$3.12	1
9	247795	SECONDARY AIR SYSTEM PUMP	247795 SECONDARY AIR SYSTEM PUMP Applicable from Ass. No. 88374	$744.02 MSRP: ~~1,054.04~~ (29.4% off)	1
9	181197	Secondary Air Pump IN STOCK	181197 Secondary Air Pump Applicable up to Ass. No. 88373 IN STOCK	$512.76 MSRP: ~~663.39~~ (22.7% off)	1
10	282724	SECONDARY AIR PUMP FASTENER BRACKET	282724 SECONDARY AIR PUMP FASTENER BRACKET not affected by modification; Applicable from Ass. No. 103179	$378.94	1
10	253156	SECONDARY AIR PUMP MOUNTING BRACKET	253156 SECONDARY AIR PUMP MOUNTING BRACKET Applicable up to Ass. No. 88373	$404.22	1
10	256917	SECONDARY AIR PUMP MOUNTING BRACKET	256917 SECONDARY AIR PUMP MOUNTING BRACKET Applicable from Ass. No. 88374 up to Ass. No. 103178	$126.30	1
11	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	3
12	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
13	162606	CLIP IN STOCK	162606 CLIP Applicable up to Ass. No. 88373 IN STOCK	$1.17 MSRP: ~~1.47~~ (20.4% off)	1
13	291283	CLIP IN STOCK	291283 CLIP Applicable from Ass. No. 88374 IN STOCK	$0.50	1
14	10902224	SCREW M6 X 16 IN STOCK	10902224 SCREW M6 X 16 IN STOCK	$0.06 MSRP: ~~0.45~~ (86.7% off)	3
15	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
16	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	3
17	272519	PIPE FROM AIR PUMP TO AIR VALVE PIPE	272519 PIPE FROM AIR PUMP TO AIR VALVE PIPE not affected by modification; Applicable from Ass. No. 103179	$252.62	1
18	226356	CLAMP	226356 CLAMP	$0.41	2
19	239161	COMPLETE SECONDARY AIR PIPE	239161 COMPLETE SECONDARY AIR PIPE	$226.21	1
20	171175	SECONDARY AIR VALVE IN STOCK	171175 SECONDARY AIR VALVE IN STOCK	$316.70	2
22	282430	PIPE FOR LH SECONDARY AIR VALVE	282430 PIPE FOR LH SECONDARY AIR VALVE	$669.48	1
23	251578	R.H. AIR VALVE FIXING BRACKET	251578 R.H. AIR VALVE FIXING BRACKET	$41.66	1
24	251073	L.H. AIR VALVE FIXING BRACKET	251073 L.H. AIR VALVE FIXING BRACKET	$55.56	1
25	186781	GASKET ARRIVING SOON	186781 GASKET ARRIVING SOON	$4.94 MSRP: ~~6.35~~ (22.2% off)	6
26	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	4
27	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	4
28	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY Applicable up to engine No. 167887	$64.41	2
29	257977	THREADED UNION	257977 THREADED UNION Applicable up to engine No. 167887	$70.73	2
30	150595	CAP NUT	150595 CAP NUT Applicable until depletion	$0.84 MSRP: ~~1.50~~ (44% off)	2
31	249300	BRACKET	249300 BRACKET	$9.08	2
32	248334	SCREW IN STOCK	248334 SCREW IN STOCK	$0.58	2
33	165608	RUBBER PIPE	165608 RUBBER PIPE Applicable up to Ass. No. 103178	$2.54	1
33	289103	RUBBER PIPE	289103 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$11.99	1
34	270708	RIGID PIPE	270708 RIGID PIPE Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	$176.83	1
34	283324	RIGID PIPE	283324 RIGID PIPE Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	$94.72	1
34	250435	RIGID PIPE	250435 RIGID PIPE Not for HELE; Not for Stop & Start; Applicable until depletion	$82.10	1
35	243631	RUBBER PIPE	243631 RUBBER PIPE Applicable up to Ass. No. 103178	$79.57	1
35	168248	RUBBER PIPE	168248 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$34.09	1
36	115147	RUBBER PIPE	115147 RUBBER PIPE Applicable up to Ass. No. 103178	$4.97 MSRP: ~~5.77~~ (13.9% off)	1
36	163092	RUBBER PIPE	163092 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$1.01	1
37	14304124	SCREW	14304124 SCREW	$0.14 MSRP: ~~0.75~~ (81.3% off)	2
38	12601174	WASHER	12601174 WASHER	$0.06 MSRP: ~~0.35~~ (82.9% off)	2
39	289103	RUBBER PIPE	289103 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$11.99	1
39	243633	RUBBER PIPE	243633 RUBBER PIPE Applicable up to Ass. No. 103178	$101.05	1
40	259262	RIGID PIPE FOR BY-PASS VALVE ACTUATION	259262 RIGID PIPE FOR BY-PASS VALVE ACTUATION Applicable up to Ass. No. 103178	$164.21	1
41	148203	RUBBER PIPE	148203 RUBBER PIPE Applicable up to Ass. No. 103178	$28.64	1
41	147123	RUBBER PIPE	147123 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$23.98	1
41	148204	RUBBER PIPE IN STOCK	148204 RUBBER PIPE No longer supplied; Replaced by 148203 IN STOCK	$22.61	1
42	148204	RUBBER PIPE IN STOCK	148204 RUBBER PIPE Applicable up to Ass. No. 103178 IN STOCK	$22.61	1
42	148204	RUBBER PIPE IN STOCK	148204 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179 IN STOCK	$22.61	1
43	260831	PIPE FROM UNDERFLOOR PIPE TO SHIELD	260831 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for GD; Applicable from Ass. No. 90609	$47.99	1
43	260089	PIPE FROM UNDERFLOOR PIPE TO SHIELD	260089 PIPE FROM UNDERFLOOR PIPE TO SHIELD Not for GD; Applicable from Ass. No. 90609 up to Ass. No. 103178	$63.14	1
43	279518	PIPE FROM UNDERBODY PIPE TO FIREWALL	279518 PIPE FROM UNDERBODY PIPE TO FIREWALL not affected by modification; Applicable from Ass. No. 103179	$55.56	1
43	244452	PIPE FROM UNDERFLOOR PIPE TO SHIELD	244452 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable up to Ass. No. 90608	$31.66	1
44	169455	L.H. PIPE VALVE TUBE	169455 L.H. PIPE VALVE TUBE	$2.06	1
45	247701	UNDERFLOOR PIPE	247701 UNDERFLOOR PIPE Applicable up to Ass. No. 103178	$44.19	1
45	272511	UNDERBODY PIPE	272511 UNDERBODY PIPE not affected by modification; Applicable from Ass. No. 103179	$64.41	1
46	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH Applicable up to Ass. No. 88373 IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	1
47	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Applicable up to Ass. No. 88373 IN STOCK	$1.31	1
48	12646624	WASHER IN STOCK	12646624 WASHER Applicable up to Ass. No. 88373 IN STOCK	$0.21 MSRP: ~~0.29~~ (27.6% off)	1
49	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	2
50	12620477	WASHER IN STOCK	12620477 WASHER IN STOCK	$0.06	2
51	128016	CONNECTOR	128016 CONNECTOR	$10.51	1
52	244411	R.H. AIR VALVE PIPE	244411 R.H. AIR VALVE PIPE	$34.67	1
53	303385	CLIP IN STOCK	303385 CLIP Applicable from Ass. No. 88374 IN STOCK	$0.26	1
54	264020	SPACER ASSEMBLY	264020 SPACER ASSEMBLY Applicable after depletion of Part Nos. 252813, 210868 and 150595; Applicable from engine No. 167888	$64.41	1
55	226356	CLAMP	226356 CLAMP Applicable for pipe 245710 ref. 17	$0.41	1
56	281963	RH RIGID BYPASS VALVE ACTUATION PIPE	281963 RH RIGID BYPASS VALVE ACTUATION PIPE not affected by modification; Applicable from Ass. No. 103179	$176.83	1
57	281964	LH RIGID BYPASS VALVE ACTUATION PIPE	281964 LH RIGID BYPASS VALVE ACTUATION PIPE not affected by modification; Applicable from Ass. No. 103179	$39.14	1
58	289103	RUBBER PIPE	289103 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$11.99	1
59	279177	BRACKET	279177 BRACKET not affected by modification; Applicable from Ass. No. 103179	$18.94	1
60	272512	RUBBER PIPE	272512 RUBBER PIPE not affected by modification; Applicable from Ass. No. 103179	$8.45	1
61	198271	CLIP	198271 CLIP	$0.82	2
