Name: CHANKCASE
Rating: 4.3 (1 reviews)

CHANKCASE of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - CHANKCASE

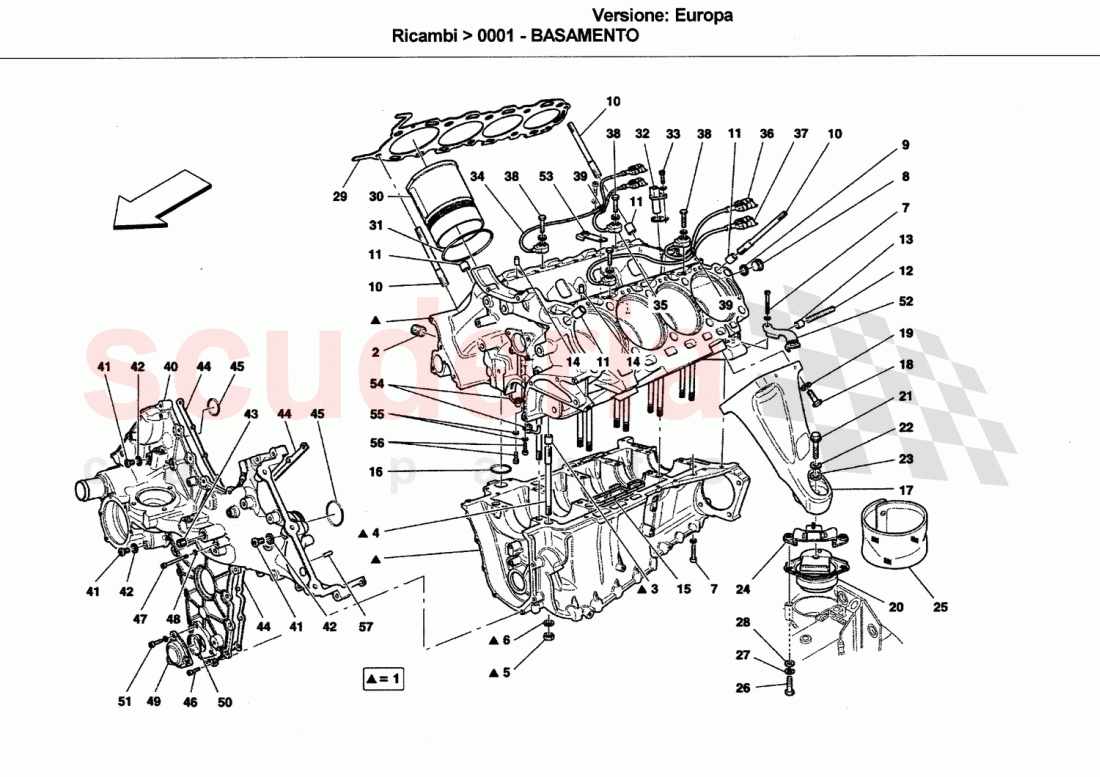

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	243454	COMPLETE CRANKCASE	$3,152.40	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.05	To Order

Photo	Part No	Description	Price (each)	Stock
	217794	STUD BOLT	$10.14	IN STOCK
	219800	STUD BOLT	$21.13	To Order
	217796	STUD BOLT	$10.14	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK
	231625	SCREW	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254979	STUD BOLT	$2.20	To Order
	254982	STUD BOLT	$2.28	To Order
	13546834	STUD BOLT	$1.44	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	177727	CENTRING DOWEL	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	236143	GASKET CRANKCASE	$7.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock

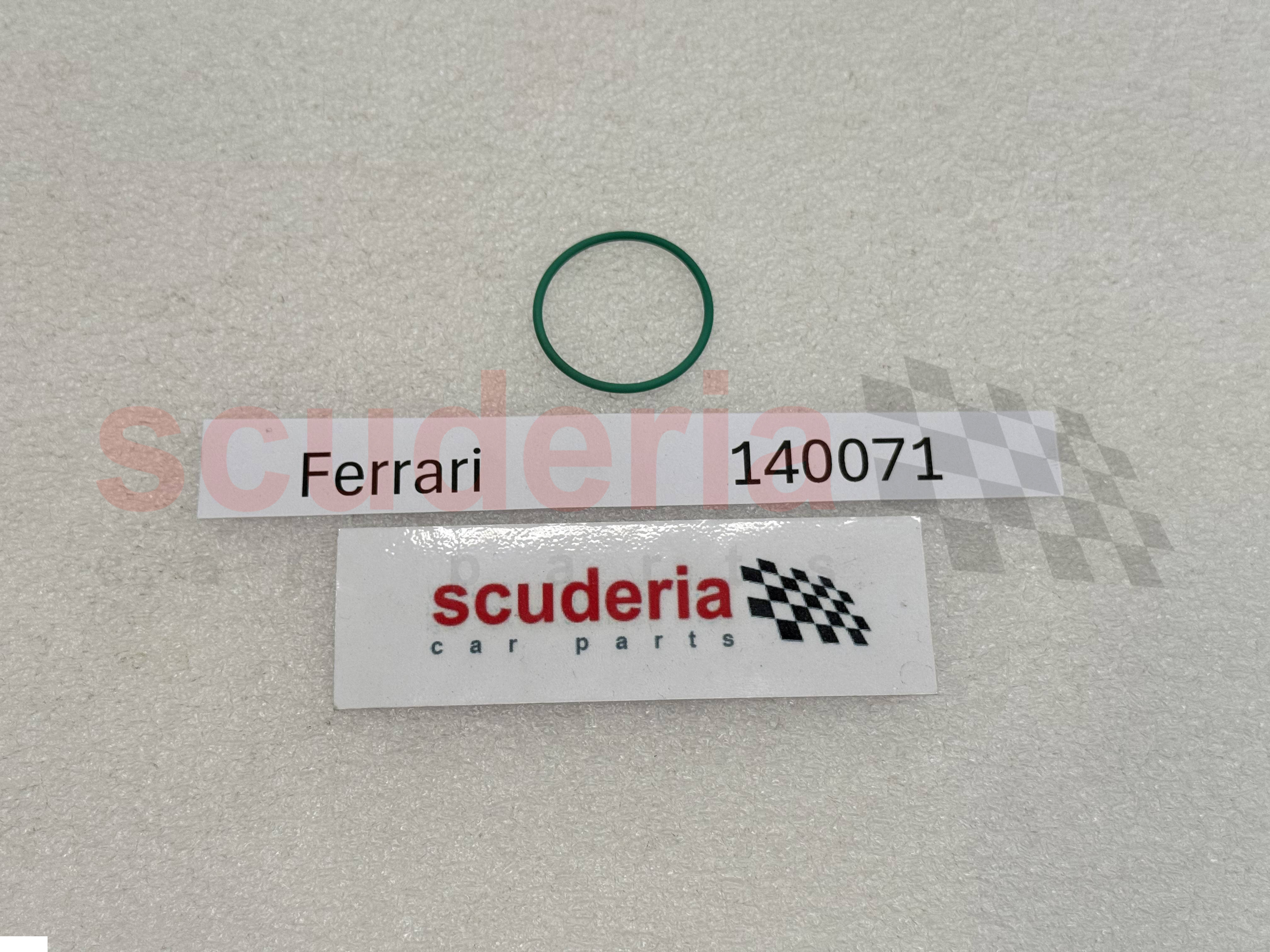

	140071	O-RING 3 X 3 X 1	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	244634	LH ENGINE-CHASSIS MOUNTING STRUT	$900.23	To Order
	244633	RH ENGINE-CHASSIS MOUNTING STRUT	$900.23	To Order

Photo	Part No	Description	Price (each)	Stock
	11306934	SCREW	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	269817	Elastic Engine Mounting Bushing	$353.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11112834	SCREW	$1.44	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	278261	BUSH TRAVEL LIMITER BRACKET	$228.22	To Order

Photo	Part No	Description	Price (each)	Stock
	247858	HEAT SHIELD	$272.47	To Order

Photo	Part No	Description	Price (each)	Stock
	15972224	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock

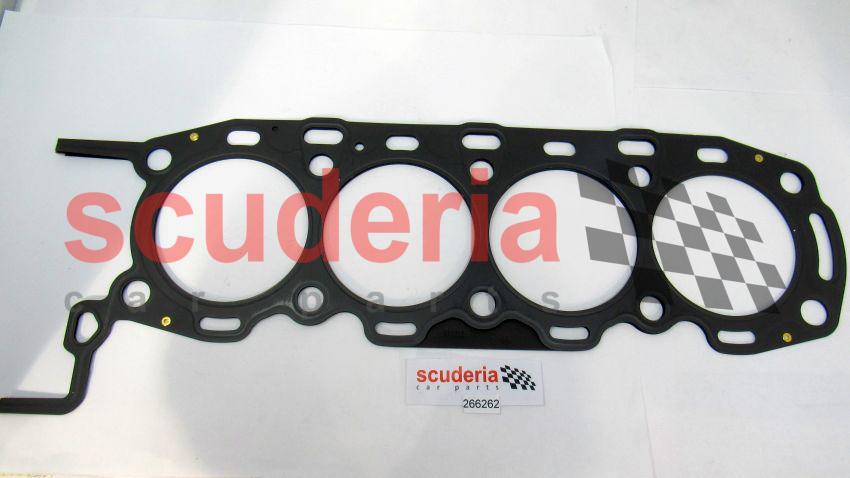

	266262	RH HEAD GASKET	$139.25	IN STOCK

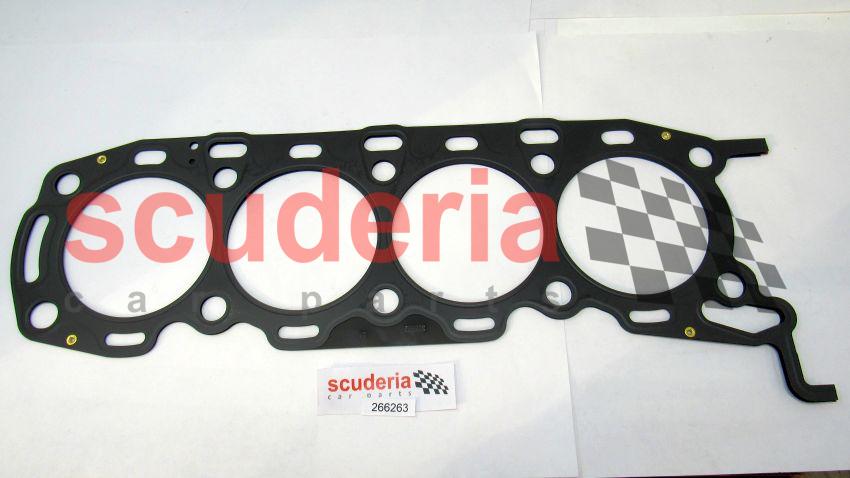

	266263	LH HEAD GASKET	$139.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	243339	CYLINDER SLEEVE	$1,483.52	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	236527	ANGULAR SPEED SENSOR	$191.70	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	246802	COMPLETE SENSOR FOR FIRING	$138.44	To Order

Photo	Part No	Description	Price (each)	Stock
	246803	COMPLETE SENSOR FOR FIRING	$117.14	To Order

Photo	Part No	Description	Price (each)	Stock
	246804	COMPLETE SENSOR FOR FIRING	$81.47	To Order

Photo	Part No	Description	Price (each)	Stock
	246805	COMPLETE SENSOR FOR FIRING	$82.85	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	254154	COMPLETE FRONT COVER	$2,046.47	To Order

Photo	Part No	Description	Price (each)	Stock
	235748	CAP	$7.34	To Order

Photo	Part No	Description	Price (each)	Stock
	10296160	GASKET	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235754	THREADED PLUG	$7.48	To Order

Photo	Part No	Description	Price (each)	Stock

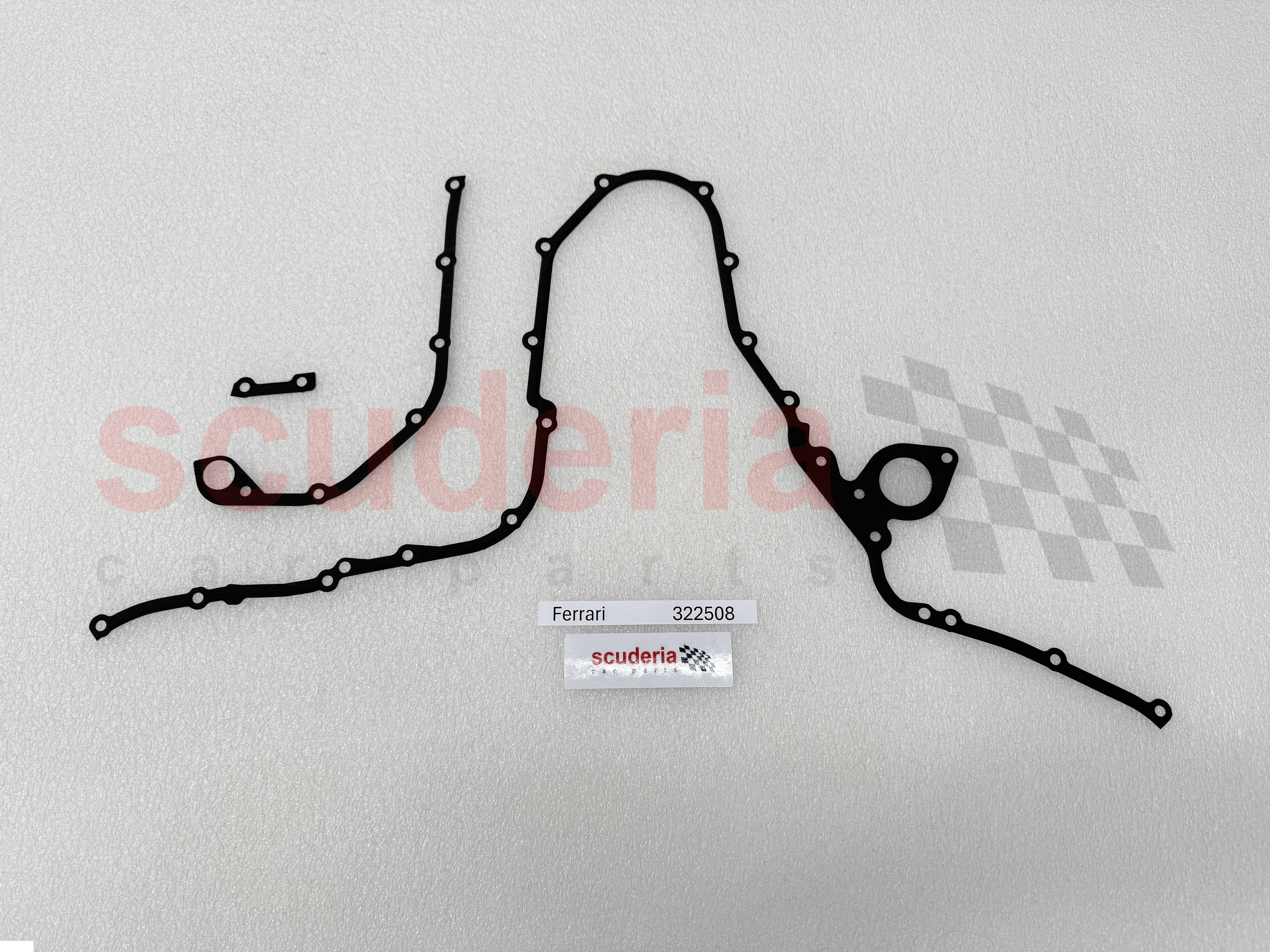

	322508	FRONT COVER GASKET	$60.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING D-32.93	$1.61	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK
	231622	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10589624	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247185	COVER	$605.51	To Order

Photo	Part No	Description	Price (each)	Stock
	246325	GASKET	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	$7.78	To Order

Photo	Part No	Description	Price (each)	Stock
	257212	BRACKET	$60.54	To Order

Photo	Part No	Description	Price (each)	Stock
	175657	PISTON COOLING NOZZLE	$8.91	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	254051	ENGINE GASKET KIT	254051 ENGINE GASKET KIT	$1,368.10	1
1	243454	COMPLETE CRANKCASE	243454 COMPLETE CRANKCASE	$3,152.40	1
2	282753	THREADED PLUG	282753 THREADED PLUG	$5.75	2
3	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.05	2
4	217794	STUD BOLT IN STOCK	217794 STUD BOLT IN STOCK	$10.14	8
4	219800	STUD BOLT	219800 STUD BOLT	$21.13	2
4	217796	STUD BOLT	217796 STUD BOLT	$10.14	8
4	219801	STUD BOLT	219801 STUD BOLT	$20.29	2
5	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	20
6	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.73	20
7	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	13
7	231625	SCREW IN STOCK	231625 SCREW IN STOCK	$0.57	2
8	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.32	1
9	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	1
10	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.10	20
11	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.80	4
12	254979	STUD BOLT	254979 STUD BOLT	$2.20	1
12	254982	STUD BOLT	254982 STUD BOLT	$2.28	1
12	13546834	STUD BOLT	13546834 STUD BOLT	$1.44	4
12	13546834	STUD BOLT	13546834 STUD BOLT	$1.44	2
13	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.23	2
14	177727	CENTRING DOWEL	177727 CENTRING DOWEL	$2.46	2
15	236143	GASKET CRANKCASE IN STOCK	236143 GASKET CRANKCASE IN STOCK	$7.20 MSRP: ~~10.50~~ (31.4% off)	2
16	140071	O-RING 3 X 3 X 1 IN STOCK	140071 O-RING 3 X 3 X 1 IN STOCK	$0.57 MSRP: ~~2.95~~ (80.7% off)	1
17	244634	LH ENGINE-CHASSIS MOUNTING STRUT	244634 LH ENGINE-CHASSIS MOUNTING STRUT	$900.23	1
17	244633	RH ENGINE-CHASSIS MOUNTING STRUT	244633 RH ENGINE-CHASSIS MOUNTING STRUT	$900.23	1
18	11306934	SCREW	11306934 SCREW	$0.54 MSRP: ~~1.50~~ (64% off)	8
19	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
20	269817	Elastic Engine Mounting Bushing IN STOCK	269817 Elastic Engine Mounting Bushing IN STOCK	$353.74 MSRP: ~~439.89~~ (19.6% off)	2
21	11112834	SCREW	11112834 SCREW	$1.44	2
22	127498	WASHER	127498 WASHER	$0.14 MSRP: ~~0.60~~ (76.7% off)	2
23	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.10	2
24	278261	BUSH TRAVEL LIMITER BRACKET	278261 BUSH TRAVEL LIMITER BRACKET	$228.22	2
25	247858	HEAT SHIELD	247858 HEAT SHIELD	$272.47	2
26	15972224	SCREW	15972224 SCREW	$2.23	4
27	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	4
28	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.67 MSRP: ~~1.75~~ (4.6% off)	4
29	266262	RH HEAD GASKET IN STOCK	266262 RH HEAD GASKET IN STOCK	$139.25	1
29	266263	LH HEAD GASKET IN STOCK	266263 LH HEAD GASKET IN STOCK	$139.25	1
30	243339	CYLINDER SLEEVE	243339 CYLINDER SLEEVE	$1,483.52	8
31	186251	O-RING IN STOCK	186251 O-RING IN STOCK	$2.43 MSRP: ~~3.20~~ (24.1% off)	24
32	236527	ANGULAR SPEED SENSOR	236527 ANGULAR SPEED SENSOR	$191.70	1
33	231619	SCREW IN STOCK	231619 SCREW IN STOCK	$0.29	1
34	246802	COMPLETE SENSOR FOR FIRING	246802 COMPLETE SENSOR FOR FIRING	$138.44	1
35	246803	COMPLETE SENSOR FOR FIRING	246803 COMPLETE SENSOR FOR FIRING	$117.14	1
36	246804	COMPLETE SENSOR FOR FIRING	246804 COMPLETE SENSOR FOR FIRING	$81.47	1
37	246805	COMPLETE SENSOR FOR FIRING	246805 COMPLETE SENSOR FOR FIRING	$82.85	1
38	231629	SCREW IN STOCK	231629 SCREW IN STOCK	$0.61 MSRP: ~~0.95~~ (35.8% off)	4
39	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.54 MSRP: ~~1.68~~ (67.9% off)	3
40	254154	COMPLETE FRONT COVER	254154 COMPLETE FRONT COVER	$2,046.47	1
41	235748	CAP	235748 CAP	$7.34	3
42	10296160	GASKET IN STOCK	10296160 GASKET IN STOCK	$0.06	3
43	235754	THREADED PLUG	235754 THREADED PLUG	$7.48	1
44	322508	FRONT COVER GASKET IN STOCK	322508 FRONT COVER GASKET IN STOCK	$60.25	1
45	183010	O-RING D-32.93 IN STOCK	183010 O-RING D-32.93 IN STOCK	$1.61 MSRP: ~~2.89~~ (44.3% off)	2
46	231619	SCREW IN STOCK	231619 SCREW IN STOCK	$0.29	18
46	231622	SCREW IN STOCK	231622 SCREW IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	10
47	10589624	SCREW IN STOCK	10589624 SCREW IN STOCK	$0.29	1
48	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	1
49	247185	COVER	247185 COVER	$605.51	1
50	246325	GASKET IN STOCK	246325 GASKET IN STOCK	$1.68	1
51	231619	SCREW IN STOCK	231619 SCREW IN STOCK	$0.29	3
52	206739	CLAMP	206739 CLAMP	$7.78	1
53	257212	BRACKET	257212 BRACKET	$60.54	2
54	175657	PISTON COOLING NOZZLE	175657 PISTON COOLING NOZZLE	$8.91	8
55	11181474	WASHER	11181474 WASHER	$0.06	8
56	14302921	SCREW	14302921 SCREW	$0.06	8
57	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.68	2

Chankcase

Ferrari California (2008-2011)

Ferrari California (2008-2011) - CHANKCASE

Add to Shopping Cart
