Lubrication: Circuit And Pickup

Ferrari California T

Find Your Part

Ferrari California T - LUBRICATION: CIRCUIT AND PICKUP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
306807 OIL SUMP $688.86 To Order
Photo Part No Description Price (each) Stock
104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 $5.50 IN STOCK
Photo Part No Description Price (each) Stock
10261860 GASKET $0.43 IN STOCK
Photo Part No Description Price (each) Stock
230171 OIL LEVEL SENSOR $49.27 IN STOCK
Photo Part No Description Price (each) Stock
311171 OIL SUMP BAFFLE $61.80 To Order
Photo Part No Description Price (each) Stock
303456 LH OIL SUMP BAFFLE FIN $6.62 To Order
Photo Part No Description Price (each) Stock
303457 RH OIL SUMP BAFFLE FIN $6.28 To Order
Photo Part No Description Price (each) Stock
304668 SENSOR PROTECTIVE SHIELD $14.90 To Order
Photo Part No Description Price (each) Stock
301591 OIL SUMP GASKET $68.24 To Order
Photo Part No Description Price (each) Stock
301461 DIPSTICK $37.33 To Order
Photo Part No Description Price (each) Stock
297463 DIPSTICK HOLDER EXTENSION $65.66 To Order
Photo Part No Description Price (each) Stock
16165276 SNAP RING $0.50 IN STOCK
Photo Part No Description Price (each) Stock
282396 SCREW $0.54 To Order
Photo Part No Description Price (each) Stock
282396 SCREW $0.54 To Order
Photo Part No Description Price (each) Stock
282398 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
299916 SCREW $2.75 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
231626 SCREW $0.71 IN STOCK
Photo Part No Description Price (each) Stock
307670 COMPL. OIL CAP Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
282370 O-RING $0.50 To Order
Photo Part No Description Price (each) Stock
307943 OIL CAP EXTENSION $167.41 To Order
Photo Part No Description Price (each) Stock
14457881 GASKET $1.29 To Order
Photo Part No Description Price (each) Stock
293205 ENGINE OIL FILLER CAP $32.18 To Order
View All

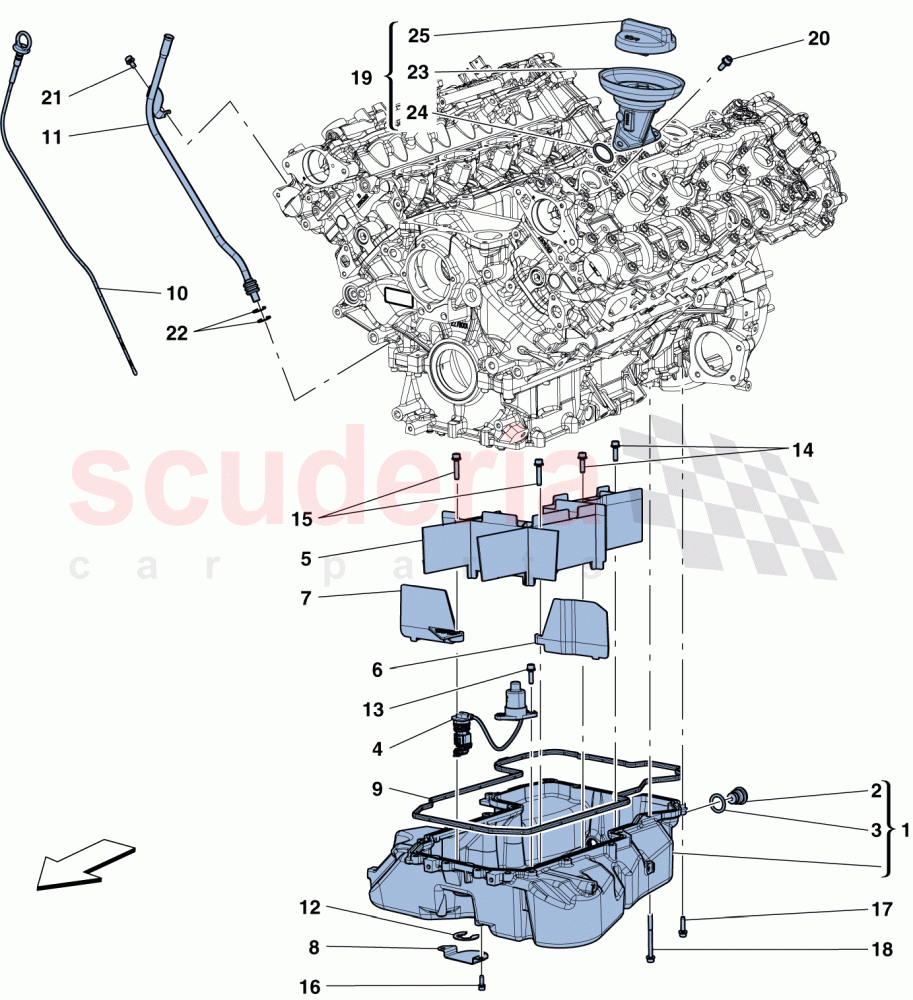

LUBRICATION: CIRCUIT AND PICKUP of Ferrari Ferrari California T Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 306807
OIL SUMP 		$688.86 1
2 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5
IN STOCK 		$5.50 (20.3% off) 1
3 10261860
GASKET
IN STOCK 		$0.43 (57% off) 1
4 230171
OIL LEVEL SENSOR
IN STOCK 		$49.27 (26.7% off) 1
5 311171
OIL SUMP BAFFLE 		$61.80 1
6 303456
LH OIL SUMP BAFFLE FIN 		$6.62 1
7 303457
RH OIL SUMP BAFFLE FIN 		$6.28 1
8 304668
SENSOR PROTECTIVE SHIELD 		$14.90 1
9 301591
OIL SUMP GASKET 		$68.24 (27.3% off) 1
10 301461
DIPSTICK 		$37.33 1
11 297463
DIPSTICK HOLDER EXTENSION 		$65.66 1
12 16165276
SNAP RING
IN STOCK 		$0.50 1
13 282396
SCREW 		$0.54 2
14 282396
SCREW 		$0.54 2
15 282398
SCREW 		$0.47 2
16 299916
SCREW 		$2.75 2
17 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 8
18 231626
SCREW
IN STOCK 		$0.71 9
19 307670
COMPL. OIL CAP
No longer supplied 		- 1 Enquire
20 248334
SCREW
M6 X 16
IN STOCK 		$0.59 2
21 248334
SCREW
IN STOCK 		$0.59 1
22 282370
O-RING 		$0.50 2
23 307943
OIL CAP EXTENSION 		$167.41 1
24 14457881
GASKET 		$1.29 1
25 293205
ENGINE OIL FILLER CAP 		$32.18 1
