Name: MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES
Rating: 4.6 (1 reviews)

View All

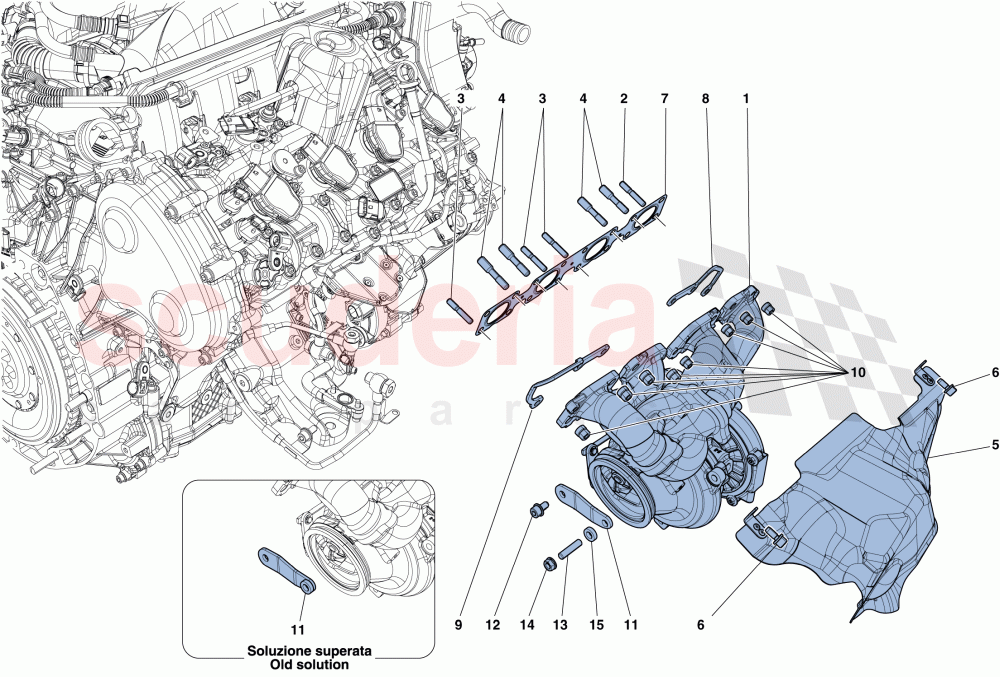

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	307168	STUD BOLT	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	306320	STUD BOLT	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	306700	TURBO HEAT SHIELD - RH MANIFOLD	$228.22	To Order
	306701	TURBO HEAT SHIELD - LH MANIFOLD	$228.22	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	292736	EXHAUST MANIFOLD GASKET	$93.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307964	COPPER NUT	$3.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304100	STUD BOLT	$13.52	To Order

Photo	Part No	Description	Price (each)	Stock
	304378	NUT	$5.99	To Order

Photo	Part No	Description	Price (each)	Stock
	312354	SPACER	$3.13	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
2	308198	STUD BOLT	308198 STUD BOLT M8 X 14; Shank length 31 mm; On RH head.	$2.71 MSRP: ~~3.07~~ (11.7% off)	1
2	307168	STUD BOLT	307168 STUD BOLT M8 X 14; Shank length 41 mm; On LH head.	$1.94 MSRP: ~~2.40~~ (19.2% off)	1
3	307168	STUD BOLT	307168 STUD BOLT M8 X 14; Shank length 41 mm	$1.94 MSRP: ~~2.40~~ (19.2% off)	6
4	306320	STUD BOLT	306320 STUD BOLT M10 X 17; Shank length M8 X 32	$2.61 MSRP: ~~3.27~~ (20.2% off)	8
5	306700	TURBO HEAT SHIELD - RH MANIFOLD	306700 TURBO HEAT SHIELD - RH MANIFOLD RH MANIFOLD	$228.22	1
5	306701	TURBO HEAT SHIELD - LH MANIFOLD	306701 TURBO HEAT SHIELD - LH MANIFOLD LH MANIFOLD	$228.22	1
6	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	6
7	292736	EXHAUST MANIFOLD GASKET IN STOCK	292736 EXHAUST MANIFOLD GASKET IN STOCK	$93.02 MSRP: ~~134.69~~ (30.9% off)	2
10	307964	COPPER NUT IN STOCK	307964 COPPER NUT IN STOCK	$3.32	16
12	231627	SCREW IN STOCK	231627 SCREW No longer supplied; Replaced by 248471 IN STOCK	$0.55 MSRP: ~~0.70~~ (21.4% off)	2
12	248471	SCREW	248471 SCREW	$0.93	2
13	304100	STUD BOLT	304100 STUD BOLT	$13.52 MSRP: ~~13.69~~ (1.2% off)	2
14	304378	NUT	304378 NUT	$5.99 MSRP: ~~7.35~~ (18.5% off)	2
15	312354	SPACER	312354 SPACER Applicable from engine No. 267927	$3.13	2

Manifolds, Turbocharging System And Pipes

Ferrari California T
