INTERCOOLER of Ferrari Ferrari California T

View All

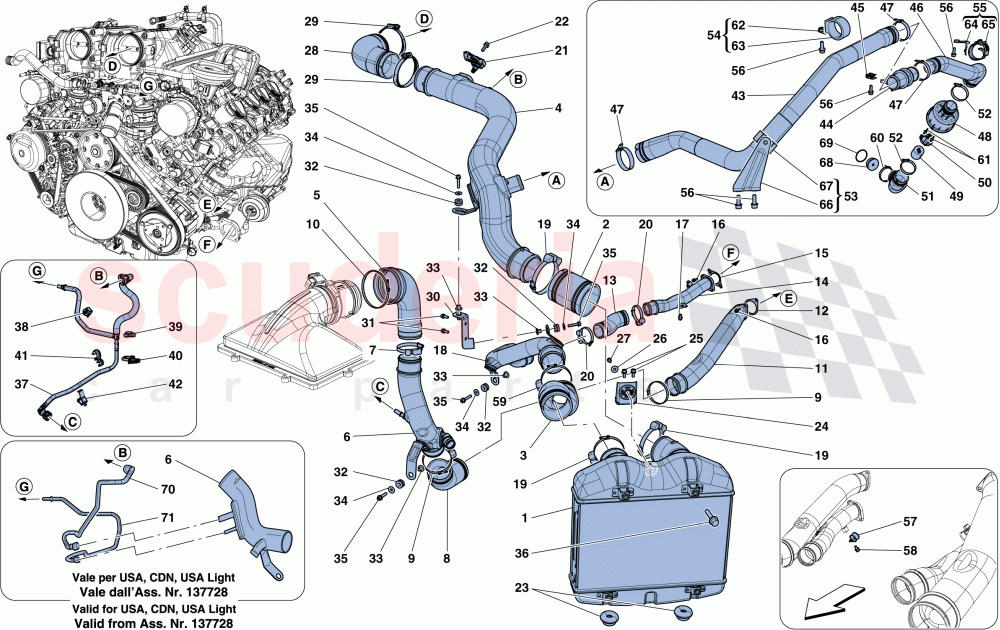

Ferrari California T - INTERCOOLER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	307469	LH INTERCOOLER	$1,039.71	To Order
	320908	RH INTERCOOLER	$1,039.71	To Order
	320908	RH INTERCOOLER	$1,039.71	To Order

Photo	Part No	Description	Price (each)	Stock
	300189	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$329.66	To Order
	300190	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$329.66	To Order

Photo	Part No	Description	Price (each)	Stock
	310125	LH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	$253.57	To Order
	310126	RH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	$253.57	To Order

Photo	Part No	Description	Price (each)	Stock
	296497	LH HOSE CONNECTION FOR AIR FLOW METER	$115.37	To Order
	308678	RH HOSE CONNECTION FOR AIR FLOW METER	$177.50	To Order

Photo	Part No	Description	Price (each)	Stock
	327125	RH PIPE FROM FILTER TO TURBO	$988.99	To Order
	308299	LH PIPE FROM FILTER TO TURBO	$202.85	To Order
	327126	LH PIPE FROM FILTER TO TURBO	$988.99	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	305056	COLLAR	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	308078	HOSE CONNECTION FROM FILTER TO TURBO	$92.54	To Order

Photo	Part No	Description	Price (each)	Stock
	308759	COLLAR	$3.21	To Order

Photo	Part No	Description	Price (each)	Stock
	190151	Clamp	$3.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	330933	COMPRESSOR INTAKE GASKET	$20.98	To Order

Photo	Part No	Description	Price (each)	Stock
	308886	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$152.13	To Order
	308885	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$152.13	To Order

Photo	Part No	Description	Price (each)	Stock
	307867	LH COMPRESSOR FLANGED OUTLET PIPE	$253.57	To Order
	307866	RH COMPRESSOR FLANGED OUTLET PIPE	$240.89	To Order

Photo	Part No	Description	Price (each)	Stock
	308862	COMPRESSOR OUTLET GASKET	$19.01	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	306316	LH PIPE FROM ENGINE TO INTERCOOLER	$190.17	To Order
	306315	RH PIPE FROM ENGINE TO INTERCOOLER	$190.17	To Order

Photo	Part No	Description	Price (each)	Stock
	305056	COLLAR	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	297482	COLLAR	$5.08	To Order

Photo	Part No	Description	Price (each)	Stock
	272880	PRESSURE AND TEMPERATURE SENSOR	$35.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290935	BUSH	$5.32	To Order

Photo	Part No	Description	Price (each)	Stock
	296066	COMPL. UPPER INTERCOOLER BRACKET	$53.24	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	66121400	WASHER D7.4 X 35 X 2	$10.47	IN STOCK
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307002	THROTTLE BODY CONNECTOR HOSE UNION	$177.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	908630	COLLAR	$4.82	To Order

Photo	Part No	Description	Price (each)	Stock
	300280	LH AIR INTAKE PIPE MOUNTING BRACKET	$26.61	To Order
	300279	RH AIR INTAKE PIPE MOUNTING BRACKET	$26.61	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82115900	SCREW M6 X 14 WITH WASHER	$0.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	316888	CLIP	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	222072	CLIP	$3.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307973	CLIP	$0.35	To Order

Photo	Part No	Description	Price (each)	Stock
	303560	SWIVEL CLIP	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	310323	LH PIPE FROM INTAKE TO DISCONNECTOR	$122.97	To Order
	310324	RH PIPE FROM INTAKE TO DISCONNECTOR	$122.97	To Order

Photo	Part No	Description	Price (each)	Stock
	310445	MALE-MALE CONNECTION	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	SCRE CLIP M6	$0.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310325	LH PIPE FROM DISCONNECTOR TO RESONATOR	$68.46	To Order
	310326	RH PIPE FROM DISCONNECTOR TO RESONATOR	$103.95	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310096	SOUND GENERATOR	$240.89	To Order

Photo	Part No	Description	Price (each)	Stock
	313318	FOAM	$8.99	To Order

Photo	Part No	Description	Price (each)	Stock
	310602	FOAM MOUNT	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	310327	LH PIPE FROM RESONATOR TO FIREWALL	$60.84	To Order
	310328	RH PIPE FROM RESONATOR TO FIREWALL	$43.09	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	PIPE CLAMP 30-45MM	$7.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	311621	LH FRONT BRACKET COMPL. WITH CLIP	$23.82	To Order
	311622	RH FRONT BRACKET COMPL. WITH CLIP	$23.82	To Order

Photo	Part No	Description	Price (each)	Stock
	311620	INTERMEDIATE BRACKET COMPL. WITH CLIP	$16.13	To Order

Photo	Part No	Description	Price (each)	Stock
	311619	REAR BRACKET COMPL. WITH CLIP	$14.88	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK
	81911600	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	10418901	BRACKET	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	305056	COLLAR	$5.15	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	PIPE CLAMP 30-45MM	$7.77	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	314100	RIVET	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	310771	INTERMEDIATE BRACKET FOR RESONATOR PIPE	$10.90	To Order

Photo	Part No	Description	Price (each)	Stock
	315352	CLIP	$1.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	310571	FRONT LH BRACKET FOR RESONATOR PIPE	$17.74	IN STOCK
	310572	FRONT RH BRACKET FOR RESONATOR PIPE	$17.74	To Order

Photo	Part No	Description	Price (each)	Stock
	315352	CLIP	$1.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	333404	ADAPTER ON RESONATOR PIPE	$14.82	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$4.92	To Order

Photo	Part No	Description	Price (each)	Stock
	325770	FLUSH PIPE FROM INTAKE TO RH VENTURI	$96.35	IN STOCK
	325773	FLUSH PIPE FROM INTAKE TO LH VENTURI	$105.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	325772	FLUSH PIPE FROM ENGINE TO RH VENTURI	$46.90	To Order
	325775	FLUSH PIPE FROM ENGINE TO LH VENTURI	$48.17	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	307469	LH INTERCOOLER	307469 LH INTERCOOLER	$1,039.71	1
1	320908	RH INTERCOOLER	320908 RH INTERCOOLER Applicable up to Ass. No. 129878	$1,039.71	1
1	320908	RH INTERCOOLER	320908 RH INTERCOOLER Applicable from Ass. No. 129879	$1,039.71	1
3	300189	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	300189 LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$329.66	1
3	300190	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	300190 RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$329.66	1
4	310125	LH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	310125 LH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	$253.57	1
4	310126	RH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	310126 RH INTERMEDIATE PIPE BETWEEN INTERCOOLER AND HOSE UNION	$253.57	1
5	296497	LH HOSE CONNECTION FOR AIR FLOW METER	296497 LH HOSE CONNECTION FOR AIR FLOW METER	$115.37	1
5	308678	RH HOSE CONNECTION FOR AIR FLOW METER	308678 RH HOSE CONNECTION FOR AIR FLOW METER	$177.50	1
6	327125	RH PIPE FROM FILTER TO TURBO	327125 RH PIPE FROM FILTER TO TURBO Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728	$988.99	1
6	308299	LH PIPE FROM FILTER TO TURBO	308299 LH PIPE FROM FILTER TO TURBO Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 137727	$202.85	1
6	327126	LH PIPE FROM FILTER TO TURBO	327126 LH PIPE FROM FILTER TO TURBO Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728	$988.99	1
6	308298	RH PIPE FROM FILTER TO TURBO	308298 RH PIPE FROM FILTER TO TURBO Not for USA, CDN, USA LIGHT	$202.85	1
6	308298	RH PIPE FROM FILTER TO TURBO	308298 RH PIPE FROM FILTER TO TURBO Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 137727	$202.85	1
6	308299	LH PIPE FROM FILTER TO TURBO	308299 LH PIPE FROM FILTER TO TURBO Not for USA, CDN, USA LIGHT	$202.85	1
7	305056	COLLAR	305056 COLLAR	$5.15	2
8	308078	HOSE CONNECTION FROM FILTER TO TURBO	308078 HOSE CONNECTION FROM FILTER TO TURBO Applicable from Ass. No. 124336	$92.54	2
9	308759	COLLAR	308759 COLLAR	$3.21	4
10	190151	Clamp IN STOCK	190151 Clamp IN STOCK	$3.32 MSRP: ~~4.20~~ (21% off)	2
12	330933	COMPRESSOR INTAKE GASKET	330933 COMPRESSOR INTAKE GASKET Not for USA, CDN, USA LIGHT	$20.98	2
13	308886	LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	308886 LH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$152.13	1
13	308885	RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	308885 RH HOSE CONNECTION FROM TURBO TO INTERCOOLER	$152.13	1
14	307867	LH COMPRESSOR FLANGED OUTLET PIPE	307867 LH COMPRESSOR FLANGED OUTLET PIPE	$253.57	1
14	307866	RH COMPRESSOR FLANGED OUTLET PIPE	307866 RH COMPRESSOR FLANGED OUTLET PIPE	$240.89	1
15	308862	COMPRESSOR OUTLET GASKET	308862 COMPRESSOR OUTLET GASKET	$19.01	2
16	231619	SCREW IN STOCK	231619 SCREW M6 X 22 IN STOCK	$0.29	8
17	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	2
18	306316	LH PIPE FROM ENGINE TO INTERCOOLER	306316 LH PIPE FROM ENGINE TO INTERCOOLER	$190.17	1
18	306315	RH PIPE FROM ENGINE TO INTERCOOLER	306315 RH PIPE FROM ENGINE TO INTERCOOLER	$190.17	1
19	305056	COLLAR	305056 COLLAR	$5.15	6
20	297482	COLLAR	297482 COLLAR	$5.08	4
21	272880	PRESSURE AND TEMPERATURE SENSOR IN STOCK	272880 PRESSURE AND TEMPERATURE SENSOR IN STOCK	$35.20	2
22	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	2
23	290935	BUSH	290935 BUSH	$5.32	4
24	296066	COMPL. UPPER INTERCOOLER BRACKET	296066 COMPL. UPPER INTERCOOLER BRACKET	$53.24	2
25	248334	SCREW IN STOCK	248334 SCREW M6 X 14 IN STOCK	$0.58	4
26	66121400	WASHER D7.4 X 35 X 2 IN STOCK	66121400 WASHER D7.4 X 35 X 2 IN STOCK	$10.47 MSRP: ~~14.76~~ (29.1% off)	2
26	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	2
27	10977524	SCREW IN STOCK	10977524 SCREW IN STOCK	$0.14	2
28	307002	THROTTLE BODY CONNECTOR HOSE UNION IN STOCK	307002 THROTTLE BODY CONNECTOR HOSE UNION IN STOCK	$177.50	2
29	908630	COLLAR	908630 COLLAR	$4.82	4
30	300280	LH AIR INTAKE PIPE MOUNTING BRACKET	300280 LH AIR INTAKE PIPE MOUNTING BRACKET	$26.61	1
30	300279	RH AIR INTAKE PIPE MOUNTING BRACKET	300279 RH AIR INTAKE PIPE MOUNTING BRACKET	$26.61	1
31	248334	SCREW IN STOCK	248334 SCREW M6 X 16 IN STOCK	$0.58	4
32	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	8
33	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	8
34	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	8
35	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	8
36	82115900	SCREW M6 X 14 WITH WASHER IN STOCK	82115900 SCREW M6 X 14 WITH WASHER IN STOCK	$0.57	8
38	316888	CLIP IN STOCK	316888 CLIP IN STOCK	$0.20	2
39	222072	CLIP IN STOCK	222072 CLIP Fastening LH pipe IN STOCK	$3.04	1
40	307973	CLIP	307973 CLIP Fastening LH pipe; Not for USA, CDN, USA LIGHT; No longer supplied	$0.35	1
41	303560	SWIVEL CLIP	303560 SWIVEL CLIP Fastening LH pipe	$1.10	1
42	257273	CLIP	257273 CLIP Fastening RH and LH pipes	$1.10	2
43	310323	LH PIPE FROM INTAKE TO DISCONNECTOR	310323 LH PIPE FROM INTAKE TO DISCONNECTOR	$122.97	1
43	310324	RH PIPE FROM INTAKE TO DISCONNECTOR	310324 RH PIPE FROM INTAKE TO DISCONNECTOR	$122.97	1
44	310445	MALE-MALE CONNECTION	310445 MALE-MALE CONNECTION	$6.18	2
45	62766300	SCRE CLIP M6 IN STOCK	62766300 SCRE CLIP M6 IN STOCK	$0.72 MSRP: ~~0.75~~ (4% off)	2
46	310325	LH PIPE FROM DISCONNECTOR TO RESONATOR	310325 LH PIPE FROM DISCONNECTOR TO RESONATOR	$68.46	1
46	310326	RH PIPE FROM DISCONNECTOR TO RESONATOR	310326 RH PIPE FROM DISCONNECTOR TO RESONATOR	$103.95	1
47	262114	HOSE CLAMP IN STOCK	262114 HOSE CLAMP IN STOCK	$1.06	6
48	310096	SOUND GENERATOR	310096 SOUND GENERATOR	$240.89	2
49	313318	FOAM	313318 FOAM Not for Special Handling Pack	$8.99	2
50	310602	FOAM MOUNT	310602 FOAM MOUNT Not for Special Handling Pack	$1.35	2
51	310327	LH PIPE FROM RESONATOR TO FIREWALL	310327 LH PIPE FROM RESONATOR TO FIREWALL	$60.84	1
51	310328	RH PIPE FROM RESONATOR TO FIREWALL	310328 RH PIPE FROM RESONATOR TO FIREWALL	$43.09	1
52	296781	PIPE CLAMP 30-45MM IN STOCK	296781 PIPE CLAMP 30-45MM IN STOCK	$7.77	4
53	311621	LH FRONT BRACKET COMPL. WITH CLIP	311621 LH FRONT BRACKET COMPL. WITH CLIP No longer supplied	$23.82	1
53	311622	RH FRONT BRACKET COMPL. WITH CLIP	311622 RH FRONT BRACKET COMPL. WITH CLIP After depletion, order loose components; Applicable until depletion	$23.82	1
54	311620	INTERMEDIATE BRACKET COMPL. WITH CLIP	311620 INTERMEDIATE BRACKET COMPL. WITH CLIP No longer supplied	$16.13	2
55	311619	REAR BRACKET COMPL. WITH CLIP	311619 REAR BRACKET COMPL. WITH CLIP No longer supplied	$14.88	2
56	231619	SCREW IN STOCK	231619 SCREW M6 X 18; No longer supplied; Replaced by 269959 IN STOCK	$0.29	10
56	81911600	SCREW	81911600 SCREW	$0.44	10
57	10418901	BRACKET	10418901 BRACKET On RH flanged pipe	$0.76	1
58	248334	SCREW IN STOCK	248334 SCREW On RH flanged pipe IN STOCK	$0.58	1
59	305056	COLLAR	305056 COLLAR	$5.15	2
60	296781	PIPE CLAMP 30-45MM IN STOCK	296781 PIPE CLAMP 30-45MM IN STOCK	$7.77	2
61	314100	RIVET	314100 RIVET	$0.43	2
62	310771	INTERMEDIATE BRACKET FOR RESONATOR PIPE	310771 INTERMEDIATE BRACKET FOR RESONATOR PIPE	$10.90	2
63	315352	CLIP IN STOCK	315352 CLIP IN STOCK	$1.10	2
64	310772	REAR BRACKET FOR RESONATOR PIPE	310772 REAR BRACKET FOR RESONATOR PIPE	$10.90	2
65	278577	CLIP	278577 CLIP	$1.61	2
66	310571	FRONT LH BRACKET FOR RESONATOR PIPE IN STOCK	310571 FRONT LH BRACKET FOR RESONATOR PIPE IN STOCK	$17.74	1
66	310572	FRONT RH BRACKET FOR RESONATOR PIPE	310572 FRONT RH BRACKET FOR RESONATOR PIPE	$17.74	1
67	315352	CLIP IN STOCK	315352 CLIP IN STOCK	$1.10	2
68	333404	ADAPTER ON RESONATOR PIPE	333404 ADAPTER ON RESONATOR PIPE Special Handling Pack	$14.82	2
69	862084	GASKET	862084 GASKET Special Handling Pack; No longer supplied	$4.92	2
70	325770	FLUSH PIPE FROM INTAKE TO RH VENTURI IN STOCK	325770 FLUSH PIPE FROM INTAKE TO RH VENTURI Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728 IN STOCK	$96.35	1
70	325773	FLUSH PIPE FROM INTAKE TO LH VENTURI IN STOCK	325773 FLUSH PIPE FROM INTAKE TO LH VENTURI Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728 IN STOCK	$105.22	1
71	325772	FLUSH PIPE FROM ENGINE TO RH VENTURI	325772 FLUSH PIPE FROM ENGINE TO RH VENTURI Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728	$46.90	1
71	325775	FLUSH PIPE FROM ENGINE TO LH VENTURI	325775 FLUSH PIPE FROM ENGINE TO LH VENTURI Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 137728	$48.17	1
