TUNNEL - SUBSTRUCTURE AND ACCESSORIES of Ferrari Ferrari California T

View All

Ferrari California T - TUNNEL - SUBSTRUCTURE AND ACCESSORIES

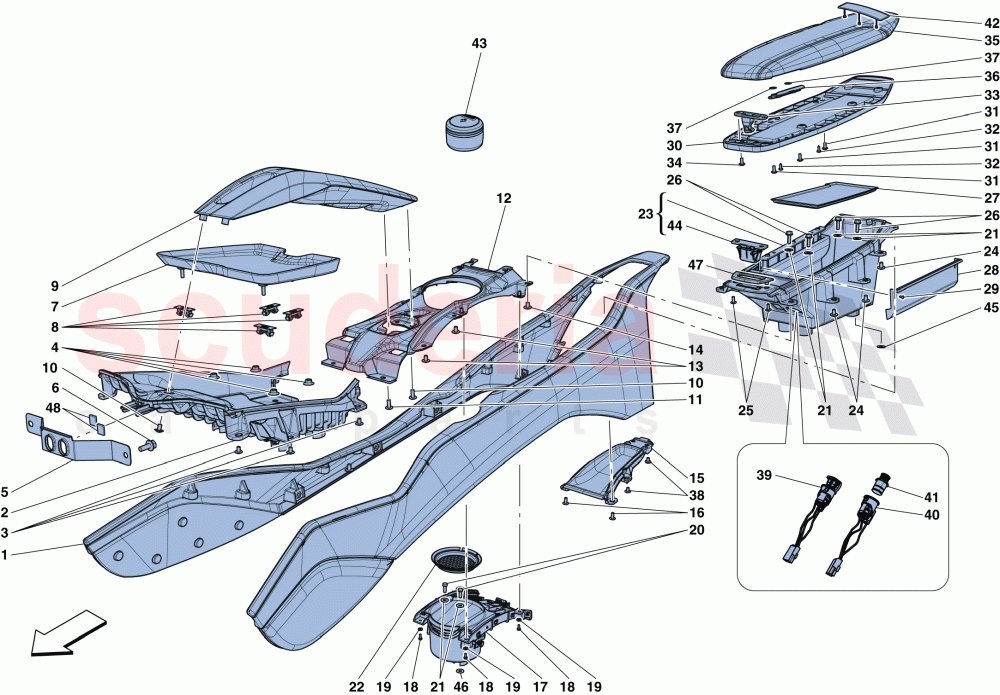

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86114012	COMPL.CENTRE CONSOLE UNIT STRUCTURE	$8,152.92	To Order
	86306400	COMPL. CENTRE CONSOLE UNIT STRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86123000	FRONT CENTRE CONSOLE BRIDGE SUBSTRUCTURE	$405.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85654500	BRACKET	$26.61	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	86127100	FRONT BASE	$253.57	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	CLIP	$3.58	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86839100	COMPL. F1 BRIDGE	$5,676.61	To Order
	86715600	COMPL. F1 BRIDGE	$5,676.61	To Order
	86461200	COMPL. F1 BRIDGE	$1,103.11	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86297300	REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE	$2,798.36	To Order
	86169200	REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE	$253.57	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86128500	COMPL. REAR ODDMENT TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86122400	COMPLETE CUP HOLDER	$481.80	To Order
	85845600	COMPLETE CUP HOLDER	$1,595.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	$0.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER D.5-14 X 2.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85440600	CUP HOLDER TRAY BASE MAT	$22.80	To Order

Photo	Part No	Description	Price (each)	Stock
	87389900	REAR UNIT TRAY	$1,014.34	To Order
	86690600	REAR UNIT TRAY	$1,115.78	To Order
	87360900	REAR UNIT TRAY	$1,115.78	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	$0.29	IN STOCK
	11568124	SCREW	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86127600	REAR CONSOLE COMPARTMENT BASE MAT	$22.80	To Order
	86220900	REAR CONSOLE COMPARTMENT BASE MAT	$22.80	To Order

Photo	Part No	Description	Price (each)	Stock
	86122900	MOBILE HINGE SHIELD	$48.17	To Order

Photo	Part No	Description	Price (each)	Stock
	12678877	SCREW	$3.04	To Order

Photo	Part No	Description	Price (each)	Stock
	86220800	ARMREST LID BACKING STRUCTURE	$190.17	To Order
	86126800	ARMREST LID BACKING STRUCTURE	$177.50	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15902601	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86306700	CENTRE CONSOLE UNIT ARMREST STRUCTURE	Enquire	To Order
	86307100	CENTRE CONSOLE UNIT ARMREST STRUCTURE	Enquire	To Order
	86123300	CENTRE CONSOLE UNIT ARMREST STRUCTURE	$925.59	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86461700	ARMREST HANDLE	$58.30	To Order
	86220500	ARMREST HANDLE	$115.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14228476	PLATE	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock

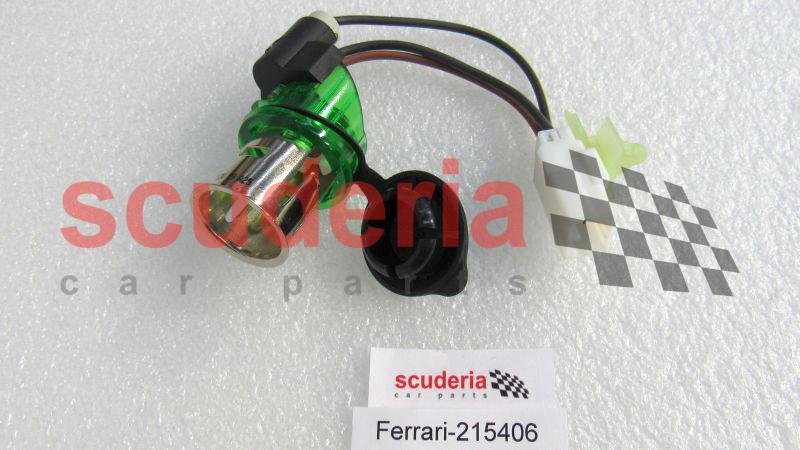

	215406	12 V SOCKET	$43.89	To Order

Photo	Part No	Description	Price (each)	Stock
	183271	CIGARETTE LIGHTER SOCKET	$35.35	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	66704500	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86635600	DEDICATION PLAQUE ON TUNNEL CONSOLE	$1,421.36	To Order
	88352700	'SPECIALE HANDLING' PLAQUE	$1,421.36	To Order
	88352800	'SPECIALE HANDLING' DEDICATION PLAQUE	$1,421.36	To Order

Photo	Part No	Description	Price (each)	Stock
	84068600	COMPL. DIE-CAST ASHTRAY	$266.25	To Order

Photo	Part No	Description	Price (each)	Stock
	67004800	LID LATCH	$36.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	$7.10	To Order

Photo	Part No	Description	Price (each)	Stock
	84738000	WASHER	$1.01	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	86128300	COMPL. LOCK PLATE	$367.69	To Order

Photo	Part No	Description	Price (each)	Stock
	86481600	GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	86114012	COMPL.CENTRE CONSOLE UNIT STRUCTURE	86114012 COMPL.CENTRE CONSOLE UNIT STRUCTURE Leather; STC1; STC2	$8,152.92	1
1	86306400	COMPL. CENTRE CONSOLE UNIT STRUCTURE	86306400 COMPL. CENTRE CONSOLE UNIT STRUCTURE Alcantara; STC1; STC2	-	1	Enquire
2	86123000	FRONT CENTRE CONSOLE BRIDGE SUBSTRUCTURE	86123000 FRONT CENTRE CONSOLE BRIDGE SUBSTRUCTURE	$405.73	1
3	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.34	6
4	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	4
5	85654500	BRACKET	85654500 BRACKET	$26.61	1
6	86574700	SCREW	86574700 SCREW M6 X 16	$0.61	2
7	86127100	FRONT BASE	86127100 FRONT BASE	$253.57	1
8	68700200	CLIP IN STOCK	68700200 CLIP IN STOCK	$3.58 MSRP: ~~5.50~~ (34.9% off)	4
9	86839100	COMPL. F1 BRIDGE	86839100 COMPL. F1 BRIDGE Carbon; Not for USA, CDN, GD, USA LIGHT	$5,676.61	1
9	86715600	COMPL. F1 BRIDGE	86715600 COMPL. F1 BRIDGE Carbon; Applicable for USA, CDN, USA LIGHT	$5,676.61	1
9	86461200	COMPL. F1 BRIDGE	86461200 COMPL. F1 BRIDGE Aluminium; Not for USA, CDN, GD, USA LIGHT	$1,103.11	1
9	86715500	COMPL. F1 BRIDGE	86715500 COMPL. F1 BRIDGE Aluminium; Applicable for USA, CDN, USA LIGHT	$1,267.94	1
9	86296800	COMPL. F1 BRIDGE	86296800 COMPL. F1 BRIDGE Aluminium; Applicable for GD	$1,344.02	1
10	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.34	4
11	11566224	SCREW IN STOCK	11566224 SCREW M5 X 14 IN STOCK	$0.34	2
12	86297300	REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE	86297300 REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE Carbon	$2,798.36	1
12	86169200	REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE	86169200 REAR CENTRE CONSOLE BRIDGE SUBSTRUCTURE	$253.57	1
13	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.34	4
14	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	2
15	86128500	COMPL. REAR ODDMENT TRAY	86128500 COMPL. REAR ODDMENT TRAY	-	1	Enquire
16	11566224	SCREW IN STOCK	11566224 SCREW M5 X 12 IN STOCK	$0.34	2
17	86122400	COMPLETE CUP HOLDER	86122400 COMPLETE CUP HOLDER	$481.80	1
17	85845600	COMPLETE CUP HOLDER	85845600 COMPLETE CUP HOLDER Carbon	$1,595.06	1
18	14418074	SCREW	14418074 SCREW	$0.18	4
19	12639901	WASHER IN STOCK	12639901 WASHER IN STOCK	$0.09	4
20	16285224	SCREW IN STOCK	16285224 SCREW IN STOCK	$0.29	2
21	62769800	WASHER D.5-14 X 2.5 IN STOCK	62769800 WASHER D.5-14 X 2.5 IN STOCK	$0.21 MSRP: ~~0.30~~ (30% off)	6
22	85440600	CUP HOLDER TRAY BASE MAT	85440600 CUP HOLDER TRAY BASE MAT	$22.80	1
23	87389900	REAR UNIT TRAY	87389900 REAR UNIT TRAY Version with Apple Car Play; GS version; Applicable for J; Applicable from Ass. No. 128288	$1,014.34	1
23	86690600	REAR UNIT TRAY	86690600 REAR UNIT TRAY Version with Apple Car Play; GD version; Applicable for J; Applicable up to Ass. No. 128287	$1,115.78	1
23	87360900	REAR UNIT TRAY	87360900 REAR UNIT TRAY Version with Apple Car Play; GD version; Applicable for J; Applicable from Ass. No. 128288	$1,115.78	1
23	87360500	REAR UNIT TRAY	87360500 REAR UNIT TRAY Version with Apple Car Play; Applicable for GD; Applicable from Ass. No. 128288	$887.55	1
23	86690300	REAR UNIT TRAY	86690300 REAR UNIT TRAY Version with Apple Car Play; GS version; Applicable for J; Applicable up to Ass. No. 128287	$1,115.78	1
23	86689900	REAR UNIT TRAY	86689900 REAR UNIT TRAY Version with Apple Car Play; Not for J, GD; Applicable up to Ass. No. 128287	$900.23	1
23	87357300	REAR UNIT TRAY	87357300 REAR UNIT TRAY Version with Apple Car Play; Not for J, GD; Applicable from Ass. No. 128288	$798.80	1
23	86690100	REAR UNIT TRAY	86690100 REAR UNIT TRAY Version with Apple Car Play; Applicable for GD; Applicable up to Ass. No. 128287	$900.23	1
23	87360700	REAR UNIT TRAY	87360700 REAR UNIT TRAY Not for version with Apple Car Play; GD version; Applicable for J; Applicable from Ass. No. 128288	$938.27	1
23	86689500	REAR UNIT TRAY	86689500 REAR UNIT TRAY Not for version with Apple Car Play; GS version; Applicable for J; Applicable up to Ass. No. 128287	$938.27	1
23	87389700	REAR UNIT TRAY	87389700 REAR UNIT TRAY Not for version with Apple Car Play; GS version; Applicable for J; Applicable from Ass. No. 128288	$862.20	1
23	86689700	REAR UNIT TRAY	86689700 REAR UNIT TRAY Not for version with Apple Car Play; GD version; Applicable for J; Applicable up to Ass. No. 128287	$938.27	1
23	87359200	REAR UNIT TRAY	87359200 REAR UNIT TRAY Not for version with Apple Car Play; Applicable for GD; Applicable from Ass. No. 128288	$710.04	1
23	87357000	REAR UNIT TRAY	87357000 REAR UNIT TRAY Not for version with Apple Car Play; Not for J, GD; Applicable from Ass. No. 128288	$646.64	1
24	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.34	6
25	88822200	SCREW IN STOCK	88822200 SCREW M4 X 10 IN STOCK	$0.60	2
26	16285224	SCREW IN STOCK	16285224 SCREW IN STOCK	$0.29	4
26	11568124	SCREW IN STOCK	11568124 SCREW M5 X 16; No longer supplied; Replaced by 16285224 IN STOCK	$0.81	4
27	86127600	REAR CONSOLE COMPARTMENT BASE MAT	86127600 REAR CONSOLE COMPARTMENT BASE MAT Not for GD	$22.80	1
27	86220900	REAR CONSOLE COMPARTMENT BASE MAT	86220900 REAR CONSOLE COMPARTMENT BASE MAT Applicable for GD	$22.80	1
28	86122900	MOBILE HINGE SHIELD	86122900 MOBILE HINGE SHIELD	$48.17	1
29	12678877	SCREW	12678877 SCREW	$3.04	2
30	86220800	ARMREST LID BACKING STRUCTURE	86220800 ARMREST LID BACKING STRUCTURE Applicable for GD	$190.17	1
30	86126800	ARMREST LID BACKING STRUCTURE	86126800 ARMREST LID BACKING STRUCTURE Not for GD	$177.50	1
31	88822200	SCREW IN STOCK	88822200 SCREW M4 X 10 IN STOCK	$0.60	3
32	15902601	SCREW	15902601 SCREW	$0.06	2
34	88822200	SCREW IN STOCK	88822200 SCREW M4 X 10 IN STOCK	$0.60	2
35	86306700	CENTRE CONSOLE UNIT ARMREST STRUCTURE	86306700 CENTRE CONSOLE UNIT ARMREST STRUCTURE Alcantara; STC1; STC2; Not for GD	-	1	Enquire
35	86307100	CENTRE CONSOLE UNIT ARMREST STRUCTURE	86307100 CENTRE CONSOLE UNIT ARMREST STRUCTURE Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
35	86123300	CENTRE CONSOLE UNIT ARMREST STRUCTURE	86123300 CENTRE CONSOLE UNIT ARMREST STRUCTURE Leather; STC1; STC2; Not for GD	$925.59	1
35	86220100	CENTRE CONSOLE UNIT ARMREST STRUCTURE	86220100 CENTRE CONSOLE UNIT ARMREST STRUCTURE Leather; STC1; STC2; Applicable for GD	-	1	Enquire
36	86461700	ARMREST HANDLE	86461700 ARMREST HANDLE Not for GD	$58.30	1
36	86220500	ARMREST HANDLE	86220500 ARMREST HANDLE Applicable for GD	$115.37	1
37	14228476	PLATE	14228476 PLATE	$1.10	2
38	11566224	SCREW IN STOCK	11566224 SCREW M5 X 8 IN STOCK	$0.34	4
39	215406	12 V SOCKET	215406 12 V SOCKET	$43.89 MSRP: ~~56.75~~ (22.7% off)	1
40	183271	CIGARETTE LIGHTER SOCKET ARRIVING SOON	183271 CIGARETTE LIGHTER SOCKET Applicable for smoker's kit ARRIVING SOON	$35.35	1
41	66704500	CIGARETTE LIGHTER	66704500 CIGARETTE LIGHTER Applicable for smoker's kit	-	1	Enquire
42	86635600	DEDICATION PLAQUE ON TUNNEL CONSOLE	86635600 DEDICATION PLAQUE ON TUNNEL CONSOLE Not for Special Handling Pack	$1,421.36	1
42	88352700	'SPECIALE HANDLING' PLAQUE	88352700 'SPECIALE HANDLING' PLAQUE Special Handling Pack	$1,421.36	1
42	88352800	'SPECIALE HANDLING' DEDICATION PLAQUE	88352800 'SPECIALE HANDLING' DEDICATION PLAQUE Special Handling Pack	$1,421.36	1
43	84068600	COMPL. DIE-CAST ASHTRAY	84068600 COMPL. DIE-CAST ASHTRAY Applicable for smoker's kit	$266.25	1
44	67004800	LID LATCH IN STOCK	67004800 LID LATCH IN STOCK	$36.32 MSRP: ~~48.54~~ (25.2% off)	1
45	65708600	SPACER BUSHING	65708600 SPACER BUSHING	$7.10 MSRP: ~~9.85~~ (27.9% off)	4
46	84738000	WASHER IN STOCK	84738000 WASHER IN STOCK	$1.01	4
47	86128300	COMPL. LOCK PLATE	86128300 COMPL. LOCK PLATE Applicable up to Ass. No. 128287	$367.69	1
48	86481600	GASKET	86481600 GASKET	-	2	Enquire
