Name: A/C SYSTEM - EVAPORATOR
Rating: 5.0 (1 reviews)

A/C SYSTEM - EVAPORATOR of Ferrari Ferrari 812 Competizione Europe RH

View All

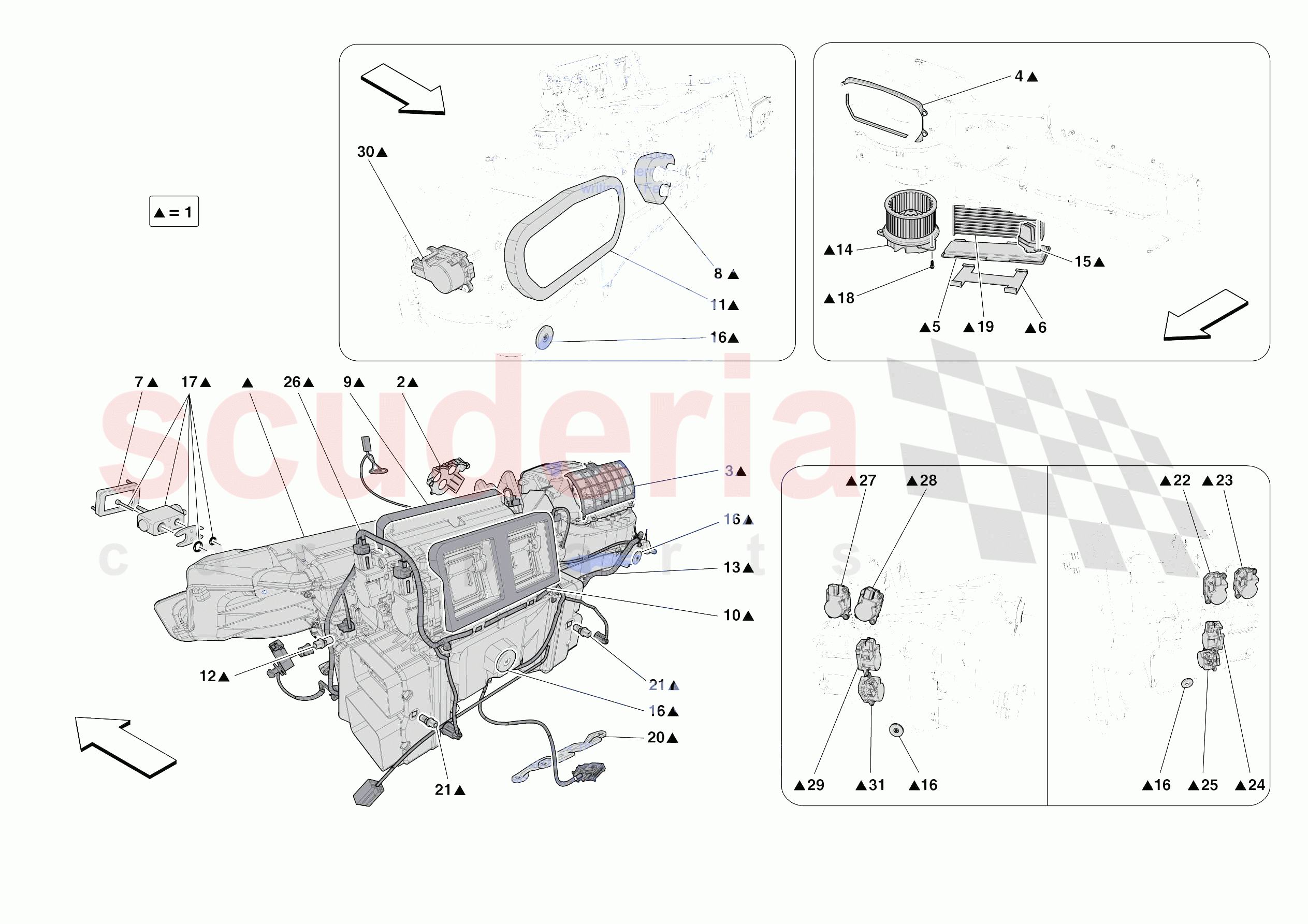

Ferrari 812 Competizione Europe RH - A/C SYSTEM - EVAPORATOR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	863440	COMPL. AC UNIT	$5,560.75	To Order
	864856	COMPL. AC UNIT	$5,644.60	To Order

Photo	Part No	Description	Price (each)	Stock
	82045500	PIPE RETAINER	$67.75	To Order

Photo	Part No	Description	Price (each)	Stock
	82045700	GRILLE	$163.61	To Order

Photo	Part No	Description	Price (each)	Stock
	82045800	BEARING MOUNTING FLANGE	$165.15	To Order

Photo	Part No	Description	Price (each)	Stock
	68390600	FILTER COVER	$127.03	To Order

Photo	Part No	Description	Price (each)	Stock
	68390700	COVER FASTENER	$115.60	To Order

Photo	Part No	Description	Price (each)	Stock
	82046200	GASKET	$203.27	To Order

Photo	Part No	Description	Price (each)	Stock
	82046400	WATER PIPE FILLER FOAM	$139.73	To Order

Photo	Part No	Description	Price (each)	Stock
	82046600	DEFROSTER DUCT FILLER FOAM	$190.55	To Order

Photo	Part No	Description	Price (each)	Stock
	82046800	FRONT FILLER FOAM	$203.25	To Order

Photo	Part No	Description	Price (each)	Stock
	82046900	INLET FILLER FOAM	$203.25	To Order

Photo	Part No	Description	Price (each)	Stock
	83749200	EVAPORATOR SENSOR	$192.08	To Order

Photo	Part No	Description	Price (each)	Stock
	82048600	MAIN WIRING HARNESS	$495.45	To Order

Photo	Part No	Description	Price (each)	Stock
	82048800	FAN	$896.41	To Order

Photo	Part No	Description	Price (each)	Stock
	82049000	LPM2	$419.23	To Order

Photo	Part No	Description	Price (each)	Stock
	68389800	RUBBER PAD	$7.72	To Order

Photo	Part No	Description	Price (each)	Stock
	87390400	TXV SERVICE KIT	$508.17	To Order

Photo	Part No	Description	Price (each)	Stock
	62771900	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82035700	POLLEN FILTER	$77.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82045600	PLUG	$139.73	To Order

Photo	Part No	Description	Price (each)	Stock
	68390100	AIR SENSOR	$14.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	966114	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966113	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966115	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966117	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	785367	WIRING HARNESS	$470.05	To Order
	785365	WIRING HARNESS	$508.17	To Order

Photo	Part No	Description	Price (each)	Stock
	966111	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966110	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966108	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	768945	Actuator	$49.78	To Order
	768946	Actuator	$49.78	To Order

Photo	Part No	Description	Price (each)	Stock
	966107	Actuator	$49.78	To Order
	82047300	Actuator	$162.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	863440	COMPL. AC UNIT	863440 COMPL. AC UNIT	$5,560.75	1
0001	864856	COMPL. AC UNIT	864856 COMPL. AC UNIT	$5,644.60	1
0002	82045500	PIPE RETAINER	82045500 PIPE RETAINER	$67.75	1
0003	82045700	GRILLE	82045700 GRILLE	$163.61	1
0004	82045800	BEARING MOUNTING FLANGE	82045800 BEARING MOUNTING FLANGE	$165.15	1
0005	68390600	FILTER COVER	68390600 FILTER COVER	$127.03	1
0006	68390700	COVER FASTENER	68390700 COVER FASTENER	$115.60	1
0007	82046200	GASKET	82046200 GASKET	$203.27	1
0008	82046400	WATER PIPE FILLER FOAM	82046400 WATER PIPE FILLER FOAM	$139.73	1
0009	82046600	DEFROSTER DUCT FILLER FOAM	82046600 DEFROSTER DUCT FILLER FOAM	$190.55	1
0010	82046800	FRONT FILLER FOAM	82046800 FRONT FILLER FOAM	$203.25	1
0011	82046900	INLET FILLER FOAM	82046900 INLET FILLER FOAM	$203.25	1
0012	83749200	EVAPORATOR SENSOR	83749200 EVAPORATOR SENSOR	$192.08	1
0013	82048600	MAIN WIRING HARNESS	82048600 MAIN WIRING HARNESS	$495.45	1
0014	82048800	FAN	82048800 FAN	$896.41	1
0015	82049000	LPM2	82049000 LPM2	$419.23	1
0016	68389800	RUBBER PAD	68389800 RUBBER PAD	$7.72	5
0017	87390400	TXV SERVICE KIT	87390400 TXV SERVICE KIT	$508.17	1
0018	62771900	SCREW IN STOCK	62771900 SCREW IN STOCK	$0.23	-
0019	82035700	POLLEN FILTER IN STOCK	82035700 POLLEN FILTER IN STOCK	$77.49 MSRP: ~~85.00~~ (8.8% off)	1
0020	82045600	PLUG	82045600 PLUG	$139.73	1
0021	68390100	AIR SENSOR IN STOCK	68390100 AIR SENSOR IN STOCK	$14.14 MSRP: ~~15.00~~ (5.7% off)	2
0022	966114	Actuator	966114 Actuator	$49.78	1
0023	966113	Actuator	966113 Actuator	$49.78	1
0024	966115	Actuator	966115 Actuator	$49.78	1
0025	966117	Actuator	966117 Actuator	$49.78	1
0026	785367	WIRING HARNESS	785367 WIRING HARNESS	$470.05	1
0026	785365	WIRING HARNESS	785365 WIRING HARNESS	$508.17	1
0027	966111	Actuator	966111 Actuator	$49.78	1
0028	966110	Actuator	966110 Actuator	$49.78	1
0029	966108	Actuator	966108 Actuator	$49.78	1
0030	768945	Actuator	768945 Actuator	$49.78	1
0030	768946	Actuator	768946 Actuator	$49.78	1
0031	966107	Actuator	966107 Actuator	$49.78	1
0031	82047300	Actuator	82047300 Actuator	$162.60	1

A/c System - Evaporator

Ferrari 812 Competizione Europe RH

Ferrari 812 Competizione Europe RH - A/C SYSTEM - EVAPORATOR
