Servo Brake Pipes

Ferrari 812 Competizione Europe RH

Find Your Part

Ferrari 812 Competizione Europe RH - SERVO BRAKE PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
800223 COMPL. KAISER PIPE $479.21 To Order
991205 COMPL. KAISER PIPE $479.21 To Order
965791 COMPL. KAISER PIPE $441.37 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
339549 PIPE FROM DISCONNECTER UNION TO BRAKE SERVO $277.44 To Order
993910 PIPE FROM DISCONNECTER UNION TO BRAKE SERVO $286.06 To Order
340024 PIPE FROM DISCONNECTER UNION TO BRAKE SERVO $264.81 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
334923 HEAT SHIELD FOR KAISER PIPE TO BRAKE SERVO $264.81 To Order
813187 HEAT SHIELD FOR KAISER PIPE TO BRAKE SERVO $286.06 To Order
Photo Part No Description Price (each) Stock
325139 VACUUM PIPE MOUNTING BRACKET $14.59 To Order
Photo Part No Description Price (each) Stock
315352 CLIP $1.10 IN STOCK
Photo Part No Description Price (each) Stock
11625621 SCREW $0.50 To Order
Photo Part No Description Price (each) Stock
939183 COMPL. KAISER PIPE BRACKET $26.46 To Order
Photo Part No Description Price (each) Stock
259508 CLIP $0.53 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
903934 KAISER PIPE BRACKET ON OIL RETURN LINE $31.51 To Order
Photo Part No Description Price (each) Stock
338263 CLIP $2.11 To Order
Photo Part No Description Price (each) Stock
895545 KAISER PIPE BRACKET ON STUD $16.38 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
792292 BRAKE SERVO BRACKET $40.33 To Order
Photo Part No Description Price (each) Stock
80874100 SCREW $1.03 IN STOCK
Photo Part No Description Price (each) Stock
239094 CLIP $1.17 To Order
View All

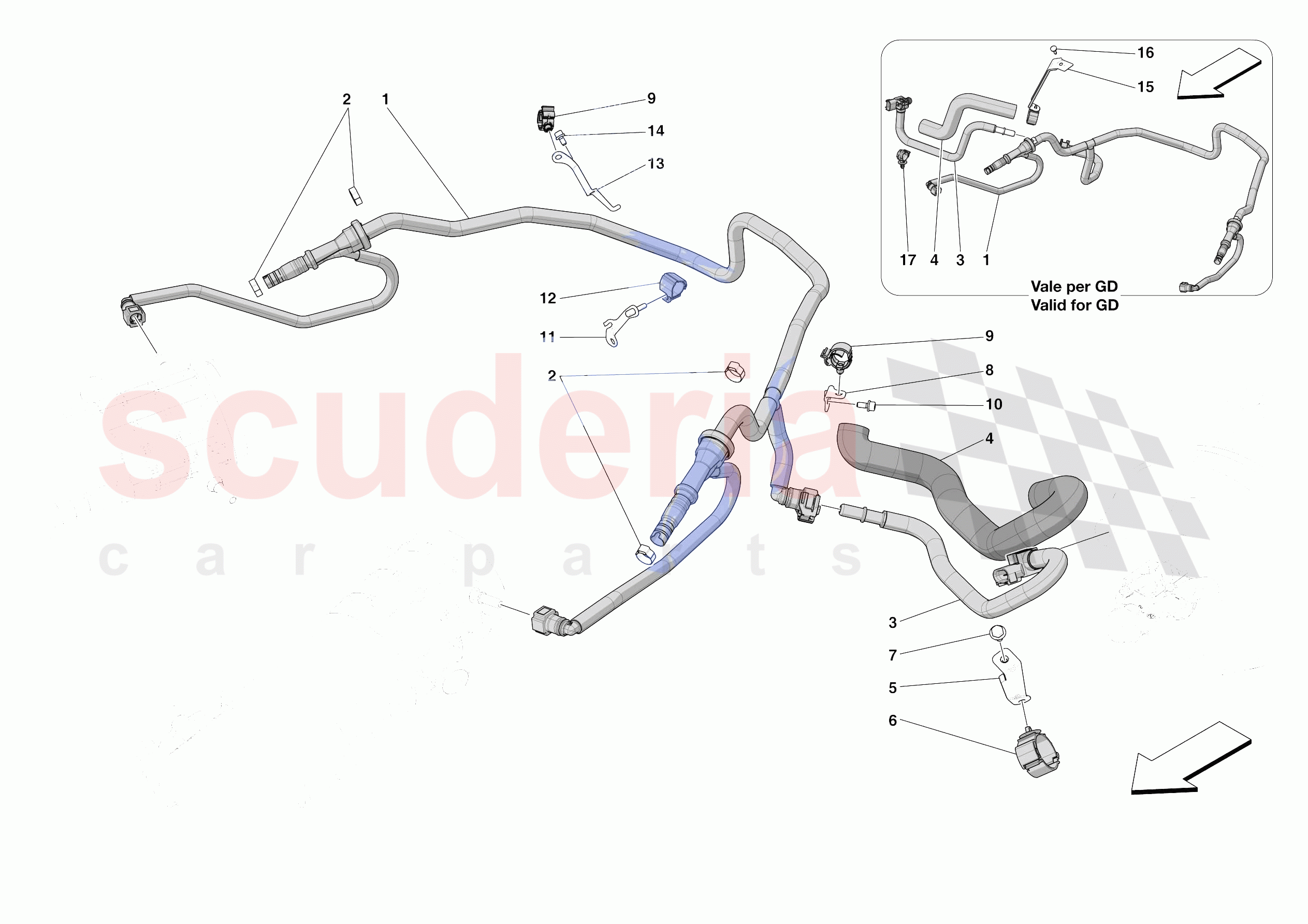

SERVO BRAKE PIPES of Ferrari Ferrari 812 Competizione Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 800223
COMPL. KAISER PIPE
Applies until depletion 		$479.21 1
0001 991205
COMPL. KAISER PIPE 		$479.21 1
0001 965791
COMPL. KAISER PIPE 		$441.37 1
0001 991205
COMPL. KAISER PIPE 		$479.21 1
0002 13432070
HOSE COLLAR
16.2 mm
ARRIVING SOON 		$0.49 (54.2% off) 4
0003 339549
PIPE FROM DISCONNECTER UNION TO BRAKE SERVO
Applies until depletion 		$277.44 1
0003 993910
PIPE FROM DISCONNECTER UNION TO BRAKE SERVO 		$286.06 1
0003 340024
PIPE FROM DISCONNECTER UNION TO BRAKE SERVO 		$264.81 1
0003 993910
PIPE FROM DISCONNECTER UNION TO BRAKE SERVO 		$286.06 1
0004 334923
HEAT SHIELD FOR KAISER PIPE TO BRAKE SERVO 		$264.81 1
0004 813187
HEAT SHIELD FOR KAISER PIPE TO BRAKE SERVO 		$286.06 1
0005 325139
VACUUM PIPE MOUNTING BRACKET 		$14.59 1
0006 315352
CLIP
IN STOCK 		$1.10 1
0007 11625621
SCREW
M6 X 14 		$0.50 1
0008 939183
COMPL. KAISER PIPE BRACKET 		$26.46 1
0009 259508
CLIP
1 compartment-
IN STOCK 		$0.53 2
0010 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
0011 903934
KAISER PIPE BRACKET ON OIL RETURN LINE 		$31.51 1
0012 338263
CLIP 		$2.11 1
0013 895545
KAISER PIPE BRACKET ON STUD 		$16.38 1
0014 248334
SCREW
M6 X 12
IN STOCK 		$0.58 1
0015 792292
BRAKE SERVO BRACKET 		$40.33 1
0016 80874100
SCREW
M6 X 18
IN STOCK 		$1.03 (17.6% off) 1
0017 239094
CLIP 		$1.17 1
