Injector Pipes

Ferrari 812 Competizione A USA

Find Your Part

Ferrari 812 Competizione A USA - INJECTOR PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
330107 COMPL. FRONT RH FUEL PIPE Enquire To Order
794982 COMPL. FRONT RH FUEL PIPE $1,830.50 To Order
Photo Part No Description Price (each) Stock
321300 COMPL. FRONT LH FUEL PIPE Enquire To Order
794980 COMPL. FRONT LH FUEL PIPE $1,830.50 To Order
Photo Part No Description Price (each) Stock
329777 COMPL. REAR FUEL PIPE Enquire To Order
794983 COMPL. REAR FUEL PIPE $1,530.67 To Order
Photo Part No Description Price (each) Stock
14306034 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
334268 SPACER $5.71 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.30 IN STOCK
Photo Part No Description Price (each) Stock
919365 COMPL. BRACKET $104.54 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
324524 STUD BOLT $8.93 To Order
Photo Part No Description Price (each) Stock
334140 FUEL PIPE CONNECTING FRONT AND REAR RAILS $123.44 To Order
Photo Part No Description Price (each) Stock
885857 INJECTOR WIRING HARNESS $133.85 To Order
Photo Part No Description Price (each) Stock
885858 INJECTOR WIRING HARNESS $120.92 To Order
Photo Part No Description Price (each) Stock
885859 INJECTOR WIRING HARNESS $114.63 To Order
Photo Part No Description Price (each) Stock
885860 INJECTOR WIRING HARNESS $119.66 To Order
Photo Part No Description Price (each) Stock
339179 ELECTRO-INJECTOR $214.16 To Order
Photo Part No Description Price (each) Stock
70004990 SEAL KIT $75.57 To Order
70007598 SEAL KIT $83.14 To Order
View All

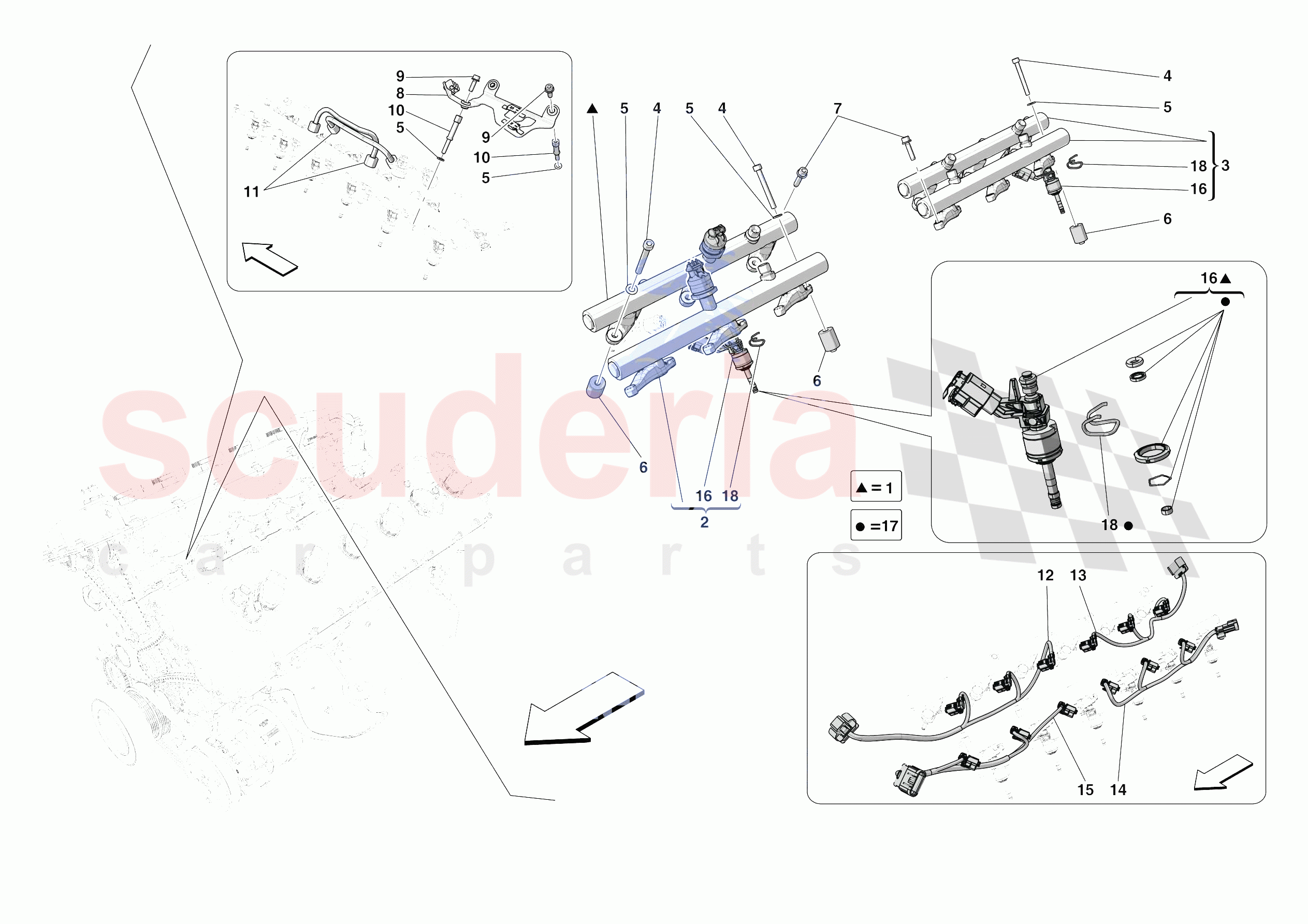

INJECTOR PIPES of Ferrari Ferrari 812 Competizione A USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 330107
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 11; No longer supplied - Replaced by 794982 		- 1 Enquire
0001 794982
COMPL. FRONT RH FUEL PIPE
Also order pipe ref. 11 		$1,830.50 1
0002 321300
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 11; No longer supplied - Replaced by 794980 		- 1 Enquire
0002 794980
COMPL. FRONT LH FUEL PIPE
Also order pipe ref. 11 		$1,830.50 1
0003 329777
COMPL. REAR FUEL PIPE
Also order pipe ref. 11; No longer supplied - Replaced by 794983 		- 2 Enquire
0003 794983
COMPL. REAR FUEL PIPE
Also order pipe ref. 11 		$1,530.67 2
0004 14306034
SCREW
M6 X 50 		$0.47 (77.6% off) 12
0005 11197774
WASHER
IN STOCK 		$0.06 (80% off) 15
0006 334268
SPACER 		$5.71 12
0007 231620
SCREW
M6 X 25
IN STOCK 		$0.30 (14.3% off) 9
0008 919365
COMPL. BRACKET 		$104.54 1
0009 231619
SCREW
M6 X 20
IN STOCK 		$0.29 3
0010 324524
STUD BOLT
M6 X 23 		$8.93 3
0011 334140
FUEL PIPE CONNECTING FRONT AND REAR RAILS 		$123.44 2
0012 885857
INJECTOR WIRING HARNESS
Applicable for 1, 2, 3 injectors 		$133.85 1
0013 885858
INJECTOR WIRING HARNESS
Applicable for 4, 5, 6 injectors 		$120.92 1
0014 885859
INJECTOR WIRING HARNESS
Applicable for 7, 8, 9 injectors 		$114.63 1
0015 885860
INJECTOR WIRING HARNESS
Applicable for 10, 11, 12 injectors 		$119.66 1
0016 339179
ELECTRO-INJECTOR 		$214.16 12
0017 70004990
SEAL KIT
Applicable for 3 injectors; Applies until depletion 		$75.57 4
0017 70007598
SEAL KIT
Applicable for 3 injectors; Applicable after depletion of 70004990 		$83.14 4
