Engine Compartment Insulation

Ferrari 812 Competizione A Europe RH

Find Your Part

Ferrari 812 Competizione A Europe RH - ENGINE COMPARTMENT INSULATION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
978021 UPPER FIREWALL INSULATION $117.31 To Order
87812200 UPPER FIREWALL INSULATION $567.23 To Order
Photo Part No Description Price (each) Stock
67315400 WASHER $0.40 IN STOCK
Photo Part No Description Price (each) Stock
88703400 UPPER RH MANIFOLD HEAT SHIELD $126.33 To Order
785495 UPPER RH MANIFOLD HEAT SHIELD $206.26 To Order
Photo Part No Description Price (each) Stock
88703300 LH MANIFOLD UPPER HEAT SHIELD $167.58 To Order
88067900 LH MANIFOLD UPPER HEAT SHIELD $193.36 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.25 IN STOCK
Photo Part No Description Price (each) Stock
88703600 LH BODYWORK REAR HEAT SHIELD $52.84 To Order
88703700 RH BODYWORK REAR HEAT SHIELD $52.84 To Order
Photo Part No Description Price (each) Stock
81911600 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
88495100 CENTRAL FASTENER BRACKET FOR LH HEAT SHIELD $19.31 To Order
88495000 CENTRAL FASTENER BRACKET FOR RH HEAT SHIELD $19.31 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
938485 TUNNEL HEAT SHIELD $644.58 To Order
Photo Part No Description Price (each) Stock
85629300 SCREW M6 X 20 $0.56 IN STOCK
85629300 SCREW M6 X 20 $0.56 IN STOCK
Photo Part No Description Price (each) Stock
12640624 WASHER 6MM $0.14 IN STOCK
Photo Part No Description Price (each) Stock
299593 TRANSMISSION SHAFT HEAT SHIELD $193.36 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 ARRIVING SOON
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $5.41 IN STOCK
Photo Part No Description Price (each) Stock
12642078 WASHER $0.86 To Order
Photo Part No Description Price (each) Stock
919883 FRONT ENGINE COMPARTMENT COVER $167.58 To Order
907988 FRONT ENGINE COMPARTMENT COVER $167.58 To Order
907988 FRONT ENGINE COMPARTMENT COVER $167.58 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
919915 COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER $322.87 To Order
909056 COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER $399.63 To Order
969027 COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER $515.66 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
919934 COMPL. LH LATERAL ENGINE COMPARTMENT COVER $476.98 To Order
909059 COMPL. LH LATERAL ENGINE COMPARTMENT COVER $489.88 To Order
969025 COMPL. LH LATERAL ENGINE COMPARTMENT COVER $359.05 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85824800 SCREW M5 X 16 $34.62 IN STOCK
Photo Part No Description Price (each) Stock
10558828 SCREW $0.74 IN STOCK
Photo Part No Description Price (each) Stock
88703100 LH CATALYTIC CONVERTER HEAT SHIELD $206.26 To Order
88703200 RH CATALYTIC CONVERTER HEAT SHIELD $206.26 To Order
Photo Part No Description Price (each) Stock
295058 ANGULAR SHIELD $23.19 To Order
Photo Part No Description Price (each) Stock
296823 BUTTON $0.12 To Order
296823 BUTTON $0.12 To Order
Photo Part No Description Price (each) Stock
980195 RH SILENCER HEAT SHIELD $135.91 To Order
Photo Part No Description Price (each) Stock
980196 LH SILENCER HEAT SHIELD $135.91 To Order
Photo Part No Description Price (each) Stock
88463500 SERVICES TUB HEAT SHIELD $257.81 To Order
View All

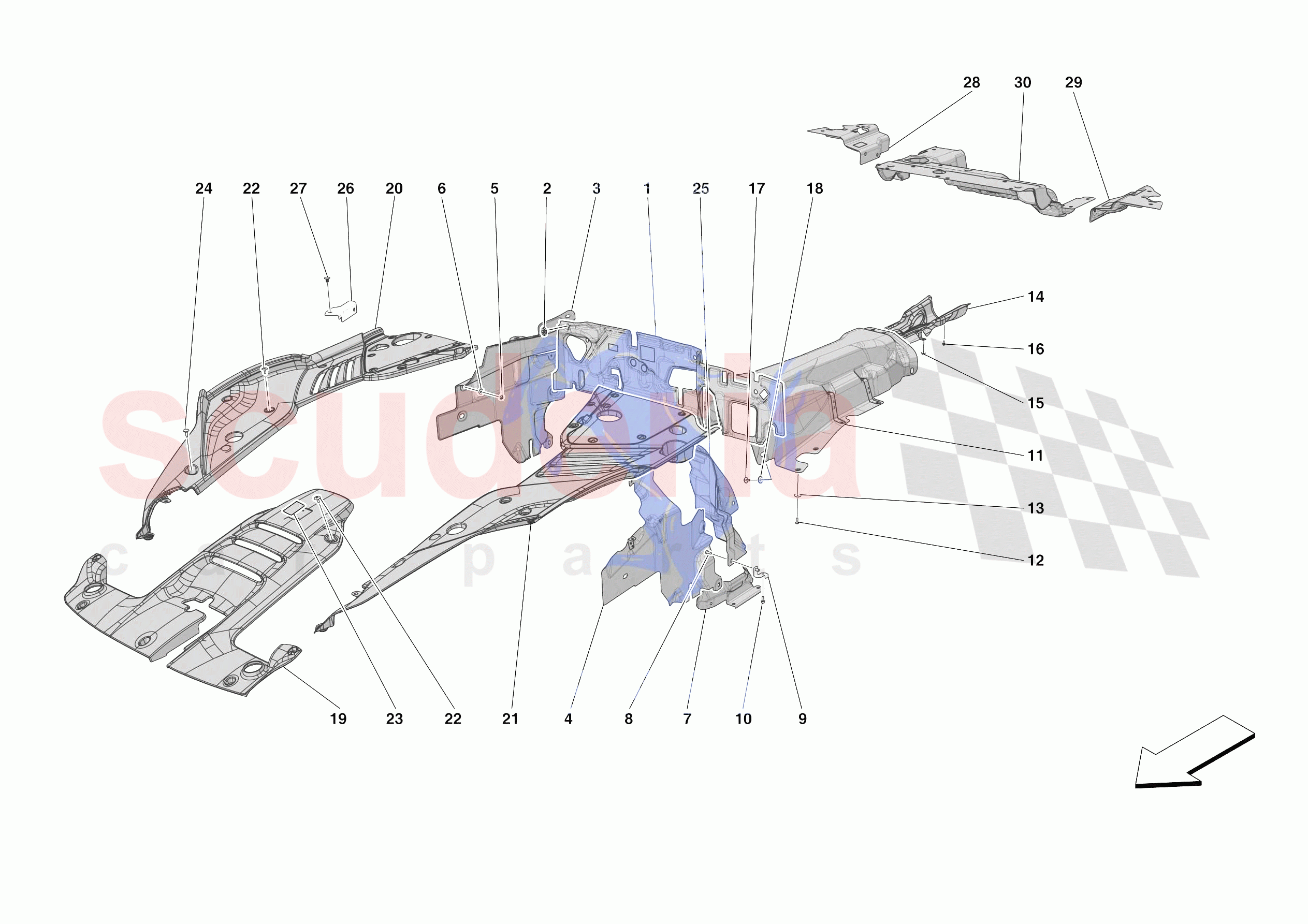

ENGINE COMPARTMENT INSULATION of Ferrari Ferrari 812 Competizione A Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 978021
UPPER FIREWALL INSULATION 		$117.31 1
0001 87812200
UPPER FIREWALL INSULATION 		$567.23 1
0002 67315400
WASHER
IN STOCK 		$0.40 28
0003 88703400
UPPER RH MANIFOLD HEAT SHIELD 		$126.33 1
0003 785495
UPPER RH MANIFOLD HEAT SHIELD 		$206.26 1
0004 88703300
LH MANIFOLD UPPER HEAT SHIELD 		$167.58 1
0004 88067900
LH MANIFOLD UPPER HEAT SHIELD 		$193.36 1
0005 14059290
FLANGED NUT M6
M 5 X 5
ARRIVING SOON 		$1.33 2
0006 12643778
BLACK WASHER D.6.45-18X1.5
18 X 1.5
IN STOCK 		$0.25 (50% off) 8
0007 88703600
LH BODYWORK REAR HEAT SHIELD 		$52.84 1
0007 88703700
RH BODYWORK REAR HEAT SHIELD 		$52.84 1
0008 81911600
SCREW
M6 X 1 X 18 		$0.45 6
0009 88495100
CENTRAL FASTENER BRACKET FOR LH HEAT SHIELD 		$19.31 1
0009 88495000
CENTRAL FASTENER BRACKET FOR RH HEAT SHIELD 		$19.31 1
0010 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
0011 938485
TUNNEL HEAT SHIELD 		$644.58 1
0012 85629300
SCREW M6 X 20
M6 X 20
IN STOCK 		$0.56 8
0012 85629300
SCREW M6 X 20
M6 X 25
IN STOCK 		$0.56 8
0013 12640624
WASHER 6MM
IN STOCK 		$0.14 (51.7% off) 8
0014 299593
TRANSMISSION SHAFT HEAT SHIELD 		$193.36 1
0015 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 4
0016 11566224
SCREW
M5 X 16
ARRIVING SOON 		$0.34 1
0017 880041
Allen Head Bolt M6 X 26
M6 X 20
IN STOCK 		$5.41 14
0018 12642078
WASHER 		$0.86 2
0019 919883
FRONT ENGINE COMPARTMENT COVER
Applies until depletion 		$167.58 1
0019 907988
FRONT ENGINE COMPARTMENT COVER
For vehicles up to Ass.ly No. 219638, also order RH lateral cover 909061 ref. 20 and LH lateral cover 909063 ref. 21 		$167.58 1
0019 907988
FRONT ENGINE COMPARTMENT COVER 		$167.58 1
0019 907988
FRONT ENGINE COMPARTMENT COVER 		$167.58 1
0019 801733
FRONT ENGINE COMPARTMENT COVER
Carbon version 		$4,327.80 1
0019 70007454
FRONT ENGINE COMPARTMENT COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		$19,123.85 1
0020 919915
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Applies until depletion 		$322.87 1
0020 909056
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
For vehicles up to Ass.ly No. 219638, also order front cover 907988 ref. 19 and LH lateral cover 909059 ref. 21; Applicable after depletion of 919915 		$399.63 1
0020 969027
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Applies until depletion 		$515.66 1
0020 909061
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
For vehicles up to Ass.ly No. 219638, also order front cover 907988 ref. 19 and LH lateral cover 909063 ref. 21; Applicable after depletion of 969027 		$515.66 1
0020 905777
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Carbon version 		$5,945.73 1
0020 905787
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Carbon version 		$5,087.13 1
0020 70007455
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		$19,123.85 1
0020 70007456
COMPL. RH LATERAL RH ENGINE COMPARTMENT COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0021 919934
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
Applies until depletion 		$476.98 1
0021 909059
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
For vehicles up to Ass.ly No. 219638, also order front cover 907988 ref. 19 and RH lateral cover 909056 ref. 20; Applicable after depletion of 919934 		$489.88 1
0021 969025
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
No longer supplied - Replaced by 909063 		$359.05 1
0021 909063
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
For vehicles up to Ass.ly No. 219638, also order front cover 907988 ref. 19 and RH lateral cover 909061 ref. 20 		- 1 Enquire
0021 905783
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
Carbon version 		$5,996.01 1
0021 905797
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
Carbon version 		$5,087.13 1
0021 70007457
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		$19,123.85 1
0021 70007458
COMPL. LH LATERAL ENGINE COMPARTMENT COVER
Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version 		- 1 Enquire
0022 85824800
SCREW M5 X 16
M5 X 16
IN STOCK 		$34.62 18
0024 10558828
SCREW
M6 X 22
IN STOCK 		$0.74 6
0025 88703100
LH CATALYTIC CONVERTER HEAT SHIELD 		$206.26 1
0025 88703200
RH CATALYTIC CONVERTER HEAT SHIELD 		$206.26 1
0026 295058
ANGULAR SHIELD 		$23.19 1
0027 296823
BUTTON 		$0.12 1
0027 296823
BUTTON 		$0.12 1
0028 980195
RH SILENCER HEAT SHIELD 		$135.91 1
0029 980196
LH SILENCER HEAT SHIELD 		$135.91 1
0030 88463500
SERVICES TUB HEAT SHIELD 		$257.81 1
