Name: CRANKCASE
Rating: 4.3 (1 reviews)

CRANKCASE of Ferrari Ferrari 812 Competizione A Europe RH

View All

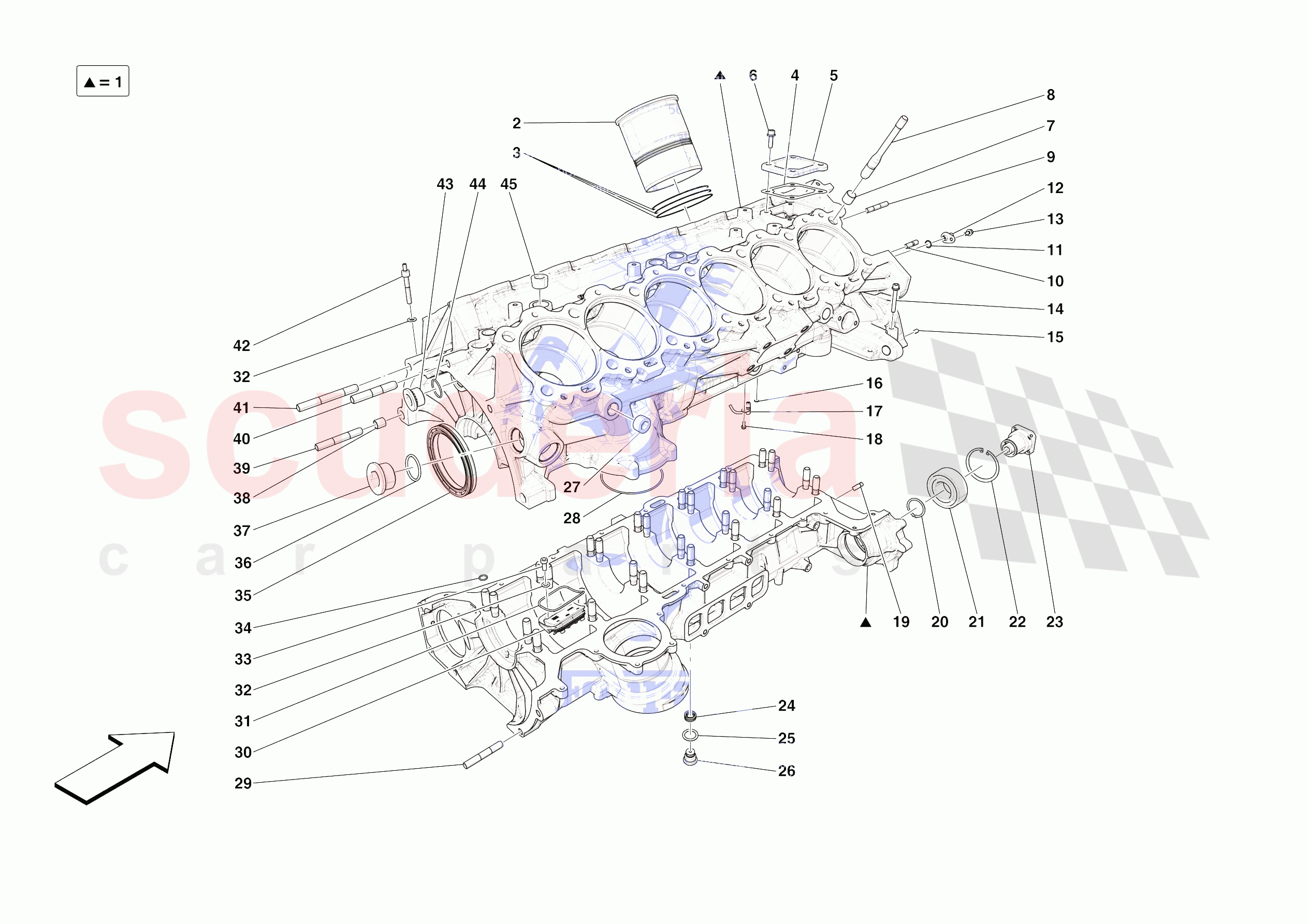

Ferrari 812 Competizione A Europe RH - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$8,187.82	To Order
	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$8,187.82	To Order

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE	$271.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	$3.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$32.87	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.07	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$5.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	$92.31	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.68	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.27	To Order

Photo	Part No	Description	Price (each)	Stock
	319988	COMPL. PISTON COOLING JET	$25.28	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	$1.01	To Order

Photo	Part No	Description	Price (each)	Stock
	766469	PIN	$5.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	SEEGER RING	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	$91.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	$392.09	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	$2.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	300580	COMPL. VALVE HOLDER	$265.59	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	242269	REAR MAIN OIL SEAL	$46.37	To Order

Photo	Part No	Description	Price (each)	Stock
	952890	O-RING	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	915186	PLUG	$34.72	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13547234	STUD BOLT	$13.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$16.43	To Order

Photo	Part No	Description	Price (each)	Stock
	915159	PLUG	$25.28	To Order

Photo	Part No	Description	Price (each)	Stock
	952889	O-RING	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.74	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	55002685 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$8,187.82	1
0001	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	55002685 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$8,187.82	1
0002	266366	CYLINDER SLEEVE IN STOCK	266366 CYLINDER SLEEVE D. 94 IN STOCK	$271.80 MSRP: ~~466.10~~ (41.7% off)	12
0003	186251	O-RING IN STOCK	186251 O-RING Also included in engine gasket set IN STOCK	$2.43 MSRP: ~~3.20~~ (24.1% off)	36
0004	317312	GASKET IN STOCK	317312 GASKET Also included in engine gasket set IN STOCK	$3.26	1
0005	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$32.87	1
0006	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	4
0007	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.79	4
0008	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.07	28
0009	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT M8 X 16 IN STOCK	$3.25	1
0010	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT M8 X 16 IN STOCK	$5.98	1
0011	137192	O-RING IN STOCK	137192 O-RING IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	1
0012	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	$92.31	1
0013	282393	SCREW	282393 SCREW M6 X 16	$0.67	1
0014	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.41	1
0015	175611	CENTERING DOWEL	175611 CENTERING DOWEL	$1.68	2
0016	164877	O-RING	164877 O-RING Also included in engine gasket set	$0.27	12
0017	319988	COMPL. PISTON COOLING JET	319988 COMPL. PISTON COOLING JET	$25.28	12
0018	315493	SCREW	315493 SCREW M4 X 10	$1.01	12
0019	766469	PIN	766469 PIN	$5.74	1
0020	11068376	SEEGER RING IN STOCK	11068376 SEEGER RING IN STOCK	$0.41 MSRP: ~~0.66~~ (37.9% off)	1
0021	128799	BEARING	128799 BEARING	$91.05	1
0022	11061576	SEEGER RING	11061576 SEEGER RING	$1.53	1
0023	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	$392.09	1
0024	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$5.14	1
0025	10261860	GASKET IN STOCK	10261860 GASKET Also included in engine gasket set IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
0026	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$5.40 MSRP: ~~6.90~~ (21.7% off)	1
0027	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.87 MSRP: ~~4.17~~ (31.2% off)	5
0028	176388	O-RING IN STOCK	176388 O-RING IN STOCK	$2.20 MSRP: ~~3.95~~ (44.3% off)	1
0029	13546834	STUD BOLT	13546834 STUD BOLT Shank length 45 mm	$1.43	3
0030	300580	COMPL. VALVE HOLDER	300580 COMPL. VALVE HOLDER	$265.59	6
0031	154691	GASKET IN STOCK	154691 GASKET Also included in engine gasket set IN STOCK	$1.53 MSRP: ~~2.40~~ (36.3% off)	6
0032	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	13
0033	13026924	SCREW	13026924 SCREW M6 X 14	$0.29	12
0034	134704	O-RING IN STOCK	134704 O-RING Also included in engine gasket set IN STOCK	$0.14 MSRP: ~~1.00~~ (86% off)	28
0035	242269	REAR MAIN OIL SEAL	242269 REAR MAIN OIL SEAL Also included in engine gasket set	$46.37	1
0036	952890	O-RING	952890 O-RING	$0.70	2
0037	915186	PLUG	915186 PLUG	$34.72	2
0038	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.23	2
0039	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT Shank length 50 mm IN STOCK	$1.68	2
0040	13546834	STUD BOLT	13546834 STUD BOLT Shank length 40 mm	$1.43	1
0041	13547234	STUD BOLT IN STOCK	13547234 STUD BOLT M10 X 1.25 X 20 IN STOCK	$13.48	1
0042	219283	STUD BOLT	219283 STUD BOLT	$16.43	1
0043	915159	PLUG	915159 PLUG	$25.28	1
0044	952889	O-RING	952889 O-RING	$0.78	1
0045	282753	THREADED PLUG	282753 THREADED PLUG	$5.74	5

Crankcase

Ferrari 812 Competizione A Europe RH

Ferrari 812 Competizione A Europe RH - CRANKCASE
