Vehicle Lift System

Ferrari 812 Superfast/GTS

Find Your Part

Ferrari 812 Superfast/GTS - VEHICLE LIFT SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
335415 ELECTRIC PUMP $2,647.12 To Order
Photo Part No Description Price (each) Stock
272640 COMPL. LIFT SYSTEM INSPECTION COVER $42.95 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
285289 PUMP MOUNTING BRACKET $104.87 To Order
Photo Part No Description Price (each) Stock
264740 BUSH $0.87 To Order
Photo Part No Description Price (each) Stock
285319 INSULATION $143.32 To Order
Photo Part No Description Price (each) Stock
304224 SCREW $12.63 To Order
Photo Part No Description Price (each) Stock
255047 CABLE GROMMET $3.29 To Order
Photo Part No Description Price (each) Stock
210246 SCREW $1.43 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
13578305 WASHER $0.09 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
335382 PIPE FROM PUMP $70.76 To Order
Photo Part No Description Price (each) Stock
256962 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
285314 BRACKET $22.72 To Order
Photo Part No Description Price (each) Stock
319661 SCREW $2.19 To Order
Photo Part No Description Price (each) Stock
319349 LIFT SYSTEM DISTRIBUTOR BLOCK $70.76 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
319660 LIFT SYSTEM PIPE, REAR SECTION $151.62 To Order
Photo Part No Description Price (each) Stock
289483 UNDERBODY LIFT SYSTEM PIPE $101.09 To Order
Photo Part No Description Price (each) Stock
318609 PIPE FROM FRONT SECTION TO BLOCK $102.35 To Order
324559 PIPE FROM FRONT SECTION TO BLOCK $117.51 To Order
Photo Part No Description Price (each) Stock
324561 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION $189.54 To Order
318611 PIPE FROM BLOCK TO RH FRONT WHEEL SECTION $134.26 To Order
Photo Part No Description Price (each) Stock
335934 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION $114.98 To Order
336533 PIPE FROM BLOCK TO LH FRONT WHEEL SECTION $202.17 To Order
Photo Part No Description Price (each) Stock
334006 PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE $79.60 To Order
Photo Part No Description Price (each) Stock
292748 HEAT SHIELD $252.72 To Order
Photo Part No Description Price (each) Stock
85824800 SCREW M5 X 16 $33.94 IN STOCK
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $11.11 IN STOCK
Photo Part No Description Price (each) Stock
234284 CLIP $0.55 IN STOCK
Photo Part No Description Price (each) Stock
116374 CLIP $2.18 IN STOCK
Photo Part No Description Price (each) Stock
333060 RH FRONT BRACKET $64.43 To Order
Photo Part No Description Price (each) Stock
333059 LH FRONT BRACKET $58.11 To Order
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
255048 GROMMET SHIM $2.44 IN STOCK
Photo Part No Description Price (each) Stock
234285 CLIP $0.61 IN STOCK
Photo Part No Description Price (each) Stock
291408 CLIP $0.15 To Order
Photo Part No Description Price (each) Stock
294205 CLIP $4.89 To Order
Photo Part No Description Price (each) Stock
294206 CLIP $4.89 To Order
View All

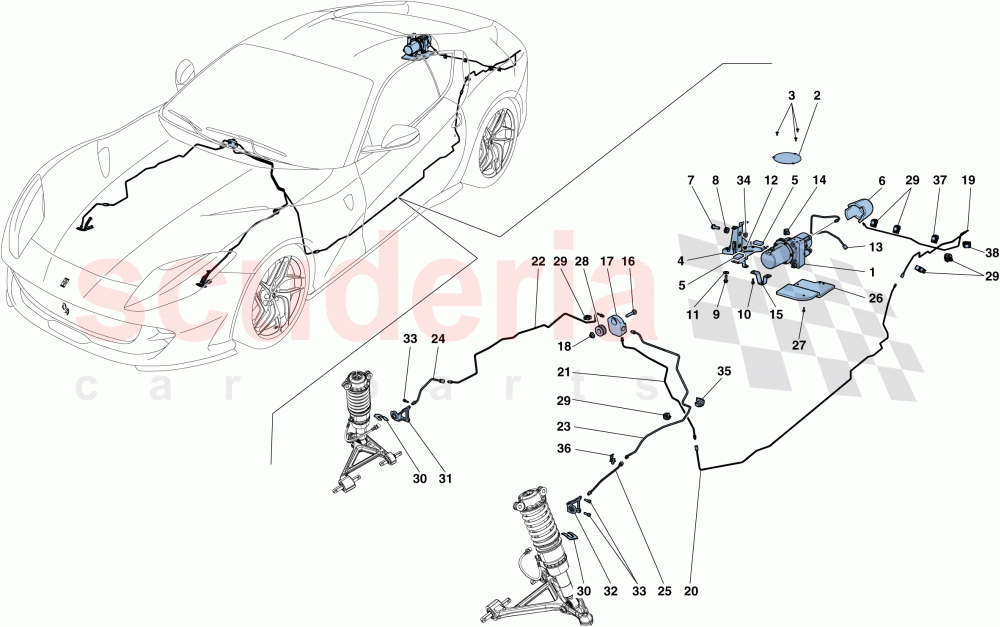

VEHICLE LIFT SYSTEM of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 335415
ELECTRIC PUMP 		$2,647.12 1
2 272640
COMPL. LIFT SYSTEM INSPECTION COVER 		$42.95 1
3 11566224
SCREW
M5 X 12
IN STOCK 		$0.34 3
4 285289
PUMP MOUNTING BRACKET 		$104.87 1
5 264740
BUSH
40 x 24 mm 		$0.87 2
6 285319
INSULATION 		$143.32 1
7 304224
SCREW 		$12.63 2
8 255047
CABLE GROMMET 		$3.29 2
9 210246
SCREW
M8 X 25
IN STOCK 		$1.43 2
10 231619
SCREW
M6 X 18
IN STOCK 		$0.29 2
11 13578305
WASHER 		$0.09 2
12 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
13 335382
PIPE FROM PUMP 		$70.76 1
14 256962
CLIP
D. 4.7 X 1 		$0.59 1
15 285314
BRACKET 		$22.72 1
16 319661
SCREW
M6 X 30 		$2.19 1
17 319349
LIFT SYSTEM DISTRIBUTOR BLOCK 		$70.76 1
18 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
19 319660
LIFT SYSTEM PIPE, REAR SECTION 		$151.62 1
20 289483
UNDERBODY LIFT SYSTEM PIPE 		$101.09 1
21 318609
PIPE FROM FRONT SECTION TO BLOCK
Not for GD 		$102.35 1
21 324559
PIPE FROM FRONT SECTION TO BLOCK
Applicable for GD 		$117.51 1
22 324561
PIPE FROM BLOCK TO RH FRONT WHEEL SECTION
Applicable for GD 		$189.54 1
22 318611
PIPE FROM BLOCK TO RH FRONT WHEEL SECTION
Not for GD 		$134.26 1
23 335934
PIPE FROM BLOCK TO LH FRONT WHEEL SECTION
Not for GD 		$114.98 1
23 336533
PIPE FROM BLOCK TO LH FRONT WHEEL SECTION
Applicable for GD 		$202.17 1
24 334006
PIPE FROM RH FRONT SECTION TO FLEXIBLE HOSE 		$79.60 1
25 334003
PIPE FROM LH FRONT SECTION TO FLEXIBLE HOSE 		$75.80 1
26 292748
HEAT SHIELD 		$252.72 1
27 85824800
SCREW M5 X 16
M5 X 16
IN STOCK 		$33.94 3
28 267300
DAMPED MOUNT
IN STOCK 		$11.11 1
29 234284
CLIP
1 compartment
IN STOCK 		$0.55 6
30 116374
CLIP
IN STOCK 		$2.18 (37.7% off) 2
31 333060
RH FRONT BRACKET 		$64.43 1
32 333059
LH FRONT BRACKET 		$58.11 1
33 11566224
SCREW
M5 X 16
IN STOCK 		$0.34 4
34 255048
GROMMET SHIM
IN STOCK 		$2.44 2
35 234285
CLIP
2 compartments
IN STOCK 		$0.61 1
36 291408
CLIP 		$0.15 1
37 294205
CLIP
1 compartment 		$4.89 1
38 294206
CLIP
2 compartments 		$4.89 1
