Ferrari 812 Superfast/GTS - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
329418 COMPL. EXPANSION TANK $991.13 To Order
Photo Part No Description Price (each) Stock
329417 CAP WITH BREATHER $303.40 IN STOCK
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
288386 RUBBER PIPE $16.50 To Order
Photo Part No Description Price (each) Stock
280418 RUBBER PIPE $39.37 To Order
Photo Part No Description Price (each) Stock
324412 COMPL. BREATHER PIPING $288.23 To Order
Photo Part No Description Price (each) Stock
288387 RUBBER PIPE $45.73 To Order
Photo Part No Description Price (each) Stock
288385 RUBBER PIPE $21.59 To Order
Photo Part No Description Price (each) Stock
281899 3-WAY CONNECTOR $2.79 To Order
Photo Part No Description Price (each) Stock
340329 RUBBER PIPE $53.36 To Order
Photo Part No Description Price (each) Stock
282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION $44.46 To Order
Photo Part No Description Price (each) Stock
289021 RESERVOIR OUTLET RIGID PIPE $139.76 To Order
Photo Part No Description Price (each) Stock
289020 PIPE FROM DISCONNECTOR TO PUMP $71.15 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
333856 VAPOUR PIPE FROM HEADS $95.29 To Order
330640 VAPOUR PIPE FROM HEADS $177.88 To Order
330640 VAPOUR PIPE FROM HEADS $177.88 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
330633 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD $304.95 To Order
333857 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD $216.01 To Order
333857 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD $216.01 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
13126970 COLLAR $1.35 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
339342 CLIP $1.95 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
140728 CLIP $0.54 To Order
140728 CLIP $0.54 To Order
Photo Part No Description Price (each) Stock
145543 CLIP $0.18 IN STOCK
145543 CLIP $0.18 IN STOCK
Photo Part No Description Price (each) Stock
336898 RUBBER PIPE $76.22 To Order
336898 RUBBER PIPE $76.22 To Order
Photo Part No Description Price (each) Stock
257273 CLIP $1.10 To Order
Photo Part No Description Price (each) Stock
339343 CLIP $2.54 To Order
339343 CLIP $2.54 To Order
198253 CLIP $3.22 To Order
Photo Part No Description Price (each) Stock
764686 BRACKET $78.77 To Order
Photo Part No Description Price (each) Stock
342162 PIPE $55.89 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.84 IN STOCK
Photo Part No Description Price (each) Stock
338263 CLIP $2.13 To Order
Photo Part No Description Price (each) Stock
339842 BLOW-BY PIPE FASTENER BRACKET $30.48 To Order
Photo Part No Description Price (each) Stock
14574287 CLIP $7.28 IN STOCK
14574287 CLIP $7.28 IN STOCK
View All

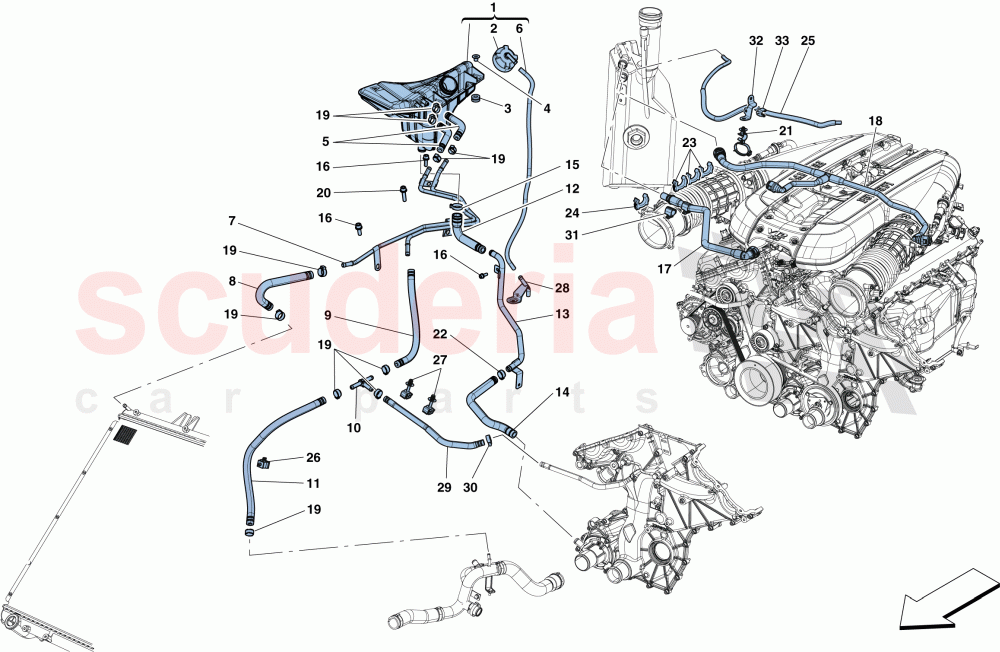

COOLING - HEADER TANK AND PIPES of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 329418
COMPL. EXPANSION TANK 		$991.13 1
2 329417
CAP WITH BREATHER
IN STOCK 		$303.40 1
3 812273
CABLE GROMMET 		$1.53 1
4 149707
SPACER 		$1.10 (37.1% off) 1
5 288386
RUBBER PIPE
D. 7-14 X 107 		$16.50 2
6 280418
RUBBER PIPE
D. 7 X 1.5 X 825 		$39.37 1
7 324412
COMPL. BREATHER PIPING 		$288.23 1
8 288387
RUBBER PIPE 		$45.73 1
9 288385
RUBBER PIPE
D. 7-14 X 235 		$21.59 1
10 281899
3-WAY CONNECTOR 		$2.79 (13.4% off) 1
11 340329
RUBBER PIPE
D. 7-14 		$53.36 1
12 282575
PIPE FROM RESERVOIR TO DISCONNECTOR UNION 		$44.46 1
13 289021
RESERVOIR OUTLET RIGID PIPE 		$139.76 1
14 289020
PIPE FROM DISCONNECTOR TO PUMP 		$71.15 1
15 262111
SCREW CLAMP 		$1.39 1
16 231619
SCREW
M6 X 18
IN STOCK 		$0.29 5
17 333856
VAPOUR PIPE FROM HEADS
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775 		$95.29 1
17 330640
VAPOUR PIPE FROM HEADS
Applicable for EU GS, AUS, UK; Applicable from Ass. No. 152776 		$177.88 1
17 330640
VAPOUR PIPE FROM HEADS
Applicable for USA, CDN, USA LIGHT 		$177.88 1
17 333856
VAPOUR PIPE FROM HEADS
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$95.29 1
18 330633
BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
Applicable for USA, CDN, USA LIGHT 		$304.95 1
18 333857
BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$216.01 1
18 333857
BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775 		$216.01 1
18 330633
BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD
Applicable for EU GS, AUS, UK; Applicable from Ass. No. 152776 		$304.95 1
19 13126970
COLLAR 		$1.35 11
20 231620
SCREW
M6 X 25
IN STOCK 		$0.31 (11.4% off) 1
21 339342
CLIP 		$1.95 1
22 262111
SCREW CLAMP 		$1.39 1
23 140728
CLIP
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$0.54 3
23 140728
CLIP
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775 		$0.54 3
24 145543
CLIP
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT
IN STOCK 		$0.18 (76% off) 1
24 145543
CLIP
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775
IN STOCK 		$0.18 (76% off) 1
25 336898
RUBBER PIPE
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775 		$76.22 1
25 336898
RUBBER PIPE
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT 		$76.22 1
26 257273
CLIP 		$1.10 1
27 339343
CLIP
Applicable from engine No. 345076 		$2.54 1
27 339343
CLIP 		$2.54 1
27 198253
CLIP
1 compartment; Applicable up to engine No. 345075 		$3.22 (16.4% off) 1
28 764686
BRACKET 		$78.77 1
29 342162
PIPE 		$55.89 1
30 13127070
COLLAR
IN STOCK 		$1.84 1
31 338263
CLIP 		$2.13 1
32 339842
BLOW-BY PIPE FASTENER BRACKET 		$30.48 1
33 14574287
CLIP
Not for EU GS, AUS, USA, CDN, UK, USA LIGHT
IN STOCK 		$7.28 (23.4% off) 1
33 14574287
CLIP
Applicable for EU GS, AUS, UK; Applicable up to Ass. No. 152775
IN STOCK 		$7.28 (23.4% off) 1
