Ferrari 812 Superfast/GTS - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
328417 PIPE FROM DISCONNECTOR TO CONDENSER $167.58 To Order
Photo Part No Description Price (each) Stock
14040614 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.82 IN STOCK
Photo Part No Description Price (each) Stock
328420 PIPE FROM CONDENSER TO DISCONNECTOR $167.58 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
331901 COMPL. IHX GAS PIPE $709.04 To Order
Photo Part No Description Price (each) Stock
14066017 NUT $2.50 To Order
Photo Part No Description Price (each) Stock
333909 GAS PIPE FROM DISCONNECTOR UNION TO IHX $438.31 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.11 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.54 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
329371 AC PIPE TO LH DIAGONAL BRACE MOUNTING BRACKET. $29.64 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.59 IN STOCK
Photo Part No Description Price (each) Stock
298580 CLIP $3.27 To Order
Photo Part No Description Price (each) Stock
336702 GAS PIPE FROM IHX TO COMPRESSOR $605.91 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.65 To Order
Photo Part No Description Price (each) Stock
16044024 SCREW $0.35 IN STOCK
Photo Part No Description Price (each) Stock
315352 CLIP $1.11 IN STOCK
Photo Part No Description Price (each) Stock
765072 AC PIPE TO COMPRESSOR MOUNTING BRACKET $14.79 To Order
Photo Part No Description Price (each) Stock
326221 IDLE SPEED PUMP MOUNTING BRACKET $30.53 To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP $3,277.99 To Order
Photo Part No Description Price (each) Stock
82268600 CLIP $1.80 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
260083 HOSE $39.94 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
337857 HOSE $41.24 To Order
Photo Part No Description Price (each) Stock
337154 RIGID PIPE FROM PUMP TO AC SYSTEM $348.06 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
329120 COMPL. PIPE FROM RECIRCULATION PUMP TO AC UNIT $148.13 To Order
Photo Part No Description Price (each) Stock
341287 TGK PIPE MOUNTING BRACKET $33.51 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
252473 CLIP $1.54 To Order
Photo Part No Description Price (each) Stock
291283 CLIP $0.51 IN STOCK
Photo Part No Description Price (each) Stock
329122 COMPL. PIPE FROM HEATER TO FRONT TGK VALVE $103.11 To Order
Photo Part No Description Price (each) Stock
329123 COMPL. PIPE FROM HEATER TO REAR TGK VALVE $104.41 To Order
Photo Part No Description Price (each) Stock
292306 TGK VALVE OUTLET UNION $37.36 To Order
Photo Part No Description Price (each) Stock
341613 RIGID TGK VALVE OUTLET PIPE $180.46 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET $2.44 To Order
Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE $213.80 IN STOCK
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE $229.07 IN STOCK
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD $1.70 To Order
Photo Part No Description Price (each) Stock
772140 COMPL. TGK VALVE BRACKET $296.49 To Order
339274 COMPL. TGK VALVE BRACKET $117.31 To Order
Photo Part No Description Price (each) Stock
204777 CLIP $0.69 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.27 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
321365 TGK VALVE OUTLET UNION $41.24 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.62 To Order
Photo Part No Description Price (each) Stock
337391 RIGID PIPE $232.04 To Order
Photo Part No Description Price (each) Stock
337858 HOSE $30.93 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
84536000 HVAC SIDE DUCT DRAIN HOSE CONNECTOR $14.16 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.42 IN STOCK
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL $9.01 To Order
Photo Part No Description Price (each) Stock
81970900 AC WATER PIPE SEAL $9.66 To Order
Photo Part No Description Price (each) Stock
11342784 GASKET $13.04 To Order
Photo Part No Description Price (each) Stock
11342584 GASKET $13.04 To Order
View All

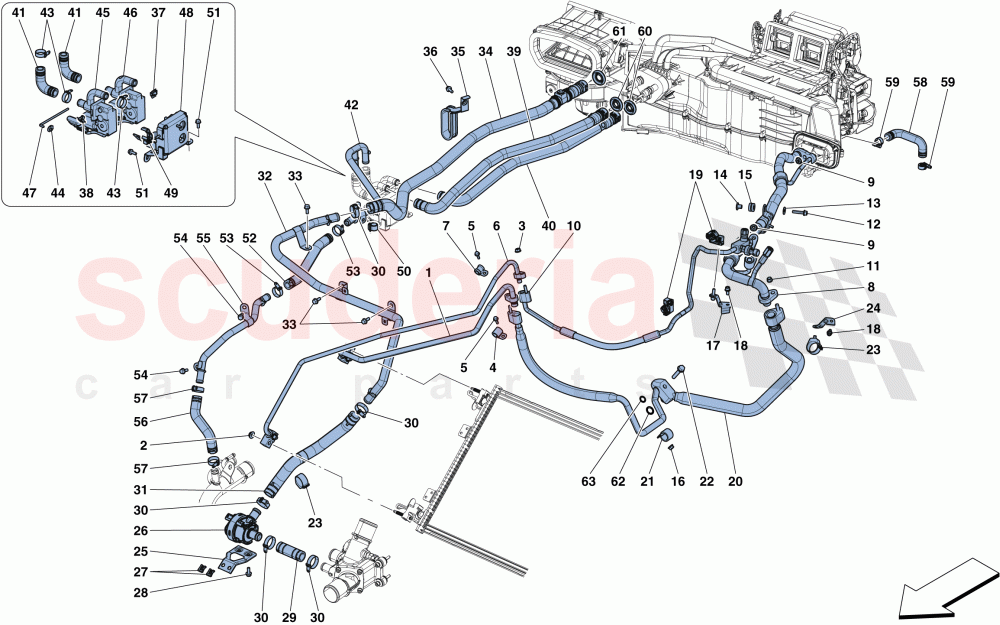

AC SYSTEM - WATER AND FREON of Ferrari Ferrari 812 Superfast/GTS Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 328417
PIPE FROM DISCONNECTOR TO CONDENSER 		$167.58 1
3 14040614
NUT
IN STOCK 		$0.14 2
4 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.54 1
5 11568124
SCREW
M5 X 16
IN STOCK 		$0.82 2
6 328420
PIPE FROM CONDENSER TO DISCONNECTOR 		$167.58 1
7 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 1
8 331901
COMPL. IHX GAS PIPE 		$709.04 1
9 14066017
NUT 		$2.50 2
10 333909
GAS PIPE FROM DISCONNECTOR UNION TO IHX 		$438.31 1
11 14040711
NUT
IN STOCK 		$0.35 1
12 231620
SCREW
M6 X 30
IN STOCK 		$0.31 (11.4% off) 2
13 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
14 149707
SPACER 		$1.11 (36.6% off) 2
15 812273
CABLE GROMMET
IN STOCK 		$1.54 2
16 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 1
17 329371
AC PIPE TO LH DIAGONAL BRACE MOUNTING BRACKET. 		$29.64 1
18 248334
SCREW
M6 X 14
IN STOCK 		$0.59 2
19 298580
CLIP 		$3.27 2
20 336702
GAS PIPE FROM IHX TO COMPRESSOR 		$605.91 1
21 10441790
BRACKET WITH SHEATH 		$0.65 (81.2% off) 1
22 16044024
SCREW
M8 X 40
IN STOCK 		$0.35 (59.8% off) 1
23 315352
CLIP
IN STOCK 		$1.11 2
24 765072
AC PIPE TO COMPRESSOR MOUNTING BRACKET 		$14.79 1
25 326221
IDLE SPEED PUMP MOUNTING BRACKET 		$30.53 1
26 291349
WATER RECIRCULATION PUMP 		$3,277.99 1
27 82268600
CLIP 		$1.80 2
28 86574700
SCREW
M6 X 16 		$0.62 2
29 260083
HOSE 		$39.94 1
30 262111
JUBILEE CLAMP
IN STOCK 		$1.42 5
31 337857
HOSE 		$41.24 1
32 337154
RIGID PIPE FROM PUMP TO AC SYSTEM 		$348.06 1
33 86574700
SCREW
M6 X 16 		$0.62 3
34 329120
COMPL. PIPE FROM RECIRCULATION PUMP TO AC UNIT 		$148.13 1
35 341287
TGK PIPE MOUNTING BRACKET 		$33.51 1
36 86574700
SCREW
M6 X 16 		$0.62 1
37 252473
CLIP 		$1.54 1
38 291283
CLIP
IN STOCK 		$0.51 1
39 329122
COMPL. PIPE FROM HEATER TO FRONT TGK VALVE 		$103.11 1
40 329123
COMPL. PIPE FROM HEATER TO REAR TGK VALVE 		$104.41 1
41 292306
TGK VALVE OUTLET UNION 		$37.36 2
42 341613
RIGID TGK VALVE OUTLET PIPE 		$180.46 1
43 262111
JUBILEE CLAMP
IN STOCK 		$1.42 6
44 748925
RUBBER CABLE GROMMET 		$2.44 1
45 67635900
RH TGK VALVE
IN STOCK 		$213.80 (25.5% off) 1
46 67444900
LH TGK VALVE
IN STOCK 		$229.07 (20.5% off) 1
47 67933600
TGK VALVE FASTENER ROD 		$1.70 1
48 772140
COMPL. TGK VALVE BRACKET
Applicable for GD 		$296.49 1
48 339274
COMPL. TGK VALVE BRACKET
Not for GD 		$117.31 1
49 204777
CLIP
1 compartment 		$0.69 1
50 198253
CLIP
1 compartment 		$3.27 (15.1% off) 1
51 86574700
SCREW
M6 X 16 		$0.62 4
52 321365
TGK VALVE OUTLET UNION 		$41.24 1
53 262111
JUBILEE CLAMP
IN STOCK 		$1.42 2
54 86574700
SCREW
M6 X 16 		$0.62 2
55 337391
RIGID PIPE 		$232.04 1
56 337858
HOSE 		$30.93 1
57 262111
JUBILEE CLAMP
IN STOCK 		$1.42 2
58 84536000
HVAC SIDE DUCT DRAIN HOSE CONNECTOR 		$14.16 1
59 262111
JUBILEE CLAMP
IN STOCK 		$1.42 2
60 81895900
AC WATER PIPE SEAL 		$9.01 2
61 81970900
AC WATER PIPE SEAL 		$9.66 1
62 11342784
GASKET 		$13.04 1
63 11342584
GASKET 		$13.04 1
