Ferrari 612 Sessanta - INJECTION - IGNITION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
202024 IGNITION ECU $2,805.57 To Order
214711 IGNITION ECU $2,384.04 To Order
190605 IGNITION ECU $2,384.04 To Order
...and 35 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192557 RH CYLINDER BANK CONNECTOR CABLES $1,343.98 To Order
205694 RH CYLINDER BANK CONNECTOR CABLES $3,871.43 To Order
244077 RH CYLINDER BANK CONNECTOR CABLES $1,735.23 To Order
Photo Part No Description Price (each) Stock
192554 CABLE GUIDE $34.37 To Order
Photo Part No Description Price (each) Stock
201332 INJECTOR CONNECTOR CABLES $167.58 To Order
Photo Part No Description Price (each) Stock
180563 PIPE FOR INJECTORS $1,858.66 To Order
Photo Part No Description Price (each) Stock
180552 ELECTRO-INJECTOR $286.91 To Order
Photo Part No Description Price (each) Stock
133902 O-Ring $5.08 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
186914 IGNITION COIL $199.81 IN STOCK
188504 IGNITION COIL $657.46 IN STOCK
Photo Part No Description Price (each) Stock

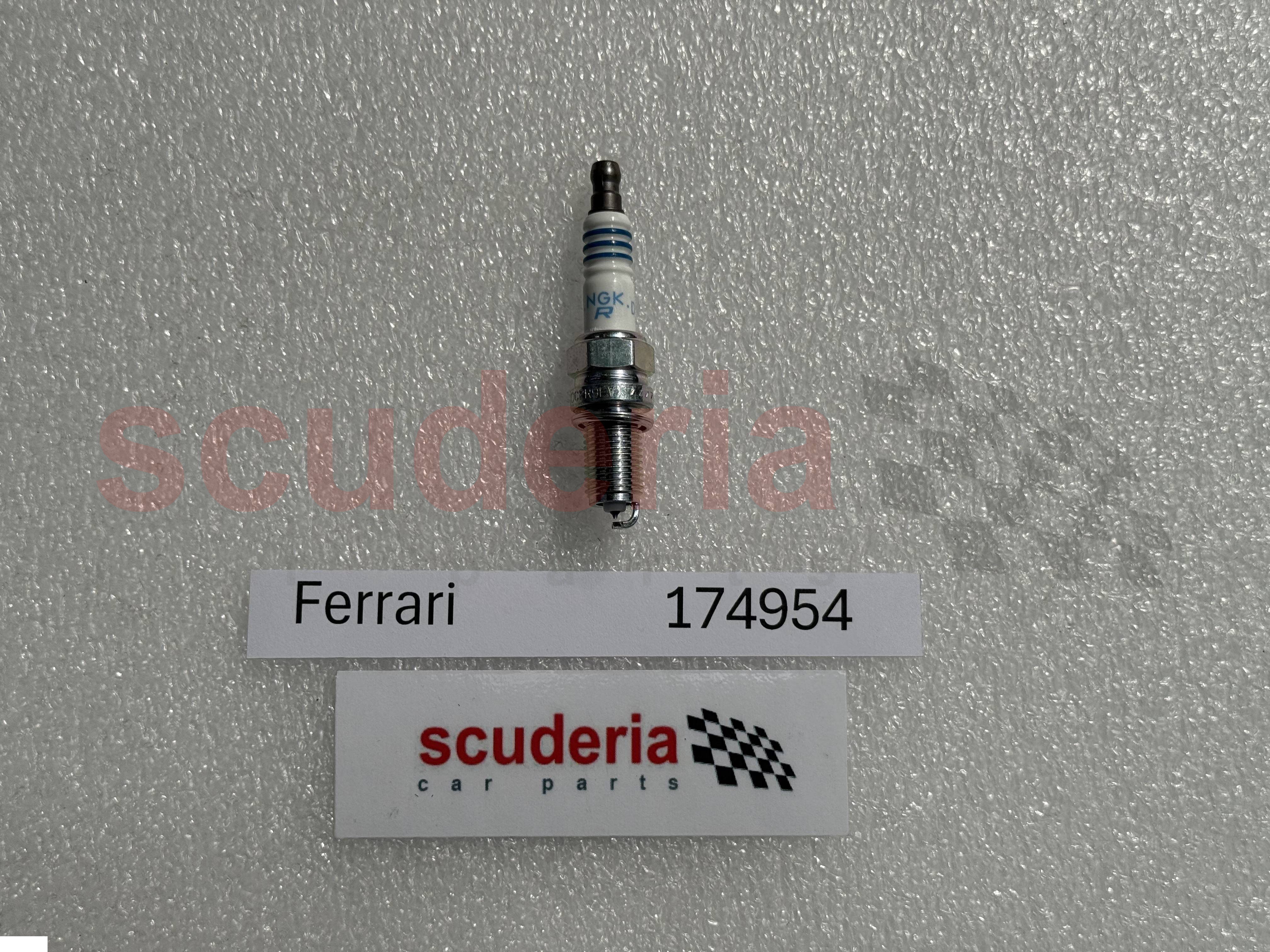

174954 Spark Plug $20.43 IN STOCK
Photo Part No Description Price (each) Stock
144730 INJECTORS RETENTION CLIP $3.81 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
10441390 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
188586 CONNECTOR FASTENER BRACKET $5.54 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.54 IN STOCK
Photo Part No Description Price (each) Stock
155751 CLIP $4.41 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
11199274 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
191534 BRACKET $35.11 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH $1.80 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.33 ARRIVING SOON
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 ARRIVING SOON
View All

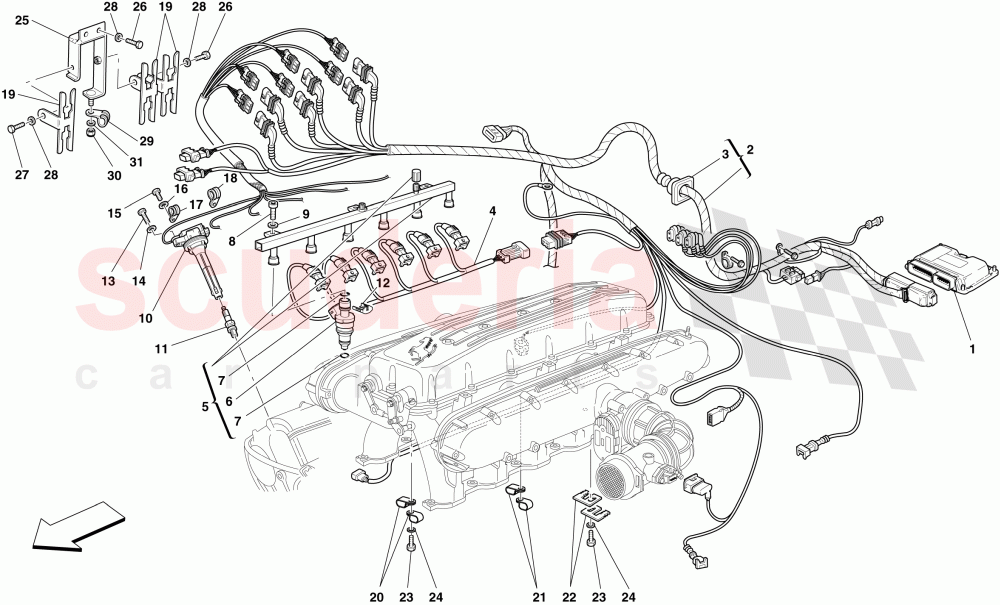

INJECTION - IGNITION SYSTEM of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 202024
IGNITION ECU
Not for USA, CDN; Applicable up to Ass. No. 62116; Applicable for F1 gearbox 		$2,805.57 2
1 214711
IGNITION ECU
Applicable for USA, CDN; Applicable up to Ass. No. 61118; Applicable for F1 gearbox 		$2,384.04 (25.2% off) 2
1 190605
IGNITION ECU
Not for USA, CDN; Applicable up to Ass. No. 62116; Not for F1 gearbox 		$2,384.04 2
1 222409
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 62117 up to Ass. No. 69518 		$3,271.95 2
1 227335
IGNITION ECU
Not for USA, CDN; Applicable from Ass. No. 69519 		$3,271.95 2
1 225099
IGNITION ECU
HGTC version; Optional; Not for USA, CDN; Applicable from Ass. No. 62511 up to Ass. No. 69518 		$2,057.21 2
1 227336
IGNITION ECU
HGTC version; Optional; Not for USA, CDN; Applicable from Ass. No. 69519 		$3,271.95 2
1 214712
IGNITION ECU
Applicable for USA, CDN; Applicable up to Ass. No. 61118; Not for F1 gearbox 		$2,384.04 2
1 222382
IGNITION ECU
Applicable for USA, CDN; Applicable from Ass. No. 61119 up to Ass. No. 69400 		$3,271.95 2
1 227339
IGNITION ECU
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$3,271.95 2
1 225100
IGNITION ECU
HGTC version; Optional; Applicable for USA, CDN; Applicable from Ass. No. 62511 up to Ass. No. 69400 		$2,057.21 2
1 227340
IGNITION ECU
HGTC version; Optional; Applicable for USA, CDN; Applicable from Ass. No. 69401 up to Ass. No. 96778 		$1,676.10 2
1 273259
IGNITION ECU
HGTC version; Optional; Applicable for USA, CDN; Applicable from Ass. No. 96779 		- 2 Enquire
1 232363
IGNITION ECU
MY 07; Applicable for J 		$1,689.14 2
1 232364
IGNITION ECU
MY 07; HGTC version; Optional; Applicable for J 		$1,689.14 2
1 233556
IGNITION ECU
Applicable for Taiwan; MY 07 		- 2 Enquire
1 233557
IGNITION ECU
Applicable for Taiwan; MY 07; HGTC version; Optional 		- 2 Enquire
1 234404
IGNITION ECU
Enhanced version; Not for Taiwan; Standard; Not for CINA, USA, CDN, J 		$1,857.14 2
1 234405
IGNITION ECU
Enhanced version; Not for Taiwan; Increased shift speed; Not for CINA, USA, CDN, J 		$1,857.14 2
1 235622
IGNITION ECU
Enhanced version; MY 07; Standard; Applicable for USA, CDN; Applicable up to Ass. No. 74531 		$1,829.65 2
1 240666
IGNITION ECU
Enhanced version; MY 08; Standard; Applicable for USA, CDN; Applicable from Ass. No. 74532 		$4,674.58 2
1 235623
IGNITION ECU
Enhanced version; MY 07; Increased shift speed; Applicable for USA, CDN; Applicable up to Ass. No. 74531 		$1,896.85 2
1 240667
IGNITION ECU
Enhanced version; MY 08; Increased shift speed; Applicable for USA, CDN; Applicable from Ass. No. 74532 		$4,674.58 2
1 236369
IGNITION ECU
Enhanced version; Standard; Applicable for J 		$3,373.80 2
1 236417
IGNITION ECU
Enhanced version; Increased shift speed; Applicable for J 		$1,896.85 2
1 236409
IGNITION ECU
Enhanced version; Applicable for Taiwan; Applicable for CINA; Applicable for F1 gearbox 		- 2 Enquire
1 236411
IGNITION ECU
Enhanced version; Applicable for Taiwan; HGTC version; Applicable for CINA; Applicable for F1 gearbox 		- 2 Enquire
1 244748
IGNITION ECU
Applicable for "OTO"; Standard; Not for USA, CDN, J 		$1,803.68 2
1 244749
IGNITION ECU
Applicable for "OTO"; Increased shift speed; Not for USA, CDN, J 		$1,803.68 2
1 244807
IGNITION ECU
Applicable for "OTO"; MY 08; Standard; Applicable for USA, CDN 		$1,586.81 2
1 250924
IGNITION ECU
Applicable for "OTO"; MY 09; Increased shift speed; Applicable for USA, CDN 		- 2 Enquire
1 244808
IGNITION ECU
Applicable for "OTO"; MY 08; Increased shift speed; Applicable for USA, CDN 		$1,586.81 2
1 250926
IGNITION ECU
Applicable for "OTO"; MY 11; Applicable for USA, CDN; Applicable from Ass. No. 96779 		$1,697.14 2
1 249867
IGNITION ECU
Applicable for "OTO"; Applicable for Korea; Applicable for USA LIGHT 		- 2 Enquire
1 244822
IGNITION ECU
Applicable for "OTO"; Standard; Applicable for J 		$1,586.81 2
1 244823
IGNITION ECU
Applicable for "OTO"; Increased shift speed; Applicable for J 		$1,586.81 2
1 249779
IGNITION ECU
Applicable for "OTO"; Applicable for Taiwan 		- 2 Enquire
1 273258
IGNITION ECU
Applicable for "OTO"; MY 09; Applicable for USA, CDN; Applicable from Ass. No. 96779 		- 2 Enquire
2 192557
RH CYLINDER BANK CONNECTOR CABLES
Not for USA, CDN, GD; Applicable up to Ass. No. 55824 		$1,343.98 1
2 205694
RH CYLINDER BANK CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 55824 		$3,871.43 1
2 244077
RH CYLINDER BANK CONNECTOR CABLES
Applicable for GD; Applicable up to Ass. No. 55824 		$1,735.23 1
3 192554
CABLE GUIDE 		$34.37 2
4 201332
INJECTOR CONNECTOR CABLES 		$167.58 2
5 180563
PIPE FOR INJECTORS 		$1,858.66 2
6 180552
ELECTRO-INJECTOR 		$286.91 12
7 133902
O-Ring 		$5.08 (15.3% off) 24
8 86768100
SCREW 		$0.45 6
9 12601374
WASHER
IN STOCK 		$0.02 (92% off) 6
10 186914
IGNITION COIL
IN STOCK 		$199.81 (31.4% off) 8
10 188504
IGNITION COIL
IN STOCK 		$657.46 4
11 174954
Spark Plug
IN STOCK 		$20.43 12
12 144730
INJECTORS RETENTION CLIP 		$3.81 (4.8% off) 12
13 231619
SCREW
IN STOCK 		$0.29 24
14 11197774
WASHER
IN STOCK 		$0.06 (80% off) 24
15 10979434
SCREW 		$1.05 10
16 11197774
WASHER
IN STOCK 		$0.06 (80% off) 10
17 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 4
18 10441390
BRACKET WITH SHEATH
IN STOCK 		$0.54 6
19 188586
CONNECTOR FASTENER BRACKET 		$5.54 6
20 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 2
21 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.54 (67.9% off) 2
22 155751
CLIP 		$4.41 (10.9% off) 2
23 10977524
SCREW
IN STOCK 		$0.14 3
24 127494
WASHER
No longer supplied; Replaced by 11199274
ARRIVING SOON 		$0.08 (88.2% off) 3
24 11199274
WASHER 		$0.02 3
25 191534
BRACKET 		$35.11 2
26 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 6
27 10977524
SCREW
IN STOCK 		$0.14 2
28 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 8
29 10441690
BRACKET WITH SHEATH 		$1.80 2
30 14059290
FLANGED NUT M6
ARRIVING SOON 		$1.33 2
31 127494
WASHER
ARRIVING SOON 		$0.08 (88.2% off) 2
