Structures And Elements, Rear Of Vehicle

Ferrari 612 Sessanta

Find Your Part

Ferrari 612 Sessanta - STRUCTURES AND ELEMENTS, REAR OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985197204 REAR MODULE $12,510.17 To Order
985237747 REAR MODULE Enquire To Order
Photo Part No Description Price (each) Stock
66994011 PARCEL SHELF $1,772.69 To Order
80018911 PARCEL SHELF $2,805.45 To Order
Photo Part No Description Price (each) Stock
985195882 TANK COMPARTMENT COVER $189.62 To Order
985235245 TANK COMPARTMENT COVER $211.31 To Order
Photo Part No Description Price (each) Stock
67330011 RH ANGLE PIECE $847.05 To Order
Photo Part No Description Price (each) Stock
67330111 LH ANGLE PIECE $655.95 To Order
Photo Part No Description Price (each) Stock
985213758 RH REAR LATERAL MODULE Enquire To Order
985237745 RH REAR LATERAL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
985213759 LH REAR LATERAL MODULE Enquire To Order
985237746 LH REAR LATERAL MODULE Enquire To Order
Photo Part No Description Price (each) Stock
67932411 PARTITION FOR REAR SCREEN BULKHEAD $22.66 To Order
Photo Part No Description Price (each) Stock
67167711 RH BRACKET $847.05 To Order
80029211 RH BRACKET $847.05 To Order
Photo Part No Description Price (each) Stock
67167811 LH BRACKET $847.05 To Order
80029311 LH BRACKET $847.05 To Order
Photo Part No Description Price (each) Stock
985187309 CROSS MEMBER $618.85 To Order
985235244 CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
985187312 CASTING CONNECTOR CROSS-PIECE $530.99 To Order
Photo Part No Description Price (each) Stock
985189652 RH ARM $328.71 To Order
Photo Part No Description Price (each) Stock
985189651 LH ARM $407.53 To Order
Photo Part No Description Price (each) Stock
985187305 RH UPPER DIAGONAL BRACE $347.16 To Order
Photo Part No Description Price (each) Stock
985187304 LH UPPER DIAGONAL BRACE $709.42 To Order
Photo Part No Description Price (each) Stock
67172911 RH RECESS $88.48 To Order
Photo Part No Description Price (each) Stock
67173011 LH RECESS $88.48 To Order
Photo Part No Description Price (each) Stock
195808 RH BRACKET FOR SAFETY BELT Enquire To Order
Photo Part No Description Price (each) Stock
985195807 LH SEAT BELT FASTENER EXTRUSION $377.34 To Order
Photo Part No Description Price (each) Stock
985187292 RH LOWER DIAGONAL BRACE $316.05 To Order
Photo Part No Description Price (each) Stock
985187291 LH LOWER DIAGONAL BRACE $316.05 To Order
Photo Part No Description Price (each) Stock
985187280 RH REAR INTERNAL REINFORCEMENT $353.99 To Order
Photo Part No Description Price (each) Stock
985187279 LH REAR INTERNAL REINFORCEMENT $353.99 To Order
Photo Part No Description Price (each) Stock
66992311 RH REAR TRELLIS Enquire To Order
Photo Part No Description Price (each) Stock
66992411 LH REAR TRELLIS $799.99 To Order
Photo Part No Description Price (each) Stock
67149911 RH LATERAL FLOOR $897.63 To Order
Photo Part No Description Price (each) Stock
67150011 LH LATERAL FLOOR $176.99 To Order
Photo Part No Description Price (each) Stock
985187300 RH SPAR $707.99 To Order
Photo Part No Description Price (each) Stock
985187299 LH SPAR $707.99 To Order
Photo Part No Description Price (each) Stock
187303 R.H. REINFORCEMENT $51.82 To Order
Photo Part No Description Price (each) Stock
985187302 LH REINFORCEMENT $211.31 To Order
Photo Part No Description Price (each) Stock
985187301 REAR CROSS MEMBER $366.63 To Order
Photo Part No Description Price (each) Stock
985189263 COMPLETE REAR BENCH $1,327.50 To Order
985235386 COMPLETE REAR BENCH Enquire To Order
Photo Part No Description Price (each) Stock
985189265 GEARBOX TRELLIS $5,793.20 To Order
Photo Part No Description Price (each) Stock
200197 REAR CROSS MEMBER $1,264.28 To Order
Photo Part No Description Price (each) Stock
66989000 RH REAR WHEELHOUSE $837.28 To Order
80021000 RH REAR WHEELHOUSE $1,635.38 To Order
Photo Part No Description Price (each) Stock
66989100 LH REAR WHEELHOUSE $1,046.60 To Order
80021200 LH REAR WHEELHOUSE $1,994.79 To Order
67446100 LH REAR WHEELHOUSE $1,076.50 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67440111 AMPLIFIER MOUNTING BRACKET $68.26 To Order
80466611 AMPLIFIER MOUNTING BRACKET $72.44 To Order
Photo Part No Description Price (each) Stock
67182900 RH REAR LATERAL PARTITION $147.91 To Order
80014500 RH REAR LATERAL PARTITION $189.62 To Order
Photo Part No Description Price (each) Stock
67921711 RH END-PIECE $164.35 To Order
Photo Part No Description Price (each) Stock
67183100 LH REAR LATERAL PARTITION $181.12 To Order
Photo Part No Description Price (each) Stock
67183000 LH REAR LATERAL PARTITION $417.20 To Order
Photo Part No Description Price (each) Stock
68810411 COMPLETE SPARE WHEEL TRAY $765.94 To Order
81482411 COMPLETE SPARE WHEEL TRAY $1,470.36 To Order
Photo Part No Description Price (each) Stock
14306474 SCREW $0.37 To Order
View All

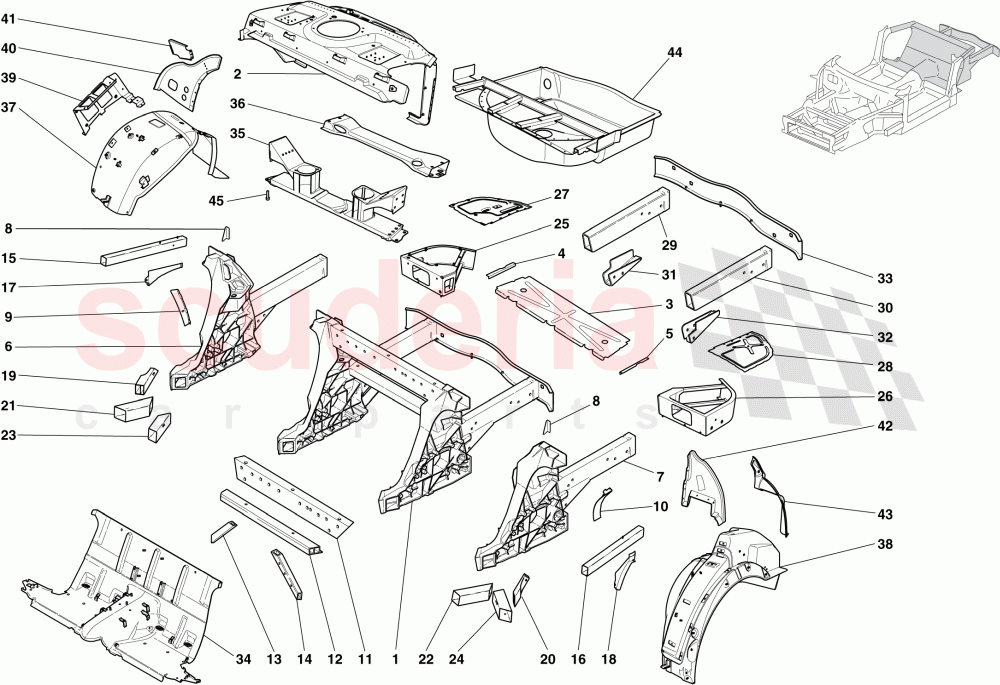

STRUCTURES AND ELEMENTS, REAR OF VEHICLE of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 985197204
REAR MODULE 		$12,510.17 1
1 985237747
REAR MODULE
; Enhanced version 		- 1 Enquire
2 66994011
PARCEL SHELF 		$1,772.69 1
2 80018911
PARCEL SHELF
Enhanced version 		$2,805.45 1
3 985195882
TANK COMPARTMENT COVER 		$189.62 1
3 985235245
TANK COMPARTMENT COVER 		$211.31 1
4 67330011
RH ANGLE PIECE 		$847.05 1
5 67330111
LH ANGLE PIECE 		$655.95 1
6 985213758
RH REAR LATERAL MODULE 		- 1 Enquire
6 985237745
RH REAR LATERAL MODULE 		- 1 Enquire
7 985213759
LH REAR LATERAL MODULE 		- 1 Enquire
7 985237746
LH REAR LATERAL MODULE 		- 1 Enquire
8 67932411
PARTITION FOR REAR SCREEN BULKHEAD 		$22.66 2
9 67167711
RH BRACKET
Applicable up to Ass. No. 70534 		$847.05 1
9 80029211
RH BRACKET
Applicable from Ass. No. 70535 		$847.05 1
10 67167811
LH BRACKET 		$847.05 1
10 80029311
LH BRACKET 		$847.05 1
11 985187309
CROSS MEMBER 		$618.85 1
11 985235244
CROSS MEMBER 		- 1 Enquire
12 985187312
CASTING CONNECTOR CROSS-PIECE 		$530.99 1
13 985189652
RH ARM 		$328.71 1
14 985189651
LH ARM 		$407.53 1
15 985187305
RH UPPER DIAGONAL BRACE 		$347.16 1
16 985187304
LH UPPER DIAGONAL BRACE 		$709.42 1
17 67172911
RH RECESS 		$88.48 1
18 67173011
LH RECESS 		$88.48 1
19 195808
RH BRACKET FOR SAFETY BELT 		- 1 Enquire
20 985195807
LH SEAT BELT FASTENER EXTRUSION 		$377.34 1
21 985187292
RH LOWER DIAGONAL BRACE 		$316.05 1
22 985187291
LH LOWER DIAGONAL BRACE 		$316.05 1
23 985187280
RH REAR INTERNAL REINFORCEMENT 		$353.99 1
24 985187279
LH REAR INTERNAL REINFORCEMENT 		$353.99 1
25 66992311
RH REAR TRELLIS 		- 1 Enquire
26 66992411
LH REAR TRELLIS 		$799.99 1
27 67149911
RH LATERAL FLOOR 		$897.63 1
28 67150011
LH LATERAL FLOOR 		$176.99 1
29 985187300
RH SPAR 		$707.99 1
30 985187299
LH SPAR 		$707.99 1
31 187303
R.H. REINFORCEMENT 		$51.82 1
32 985187302
LH REINFORCEMENT 		$211.31 1
33 985187301
REAR CROSS MEMBER 		$366.63 1
34 985189263
COMPLETE REAR BENCH 		$1,327.50 1
34 985235386
COMPLETE REAR BENCH 		- 1 Enquire
35 985189265
GEARBOX TRELLIS 		$5,793.20 1
36 200197
REAR CROSS MEMBER 		$1,264.28 1
37 66989000
RH REAR WHEELHOUSE
Applicable up to Ass. No. 70534 		$837.28 1
37 80021000
RH REAR WHEELHOUSE
Applicable from Ass. No. 70535 		$1,635.38 1
38 66989100
LH REAR WHEELHOUSE
Applicable up to Ass. No. 70534; Not for F1 gearbox 		$1,046.60 1
38 80021200
LH REAR WHEELHOUSE
Applicable from Ass. No. 70535; Not for F1 gearbox 		$1,994.79 1
38 67446100
LH REAR WHEELHOUSE
Applicable up to Ass. No. 70534; Applicable for F1 gearbox 		$1,076.50 1
38 80549100
LH REAR WHEELHOUSE
Applicable from Ass. No. 70535; Applicable for F1 gearbox 		$1,349.24 1
39 67440111
AMPLIFIER MOUNTING BRACKET 		$68.26 1
39 80466611
AMPLIFIER MOUNTING BRACKET
Enhanced version 		$72.44 1
40 67182900
RH REAR LATERAL PARTITION 		$147.91 1
40 80014500
RH REAR LATERAL PARTITION
Enhanced version 		$189.62 1
41 67921711
RH END-PIECE 		$164.35 1
42 67183100
LH REAR LATERAL PARTITION 		$181.12 1
43 67183000
LH REAR LATERAL PARTITION 		$417.20 1
44 68810411
COMPLETE SPARE WHEEL TRAY
Applicable up to Ass. No. 70026 		$765.94 1
44 81482411
COMPLETE SPARE WHEEL TRAY
Applicable from Ass. No. 70027 		$1,470.36 1
45 14306474
SCREW 		$0.37 4
