Ferrari 612 Sessanta - COOLING SYSTEM - RADIATOR AND HEADER TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
194142 WATER RADIATOR $5,628.44 To Order
Photo Part No Description Price (each) Stock
194144 OIL RADIATOR $2,412.18 To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $7.55 IN STOCK
Photo Part No Description Price (each) Stock
201040 THREADED CONNECTOR $23.56 To Order
Photo Part No Description Price (each) Stock
181601 COWL FOR ELECTRIC FANS $492.15 To Order
Photo Part No Description Price (each) Stock
208819 Complete Electric Fan $694.08 To Order
Photo Part No Description Price (each) Stock
14304324 SCREW $1.08 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127493 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
157650 FASTENER BUSHING $13.85 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.96 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
15201024 SCREW $0.18 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
12648224 WASHER $0.23 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
190637 SLEEVE $241.05 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.73 IN STOCK
Photo Part No Description Price (each) Stock
213721 PIPE FROM RADIATOR TO HEADER TANK $66.87 To Order
Photo Part No Description Price (each) Stock
177995 CLAMP $1.05 IN STOCK
Photo Part No Description Price (each) Stock
68961700 AIR UPPER CONVEYOR $681.46 To Order
80285200 UPPER AIR DUCT $555.25 To Order
Photo Part No Description Price (each) Stock
68114900 AIR DUCT SEAL $37.85 To Order
Photo Part No Description Price (each) Stock
68700800 CLIP $0.96 IN STOCK
Photo Part No Description Price (each) Stock
66951500 LOWER AIR DUCT $66.87 To Order
Photo Part No Description Price (each) Stock
68114800 AIR DUCT SEAL $34.06 To Order
Photo Part No Description Price (each) Stock
199474 TUBES MOUNTING BRACKET $21.08 To Order
Photo Part No Description Price (each) Stock
198101 CLIP $4.93 To Order
Photo Part No Description Price (each) Stock
155441 STRIP $2.10 To Order
Photo Part No Description Price (each) Stock
183649 STRIP $2.10 IN STOCK
Photo Part No Description Price (each) Stock
174538 CAP $10.30 To Order
Photo Part No Description Price (each) Stock
195910 GASKET $4.92 To Order
Photo Part No Description Price (each) Stock
195999 HEADER TANK CAP $50.47 To Order
Photo Part No Description Price (each) Stock
214257 RUBBER PIPE $34.39 To Order
245090 RUBBER PIPE $19.57 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.85 IN STOCK
13000490 Screw Collar $0.72 IN STOCK
Photo Part No Description Price (each) Stock
204029 RIGID PIPE $112.96 To Order
207017 RIGID PIPE $185.14 To Order
Photo Part No Description Price (each) Stock
199270 RUBBER PIPE $41.62 To Order
Photo Part No Description Price (each) Stock
207763 RUBBER PIPE $103.46 To Order
Photo Part No Description Price (each) Stock
177995 CLAMP $1.05 IN STOCK
257361 CLAMP $0.91 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.85 IN STOCK
Photo Part No Description Price (each) Stock
200783 TUBES MOUNTING BRACKET $17.65 To Order
Photo Part No Description Price (each) Stock
199599 RADIATOR MOUNTING BRACKET $151.41 To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $18.23 IN STOCK
Photo Part No Description Price (each) Stock
202910 HEADER TANK MOUNTING BRACKET $25.22 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
181602 GASKET $1.26 To Order
Photo Part No Description Price (each) Stock
181603 GASKET $15.14 IN STOCK
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
Photo Part No Description Price (each) Stock
81190800 VIBRATION DAMPER $4.41 To Order
Photo Part No Description Price (each) Stock
62797700 CAP $3.30 To Order
Photo Part No Description Price (each) Stock
897538 SCREW $1.52 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
145543 CLIP $0.18 IN STOCK
Photo Part No Description Price (each) Stock
140730 FASTENER CLIP $0.20 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.81 IN STOCK
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
66761200 GASKET $3.94 To Order
View All

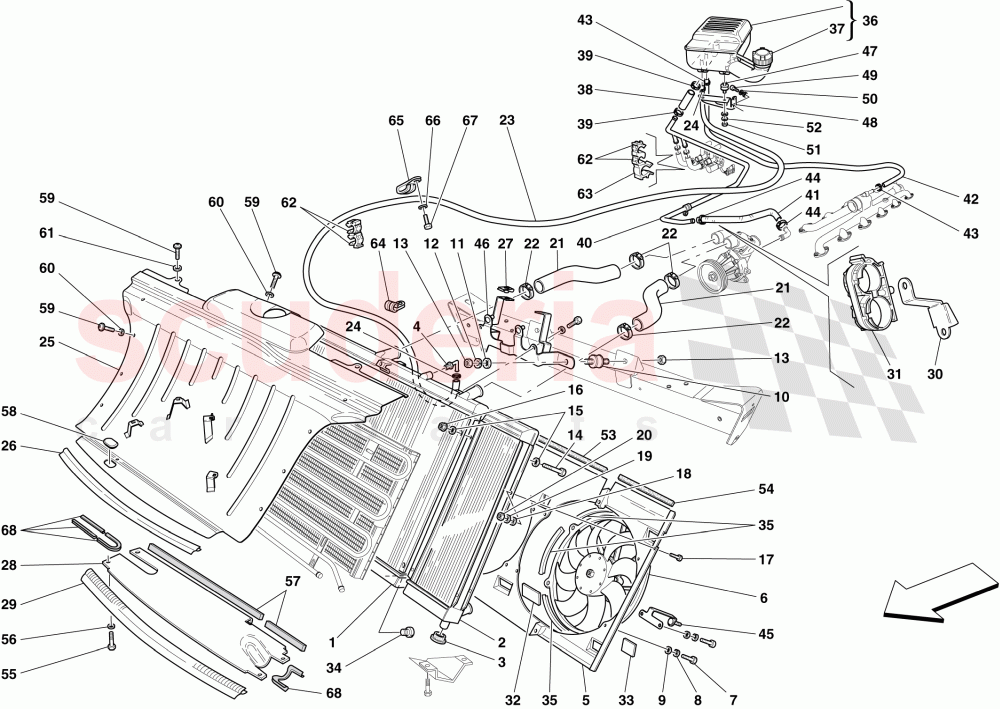

COOLING SYSTEM - RADIATOR AND HEADER TANK of Ferrari Ferrari 612 Sessanta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 194142
WATER RADIATOR 		$5,628.44 1
2 194144
OIL RADIATOR 		$2,412.18 1
3 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$7.55 2
4 201040
THREADED CONNECTOR 		$23.56 1
5 181601
COWL FOR ELECTRIC FANS 		$492.15 (11.2% off) 1
6 208819
Complete Electric Fan 		$694.08 2
7 14304324
SCREW
IN STOCK 		$1.08 8
8 12637824
WASHER
IN STOCK 		$0.06 (88% off) 8
9 127493
WASHER 		$0.06 (80% off) 8
10 157650
FASTENER BUSHING 		$13.85 (41.8% off) 2
11 84653800
WASHER 10 X 18 X 2.5
IN STOCK 		$4.96 2
12 127496
WASHER 		$0.06 (80% off) 2
13 133989
NUT 		$0.41 (59% off) 4
14 15201024
SCREW 		$0.18 1
15 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
16 11673111
NUT 		$0.23 1
17 231619
SCREW
IN STOCK 		$0.29 4
18 12648224
WASHER 		$0.23 4
19 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 4
20 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
21 190637
SLEEVE 		$241.05 (12.3% off) 2
22 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.73 4
23 213721
PIPE FROM RADIATOR TO HEADER TANK 		$66.87 1
24 177995
CLAMP
IN STOCK 		$1.05 (51.2% off) 2
25 68961700
AIR UPPER CONVEYOR 		$681.46 1
25 80285200
UPPER AIR DUCT
Enhanced version 		$555.25 1
26 68114900
AIR DUCT SEAL 		$37.85 1
27 68700800
CLIP
IN STOCK 		$0.96 2
28 66951500
LOWER AIR DUCT 		$66.87 1
29 68114800
AIR DUCT SEAL 		$34.06 1
30 199474
TUBES MOUNTING BRACKET 		$21.08 1
31 198101
CLIP 		$4.93 1
32 155441
STRIP 		$2.10 1
33 183649
STRIP
IN STOCK 		$2.10 5
34 174538
CAP 		$10.30 (72.4% off) 1
35 195910
GASKET 		$4.92 12
37 195999
HEADER TANK CAP 		$50.47 (30.3% off) 1
38 214257
RUBBER PIPE
Not for GD 		$34.39 1
38 245090
RUBBER PIPE
Applicable for GD 		$19.57 1
39 13433370
Screw Collar
Applicable until depletion
IN STOCK 		$0.85 2
39 13000490
Screw Collar
Applicable for pipe 245090 ref. 39
IN STOCK 		$0.72 (62.1% off) 2
40 204029
RIGID PIPE
Not for GD 		$112.96 1
40 207017
RIGID PIPE
Applicable for GD 		$185.14 1
41 199270
RUBBER PIPE 		$41.62 (15.1% off) 1
42 207763
RUBBER PIPE 		$103.46 1
43 177995
CLAMP
No longer supplied; Replaced by 257361
IN STOCK 		$1.05 (51.2% off) 2
43 257361
CLAMP 		$0.91 2
44 13433370
Screw Collar
Applicable until depletion
IN STOCK 		$0.85 2
45 200783
TUBES MOUNTING BRACKET 		$17.65 1
46 199599
RADIATOR MOUNTING BRACKET 		$151.41 1
47 102947
VIBRATION DAMPER
IN STOCK 		$18.23 (6.6% off) 3
48 202910
HEADER TANK MOUNTING BRACKET 		$25.22 1
49 10977524
SCREW
IN STOCK 		$0.14 2
50 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 2
51 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
52 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 3
53 181602
GASKET 		$1.26 2
54 181603
GASKET
IN STOCK 		$15.14 2
55 11568124
SCREW
IN STOCK 		$0.81 4
56 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 4
57 81190800
VIBRATION DAMPER 		$4.41 1
58 62797700
CAP 		$3.30 1
59 897538
SCREW 		$1.52 12
60 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 10
61 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
62 145543
CLIP
IN STOCK 		$0.18 (76% off) 10
63 140730
FASTENER CLIP 		$0.20 2
64 10441590
BRACKET WITH SHEATH 		$0.52 1
65 291225
P clip Bracket With Sheath
IN STOCK 		$4.81 1
66 12637824
WASHER
IN STOCK 		$0.06 (88% off) 1
67 10902424
SCREW
IN STOCK 		$0.14 (80% off) 1
68 66761200
GASKET 		$3.94 4
