Hydraulic Brake And Clutch Control

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - HYDRAULIC BRAKE AND CLUTCH CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
209079 BRAKE SERVO WITH MASTER CYLINDER $1,593.19 To Order
Photo Part No Description Price (each) Stock
203903 BRAKE FLUID RESERVOIR $46.71 To Order
Photo Part No Description Price (each) Stock
199694 TUB FASTENER BRACKET $180.91 To Order
208329 TUB FASTENER BRACKET $226.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
203623 HEAT SHIELD $41.06 To Order
Photo Part No Description Price (each) Stock
14305324 ALLEN SCREW M6 X 20 $0.08 IN STOCK
10902424 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211377 RUBBER PIPE $9.18 To Order
Photo Part No Description Price (each) Stock
211377 RUBBER PIPE $9.18 To Order
154011 RUBBER PIPE $71.96 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
13432070 HOSE COLLAR $0.49 ARRIVING SOON
Photo Part No Description Price (each) Stock
193402 RUBBER PIPE $12.35 IN STOCK
Photo Part No Description Price (each) Stock
190386 CLUTCH PUMP $381.86 To Order
Photo Part No Description Price (each) Stock
194024 SHIM $16.04 To Order
Photo Part No Description Price (each) Stock
194025 GASKET $3.15 To Order
194025 GASKET $3.15 To Order
Photo Part No Description Price (each) Stock
194051 PUMP FASTENER PLATE $12.24 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
203596 CAP $12.81 To Order
Photo Part No Description Price (each) Stock
205819 CLUTCH CONTROL PIPE $241.22 To Order
207644 CLUTCH CONTROL PIPE $256.29 To Order
Photo Part No Description Price (each) Stock
181344 BRACKET $2.79 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
319201 FUEL FILLER PIPE ASSEMBLY $704.65 IN STOCK
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
190379 SHIM $15.66 To Order
Photo Part No Description Price (each) Stock
190378 GASKET $1.11 IN STOCK
Photo Part No Description Price (each) Stock
12578211 NUT $0.29 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 ARRIVING SOON
View All

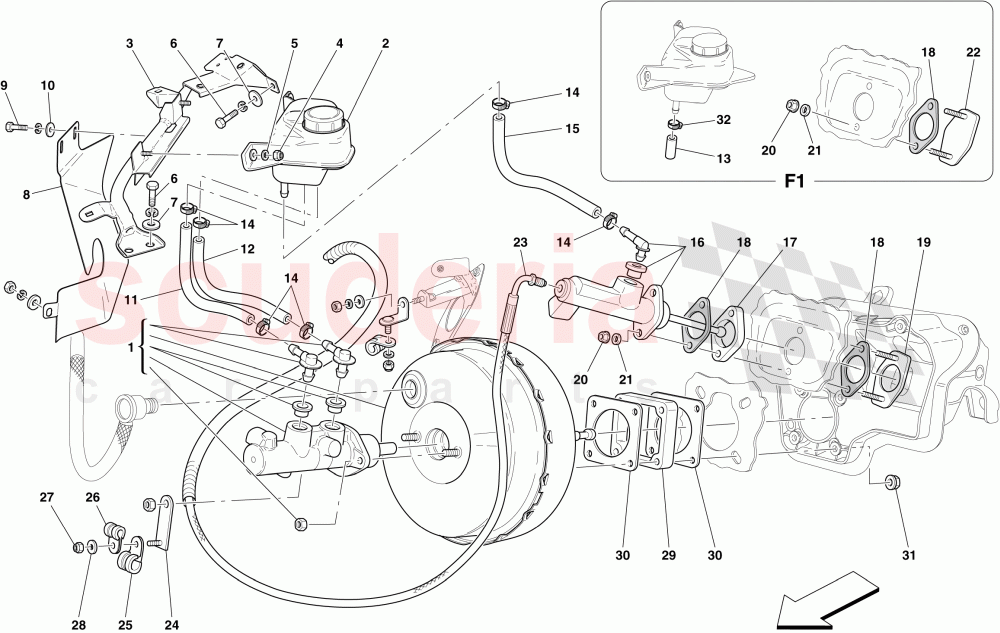

HYDRAULIC BRAKE AND CLUTCH CONTROL of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 209079
BRAKE SERVO WITH MASTER CYLINDER 		$1,593.19 1
2 203903
BRAKE FLUID RESERVOIR 		$46.71 (9.7% off) 1
3 199694
TUB FASTENER BRACKET
Not for GD 		$180.91 1
3 208329
TUB FASTENER BRACKET
Applicable for GD 		$226.14 1
4 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
5 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
6 14305324
ALLEN SCREW M6 X 20
No longer supplied; Replaced by 10902424
IN STOCK 		$0.08 4
6 10902424
SCREW
IN STOCK 		$0.14 (80% off) 4
7 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
8 203623
HEAT SHIELD
Not for GD 		$41.06 1
9 14305324
ALLEN SCREW M6 X 20
No longer supplied; Replaced by 10902424
IN STOCK 		$0.08 2
9 10902424
SCREW
IN STOCK 		$0.14 (80% off) 2
10 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
11 211377
RUBBER PIPE
Replaces 105857; Not for GD 		$9.18 (27.9% off) 1
12 211377
RUBBER PIPE
Not for GD 		$9.18 (27.9% off) 1
12 154011
RUBBER PIPE
Applicable for GD 		$71.96 1
14 13432070
HOSE COLLAR
Not for F1 gearbox
ARRIVING SOON 		$0.49 (54.2% off) 5
14 13432070
HOSE COLLAR
Applicable for F1 gearbox
ARRIVING SOON 		$0.49 (54.2% off) 5
15 193402
RUBBER PIPE
Not for F1 gearbox
IN STOCK 		$12.35 1
16 190386
CLUTCH PUMP
Not for F1 gearbox 		$381.86 1
17 194024
SHIM
Not for F1 gearbox 		$16.04 1
18 194025
GASKET
Not for F1 gearbox 		$3.15 2
18 194025
GASKET
Applicable for F1 gearbox 		$3.15 2
19 194051
PUMP FASTENER PLATE
Not for F1 gearbox 		$12.24 1
20 14040711
NUT
IN STOCK 		$0.35 2
21 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 2
22 203596
CAP
Applicable for F1 gearbox 		$12.81 1
23 205819
CLUTCH CONTROL PIPE
Not for GD; Not for F1 gearbox 		$241.22 1
23 207644
CLUTCH CONTROL PIPE
Applicable for GD; Not for F1 gearbox 		$256.29 1
24 181344
BRACKET 		$2.79 1
25 10441590
BRACKET WITH SHEATH 		$0.52 1
26 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 1
27 319201
FUEL FILLER PIPE ASSEMBLY
IN STOCK 		$704.65 1
28 12646604
WASHER
IN STOCK 		$0.21 (30% off) 1
29 190379
SHIM 		$15.66 1
30 190378
GASKET
Q.ty 1, supplied with brake servo ref. 1
IN STOCK 		$1.11 2
31 12578211
NUT 		$0.29 (76.8% off) 4
32 13432070
HOSE COLLAR
ARRIVING SOON 		$0.49 (54.2% off) 1
