Electrical System

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - ELECTRICAL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220363 ENGINE COMPARTMENT CABLE $1,808.31 To Order
224465 ENGINE COMPARTMENT CABLE $1,681.77 To Order
220364 ENGINE COMPARTMENT CABLE $2,347.65 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
201332 INJECTOR CONNECTOR CABLES $163.64 To Order
Photo Part No Description Price (each) Stock
192557 RH CYLINDER BANK CONNECTOR CABLES $1,322.61 To Order
244075 RH CYLINDER BANK CONNECTOR CABLES $3,738.90 To Order
244075 RH CYLINDER BANK CONNECTOR CABLES $3,738.90 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
244079 LH CYLINDER BANK CONNECTOR CABLES $2,744.38 To Order
244080 LH CYLINDER BANK CONNECTOR CABLES $944.03 To Order
244079 LH CYLINDER BANK CONNECTOR CABLES $2,744.38 To Order
Photo Part No Description Price (each) Stock
205258 PASSENGER SIDE DOOR CONNECTOR CABLES $240.46 To Order
191598 PASSENGER SIDE DOOR CONNECTOR CABLES $239.17 To Order
201109 PASSENGER SIDE DOOR CONNECTOR CABLES $327.30 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
205259 DRIVER SIDE DOOR CONNECTOR CABLES $270.52 To Order
191597 DRIVER SIDE DOOR CONNECTOR CABLES $314.70 To Order
201108 DRIVER SIDE DOOR CONNECTOR CABLES $365.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
194335 BATTERY POSITIVE CABLE $123.14 To Order
205689 BATTERY POSITIVE CABLE $579.08 To Order
Photo Part No Description Price (each) Stock
205778 PASSENGER COMPARTMENT CABLE $2,452.86 To Order
191559 PASSENGER COMPARTMENT CABLE $2,488.93 To Order
191592 PASSENGER COMPARTMENT CABLE $2,678.90 To Order
...and 20 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
205715 DASHBOARD CABLE $2,403.20 To Order
191560 DASHBOARD CABLE $1,472.91 To Order
206650 DASHBOARD CABLE $706.39 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
213891 LUGGAGE COMPARTMENT CABLE $2,380.72 To Order
213178 LUGGAGE COMPARTMENT CABLE $11,788.26 To Order
191596 LUGGAGE COMPARTMENT CABLE $2,534.13 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192549 TAILGATE CABLE $49.58 To Order
Photo Part No Description Price (each) Stock
192553 PLATE LIGHT CABLES $226.59 To Order
193985 PLATE LIGHT CABLES Enquire To Order
193984 BUMPER CABLE WITH PARKING SENSORS $201.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
193988 TAILLIGHT CABLE $45.07 To Order
193989 TAILLIGHT CABLE $60.56 To Order
Photo Part No Description Price (each) Stock
194334 FUEL TANK CABLE $70.63 To Order
Photo Part No Description Price (each) Stock
192556 ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES $571.12 To Order
225790 ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES $163.64 To Order
Photo Part No Description Price (each) Stock
191541 CHANNEL $47.82 To Order
Photo Part No Description Price (each) Stock
786406 GLOVE COMPARTMENT WIRING HARNESS $45.30 To Order
Photo Part No Description Price (each) Stock
221557 BRACKET $19.52 To Order
View All

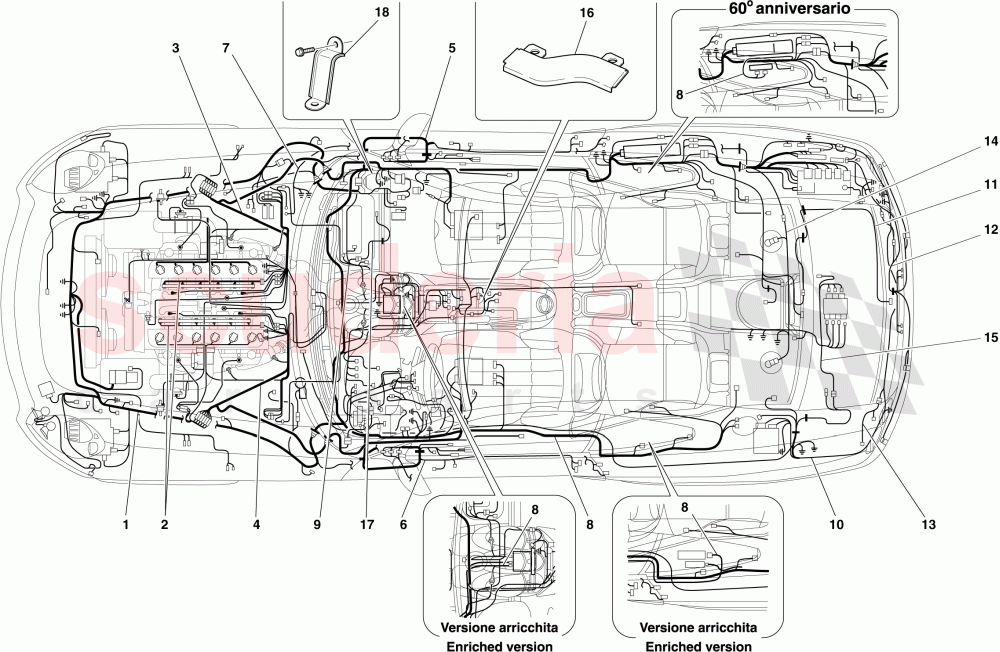

ELECTRICAL SYSTEM of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220363
ENGINE COMPARTMENT CABLE
Optional; HGTC version; Not for GD 		$1,808.31 1
1 224465
ENGINE COMPARTMENT CABLE
Not for GD; Applicable up to Ass. No. 66617 		$1,681.77 1
1 220364
ENGINE COMPARTMENT CABLE
Optional; HGTC version; Applicable for GD 		$2,347.65 1
1 224466
ENGINE COMPARTMENT CABLE
Applicable for GD; Applicable up to Ass. No. 66617 		$2,575.68 1
1 233726
ENGINE COMPARTMENT CABLE
Enhanced version; Not for GD 		$1,953.87 1
1 229832
ENGINE COMPARTMENT CABLE
Enhanced version; MY 08; Applicable for front parking sensors, CCM discs and sports exhaust; Not for USA, CDN, GD 		$2,469.39 1
1 254924
ENGINE COMPARTMENT CABLE
Enhanced version; MY 09; Applicable for front parking sensors, CCM discs and sports exhaust; Applicable for USA, CDN; Not for GD 		- 1 Enquire
1 234927
ENGINE COMPARTMENT CABLE
Enhanced version; Applicable for GD 		$2,307.07 1
2 201332
INJECTOR CONNECTOR CABLES 		$163.64 2
3 192557
RH CYLINDER BANK CONNECTOR CABLES
Not for USA, CDN, GD; Applicable up to Ass. No. 55824 		$1,322.61 1
3 244075
RH CYLINDER BANK CONNECTOR CABLES
Not for HGTC version; Not for USA, CDN, GD 		$3,738.90 1
3 244075
RH CYLINDER BANK CONNECTOR CABLES
Optional; Applicable for CINA 		$3,738.90 1
3 244075
RH CYLINDER BANK CONNECTOR CABLES 		$3,738.90 1
3 205694
RH CYLINDER BANK CONNECTOR CABLES
Applicable for USA, CDN; Applicable up to Ass. No. 55824 		$3,780.44 1
3 244076
RH CYLINDER BANK CONNECTOR CABLES
HGTC version; Optional; Applicable for USA, CDN 		$3,010.00 1
3 244077
RH CYLINDER BANK CONNECTOR CABLES
Applicable for GD; Applicable up to Ass. No. 55824 		$1,694.46 1
3 244077
RH CYLINDER BANK CONNECTOR CABLES
HGTC version; Optional; Applicable for GD 		$1,694.46 1
4 244079
LH CYLINDER BANK CONNECTOR CABLES
Not for USA, CDN, GD 		$2,744.38 1
4 244080
LH CYLINDER BANK CONNECTOR CABLES
Applicable for USA, CDN 		$944.03 1
4 244079
LH CYLINDER BANK CONNECTOR CABLES
Applicable for GD 		$2,744.38 1
5 205258
PASSENGER SIDE DOOR CONNECTOR CABLES
Not for GD 		$240.46 1
5 191598
PASSENGER SIDE DOOR CONNECTOR CABLES
Not for GD 		$239.17 1
5 201109
PASSENGER SIDE DOOR CONNECTOR CABLES
Applicable for GD 		$327.30 1
5 191600
PASSENGER SIDE DOOR CONNECTOR CABLES
Applicable for GD 		$302.12 1
6 205259
DRIVER SIDE DOOR CONNECTOR CABLES
Not for GD 		$270.52 1
6 191597
DRIVER SIDE DOOR CONNECTOR CABLES
Not for GD 		$314.70 1
6 201108
DRIVER SIDE DOOR CONNECTOR CABLES
Applicable for GD 		$365.06 1
6 191599
DRIVER SIDE DOOR CONNECTOR CABLES
Applicable for GD 		$315.61 1
7 194335
BATTERY POSITIVE CABLE
Not for GD 		$123.14 1
7 205689
BATTERY POSITIVE CABLE
Applicable for GD 		$579.08 1
8 205778
PASSENGER COMPARTMENT CABLE
Not for GD; Applicable up to Ass. No. 55824 		$2,452.86 1
8 191559
PASSENGER COMPARTMENT CABLE
Not for GD; Applicable from Ass. No. 55825 up to Ass. No. 62116 		$2,488.93 1
8 191592
PASSENGER COMPARTMENT CABLE
Not for USA, CDN, GD; Applicable from Ass. No. 62117 up to Ass. No. 66184 		$2,678.90 1
8 191592
PASSENGER COMPARTMENT CABLE
Applicable for USA, CDN; Applicable from Ass. No. 62117 up to Ass. No. 66086 		$2,678.90 1
8 191593
PASSENGER COMPARTMENT CABLE
Applicable for USA; Applicable from Ass. No. 66087 up to Ass. No. 66184 		$2,894.18 1
8 228429
PASSENGER COMPARTMENT CABLE
Not for USA, GD 		$2,624.78 1
8 230352
PASSENGER COMPARTMENT CABLE
Not for USA, GD 		$1,920.80 1
8 228430
PASSENGER COMPARTMENT CABLE
Full house; Applicable for USA; Applicable from Ass. No. 66185 		$2,848.86 1
8 230353
PASSENGER COMPARTMENT CABLE
Base; Applicable for USA 		$2,144.75 1
8 206659
PASSENGER COMPARTMENT CABLE
Not applicable for satellite alarm system kit; Applicable for GD 		$3,363.75 1
8 215912
PASSENGER COMPARTMENT CABLE
Applicable for satellite alarm system kit; Applicable for UK 		$2,986.42 1
8 191594
PASSENGER COMPARTMENT CABLE
Applicable for GD; Applicable from Ass. No. 62117 up to Ass. No. 66931 		$2,409.59 1
8 228431
PASSENGER COMPARTMENT CABLE
Applicable for GD; Applicable from Ass. No. 66932 		$2,774.58 1
8 233724
PASSENGER COMPARTMENT CABLE
Enhanced version; Not for USA, CDN, GD 		$4,040.02 1
8 226125
PASSENGER COMPARTMENT CABLE
Enhanced version; Applicable for front parking sensors, electroc. mirrors and satellite alarm system kit; Not for USA, CDN, GD 		$3,692.31 1
8 234929
PASSENGER COMPARTMENT CABLE
Enhanced version; Applicable for GD 		$2,853.89 1
8 243139
PASSENGER COMPARTMENT CABLE
Enhanced version; Applicable for USA, CDN 		$2,984.92 1
8 237848
PASSENGER COMPARTMENT CABLE
Applicable for "60ยฐanniversario"; Not for USA, CDN, GD 		$3,338.12 1
8 237851
PASSENGER COMPARTMENT CABLE
Applicable for "60ยฐanniversario"; Applicable for GD 		$3,545.53 1
8 237850
PASSENGER COMPARTMENT CABLE
Applicable for "60ยฐanniversario"; Applicable for USA, CDN 		$2,844.63 1
8 243706
PASSENGER COMPARTMENT CABLE
Applicable for "OTO"; Not for USA, CDN, GD 		$3,723.78 1
8 243707
PASSENGER COMPARTMENT CABLE
Applicable for "OTO"; Applicable for USA, CDN 		$3,066.08 (43.2% off) 1
8 243708
PASSENGER COMPARTMENT CABLE
Applicable for "OTO"; Applicable for GD 		$3,440.54 1
9 205715
DASHBOARD CABLE
Not for GD; Applicable up to Ass. No. 55824 		$2,403.20 1
9 191560
DASHBOARD CABLE
Not for GD; Applicable from Ass. No. 55825 up to Ass. No. 58485 		$1,472.91 1
9 206650
DASHBOARD CABLE
Not for GD; Applicable from Ass. No. 58486 up to Ass. No. 65503 		$706.39 1
9 228177
DASHBOARD CABLE
Not for GD; Applicable from Ass. No. 65504 		$736.45 1
9 206657
DASHBOARD CABLE
Applicable for GD; Applicable up to Ass. No. 65503 		$931.56 1
9 228178
DASHBOARD CABLE
Applicable for GD; Applicable from Ass. No. 65504 		$981.92 1
9 229833
DASHBOARD CABLE
Enhanced version; Not for GD 		$2,529.10 1
9 234928
DASHBOARD CABLE
Enhanced version; Applicable for GD 		$721.42 1
9 237852
DASHBOARD CABLE
Applicable for "60ยฐanniversario"; Not for GD 		$601.18 1
9 237853
DASHBOARD CABLE
Applicable for "60ยฐanniversario"; Applicable for GD 		$676.33 1
9 243709
DASHBOARD CABLE
Applicable for "OTO"; Not for GD 		$679.79 1
9 243710
DASHBOARD CABLE
Applicable for "OTO"; Applicable for GD 		$793.09 1
10 213891
LUGGAGE COMPARTMENT CABLE
Applicable up to Ass. No. 58176; Applicable for F1 gearbox; Applicable up to engine No. 91306 		$2,380.72 1
10 213178
LUGGAGE COMPARTMENT CABLE
Applicable from Ass. No. 58177 up to Ass. No. 62116; Applicable for F1 gearbox; Applicable from engine No. 91307 		$11,788.26 1
10 191596
LUGGAGE COMPARTMENT CABLE
Applicable from Ass. No. 62117 up to Ass. No. 67787; Applicable for F1 gearbox 		$2,534.13 1
10 213892
LUGGAGE COMPARTMENT CABLE
Applicable up to Ass. No. 62116; Not for F1 gearbox 		$2,199.27 1
10 191595
LUGGAGE COMPARTMENT CABLE
Applicable from Ass. No. 62117 up to Ass. No. 67787; Not for F1 gearbox 		$2,098.55 1
10 238592
LUGGAGE COMPARTMENT CABLE
Enhanced version; Not for F1 gearbox 		$2,056.07 1
10 237854
LUGGAGE COMPARTMENT CABLE
Applicable for "60ยฐanniversario" 		$2,503.96 1
10 244074
LUGGAGE COMPARTMENT CABLE
Applicable for "OTO" 		$2,459.86 1
11 192549
TAILGATE CABLE 		$49.58 1
12 192553
PLATE LIGHT CABLES
Not for USA, CDN 		$226.59 1
12 193985
PLATE LIGHT CABLES
Applicable for USA, CDN 		- 1 Enquire
12 193984
BUMPER CABLE WITH PARKING SENSORS
With parking sensors; Optional; Not for USA, CDN 		$201.40 1
12 193986
BUMPER CABLE WITH PARKING SENSORS
With parking sensors; Optional; Applicable for USA, CDN
IN STOCK 		$198.56 1
13 193988
TAILLIGHT CABLE
Not applicable for Korea; Not for USA, CDN 		$45.07 2
13 193989
TAILLIGHT CABLE
Applicable for Korea; Applicable for USA, CDN 		$60.56 (34.7% off) 2
14 194334
FUEL TANK CABLE 		$70.63 1
15 192556
ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES
Applicable for F1 gearbox 		$571.12 1
15 225790
ELECTRONICALLY CONTROLLED GEARBOX CONNECTOR CABLES
Applicable for "OTO"; Applicable for F1 gearbox 		$163.64 1
16 191541
CHANNEL 		$47.82 1
17 786406
GLOVE COMPARTMENT WIRING HARNESS 		$45.30 1
18 221557
BRACKET
Enhanced version 		$19.52 2

Haven't found what you're looking for?

Original Parts Tuning Parts Need help? Call us

View Cart / Checkout
