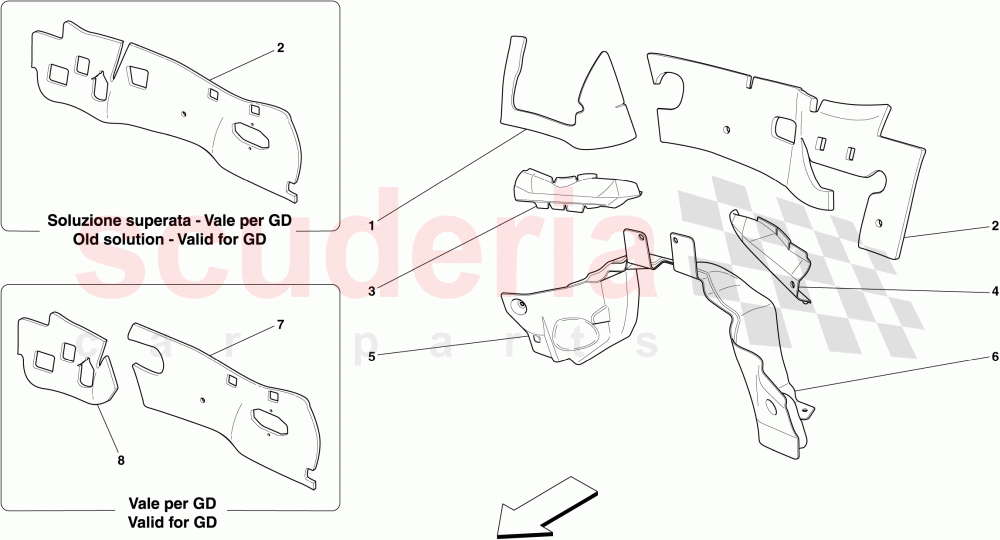

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67789300	RH UPPER FIREWALL INSULATION	$70.27	To Order
	67848000	LH UPPER FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66963400	LH UPPER FIREWALL INSULATION	$481.82	To Order
	67848100	RH UPPER FIREWALL INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66963500	RH HEAT SHIELD	$122.07	To Order

Photo	Part No	Description	Price (each)	Stock
	66963600	LH HEAT SHIELD	$122.07	To Order

Photo	Part No	Description	Price (each)	Stock
	66963700	RH FIREWALL HEAT SHIELD	$633.01	To Order

Photo	Part No	Description	Price (each)	Stock
	66963800	LH FIREWALL HEAT SHIELD	$617.94	To Order

Photo	Part No	Description	Price (each)	Stock
	68312500	RH UPPER LATERAL FIREWALL INSULATION	$479.70	To Order

Photo	Part No	Description	Price (each)	Stock
	68312400	RH UPPER CENTRAL FIREWALL INSULATION	$479.70	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67789300	RH UPPER FIREWALL INSULATION	67789300 RH UPPER FIREWALL INSULATION Not for GD	$70.27	1
1	67848000	LH UPPER FIREWALL INSULATION	67848000 LH UPPER FIREWALL INSULATION Applicable for GD	-	1	Enquire
2	66963400	LH UPPER FIREWALL INSULATION	66963400 LH UPPER FIREWALL INSULATION Not for GD	$481.82	1
2	67848100	RH UPPER FIREWALL INSULATION	67848100 RH UPPER FIREWALL INSULATION After depletion, replace with 68312500 ref. 7 + 68312400 ref. 8; Applicable for GD; Applicable until depletion	-	1	Enquire
3	66963500	RH HEAT SHIELD	66963500 RH HEAT SHIELD	$122.07	1
4	66963600	LH HEAT SHIELD	66963600 LH HEAT SHIELD	$122.07	1
5	66963700	RH FIREWALL HEAT SHIELD	66963700 RH FIREWALL HEAT SHIELD	$633.01	1
6	66963800	LH FIREWALL HEAT SHIELD	66963800 LH FIREWALL HEAT SHIELD	$617.94	1
7	68312500	RH UPPER LATERAL FIREWALL INSULATION	68312500 RH UPPER LATERAL FIREWALL INSULATION Applicable after depletion of 67848100, ref. 2; Applicable for GD	$479.70	1
8	68312400	RH UPPER CENTRAL FIREWALL INSULATION	68312400 RH UPPER CENTRAL FIREWALL INSULATION Applicable after depletion of 67848100, ref. 2	$479.70	1
