Ferrari 599 SA Aperta - DIFFERENTIAL CASE AND GEARBOX COOLING RADIATOR

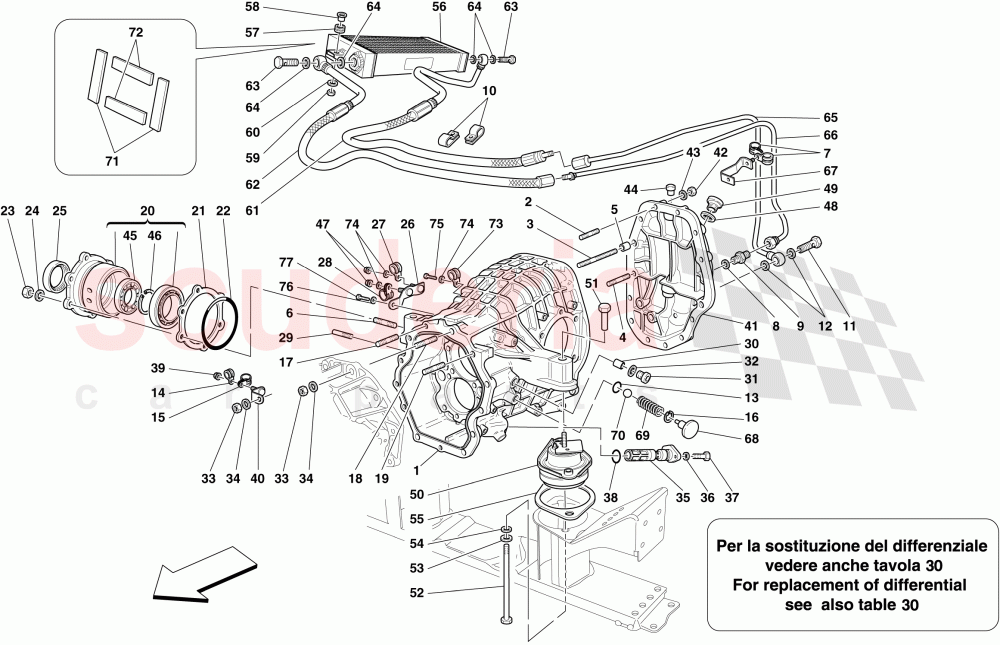

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	227410	4th SECTION OF GEARBOX HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	211936	STUD BOLT	$9.12	To Order
	211937	STUD BOLT	$13.50	To Order
	13543824	STUD BOLT	$3.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546224	STUD BOLT	$13.55	To Order

Photo	Part No	Description	Price (each)	Stock
	10450690	BRACKET WITH SHEATH	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	217788	CONNECTOR	$43.49	To Order

Photo	Part No	Description	Price (each)	Stock
	10450290	BRACKET WITH SHEATH	$3.72	To Order
	10450390	BRACKET WITH SHEATH	$1.95	To Order

Photo	Part No	Description	Price (each)	Stock
	195589	PIPE UNION	$19.71	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14453381	O-RING	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$4.84	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11057476	SEEGER RING	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	$4.15	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189098	COMPLETE RH DIFFERENTIAL COVER	$720.53	To Order
	189100	COMPLETE LH DIFFERENTIAL COVER	$720.53	To Order

Photo	Part No	Description	Price (each)	Stock
	150099	DIFFERENTIAL COVER SHIM	$106.02	To Order
	150100	DIFFERENTIAL COVER SHIM	$94.05	To Order
	150101	DIFFERENTIAL COVER SHIM	$94.05	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14461381	O-RING	$12.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181618	RH GASKET	$52.51	IN STOCK
	181617	LH Rotating Oil Sealing Ring	$47.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	227196	BRACKET	$39.43	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441390	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16183021	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	115376	BUSHING	$19.23	To Order

Photo	Part No	Description	Price (each)	Stock
	150731	CAP	$3.48	To Order

Photo	Part No	Description	Price (each)	Stock
	10282460	GASKET	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	251638	GEARBOX OIL FILTER	$666.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11199277	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182119	GEARBOX OIL FILTER O-RING	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	$6.07	To Order

Photo	Part No	Description	Price (each)	Stock
	222474	COMPL. REAR GEARBOX HOUSING COVER	$359.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	197797	OIL BREATHER	$28.54	To Order

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING	$152.47	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	$4.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10263460	COPPER GASKET D.28-22.3 X 1.5	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	307477	THREADED PLUG	$3.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235533	ELASTIC BUSHING	$1,307.65	To Order

Photo	Part No	Description	Price (each)	Stock
	196888	LOCATOR STUD	$14.94	To Order

Photo	Part No	Description	Price (each)	Stock
	232920	SCREW	$13.55	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	249915	ENGINE BUSHING MOUNTING PLATE	$14.01	To Order

Photo	Part No	Description	Price (each)	Stock
	214259	GEARBOX OIL RADIATOR	$1,207.26	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	221999	OIL DELIVERY PIPE	$234.92	To Order

Photo	Part No	Description	Price (each)	Stock
	221997	OIL RETURN PIPE	$329.64	To Order

Photo	Part No	Description	Price (each)	Stock
	10181911	PIPE UNION	$6.19	To Order

Photo	Part No	Description	Price (each)	Stock
	10261560	GASKET	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	225419	OIL DELIVERY PIPE	$147.81	To Order

Photo	Part No	Description	Price (each)	Stock
	228642	OIL RETURN PIPE	$299.48	To Order

Photo	Part No	Description	Price (each)	Stock
	213934	BRACKET	$22.30	To Order

Photo	Part No	Description	Price (each)	Stock
	193578	BUSHING	$27.39	To Order

Photo	Part No	Description	Price (each)	Stock
	100750	SPRING	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	101612	BALL	$1.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	225333	GASKET	$24.03	To Order

Photo	Part No	Description	Price (each)	Stock
	225335	GASKET	$13.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10441390	BRACKET WITH SHEATH	$0.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11635724	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	897538	SCREW	$1.53	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	227408	GEARBOX HOUSING ASSEMBLY	227408 GEARBOX HOUSING ASSEMBLY	$16,454.04	1
1	227410	4th SECTION OF GEARBOX HOUSING	227410 4th SECTION OF GEARBOX HOUSING Supplied with complete gearbox housing, 227408	-	1	Enquire
2	13543624	STUD BOLT	13543624 STUD BOLT M8 X 16; Shank length 30 mm	$0.43	3
3	13543724	STUD BOLT IN STOCK	13543724 STUD BOLT M8 X 16; Shank length 35 mm IN STOCK	$1.53	5
4	211936	STUD BOLT	211936 STUD BOLT M8 X 65	$9.12	3
4	211937	STUD BOLT	211937 STUD BOLT M8 X 70	$13.50	1
4	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT M8 X 16; Shank length 40 mm IN STOCK	$3.26	1
5	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.71	2
6	13546224	STUD BOLT	13546224 STUD BOLT	$13.55 MSRP: ~~13.81~~ (1.9% off)	12
7	10450690	BRACKET WITH SHEATH	10450690 BRACKET WITH SHEATH	$0.66 MSRP: ~~1.70~~ (61.2% off)	2
8	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	1
9	217788	CONNECTOR	217788 CONNECTOR	$43.49	1
10	10450290	BRACKET WITH SHEATH	10450290 BRACKET WITH SHEATH for D.12 pipe	$3.72	1
10	10450390	BRACKET WITH SHEATH	10450390 BRACKET WITH SHEATH for D.14 pipe	$1.95	1
11	195589	PIPE UNION	195589 PIPE UNION	$19.71	1
12	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	2
13	14453381	O-RING	14453381 O-RING	$1.18 MSRP: ~~2.33~~ (49.4% off)	1
14	291225	P clip Bracket With Sheath IN STOCK	291225 P clip Bracket With Sheath IN STOCK	$4.84	1
15	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.54 MSRP: ~~1.68~~ (67.9% off)	1
16	11057476	SEEGER RING	11057476 SEEGER RING	$0.08	1
17	13543524	STUD BOLT	13543524 STUD BOLT M8 X 16; Shank length 25 mm	$4.15 MSRP: ~~4.35~~ (4.6% off)	1
18	13543624	STUD BOLT	13543624 STUD BOLT M8 X 16; Shank length 30 mm	$0.43	2
19	13543724	STUD BOLT IN STOCK	13543724 STUD BOLT M8 X 16; Shank length 35 mm IN STOCK	$1.53	1
20	189098	COMPLETE RH DIFFERENTIAL COVER	189098 COMPLETE RH DIFFERENTIAL COVER	$720.53	1
20	189100	COMPLETE LH DIFFERENTIAL COVER	189100 COMPLETE LH DIFFERENTIAL COVER	$720.53	1
21	150099	DIFFERENTIAL COVER SHIM	150099 DIFFERENTIAL COVER SHIM Th. 1.3 mm	$106.02	2
21	150100	DIFFERENTIAL COVER SHIM	150100 DIFFERENTIAL COVER SHIM Th. 1.4 mm	$94.05	-
21	150101	DIFFERENTIAL COVER SHIM	150101 DIFFERENTIAL COVER SHIM Th. 1.45 mm	$94.05	-
21	150102	DIFFERENTIAL COVER SHIM	150102 DIFFERENTIAL COVER SHIM Th. 1.5 mm	$94.05	-
21	150103	DIFFERENTIAL COVER SHIM	150103 DIFFERENTIAL COVER SHIM Th. 1.55 mm	$203.31	-
21	150104	DIFFERENTIAL COVER SHIM	150104 DIFFERENTIAL COVER SHIM Th. 1.6 mm	$106.02	-
21	150105	DIFFERENTIAL COVER SHIM	150105 DIFFERENTIAL COVER SHIM Th. 1.65 mm	$101.95	-
21	150106	DIFFERENTIAL COVER SHIM	150106 DIFFERENTIAL COVER SHIM Th. 1.7 mm	$91.43	-
21	150107	DIFFERENTIAL COVER SHIM	150107 DIFFERENTIAL COVER SHIM Th. 1.75 mm	$149.53	-
21	150108	DIFFERENTIAL COVER SHIM	150108 DIFFERENTIAL COVER SHIM Th. 1.8 mm	$94.05	-
21	175378	DIFFERENTIAL COVER SHIM	175378 DIFFERENTIAL COVER SHIM Th. 1.9 mm	$50.28	-
22	14461381	O-RING IN STOCK	14461381 O-RING IN STOCK	$12.26	2
23	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	12
24	12601474	WASHER IN STOCK	12601474 WASHER IN STOCK	$0.03	12
25	181618	RH GASKET IN STOCK	181618 RH GASKET IN STOCK	$52.51 MSRP: ~~71.59~~ (26.7% off)	1
25	181617	LH Rotating Oil Sealing Ring IN STOCK	181617 LH Rotating Oil Sealing Ring IN STOCK	$47.26 MSRP: ~~75.72~~ (37.6% off)	1
26	227196	BRACKET	227196 BRACKET	$39.43	1
27	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.54 MSRP: ~~1.68~~ (67.9% off)	1
28	10441390	BRACKET WITH SHEATH IN STOCK	10441390 BRACKET WITH SHEATH IN STOCK	$0.54	1
29	16183021	SCREW	16183021 SCREW	$0.75	1
30	115376	BUSHING	115376 BUSHING	$19.23 MSRP: ~~55.77~~ (65.5% off)	3
31	150731	CAP	150731 CAP	$3.48 MSRP: ~~3.59~~ (3.1% off)	1
32	10282460	GASKET	10282460 GASKET	$0.84	1
33	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	13
34	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	13
35	251638	GEARBOX OIL FILTER IN STOCK	251638 GEARBOX OIL FILTER IN STOCK	$666.15 MSRP: ~~995.19~~ (33.1% off)	1
36	11199277	WASHER	11199277 WASHER	$0.11	2
37	10977624	SCREW IN STOCK	10977624 SCREW IN STOCK	$0.06	2
38	182119	GEARBOX OIL FILTER O-RING IN STOCK	182119 GEARBOX OIL FILTER O-RING IN STOCK	$2.28 MSRP: ~~3.25~~ (29.8% off)	1
39	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
40	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	$6.07	1
41	222474	COMPL. REAR GEARBOX HOUSING COVER	222474 COMPL. REAR GEARBOX HOUSING COVER	$359.67	1
42	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	14
43	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	14
44	197797	OIL BREATHER	197797 OIL BREATHER	$28.54	1
45	184995	BEARING	184995 BEARING	$152.47	2
46	185723	SEEGER RING IN STOCK	185723 SEEGER RING IN STOCK	$4.11 MSRP: ~~6.80~~ (39.6% off)	2
47	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
48	10263460	COPPER GASKET D.28-22.3 X 1.5 IN STOCK	10263460 COPPER GASKET D.28-22.3 X 1.5 IN STOCK	$0.35 MSRP: ~~1.00~~ (65% off)	1
49	307477	THREADED PLUG IN STOCK	307477 THREADED PLUG IN STOCK	$3.33	1
50	235533	ELASTIC BUSHING	235533 ELASTIC BUSHING	$1,307.65	2
51	196888	LOCATOR STUD	196888 LOCATOR STUD	$14.94	2
52	232920	SCREW	232920 SCREW	$13.55	4
53	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.67 MSRP: ~~1.75~~ (4.6% off)	4
54	12601474	WASHER IN STOCK	12601474 WASHER IN STOCK	$0.03	4
55	249915	ENGINE BUSHING MOUNTING PLATE	249915 ENGINE BUSHING MOUNTING PLATE	$14.01	2
56	214259	GEARBOX OIL RADIATOR	214259 GEARBOX OIL RADIATOR	$1,207.26	1
57	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	3
58	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	3
59	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	3
60	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
61	221999	OIL DELIVERY PIPE	221999 OIL DELIVERY PIPE Radiator side	$234.92	1
62	221997	OIL RETURN PIPE	221997 OIL RETURN PIPE Radiator side	$329.64	1
63	10181911	PIPE UNION	10181911 PIPE UNION	$6.19	2
64	10261560	GASKET IN STOCK	10261560 GASKET IN STOCK	$0.67 MSRP: ~~1.00~~ (33% off)	4
65	225419	OIL DELIVERY PIPE	225419 OIL DELIVERY PIPE Gearbox side	$147.81	1
66	228642	OIL RETURN PIPE	228642 OIL RETURN PIPE Gearbox side	$299.48	1
67	213934	BRACKET	213934 BRACKET	$22.30	1
68	193578	BUSHING	193578 BUSHING	$27.39	1
69	100750	SPRING	100750 SPRING	$1.76	4
70	101612	BALL IN STOCK	101612 BALL IN STOCK	$1.23 MSRP: ~~1.65~~ (25.5% off)	4
71	225333	GASKET	225333 GASKET	$24.03	2
72	225335	GASKET	225335 GASKET	$13.67	2
73	10441390	BRACKET WITH SHEATH IN STOCK	10441390 BRACKET WITH SHEATH IN STOCK	$0.54	1
74	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	3
75	11635724	SCREW	11635724 SCREW	$0.15	1
76	127494	WASHER IN STOCK	127494 WASHER IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	1
77	897538	SCREW	897538 SCREW	$1.53	1
