Ferrari 599 SA Aperta - FUEL SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248957 PUMP CONNECTOR PIPE $230.22 To Order
Photo Part No Description Price (each) Stock
140162 ANCHOR FOR CLIP $0.22 To Order
209864 ANCHOR FOR CLIP $2.79 To Order
140727 CLIP $0.23 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
65758400 ZAGATO SEAL $4.72 To Order
Photo Part No Description Price (each) Stock
224016 RH RIGID UNDERBODY PIPE $137.44 To Order
Photo Part No Description Price (each) Stock
224017 LH RIGID UNDERBODY PIPE $138.97 To Order
Photo Part No Description Price (each) Stock
258848 FRONT FUEL PIPE TO RH INJECTOR RAIL $149.66 To Order
Photo Part No Description Price (each) Stock
258849 FRONT FUEL PIPE TO LH INJECTOR RAIL $153.47 To Order
Photo Part No Description Price (each) Stock
258983 BRACKET $51.14 To Order
Photo Part No Description Price (each) Stock
267264 FRONT RH FUEL PIPE $255.79 To Order
262511 FRONT RH FUEL PIPE $290.16 To Order
Photo Part No Description Price (each) Stock
267265 FRONT LH FUEL PIPE $255.79 To Order
262510 FRONT LH FUEL PIPE $290.16 To Order
Photo Part No Description Price (each) Stock
186950 CLIP $0.11 To Order
Photo Part No Description Price (each) Stock
14441024 SCREW $0.48 IN STOCK
216379 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
210917 SHIM $1.28 To Order
Photo Part No Description Price (each) Stock
186950 CLIP $0.11 To Order
Photo Part No Description Price (each) Stock
14441024 SCREW $0.48 IN STOCK
Photo Part No Description Price (each) Stock
224328 BRACKET $20.44 To Order
View All

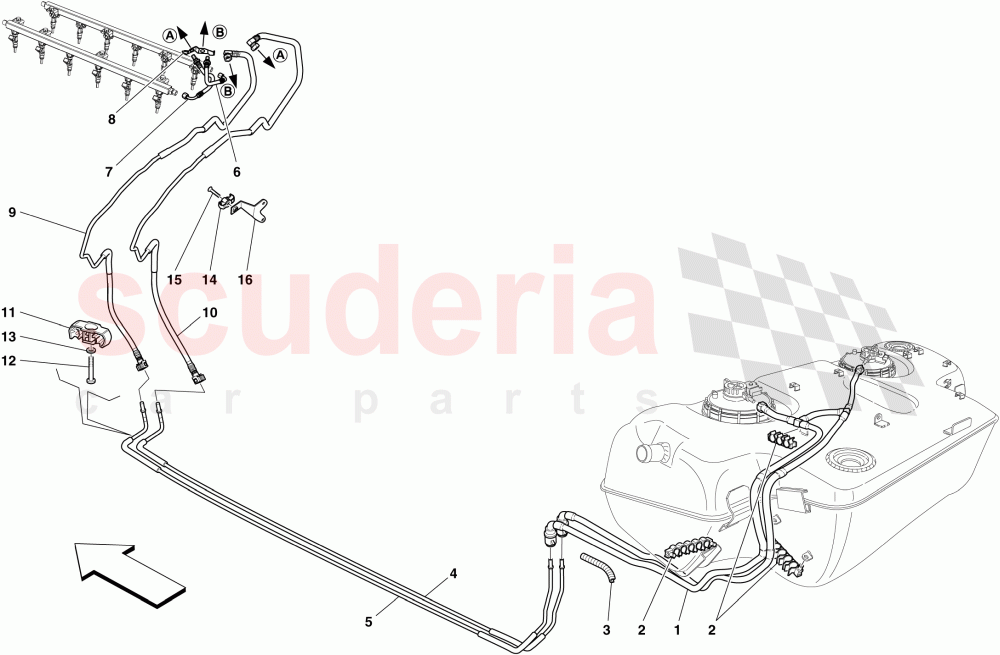

FUEL SYSTEM of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248957
PUMP CONNECTOR PIPE 		$230.22 1
2 140162
ANCHOR FOR CLIP 		$0.22 (76.8% off) 6
2 209864
ANCHOR FOR CLIP 		$2.79 2
2 140727
CLIP
IN STOCK 		$0.23 (69.3% off) 5
2 145543
CLIP
IN STOCK 		$0.19 (74.7% off) 12
3 65758400
ZAGATO SEAL 		$4.72 1
4 224016
RH RIGID UNDERBODY PIPE 		$137.44 1
5 224017
LH RIGID UNDERBODY PIPE 		$138.97 1
6 258848
FRONT FUEL PIPE TO RH INJECTOR RAIL 		$149.66 1
7 258849
FRONT FUEL PIPE TO LH INJECTOR RAIL 		$153.47 1
8 258983
BRACKET 		$51.14 1
9 267264
FRONT RH FUEL PIPE
Not for GD 		$255.79 1
9 262511
FRONT RH FUEL PIPE
Applicable for GD 		$290.16 1
10 267265
FRONT LH FUEL PIPE
Not for GD 		$255.79 1
10 262510
FRONT LH FUEL PIPE
Applicable for GD 		$290.16 1
11 186950
CLIP 		$0.11 4
12 14441024
SCREW
M5 X 30
IN STOCK 		$0.48 2
12 216379
SCREW
M5 X 40 		$0.83 2
13 210917
SHIM 		$1.28 2
14 186950
CLIP 		$0.11 1
15 14441024
SCREW
M5 X 30
IN STOCK 		$0.48 1
16 224328
BRACKET 		$20.44 1
