Luggage Compartment Lid And Fuel Filler Flap

Ferrari 599 SA Aperta

Find Your Part

Ferrari 599 SA Aperta - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
83543000 COMPLETE RH HINGE $627.84 To Order
83543100 COMPLETE LH HINGE $627.84 To Order
Photo Part No Description Price (each) Stock
14066017 NUT $2.42 To Order
Photo Part No Description Price (each) Stock
12646704 WASHER $0.11 To Order
Photo Part No Description Price (each) Stock
67625300 RUBBER PAD $3.04 To Order
Photo Part No Description Price (each) Stock
83648700 GAS STRUT $311.39 To Order
Photo Part No Description Price (each) Stock
83119411 LUGGAGE COMPARTMENT LID $9,135.68 To Order
Photo Part No Description Price (each) Stock
69242700 STRIKER PLATE $89.13 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW M10 X 1.25 X 45 $0.14 IN STOCK
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
12601277 WASHER $0.05 To Order
Photo Part No Description Price (each) Stock
69367900 Luggage Compartment Lid Lock $164.89 IN STOCK
Photo Part No Description Price (each) Stock
16132314 SCREW $0.23 To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67094700 REAR LIGHT UNIT $23.84 To Order
84163800 LIGHT UNIT $38.90 To Order
Photo Part No Description Price (each) Stock
81805000 VIBRATION DAMPER BLOCK Enquire To Order
Photo Part No Description Price (each) Stock
186180 REAR LICENSE PLATE LIGHT $68.64 IN STOCK
Photo Part No Description Price (each) Stock
15644175 SCREW TBIC 4.2X16 $0.71 IN STOCK
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
69714600 LID SAFETY CABLE $85.44 To Order
Photo Part No Description Price (each) Stock
69714700 BRACKET $188.34 To Order
Photo Part No Description Price (each) Stock
67489500 ACTUATOR COMPLETE WITH BRACKET $238.57 To Order
Photo Part No Description Price (each) Stock
14054077 NUT $0.51 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67131911 FUEL FILLER FLAP COVER $514.83 To Order
Photo Part No Description Price (each) Stock
67934900 FUEL FILLER FLAP HINGE $452.04 To Order
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.95 IN STOCK
Photo Part No Description Price (each) Stock
12601174 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
66057300 FUEL FILLER FLAP ROD $19.47 To Order
Photo Part No Description Price (each) Stock
11673111 NUT $0.23 To Order
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 IN STOCK
Photo Part No Description Price (each) Stock
382500554 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
153069 SWITCH $6.60 To Order
Photo Part No Description Price (each) Stock
15916977 SCREW $0.92 IN STOCK
Photo Part No Description Price (each) Stock
69242600 SHIM $10.89 To Order
Photo Part No Description Price (each) Stock
83335200 LID SEAL $828.75 To Order
View All

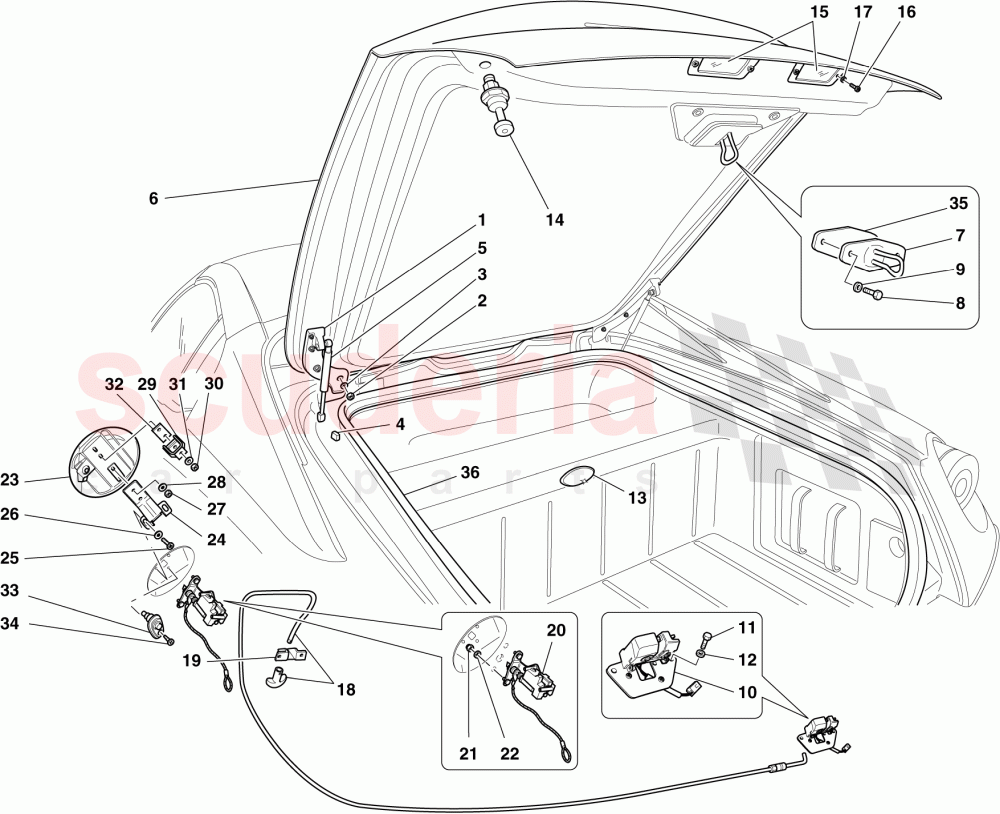

LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 83543000
COMPLETE RH HINGE 		$627.84 1
1 83543100
COMPLETE LH HINGE 		$627.84 1
2 14066017
NUT 		$2.42 6
3 12646704
WASHER 		$0.11 6
4 67625300
RUBBER PAD 		$3.04 1
5 83648700
GAS STRUT 		$311.39 (34.3% off) 2
6 83119411
LUGGAGE COMPARTMENT LID 		$9,135.68 1
7 69242700
STRIKER PLATE 		$89.13 1
8 10902524
SCREW M10 X 1.25 X 45
IN STOCK 		$0.14 2
9 860172
WASHER 		- 2 Enquire
9 12601277
WASHER 		$0.05 2
10 69367900
Luggage Compartment Lid Lock
IN STOCK 		$164.89 (8.1% off) 1
11 16132314
SCREW 		$0.23 2
12 860172
WASHER 		- 2 Enquire
13 67094700
REAR LIGHT UNIT 		$23.84 1
13 84163800
LIGHT UNIT
With chrome bezel 		$38.90 (28.9% off) 1
14 81805000
VIBRATION DAMPER BLOCK 		- 2 Enquire
15 186180
REAR LICENSE PLATE LIGHT
IN STOCK 		$68.64 (20.8% off) 2
16 15644175
SCREW TBIC 4.2X16
IN STOCK 		$0.71 4
17 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 4
18 69714600
LID SAFETY CABLE 		$85.44 1
19 69714700
BRACKET 		$188.34 1
20 67489500
ACTUATOR COMPLETE WITH BRACKET 		$238.57 1
21 14054077
NUT 		$0.51 2
22 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
23 67131911
FUEL FILLER FLAP COVER 		$514.83 1
24 67934900
FUEL FILLER FLAP HINGE 		$452.04 1
25 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.95 (34.5% off) 2
26 12601174
WASHER 		$0.06 (82.9% off) 2
27 11673111
NUT 		$0.23 2
28 62769800
WASHER D.5-14 X 2.5
Carbon version
IN STOCK 		$0.21 (30% off) 2
29 66057300
FUEL FILLER FLAP ROD 		$19.47 1
30 11673111
NUT 		$0.23 2
31 62769800
WASHER D.5-14 X 2.5
Carbon version
IN STOCK 		$0.21 (30% off) 2
32 382500554
SHIM 		- 2 Enquire
33 153069
SWITCH 		$6.60 (17.5% off) 1
34 15916977
SCREW
IN STOCK 		$0.92 1
35 69242600
SHIM 		$10.89 5
36 83335200
LID SEAL 		$828.75 1
