Secondary Air System

Ferrari 599 SA Aperta

Find Your Part

Ferrari 599 SA Aperta - SECONDARY AIR SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247795 SECONDARY AIR SYSTEM PUMP $744.86 To Order
Photo Part No Description Price (each) Stock
252895 BRACKET $134.36 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
252008 RUBBER PIPE $38.83 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
223006 CENTRAL PIPE $328.80 To Order
Photo Part No Description Price (each) Stock
212872 RH SECONDARY AIR PIPE $48.30 To Order
Photo Part No Description Price (each) Stock
212874 LH SECONDARY AIR PIPE $181.17 To Order
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $9.99 To Order
169456 R.H. PIPE VALVE TUBE $4.42 To Order
Photo Part No Description Price (each) Stock
213165 SLEEVE $644.95 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
171175 SECONDARY AIR VALVE $317.05 IN STOCK
Photo Part No Description Price (each) Stock
186781 GASKET $4.94 ARRIVING SOON
Photo Part No Description Price (each) Stock
256598 PIPE FROM AIR VALVE TO RH HEAD $303.50 To Order
256596 PIPE FROM AIR VALVE TO LH HEAD $290.85 To Order
Photo Part No Description Price (each) Stock
258254 RH VALVE FASTENER BRACKET $12.00 To Order
258252 LH VALVE FASTENER BRACKET $12.00 To Order
Photo Part No Description Price (each) Stock
202980 GASKET $2.91 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.56 IN STOCK
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $9.99 To Order
169456 R.H. PIPE VALVE TUBE $4.42 To Order
Photo Part No Description Price (each) Stock
257691 3-WAY CONNECTOR $1.34 To Order
Photo Part No Description Price (each) Stock
225102 RUBBER PIPE $18.10 To Order
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.85 IN STOCK
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
124790 RUBBER PIPE $6.95 To Order
Photo Part No Description Price (each) Stock
220374 VACUUM ACCUMULATOR TANK $83.03 To Order
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
263936 RH VACUUM PIPE $79.66 To Order
Photo Part No Description Price (each) Stock
263937 LH VACUUM PIPE $79.66 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
174818 CONNECTOR $16.43 To Order
Photo Part No Description Price (each) Stock
225466 RUBBER PIPE $65.75 To Order
Photo Part No Description Price (each) Stock
13432270 HOSE COLLAR $0.84 To Order
Photo Part No Description Price (each) Stock
226523 UNDERBODY PIPE $80.01 To Order
Photo Part No Description Price (each) Stock
172842 BRACKET WITH SHEATH $8.07 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
224771 RUBBER PIPE $39.18 To Order
Photo Part No Description Price (each) Stock
224761 PIPE FROM TANK TO REAR $45.51 To Order
Photo Part No Description Price (each) Stock
220751 RUBBER PIPE $61.89 To Order
Photo Part No Description Price (each) Stock
11566227 SCREW $1.13 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
122126 RUBBER PIPE $9.99 To Order
Photo Part No Description Price (each) Stock
220512 CENTRAL REAR PIPE $101.14 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
220641 RUBBER PIPE $70.95 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.96 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
220066 BRACKET $143.42 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
264020 SPACER ASSEMBLY $64.48 To Order
Photo Part No Description Price (each) Stock
260007 STUD BOLT $9.23 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.82 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
View All

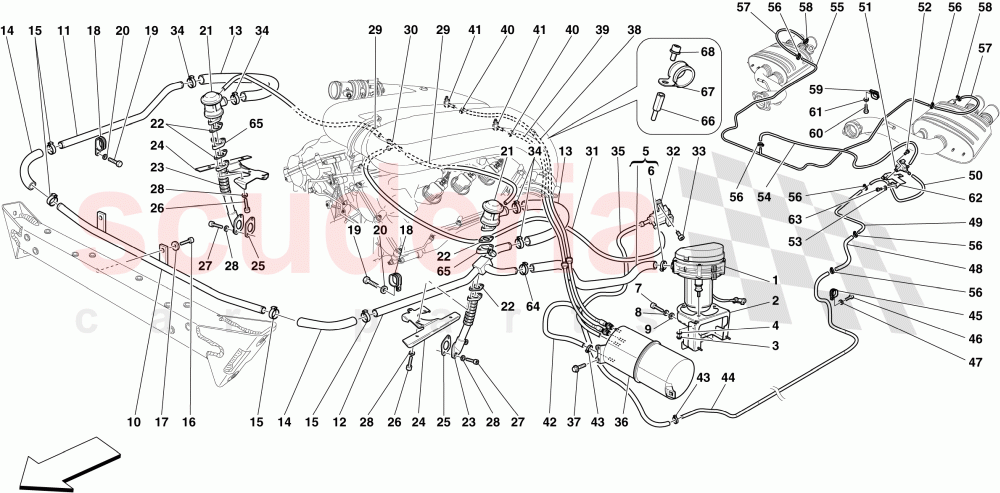

SECONDARY AIR SYSTEM of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247795
SECONDARY AIR SYSTEM PUMP 		$744.86 (29.3% off) 1
2 252895
BRACKET 		$134.36 1
3 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
4 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
5 252008
RUBBER PIPE 		$38.83 1
6 262111
SCREW CLAMP 		$1.39 1
7 86574700
SCREW 		$0.61 2
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
10 223006
CENTRAL PIPE 		$328.80 1
11 212872
RH SECONDARY AIR PIPE 		$48.30 1
12 212874
LH SECONDARY AIR PIPE 		$181.17 1
13 122126
RUBBER PIPE
From RH three-way valve 		$9.99 1
13 169456
R.H. PIPE VALVE TUBE
From LH three-way valve 		$4.42 1
14 213165
SLEEVE 		$644.95 2
15 262111
SCREW CLAMP 		$1.39 4
16 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 2
17 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
18 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 4
19 86574700
SCREW 		$0.61 4
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
21 171175
SECONDARY AIR VALVE
IN STOCK 		$317.05 2
22 186781
GASKET
ARRIVING SOON 		$4.94 (22.2% off) 4
23 256598
PIPE FROM AIR VALVE TO RH HEAD 		$303.50 1
23 256596
PIPE FROM AIR VALVE TO LH HEAD 		$290.85 1
24 258254
RH VALVE FASTENER BRACKET 		$12.00 1
24 258252
LH VALVE FASTENER BRACKET 		$12.00 1
25 202980
GASKET
IN STOCK 		$2.91 (22.2% off) 2
26 231625
SCREW
IN STOCK 		$0.56 4
27 231625
SCREW
M6 X 40
IN STOCK 		$0.56 2
27 231619
SCREW
M6 X 20
IN STOCK 		$0.29 2
28 11197774
WASHER
IN STOCK 		$0.06 (80% off) 8
29 122126
RUBBER PIPE
From RH three-way valve 		$9.99 1
29 169456
R.H. PIPE VALVE TUBE
From LH three-way valve 		$4.42 1
30 257691
3-WAY CONNECTOR 		$1.34 1
31 225102
RUBBER PIPE 		$18.10 1
33 14304124
SCREW 		$0.14 (81.3% off) 2
34 13433370
Screw Collar
Applicable until depletion
IN STOCK 		$0.85 4
34 262111
SCREW CLAMP
Applicable after depletion of 13432908 		$1.39 4
35 124790
RUBBER PIPE 		$6.95 1
36 220374
VACUUM ACCUMULATOR TANK 		$83.03 1
37 86574700
SCREW 		$0.61 3
38 263936
RH VACUUM PIPE 		$79.66 1
39 263937
LH VACUUM PIPE 		$79.66 1
40 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 2
41 174818
CONNECTOR
Zn/white 		$16.43 2
42 225466
RUBBER PIPE 		$65.75 1
43 13432270
HOSE COLLAR 		$0.84 2
44 226523
UNDERBODY PIPE 		$80.01 1
45 172842
BRACKET WITH SHEATH 		$8.07 1
46 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 1
47 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
48 224771
RUBBER PIPE 		$39.18 1
49 224761
PIPE FROM TANK TO REAR 		$45.51 1
50 220751
RUBBER PIPE 		$61.89 (67.1% off) 1
52 11566227
SCREW
IN STOCK 		$1.13 2
53 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
54 122126
RUBBER PIPE 		$9.99 1
55 220512
CENTRAL REAR PIPE 		$101.14 1
56 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 6
57 220641
RUBBER PIPE 		$70.95 2
58 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.96 2
59 10441290
BRACKET WITH SHEATH
IN STOCK 		$0.53 (68.5% off) 4
60 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 4
61 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
62 220066
BRACKET 		$143.42 1
63 16296934
SCREW 6 X 14MM
IN STOCK 		$0.41 2
64 262111
SCREW CLAMP 		$1.39 1
65 264020
SPACER ASSEMBLY 		$64.48 2
66 260007
STUD BOLT 		$9.23 1
67 291225
P clip Bracket With Sheath
IN STOCK 		$4.82 1
68 248334
SCREW
IN STOCK 		$0.58 1
